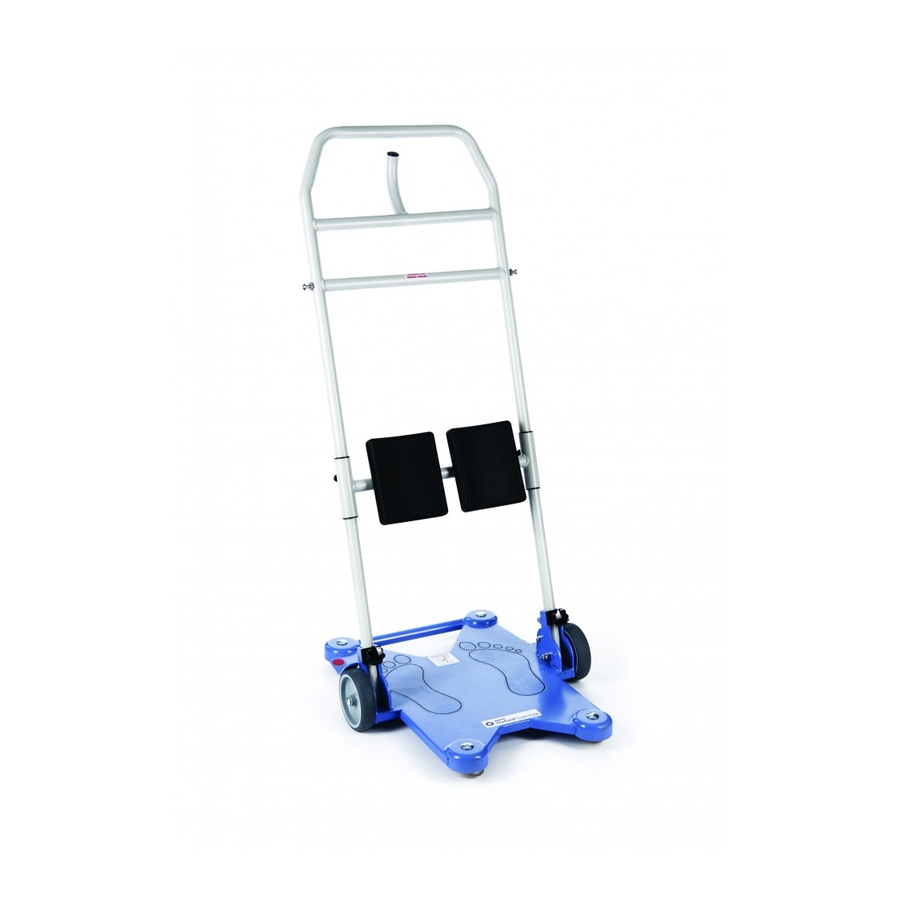

User Instruction Manual
Oxford
Switch
®
To avoid injury, read user manual prior to use.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Oxford Switch and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Joerns Oxford Switch

Summary of Contents for Joerns Oxford Switch

  • Page 1 User Instruction Manual Oxford Switch ® To avoid injury, read user manual prior to use.

  • Page 2: Table Of Contents

    Oxford ® English Switch Contents Introduction ........................3 Assembly & Commissioning Instructions ................4 Safety Precautions ......................5 Operating Instructions ....................... 7 Maintenance Schedule & Daily Check List ..............13 Technical Specifications ....................15 Warranty .......................... 16...

  • Page 3: Introduction

    • Medical Device Directive MDR 2017/745 Statement of Intended Use The intended use of the Oxford Switch is to help an individual with limited mobility to stand (with assistance) from a seated position and to enable their transfer from one resting surface to another, such as a bed to a chair.

  • Page 4: Assembly & Commissioning Instructions

    Oxford ® English Switch 2. Assembly & Commissioning Assembly Place the carton in a clear working area and open carefully. The carton contains: • Base • Frame • Frame retaining knobs • Spare/replacement brake decals • User Guide (This booklet) Frame Correctly locate the frame into the mounting supports on the base, ensuring the knee pad height-adjustment quick release pins...

  • Page 5: Safety Precautions

    Oxford ® English Switch 3. Safety Precautions Please read and follow the safety precautions listed below. The operation and use of Oxford products is simple and straightforward. Following these few basic safety precautions will make transfer operations easy and trouble free. WARNING •...
  • Page 6 • DO NOT bump the device down steps, loaded or unloaded. • DO NOT attempt to negotiate a loaded device on a slope which exceeds 1:12 (approximately 5 degrees). Joerns Healthcare recommend a second helper is present when moving a patient on a slope.

  • Page 7: Operating Instructions

    Oxford ® English Switch 4. Operating Instructions 1. Patient Positioning The patient’s feet are placed on the footplate taking positioning guidance from the feet decals. The patient’s weight must be loaded centrally on the footplate with weight distribution applied downwards through the central wheels. WARNING The user’s weight MUST NOT be distributed outside of the support surface.
  • Page 8 Oxford ® English Switch 3. Brakes There is a brake for each central wheel. To apply the brakes, press down with your foot on the red marked surface of each pedal. Press down firmly until the brake pedal engages and holds in position.
  • Page 9 Oxford ® English Switch 6. Transfer Function For point-to-point transfers, firstly ensure both the existing and target transfer surface, e.g. chair, wheelchair, commode or bed, are secure and stable, applying brakes where applicable. For very short transfers, e.g. to a wheelchair, position the equipment in a way that allows sufficient space to operate the Switch in advance of beginning any transfer activity.
  • Page 10 Oxford ® English Switch 7. Repositioning Function (Seated) WARNING The caregiver(s) must ALWAYS apply supportive and counter force in a safe manner when the user is standing up, sitting down and during transfer. Failure to do this may result in inadvertent tipping and consequential injury to the patient and/or caregiver. If the patient has slipped forwards in their chair or has slouched into a compromised and/or uncomfortable position, the Switch can be deployed to help reposition him/her further back in the chair and achieve a more upright and comfortable position.
  • Page 11 Oxford ® English Switch Using the Oxford Patient Handling Belt NOTE: For initial and correct application, please refer to the separate user guide supplied with the Patient Handling Belt. WARNING The caregiver(s) must ALWAYS apply supportive and counter force in a safe manner when the user is standing up, sitting down and during transfer.
  • Page 12 Oxford ® English Switch Single Carer Use: Having fitted the Patient Handling Belt to the patient (see separate user guide), secure the clip attachment on the long strap to create an extended loop to assist with raising/standing. Apply both brakes on the Switch to ensure a stable and secure platform. Place the patient’s feet on the base plate, using the feet decals as a positioning guide.
  • Page 13 Oxford ® English Switch Returning to a Seated Position: Position the Switch suitably in front of the target surface and apply the brakes. Ensure the patient is standing comfortably and securely, keeping their hands on the frame for assistance/balance. Release the clip on the Patient Handling Belt strap and un-hook from the curved vertical hook. Tuck it away to the side of the belt to avoid any inadvertent snagging.

  • Page 14: Maintenance Schedule & Daily Check List

    Switch. WARNING NEVER use an Oxford Switch that shows signs of damage that could endanger or compromise the safety of the patient and/or carer. Instead, seek assistance from the organisation who supplied your product or contact Joerns Healthcare directly.
  • Page 15 Spare Parts and Repairs: WARNING JOERNS HEALTHCARE RECOMMENDS THE USE OF GENUINE OXFORD PARTS. Please contact your local authorised Oxford service provider to arrange replacement parts and repairs. If you are unsure of the organisation you need to contact, our customer service team will be more than happy to assist you.

  • Page 16: Technical Specifications

    Oxford ® English Switch 6. Technical Specifications Safe Working Load ......................180kgs Overall Width ........................ 550mm Overall Height ......................1170mm Overall Length ......................670mm Knee Pad Height (To top of knee pad) ...............345 - 515mm Turning Radius ......................760mm Overall Height Of Base (Footplate) ................45mm Ground Clearance ......................

  • Page 17: Warranty

    If you are in any doubt as to where your product was purchased, Joerns Healthcare can trace the supplier if you quote the serial number of the product.
  • Page 20 Joerns Healthcare Limited Drakes Broughton Business Park, Worcester Road, Drakes Broughton Pershore, Worcestershire, WR10 2AG United Kingdom (T) 0844 811 1156 • (F) 0844 811 1157 www.joerns.co.uk • email: info@joerns.co.uk © 2018, Joerns Healthcare • 6110388 Rev A • DCO18-0050...
