PocketWizard MiniTT1 Quick Manual

For nikon
Hide thumbs Also See for MiniTT1:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Manual

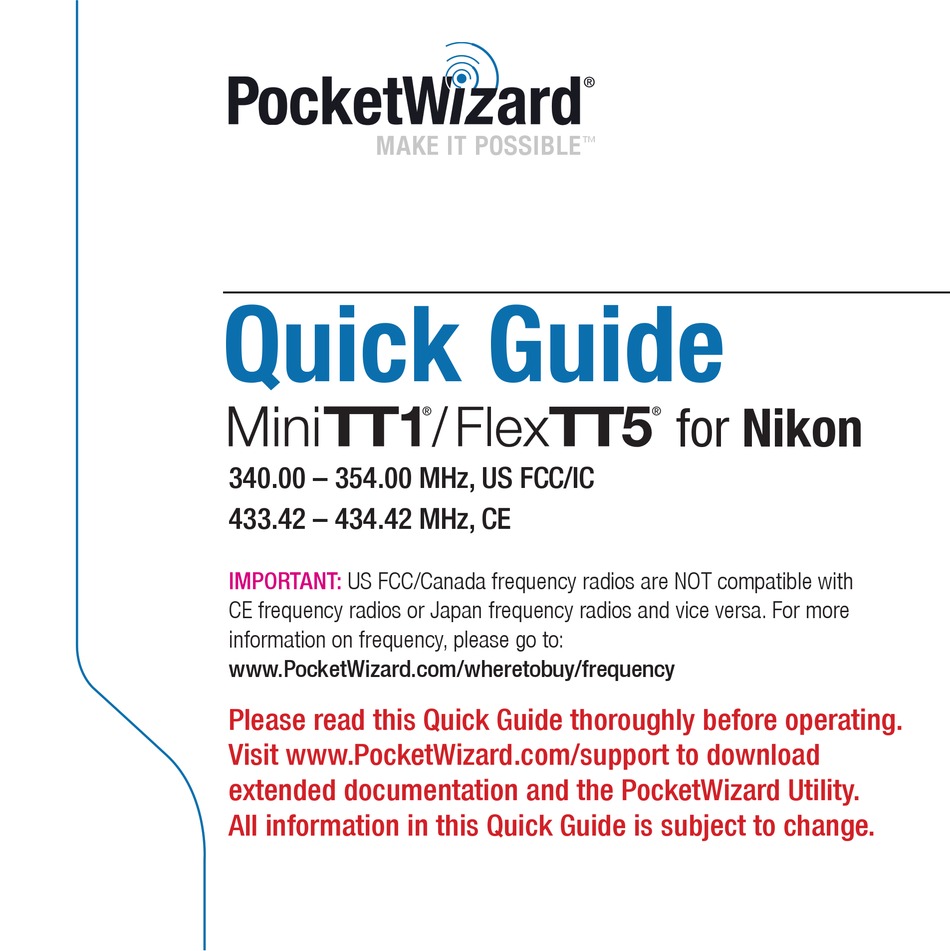

a
MAKE IT POSSIBLE
™

Quick Guide

for Nikon
340.00 – 354.00 MHz, US FCC/IC
433.42 – 434.42 MHz, CE
IMPORTANT:
US FCC/Canada frequency radios are NOT compatible with
CE frequency radios or Japan frequency radios and vice versa. For more
information on frequency, please go to:
www.PocketWizard.com/wheretobuy/frequency
Please read this Quick Guide thoroughly before operating.
Visit www.PocketWizard.com/support to download
extended documentation and the PocketWizard Utility.
All information in this Quick Guide is subject to change.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MiniTT1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PocketWizard MiniTT1

Summary of Contents for PocketWizard MiniTT1

  • Page 1: Quick Guide

    CE frequency radios or Japan frequency radios and vice versa. For more information on frequency, please go to: www.PocketWizard.com/wheretobuy/frequency Please read this Quick Guide thoroughly before operating. Visit www.PocketWizard.com/support to download extended documentation and the PocketWizard Utility. All information in this Quick Guide is subject to change.

  • Page 2: Read Me First

    Mini-USB Connector (on side) Nikon-style Hot Shoe TEST/LEARN Button Status LED Locking Ring READ ME FIRST: This PocketWizard radio runs on powerful Power on any connected equipment from software called ControlTL (Control The the top down: Flash, then radio, then camera. ®...
  • Page 3 Status LED PocketWizard recommends powering your You may use a FlexTT5 as a transmitter Speedlights with high-capacity rechargeable instead of a MiniTT1 in all scenarios. batteries. If operation is not optimal, check Make sure all PocketWizard radios are Speedlight batteries first.

  • Page 4: No Flash On Camera

    Speedlights will be treated as one zone of light. 3. Make sure all your PocketWizard radios are on the same channel and take pictures normally. This mode is like using the SU-800 in TTL Commander mode, or the SB-800 or SB-900 as MASTER in Advanced Wireless Lighting TTL Mode with master flash cancelled and remote group A selected as TTL with 0.0 FEC.
  • Page 5 Speedlights on same FlexTT5 group/zone will be treated as one zone of light. 5. Adjust flash output level compensation using MASTER Speedlight flash controls. 6. Make sure all your PocketWizard radios are on the same channel and take pictures normally. IMPORTANT: Nikon Speedlights set to REMOTE = ON and connected to remote FlexTT5 radios will not function properly as remotes.

  • Page 6: Manual Flash

    1. Slide MiniTT1 Transmitter onto camera. 2. If desired, slide Nikon i-TTL Speedlight onto MiniTT1 radio. 3. Make sure all your PocketWizard radios are on the same channel and take pictures normally. Note: Manual remote flashes are not calculated as part of the i-TTL exposure.

  • Page 7: Learn Mode

    Hold radios at least 2 feet apart when teaching/learning. 1. Turn MiniTT1 or FlexTT5 radio ON and select channel to be taught: C.1 or C.2. 2. Press and hold TEST for several seconds until LED blinks amber, then release TEST.

  • Page 8: Other Functions

    For Auto-relay with remote i-TTL Speedlights triggered by the remote camera, an -ACC cable is required. For Auto-Relay with manual flashes, engage Basic Trigger Mode in the PocketWizard Utility - any PocketWizard motor drive cable can be used. Status LED Normal “waiting for trigger”...

  • Page 9: Factory Defaults

    10 seconds. When LED blinks 4 times, release. All settings may be configured using the PocketWizard Utility available from • www.PocketWizard.com See the online extended documentation or the help text in the Utility for detailed descriptions of these settings. Factory defaults Channel C.1 = ControlTL channel 1, Standard channel 1...
  • Page 10 Exposure Speedlight Flash Control = Normal i-TTL Non-TTL Flash Control = Auto ISO and Aperture Tracking Non-TTL Exposure Compensation Value (f-stops) = -3.0 Sync Timing HyperSync Offset = -170 microseconds High Speed Sync (FP Flash Sync) Disable Mode = not enabled High Speed Sync (FP Flash Sync) Begins At = 1/400 Flash Remote Beeper = No Change On Wakeup...

  • Page 11: Specifications

    Speedlights. Visit PocketWizard.com for compatibility information specific to your cameras and Speedlights. Some features may not be available or may be implemented via firmware updates to your MiniTT1 and FlexTT5. i-TTL for DSLRs only (not for D-TTL or film TTL).

  • Page 12: Warranty

    © 2010 LPA Design, Inc. All rights reserved. Product features and specifications are subject to change without notice. PocketWizard, ControlTL, MiniTT1, FlexTT5, PowerST4, AC3, AC9, HyperSync, Plus II and MultiMAX are either trademarks or registered trademarks of LPA Design, Inc. All other trademarks contained herein are the property of their respective owners.
