MAKE IT POSSIBLE

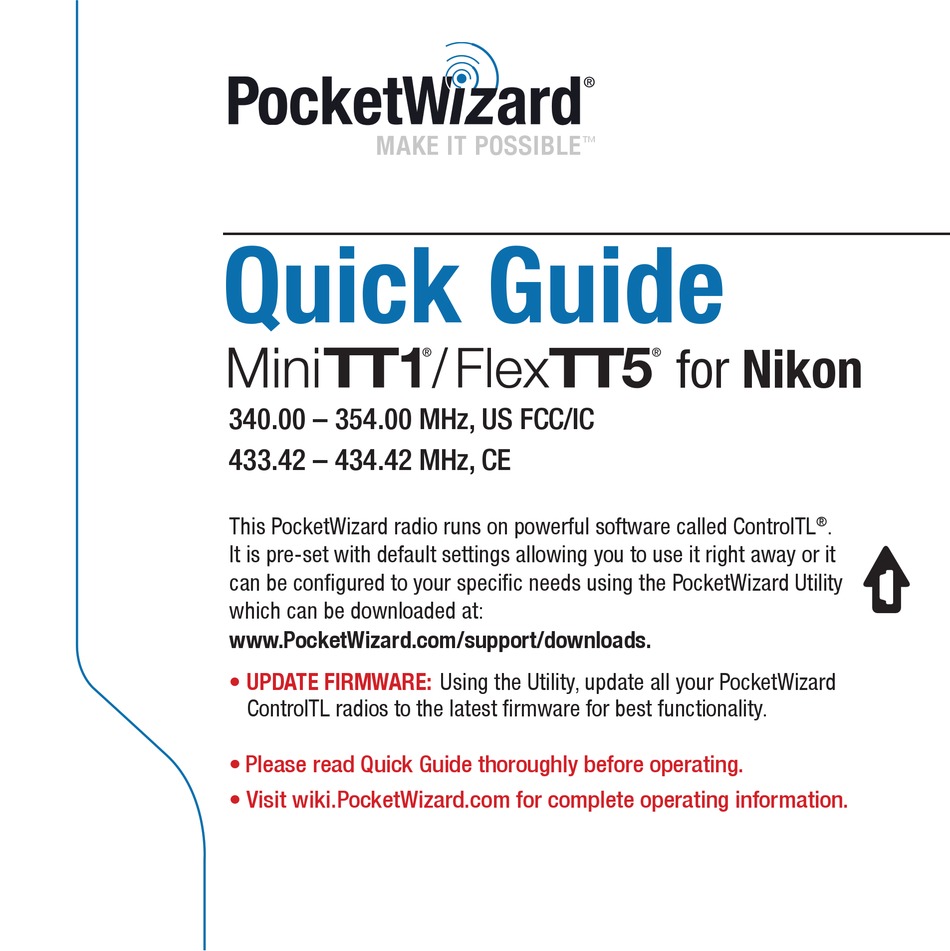

Quick Guide
340.00 – 354.00 MHz, US FCC/IC
433.42 – 434.42 MHz, CE
This PocketWizard radio runs on powerful software called ControlTL
It is pre-set with default settings allowing you to use it right away or it
can be configured to your specific needs using the PocketWizard Utility
which can be downloaded at:
www.PocketWizard.com/support/downloads.
• UPDATE FIRMWARE:
ControlTL radios to the latest firmware for best functionality.
• Please read Quick Guide thoroughly before operating.
• Visit wiki.PocketWizard.com for complete operating information.
™
Using the Utility, update all your PocketWizard
for Nikon
.
®
a
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PocketWizard Mini TT1
Summary of Contents for PocketWizard Mini TT1
-
Page 1: Quick Guide
This PocketWizard radio runs on powerful software called ControlTL ® It is pre-set with default settings allowing you to use it right away or it can be configured to your specific needs using the PocketWizard Utility which can be downloaded at: www.PocketWizard.com/support/downloads. -
Page 2: Read Me First
Transmitter Internal Antenna Battery Compartment (on bottom) Configuration/Channel 1 Configuration/Channel 2 Power Off Mini-USB Connector (on side) TEST/LEARN Button Nikon-style Hot Shoe Status LED Locking Ring READ ME FIRST: • All equipment should be turned OFF when connecting. • Power on from the top down: flash, then radio, then camera. •... - Page 3 Transceiver Lanyard Loop Mini-USB Connector (behind antenna) (Lanyard not included) Adjustable Antenna Batteries 2 AA [IEC:LR6] Zone Switch 1/4-20 Mount (on bottom) Configuration/Channel 1 Configuration/Channel 2 Power Off Nikon-style Hot Shoe TEST/LEARN Button Remote Flash Triggering Port (P2) Locking Ring Remote Camera Triggering Port (P1) Status LED •...
-
Page 4: Getting Started
See Nikon Manual. • Exposure Delay Mode • On-camera flash must • Repeater / RPT Mode be set to MASTER to • Flash control using the camera’s menus trigger or control remote For more operational information, please go to: flashes. wiki.PocketWizard.com... -
Page 5: No Flash On Camera
(not REMOTE or MASTER). Repeat for each remote Speedlight. All remote i-TTL Speedlights will be treated as one zone of light. Note: You need a receiving FlexTT5 for each remote Speedlight. 3. Make sure all your PocketWizard radios are on the same channel and take pictures ®... -
Page 6: Flash On Camera
Nikon Speedlights positioned on remote FlexTT5 radios to REMOTE = ON. This will cause improper operation. Always use Zone Switch (A, B, C) on remote FlexTT5 to set group / zone. PocketWizard channel is used instead of Nikon channel. ISO, aperture, flash exposure compensation (FEC), and other settings will work with exposure normally via the PocketWizard ControlTL system. -
Page 7: Manual Flash
® 4. Make sure all your PocketWizard radios are on the same channel and take pictures normally. Note: Manual remote flashes are not calculated as part of the i-TTL exposure. For proper exposure, adjust your camera’s exposure settings, or adjust the power level directly on your remote flash. -
Page 8: Other Functions
Power off the unit, reset all connections, and power back on. RESET RESET A / CHANNEL RESET: To reset to channels programmed in the PocketWizard Utility, hold TEST on power up. green LED blinks twice to indicate reset. Release TEST. Advanced features set via PocketWizard Utility will be retained. -
Page 9: Auto-Relay Mode
PocketWizard Utility. This feature can be used if you want to share Speedlights with another photographer, or if you find that someone is on your channel and you want to switch to a different channel. - Page 10 Note: These flashes can be used if they are set to Manual on the Speedlight. PocketWizard Wiki – http://wiki.PocketWizard.com The PocketWizard Wiki on-line instruction manual includes images, how-to videos and clear explanations of all PocketWizard products. As new MiniTT1 and FlexTT5 features and...
-
Page 11: Specifications
Specifications Specifications Trigger Delay: 0 seconds – “faster than a wire” when using compatible Nikon cameras. Note: Approximately 900 microseconds delay if using Basic Trigger Mode. Batteries: FlexTT5 - 2 x AA (IEC:LR6) (60 hours) ® MiniTT1 - CR2450 or CR2354: ®... -
Page 12: Warranty
© 2011 LPA Design. All rights reserved. Product features and specifications are subject to change without notice. PocketWizard, ControlTL, MiniTT1, FlexTT5, PowerST4, AC3, AC9, HyperSync, Plus II and MultiMAX are either trademarks or registered trademarks of LPA Design. All other trademarks contained herein are the property of their respective owners.
