- Page 1 Order Number : GETEC-C1-16-468 FCC Part 15 subpart C 1 / 1 Test Report Number : GETEC-E3-16-062 Page APPENDIX H : USER’S MANUAL EUT Type: RF Remote Controller FCC ID.: OZ5URCHSR200...
- Page 2 HS-R200 Owner’s Manual Universal Remote Control, Inc. www.UniversalRemote.com...
-
Page 3: Online Help
R200 Owner’s Manual Welcome! Welcome to the world of HomeSet control and automation. Thank you for your purchase. Before operating the unit, please read this manual thoroughly, observe all safety precautions, and retain it for your future use. Online Help: http://www.homesethome.com/support-manuals/#manuals For downloads and frequently asked questions. -
Page 4: Safety Precautions

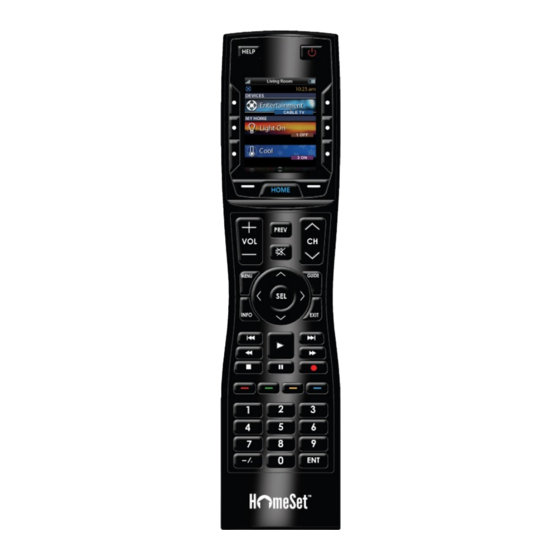

Safety Precautions HomeSet R200 Owner’s Manual Safety Precautions © 2016 Universal Remote Control, Inc. All rights reserved. The For your safety, do not attempt to disassemble the R200 Remote information in this manual is copyright protected. No part of this Control. - Page 5 R200 Owner’s Manual Introduction Your HomeSet R200 Remote Control works with the HomeSet C200 Control Hub for easy, handheld control, and automation of electronic components in your home (audio/video and home entertainment devices such as lights, thermostats, security systems, and more) to make life more enjoyable. The R200 is a wireless remote that is installed as part of a HomeSet system by your smart home professional.
- Page 6 R200 Owner’s Manual R200 Remote Control By using the R200, you gain two-way control of you connected devices. “Two-way” means that in addition to data being sent to an electronic component (such as a Nest Thermostat), data I also returned to your remote so you can see graphical information of current status, including the current temperature in the home and more.
-
Page 7: Features And Benefits
Audio/Video (A/V) systems and smart home devices. ● Control Smart Home Products with Ease HomeSet R200 provides an elegant way to control entertainment products plus smart home devices in and around your home. For example, you can check on the kids in the backyard and turn on outside lights at dusk from your remote. - Page 8 R200 Owner’s Manual What’s Included in the Box The following are the parts and pieces of the R200 remote: 1. R200 Remote Control 2. AC Power Adapter 3. Rechargeable Lithium Polymer Battery...
-
Page 9: Before Getting Started
Keep in mind the following: ● Designed for use on your local wireless network The HomeSet R200 Remote Control is designed for use on your wireless network similar to how your phone, tablets, or computers work. Used in conjunction with a HomeSet C200 Base Station, the R200 can also control your home’s A/V... - Page 10 R200 Owner’s Manual Notice To Get Started Installing ● Inserting the Lithium Polymer Battery Press the spring lock down to unlock and remove the battery cover. A battery is included in the box. Place the battery into the battery compartment, making sure to align the contacts on the battery to the contacts on the R200.
- Page 11 R200 Owner’s Manual Setup and Using the R200 The R200 Remote’s Home Menu pages have buttons that allow you to navigate menus to perform setup of HomeSet and the R200 Remote. While this section goes into the Professional Installer’s setup, many of the same buttons are used for daily operation.
- Page 12 R200 Owner’s Manual Displaying the Settings Screen Enter the Settings menu by pressing and holding the Home Enter (ENT) buttons for three seconds. Use the Down navigation buttons to navigate between the Settings Items. To select, press Up and Down the button on the side of the LCD screen or the Select button when a line navigation item is highlighted.
- Page 13 R200 Owner’s Manual The screen displays network information about your R200 and the After connecting the HomeSet C200 Control Hub to the local wireless network where it is connected. In this screen you’re able network, select the “Base Station” (see below) setup item which to scan for Wi-Fi network, select a network to connect to and results in display of the available C200 Hubs within the home.
- Page 14 R200 Owner’s Manual Your HomeSet system also includes the ability to add an optional Accessory Account info item allows the entry of an TRF-ZW Z-Wave URC TRF-ZW Z-Wave Gateway. This enables control of Z-Wave account username and password. The R200 provides a two-way enabled products such as lights, thermostats, door locks, and more.
- Page 15 R200 Owner’s Manual You can adjust the amount of time the LCD remains ON when the Selecting an item on this screen allows for the setting of each remote is not in use. The time can be set independently base on Sleep Timer value.
- Page 16 R200 Owner’s Manual Selecting Brightness results in the display of a screen that allows The System Information screen displays data about your R200’s Operating System and Memory, along with other information. for setting brightness of the R200’s LCD Screen. Press More button to view further system information. Pressing Go Adjust screen brightness by pressing the adjacent hard buttons to Back exits to the remote’s Settings Menu.
- Page 17 R200 Owner’s Manual You can adjust the brightness of the LEDs that backlight the LCD You can display the remaining battery level by selecting Power. screen buttons of the R200. This can save R200 power. Press the You can also adjust when the Low Battery warning screen appears. adjacent hard buttons to increase/decrease button light level.
- Page 18 R200 Owner’s Manual You can adjust button sounds of the R200. Press the adjacent hard You can set the R200 to turn on when the remote is picked up. buttons to increase/decrease button volume level. Once sound is Simply select , or (Turn ON) or .
- Page 19 R200 Owner’s Manual Selecting Firmware Update results in display of a screen that checks for a firmware update for the R200 Remote and C200 Hub (if necessary). If a firmware update is available, the below screen is displayed. Selecting Yes starts the firmware update process. Selecting No results in display of the R200 System Menu.
- Page 20 R200 Owner’s Manual Factory Default Exit WARNING! Selecting this button resets the memory of the When you’ve finished adjusting Settings, simply press Exit to return to HS-R200 to factory settings. Selecting normal operation. sets the R200 to factory default. Selecting returns the R200 to the Setup Menu screen.
- Page 21 R200 Owner’s Manual Please refer to the URC complete Limited Warranty: www.HomeSetHome.com/limited-warranty-statement/ This Limited Warranty is valid only in the United States of America. Any URC/HomeSet equipment that is purchased from an unauthorized source will not be eligible for: a) Tech Support or support of any kind from URC/HomeSet b) Any warranty by URC/HomeSet...
- Page 22 R200 Owner’s Manual ● Size: 8.74” H x 2.087” W x 0.984” D ● Weight: 6.1 oz This equipment has been tested and found to comply with the limits ● LCD: 2 inch Screen (240 by 320) LCD Backlighting by LED for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 23 R200 Owner’s Manual Changes/modifications not expressly approved by URC could void user’s authority to operate the equipment. URC is not responsible for any Radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules.
