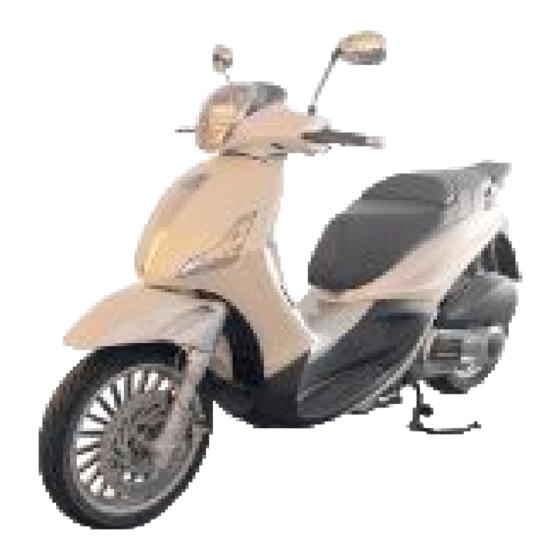

PIAGGIO Beverly 300ie User Manual

PIAGGIO Beverly 300ie User Manual

278 cc single-cylinder engine
Hide thumbs Also See for Beverly 300ie:

Advertisement

PIAGGIO WOULD LIKE TO THANK YOU
for choosing one of its products. We have prepared this manual to help you to get the very best from your vehicle. Please read it carefully before riding
the vehicle for the first time. It contains information, tips and precautions for using your vehicle. It also describes features, details and devices to assure
you that you have made the right choice. We believe that if you follow our suggestions, you will soon get to know your new vehicle and it will serve you
well for a long time to come. This booklet forms an integral part of the vehicle; should the vehicle be sold, it must be transferred to the new owner.
Beverly 300ie
Ed. 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Beverly 300ie and is the answer not in the manual?

Questions and answers

Summary of Contents for PIAGGIO Beverly 300ie

  • Page 1 PIAGGIO WOULD LIKE TO THANK YOU for choosing one of its products. We have prepared this manual to help you to get the very best from your vehicle. Please read it carefully before riding the vehicle for the first time. It contains information, tips and precautions for using your vehicle. It also describes features, details and devices to assure you that you have made the right choice.
  • Page 2 The instructions given in this booklet are intended to provide a clear, simple guide to using your scooter; this booklet also details routine maintenance procedures and regular checks that should be carried out on the vehicle at an authorised Dealer or Service Centres. The booklet also contains instructions for simple repairs.
  • Page 3 Personal safety Failure to completely observe these instructions will result in serious risk of personal injury. Safeguarding the environment Sections marked with this symbol indicate the correct use of the vehicle to prevent dam- aging the environment. Vehicle intactness The incomplete or non-observance of these regulations leads to the risk of serious damage to the vehicle and sometimes even the invalidity of the guarantee.
  • Page 5: Table Of Contents

    INDEX VEHICLE..................Stopping the engine..............33 Dashboard................Stand..................33 Analogue instrument panel............10 Automatic transmission............. 34 Digital lcd display..............11 Safe driving................35 *MODE* button..............12 MAINTENANCE................39 Key switch................. 12 Engine oil level................40 Locking the steering wheel............ 13 Engine oil level check............
  • Page 6 Cleaning the vehicle..............68 Troubleshooting................ 70 TECHNICAL DATA..............73 Toolkit..................78 SPARE PARTS AND ACCESSORIES........79 Warnings................... 80 SCHEDULED MAINTENANCE............ 83 Scheduled servicing table............84...
  • Page 7: Vehicle

    Beverly 300ie Chap. 01 Vehicle...
  • Page 8 01_01...
  • Page 9: Dashboard

    Dashboard (01_01) A = Ignition key-switch B = Bag hook C = Saddle opening button D = Horn button E = Turn indicator switch F = Rear brake lever G = Light switch with passing H = Instrument panel I = Emergency stop switch RUN-OFF L = Front brake lever A = Starter button N = MODE button...
  • Page 10: Analogue Instrument Panel

    01_02 Analogue instrument panel (01_02) A= High beam warning light...
  • Page 11: Digital Lcd Display

    B = Turn indicator warning lights C = Fuel gauge D = Low fuel warning light E = Speedometer F = Immobiliser LED G = Coolant temperature gauge H = Engine control telltale light I = Engine oil pressure warning light L = Digital display Digital lcd display (01_03) A = Clock - date...
  • Page 12: Mode* Button

    *MODE* button (01_04) Pushing the MODE button «A» for less than a second displays the following sequence of functions: • Total Odometer «ODO» • Partial Odometer «ODO I» • Partial Odometer «ODO II» • State of battery charge • Ambient temperature «°» To reset the trip odometer, move «ODO I»...
  • Page 13: Locking The Steering Wheel

    Locking the steering wheel (01_06) Turn the handlebar to the left (as far as it will go), turn the key to «LOCK» and remove the key. 01_06 Releasing the steering wheel (01_07) Reinsert the key and turn it to «OFF». 01_07...
  • Page 14: Switch Direction Indicators

    Switch direction indicators (01_08) Move switch «A» to the left to indicate a left turn; move switch «A» to the right to indicate a right turn. Push the central part of switch «A» to deactivate the turn indica- tors. 01_08 Horn button (01_09) Press the «A»...
  • Page 15: Light Switch

    Light switch (01_10) When the light switch «A» is in position «0» the low-beam light is ON; when it is in position «1» the high-beam light is ON. If the light switch «A» is pressed when set to «2», the high-beam light flashing is activated. The switch goes back to «0» automat- ically.
  • Page 16: Engine Stop Button

    01_12 The immobilizer system In order to enhance theft protection, the vehicle is equipped with a «PIAGGIO IMMO- BILIZER » electronic engine locking device that is activated automatically when the ignition switch is removed. Upon start-up, the «PIAGGIO IMMOBILIZER» system checks the starter key, and only if this key is recognised will the Immobiliser system allow the vehicle to be started.
  • Page 17: Immobilizerdevice Enabled Indicator Led

    THE VEHICLE). 01_15 Immobilizerdevice enabled indicator led (01_16) The activation of the «PIAGGIO IMMOBILISER» system is signalled by the a flashing indicator «A». In order to reduce battery discharge, the indicator LED turns off automatically after 48 hours of uninterrupted functioning.
  • Page 18: Operation

    Operation Each time the ignition key «B» is removed while in the «OFF» or «LOCK» positions, the protection system activates the engine lock. Turning the ignition key «B» to «ON» disables the engine lock, provided that the safety system recognises the code transmitted by the key.
  • Page 19: Programming The Immobilizer System

    Programming the immobilizer system (01_17) Below is described the procedure to follow for programming the PIAGGIO IMMOBIL- ISER system and/or for storing other key codes. The programming procedure should be carried out with the engine stop switch set to «RUN».
  • Page 20: Accessing The Fuel Tank

    CORRECT PROGRAMMING CHECK PHASE Insert the «MASTER» key «A» disabling the transponder «C» (i.e., by tilting the key cap by 90°), and turn the key to «ON». Perform the engine starter operation. Ensure that the engine does not start. Insert the programmed key «B» and repeat the starter operation.
  • Page 21: Power Supply Socket

    Power supply socket (01_19) There is a plug socket inside the front case. The plug socket may be used for external consumers (mobile phone, inspection light, etc.). CAUTION 01_19 PROLONGED USE OF THE PLUG SOCKET MAY RESULT IN PARTIAL DIS- CHARGE OF THE BATTERY Electric characteristic Plug socket...
  • Page 22: Identification

    01_21 Identification (01_22, 01_23) Identification registration numbers are made up of a prefix and a number embossed on the chassis and on the engine. These numbers must always be quoted when or- dering spare parts. We recommend checking that the chassis registration number stamped on the vehicle corresponds with that on the vehicle documentation.
  • Page 23: Rear Top Box Opening

    Chassis number To read the chassis number, remove the port A in the front case. 01_22 Engine number The engine number «B» is stamped near the rear left shock absorber lower support. 01_23 Rear top box opening (01_24) Insert the key into the switch and press down until the glove compartment opens. In the event that the switch is in «LOCK», turn the key to «OFF»...
  • Page 24: Bag Clip

    Bag clip (01_25) To use retractile bag hook mounted on the leg shield back plate, it is necessary to turn it towards the rear part of the vehicle pressing where indicated by the arrow. 01_25...
  • Page 25: Use

    Beverly 300ie Chap. 02...
  • Page 26: Checks

    Checks Before using the vehicle, check: 1. That there is enough fuel in the fuel tank. 2. Front and rear brake fluid level 3. That tyres are properly inflated. 4. The correct functioning of the tail lights, the headlight, and the turn indicators. 5.
  • Page 27 DO NOT ALLOW PETROL TO COME INTO CONTACT WITH HOT ENGINE OR ANY PLASTIC PARTS. CAUTION DO NOT USE THE VEHICLE TO THE COMPLETE EXHAUSTION OF THE FUEL; SHOULD THIS OCCUR, DO NOT ATTEMPT TO START THE ENGINE. TURN THE IGNITION SWITCH TO «OFF»...
  • Page 28: Tyre Pressure

    Tyre pressure (02_02) Check tyre pressure and wear periodically as indicated in the scheduled maintenance table. Tyres feature wear indicators; replace tyres as soon as these indicators become visible on the tyre tread. Also check that the tyres do not show signs of splitting at the sides or irregular tread wear;...
  • Page 29: Shock Absorbers Adjustment

    Shock absorbers adjustment (02_03, 02_04) The preloading of the springs can be adjusted to 4 positions acting on the ring nut located in the lower part of the shock absorbers with the specific spanner supplied. Position 1: minimum preload: rider only Position 2 medium preloading: rider only Position 3 medium preloading: rider and passenger Position 4: maximum preloading: rider, passenger, and luggage.
  • Page 30: Running In

    WARNING IT IS ABSOLUTELY FORBIDDEN TO ADJUST THE PRELOAD DIFFERENTLY ON THE TWO SHOCK ABSORBERS Running in (02_05) DURING THE FIRST 1000 KM DO NOT RIDE THE VEHICLE OVER 80% OF ITS MAX. SPEED. AVOID OPENING THE THROTTLE GRIP COMPLETELY OR KEEP- ING A CONSTANT SPEED ALONG LONG SECTIONS OF ROAD.
  • Page 31: Starting Up The Engine

    Starting up the engine (02_06, 02_07, 02_08) The vehicle is equipped with an ignition prevention system controlled by the side stand. The engine cannot be started if the side stand is lowered. If the engine is on, it will turn itself off if the side stand is lowered. To start the engine it is necessary, before pressing the starter button, to pull and keep pulled the front or rear brake lever, which activates the appropriate switch allowing start-up.
  • Page 32: Precautions

    Precautions CAUTION NEVER STRESS THE ENGINE AT LOW TEMPERATURES IN ORDER TO AVOID POSSIBLE DAMAGE. BE CAREFUL NEVER TO EXCEED THE MAXIMUM SPEED WHILE RUNNING DOWNHILL, IN ORDER TO AVOID DAMAGING THE ENGINE. IN ANY CASE, IN ORDER TO PRESERVE THE ENGINE FROM PROLONGED OVERREVVING, THE REVOLUTION LIMITER WILL BE ACTIVATED IF THE EN- GINE SPEED EXCEEDS THE ESTABLISHED THRESHOLD.
  • Page 33: Stopping The Engine

    Stopping the engine (02_09) Fully untwist the throttle grip, then rotate the key in the switch «A » to «KEY OFF» (extractable key). 02_09 Stand (02_10) Centre stand Push with your foot on the centre stand's fork "A" while lifting the vehicle backward, using the handlebar.
  • Page 34: Automatic Transmission

    WARNING TAMPERING MAY CAUSE SERIOUS ENGINE MALFUNCTION. CAUTION DUE TO THE HIGH TEMPERATURES THE CATALYTIC CONVERTER CAN REACH, ALWAYS TAKE CARE, WHEN PARKING THE VEHICLE, THAT THE SI- LENCER DOES NOT COME INTO CONTACT WITH FLAMMABLE MATERIALS, TO AVOID SERIOUS BURNS. CAUTION DO NOT SHUT OFF THE ENGINE WHILE THE VEHICLE IS MOVING.
  • Page 35: Safe Driving

    It is therefore recommended to avoid conditions of prolonged clutch slippage (other than those previously indicated) like driving uphill fully laden on steep slopes or starting off with driver and passenger at slopes greater than 25%. Take the following precautions if the clutch overheats: 1.
  • Page 36 THE SCOOTER CAN BE RIDDEN AT A HIGHER SPEED WITHOUT THE ACCES- SORIES MENTIONED BEFORE WITHIN THE LIMITS ESTABLISHED BY LAW. IF THERE ARE ANY NON-PIAGGIO ACCESSORIES INSTALLED, OR AN AB- NORMAL LOAD, OR IF THE SCOOTER IS NOT IN A GENERALLY GOOD CON- DITION, OR WHENEVER WEATHER CONDITIONS DEMAND IT, SPEED SHOULD BE FURTHER REDUCED.
  • Page 37 CAUTION ANY ELABORATION THAT MODIFIES THE VEHICLE'S PERFORMANCES, SUCH AS TAMPERING WITH ORIGINAL STRUCTURAL PARTS IS STRICTLY FORBID- DEN BY LAW, AND RENDERS THE VEHICLE NO LONGER CONFORMING TO THE APPROVED TYPE AND DANGEROUS FOR RIDING.
  • Page 39: Maintenance

    Beverly 300ie Chap. 03 Maintenance...
  • Page 40: Engine Oil Level

    Engine oil level In 4-stroke engines, engine oil is used to lubricate the distribution elements, the bush- es and the thermal group. An insufficient quantity of oil can cause serious damage to the engine.In all four-stroke engines, a loss of efficiency in oil performance and certain consumption should be considered normal.
  • Page 41: Engine Oil Top-Up

    03_02 Engine oil top-up (03_03) The oil should be topped up after having checked the level and in any case by adding oil without ever exceeding the MAX. level. The topping up of the level between the MIN and MAX implies a quantity of 400 cm³ of oil. As reported in the scheduled main- tenance table, it is still expected to perform, at an Authorised Service Centre, a check and engine oil top-up.
  • Page 42: Engine Oil Change

    Engine oil change (03_05, 03_06, 03_07) Have oil changed and the cartridge filter «C» replaced as indicated in the scheduled maintenance table at an Authorised Service Centre. The engine should be emptied by draining the oil through drainage plug «B » of the mesh filter on the flywheel side. In order to facilitate the oil drainage, loosen the cap/dipstick.
  • Page 43: Hub Oil Level

    CAUTION USING OILS OTHER THAN THOSE RECOMMENDED CAN SHORTEN THE LIFE OF THE ENGINE. Recommended products AGIP CITY HI TEC 4T Engine oil SAE 5W-40, API SL, ACEA A3, JASO MA Synthetic oil Hub oil level (03_08, 03_09) Check the oil in the rear hub. To check the rear hub oil level, proceed as follows: 1.
  • Page 44 CAUTION RIDING THE VEHICLE WITH INSUFFICIENT HUB LUBRICATION OR WITH CON- TAMINATED OR IMPROPER LUBRICANTS ACCELERATES THE WEAR AND TEAR OF THE MOVING PARTS AND CAN CAUSE SERIOUS DAMAGE. CAUTION 03_09 USED OIL CAN HARM THE ENVIRONMENT. COLLECTION AND DISPOSAL SHOULD BE CARRIED OUT IN COMPLIANCE WITH REGULATIONS IN FORCE.
  • Page 45: Tyres

    Recommended products AGIP ROTRA 80W-90 Rear hub oil SAE 80W/90 Oil that exceeds the requirements of API GL3 specifications Characteristic Transmission oil 250 cm³ Tyres (03_10) Check tyre pressure and wear periodically as indicated in the scheduled maintenance table. Tyres feature wear indicators; replace tyres as soon as these indicators become visible on the tyre tread.
  • Page 46 WARNING THE WHEELS FITTED WITH TYRES SHOULD ALWAYS BE BALANCED. RIDING THE VEHICLE WITH VERY LOW TYRE PRESSURE OR WITH INCORRECTLY BALANCED TYRES CAN LEAD TO DANGEROUS STEERING VIBRATIONS. TYRES Front tyre 110/70 - Tubeless 16" 52S or 52P Rear tyre 140/70 - Tubeless 14"...
  • Page 47: Spark Plug Dismantlement

    Spark plug dismantlement (03_11, 03_12) Proceed as follows: - Remove the case that grants access to the spark plug located on the right side fairing by unscrewing the indicated screw. - Disconnect cap «A» from the spark plug HV cable by turning it clockwise until re- leasing it from the retainer.
  • Page 48: Removing The Air Filter

    Removing the air filter (03_13, 03_14) To access the air filter: - Unscrew the three screws «A» and remove the air filter cover. - Unscrew the other six screws «B» and remove the air filter cover. 03_13 03_14 Air filter cleaning (03_15) 1.
  • Page 49: Cooling Fluid Level

    CAUTION IF THE VEHICLE IS USED ON DUSTY ROADS IT IS NECESSARY TO CARRY OUT MAINTENANCE CHECKS OF THE AIR FILTER MORE OFTEN TO AVOID DAM- AGING THE ENGINE. Recommended products AGIP FILTER OIL Oil for air filter sponge Mineral oil with specific additives for increased adhesiveness Cooling fluid level (03_16, 03_17, 03_18, 03_19) Engine cooling is carried out by a forced-circulation coolant system.
  • Page 50 If the level is not correct, proceed to top-up when the engine is cold. If the coolant needs to be topped up frequently or the expansion tank is completely dry, check the cooling system to find the cause of the problem. It is therefore essential to have the cooling system checked at an Authorised Service Centre.
  • Page 51: Checking The Brake Oil Level

    A certain lowering of the level is caused by wear on the pads. Should the level appear to be below the minimum mark, please contact a PIAGGIO Authorised Service Cen- tre or Dealer in order to have the braking system thoroughly checked.
  • Page 52 CAUTION ONLY USE DOT 4-CLASSIFIED BRAKE FLUID. WARNING THE BRAKE FLUID IS HAZARDOUS: IN CASE OF ACCIDENTAL CONTACT, WASH OFF WITH WATER. WARNING THE BRAKING CIRCUIT LIQUID IS HYGROSCOPIC, AND ABSORBS THE HU- MIDITY OF SURROUNDING AIR. IF THE HUMIDITY IN THE BRAKING FLUID 03_23 EXCEEDS A CERTAIN VALUE, IT WILL LEAD TO INEFFICIENT BRAKING.
  • Page 53 03_26 03_27 03_28...
  • Page 54: Battery

    03_29 Battery (03_30, 03_31) To access the battery, proceed as follows: - Position the vehicle on centre stand - Open the saddle, following the previously described procedure - Unscrew the three screws «A» and remove the cover «B» The battery is the electrical device that requires the most frequent attention and the most thorough maintenance.
  • Page 55: Use Of A New Battery

    WARNING USED BATTERIES ARE HARMFUL FOR THE ENVIRONMENT. COLLECTION AND DISPOSAL SHOULD BE CARRIED OUT IN COMPLIANCE WITH REGULA- TIONS IN FORCE. Characteristic Battery SEALED 12V / 10Ah Use of a new battery (03_32) Ensure that the terminals are connected correctly and check the voltage. CAUTION DO NOT REVERSE THE POLARITY: RISK OF SHORT CIRCUIT AND DAMAGE TO THE ELECTRICAL SYSTEM.
  • Page 56: Fuses

    THE BATTERY MUST BE RECHARGED WITH A CURRENT LOAD EQUAL TO 1/10 OF THE BATTERY RATED CAPACITY AND FOR A PERIOD NOT LONGER THAN 8 HOURS. TAKE THE VEHICLE TO AN AUTHORISED PIAGGIO SERVICE CEN- TRE FOR THIS OPERATION. WHEN REFITTING THE BATTERY MAKE SURE THE LEADS ARE CORRECTLY CONNECTED TO THE TERMINALS.
  • Page 57 CAUTION MODIFICATIONS OR REPAIRS TO THE ELECTRICAL SYSTEM, PERFORMED INCORRECTLY OR WITHOUT STRICT ATTENTION TO THE TECHNICAL SPEC- IFICATIONS OF THE SYSTEM CAN CAUSE MALFUNCTIONING AND RISK OF FIRE. 03_34 03_35 FUSES Fuse No. 1 Capacity:30 A Protected circuits: general, recharge battery Live: fuses No.
  • Page 58 Protected circuits: battery- powered: antitheft device pre- installation, saddle opening control unit pre-installation, electric fan relay (contact) Fuse No. 3 Capacity: 15A Protected circuits: battery powered B.T. socket, helmet compartment light bulb, electronic control unit, injection load relay (contact); live saddle opener actuator...
  • Page 59: Lamps

    Lamps BULBS Low beam light bulb Type: Halogen H7 Quantity: 1 Power: 12V - 55W High beam light bulb Type: Halogen H7 Quantity: 1 Power: 12V - 55W Front tail light bulb Type: LED Quantity: - Power: - Front turn indicator light bulb Type: Spherical BAU 15s Quantity: 1 Right - 1 Left Power: 12V - 10W...
  • Page 60: Front Light Group

    Quantity: 1 Right - 1 Left Power: 12V - 10W License plate light bulb Type: All glass W5W Quantity: 1 Power: 12V - 5W Helmet compartment light bulb Type: Cylindrical C5W Quantity: 1 Power: 12V - 5W Instrument panel lighting bulb Type: LED Quantity: 4 Power: -...
  • Page 61 WARNING HIGH- AND LOW-BEAM BULBS ARE HALOGEN TYPE: DO NOT TOUCH THEM WITH YOUR FINGERS TO AVOID DAMAGING THEIR FUNCTION. CAUTION 03_37 DO NOT LEAN OR CARRY OBJECTS OR CLOTHING OVER THE FRONT HEAD- LIGHTS. IT CAN CAUSE OVERHEATING AND CONSEQUENTIAL FUSING OR DAMAGE TO THE GLASS.
  • Page 62: Headlight Adjustment

    Headlight adjustment (03_40, 03_41, 03_42) Proceed as follows: - Position the vehicle in running order and with the tyres inflated to the prescribed pressure, onto a flat surface, 10 m away from a half-lit white screen; ensure that the longitudinal axis of the vehicle is perpendicular to the screen; - Turn on the headlight and check that the borderline of the projected light beam on the screen is not higher than 9/10 or lower than 7/10 of the distance from the ground to the centre of the vehicle headlamp;...
  • Page 63: Front Direction Indicators

    - Lightly press the lamp and turn it anticlockwise and remove it. 03_43 WARNING THE DAYLIGHT RUNNING LIGHTS PRESENT IN THE SAME GROUP ARE «LED» TYPES. IN CASE OF MALFUNCTIONING, AS THE REMOVAL IS PARTICULARLY DIFFICULT, WE ADVISE ADDRESSING AN Authorised PIAGGIO Service Centre FOR THE REPLACEMENT. 03_44 03_45...
  • Page 64: Rear Optical Unit

    - Lightly press the lamp and turn it anticlockwise and remove it. 03_46 WARNING THE DAYLIGHT RUNNING LIGHTS PRESENT IN THE SAME GROUP ARE «LED» TYPES. IN CASE OF MALFUNCTIONING, AS THE REMOVAL IS PARTICULARLY DIFFICULT, WE ADVISE ADDRESSING AN Authorised PIAGGIO Service Centre FOR THE REPLACEMENT. 03_47 03_48...
  • Page 65: Number Plate Light

    Number plate light (03_49) Unscrew the indicated screw and then take out the lamp holder. CAUTION DO NOT PULL THE ELECTRICAL WIRING TO EXTRACT THE BULB HOLDER. 03_49 Helmet compartment lighting bulb (03_50) Open the helmet compartment, take out the snap-on transparent glass and replace the bulb.
  • Page 66: Front And Rear Disc Brake

    Front and rear disc brake (03_51) The brake disc and pad wear is automatically compensated, therefore it has no effect on the functioning of the front and rear brakes. For this reason it is not necessary to adjust the brakes. An excessively elastic brake lever stroke may indicate the presence of air in the braking circuit or a failure in the braking system.
  • Page 67: Puncture

    Puncture The vehicle is equipped with Tubeless tyres (without inner tube). In the event of a puncture, Tubeless tyres - unlike tyres with inner tubes - go flat very slowly, resulting in a greater steering safety. In the event of a puncture, an emergency repair can be carried out using an "inflate and repair"...
  • Page 68: Periods Of Inactivity

    Periods of inactivity (03_52) We recommend carrying out the following operations: 1. Clean the vehicle thoroughly and then cover it with a canvas; 2. With the engine off and the piston in the bottom dead centre position, remove the spark plug, and pour into its hole 1 t0 2 cc of the recommended oil. Operate the starter button 1-2 times for roughly 1 second to turn the engine over slowly, then insert the spark plug again;...
  • Page 69 CAUTION DETERGENTS CAN POLLUTE WATER. THE VEHICLE MUST BE WASHED AT A WASH STATION EQUIPPED WITH A SPECIAL WATER PURIFICATION SYSTEM. CAUTION DO NOT USE A HIGH-PRESSURE WATER JET MACHINE TO CLEAN THE EN- GINE AND/OR VEHICLE; HOWEVER, IF NO OTHER MEANS ARE AVAILABLE, IT IS THEN NECESSARY TO: •...
  • Page 70: Troubleshooting

    INFORMATION ON THIS MATTER, CONTACT AN AUTHORISED SERVICE CEN- TRE. WARNING CLEAN YOUR SCOOTER FREQUENTLY SO AS TO AVOID POSSIBLE DIRT OR MUD DEPOSITS THAT COULD CAUSE MALFUNCTIONING IN THE THROTTLE GRIP TRANSMISSION AND/OR OTHER COMPONENTS. Troubleshooting STARTING FAILURE Emergency switch in «OFF» Set the switch back to «ON»...
  • Page 71 Fuel pump fault Contact an Authorised Service Centre Flat battery Recharge the battery. * IMPORTANT: DO NOT USE THE SCOOTER TO THE COMPLETE EXHAUSTION OF FUEL; SHOULD THIS OCCUR, DO NOT ATTEMPT TO START THE ENGINE. TURN THE IGNITION KEY TO «OFF»...
  • Page 72 HIGH CONSUMPTION AND LOW PERFORMANCE Clogged or dirty air filter Try to blow out with compressed air, otherwise replace the filter INSUFFICIENT BRAKING Greasy disc. Worn pads. Faulty Contact an Authorised Service braking system. Presence of air in Centre. the front and rear brake circuit. INEFFICIENT SUSPENSION Shock absorber fault, oil leak, end Contact an Authorised Service...
  • Page 73: Technical Data

    Beverly 300ie Chap. 04 Technical data...
  • Page 74 04_01...
  • Page 75 ENGINE TECHNICAL DATA Type Single-cylinder, 4-stroke Engine capacity 278 cm³ Bore x stroke 75 X 63 mm Compression ratio 11 ± 0.5: 1 Engine idle speed 1,700 ± 100 rpm Timing system Four valves, single overhead camshaft, chain-driven. Valve clearance Intake: 0.10 mm Exhaust: 0.15 mm Max.
  • Page 76 Ignition advance Three-dimensional map managed by control unit Fuel system 32 MIU1.E9 Electronic injection, with Ø 32-mm throttle body and electric fuel pump. Spark plug NGK CR8EKB Fuel Unleaded petrol (95 RON) Silencer Absorption-type exhaust muffler with catalytic converter and lambda probe.
  • Page 77 Front wheel rim 3.00" x 16" Rear wheel rim 3.50" x 14" Front tyre 110/70 - Tubeless 16" 52S or 52P Rear tyre 140/70 - Tubeless 14" 68P or 68S Front tyre pressure (with 2.2 bar (2.2 bar) passenger) Rear tyre pressure (with 2.4 bar (2.6 bar) passenger) Kerb weight...
  • Page 78: Toolkit

    Toolkit (04_02) The tools are stored under the saddle. The toolkit includes: • One box-spanner • One twin screwdriver • One special key for adjusting rear shock absorbers • An extractor for fuses • One lever for box-spanner • One double torx wrench 04_02...
  • Page 79: Spare Parts And Accessories

    Beverly 300ie Chap. 05 Spare parts and accessories...
  • Page 80: Warnings

    FITTED WITH ACCESSORIES OR WITH UNUSUAL LOADS. WARNING IT IS ALSO RECOMMENDED THAT ORIGINAL PIAGGIO SPARE PARTS BE USED, AS THESE ARE THE ONLY ONES OFFERING YOU THE SAME QUALITY GUARANTEE AS THOSE INITIALLY FITTED ON THE SCOOTER. THE USE OF NON-ORIGINAL SPARE PARTS RENDERS THE WARRANTY VOID.
  • Page 81 THE SCOOTER CAN BE RIDDEN AT A HIGHER SPEED WITHOUT THE ACCES- SORIES MENTIONED BEFORE WITHIN THE LIMITS ESTABLISHED BY LAW. IF THERE ARE ANY NON-PIAGGIO ACCESSORIES INSTALLED, OR AN AB- NORMAL LOAD, OR IF THE SCOOTER IS NOT IN A GENERALLY GOOD CON- DITION, OR WHENEVER WEATHER CONDITIONS DEMAND IT, SPEED SHOULD BE FURTHER REDUCED.
  • Page 83: Scheduled Maintenance

    Beverly 300ie Chap. 06 Scheduled maintenance...
  • Page 84: Scheduled Servicing Table

    Scheduled servicing table (06_01) Adequate maintenance is fundamental to ensure long-lasting, optimum operation and performance of your vehicle. To this end, a series of checks and maintenance operations (at the owner's expense) have been suggested, which are included in the summary table on the following page. Any minor faults should be reported without delay to an Authorised Service Centre or Dealer without waiting until the next scheduled service to solve it.
  • Page 85 Km x 1,000 Coolant level * Brake fluid * Engine oil Hub oil Brake pads Sliding shoes / CVT rollers Tyre pressure and wear Vehicle road test Suspension Steering I: INSPECT AND CLEAN, ADJUST, LUBRICATE OR REPLACE, IF NECESSARY C: CLEAN, R: REPLACE, A: ADJUST, L: LUBRICATE * Replace every 2 years ** Clean frequently in cases of intensive use on gravel roads RECOMMENDED PRODUCTS TABLE...
  • Page 86 Product Description Specifications AGIP FILTER OIL Oil for air filter sponge Mineral oil with specific additives for increased adhesiveness AGIP GP 330 Grease for brake lever, gas White calcium complex soap-based spray grease with NLGI 2; ISO-L-XBCIB2 AGIP CITY HI TEC 4T Engine oil SAE 5W-40, API SL, ACEA A3, JASO MA Synthetic oil...
  • Page 87 TABLE OF CONTENTS Start-up: 15 Switch: 12, 14, 15 Air filter: 48 Fuel: 20 Light switch: 15 Fuses: 56 Tank: 20 Battery: 54, 55 Maintenance: 39, 83 Technical Data: 73 Brake: 51, 66 Headlight: 62 Mirrors: 65 Toolkit: 78 Horn: 14 Top box: 23 Hub oil: 43 Transmission: 34...
  • Page 88 Not all versions/models shown in this publication are available in all countries. The availability of each model should be checked at the official Piaggio sales network. "© Copyright 2008 - PIAGGIO & C. S.p.A. Pontedera. All rights reserved. Reproduction of this publication in whole or in part is prohibited."...
