PIAGGIO WOULD LIKE TO THANK YOU
for choosing one of its products. We have prepared this manual to help you to get the very best from your scooter. Please read it carefully before riding
the scooter for the first time. It contains information, tips and precautions for using your scooter. It also describes features, details and devices to assure
you that you have made the right choice. We believe that if you follow our suggestions, you will soon get to know your new vehicle and it will serve you
well for a long time to come. This booklet forms an integral part of the scooter; should the scooter be sold, it must be transferred to the new owner.

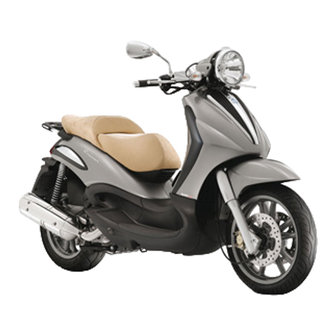

Beverly Tourer 250ie

Advertisement

Table of Contents
loading

Related Manuals for PIAGGIO Beverly Tourer 250ie 2007

Summary of Contents for PIAGGIO Beverly Tourer 250ie 2007

  • Page 1 PIAGGIO WOULD LIKE TO THANK YOU for choosing one of its products. We have prepared this manual to help you to get the very best from your scooter. Please read it carefully before riding the scooter for the first time. It contains information, tips and precautions for using your scooter. It also describes features, details and devices to assure you that you have made the right choice.
  • Page 2 The instructions given in this manual are intended to provide a clear, simple guide to using your scooter; this booklet also details routine maintenance procedures and regular checks that should be carried out on the vehicle at an authorised Dealer or Service Centre. The booklet also contains instructions for simple repairs.
  • Page 3 Personal safety Failure to completely observe these instructions will result in serious risk of personal injury. Safeguarding the environment Sections marked with this symbol indicate the correct use of the vehicle to prevent dam- aging the environment. Vehicle intactness The incomplete or non-observance of these regulations leads to the risk of serious damage to the vehicle and sometimes even the invalidity of the guarantee.

  • Page 5: Table Of Contents

    INDEX VEHICLE..................Stand..................30 Dashboard................Automatic transmission............. 31 Analogue instrument panel............11 Safe driving................32 Clock..................12 MAINTENANCE................35 Key switch................. 12 Engine oil level................36 Locking the steering wheel............ 12 Engine oil level check............36 Releasing the steering wheel..........12 Engine oil top-up..............
  • Page 6 Troubleshooting................ 62 TECHNICAL DATA..............67 Kit equipment................72 SPARE PARTS AND ACCESSORIES........73 Warnings................... 74 PROGRAMMED MAINTENANCE..........77 Scheduled maintenance table........... 78...

  • Page 7: Vehicle

    Beverly Tourer 250ie Chap. 01 Vehicle...
  • Page 8 01_01...

  • Page 9: Dashboard

    Dashboard (01_01) A = Ignition key-switch B = Bag hook C = Saddle electric opening switch D = Horn button E = Turn indicator switch F = Rear brake control lever G = Light switch with passing H = Instrument panel I = Emergency cut-off switch RUN/OFF L = Front brake lever M = Throttle grip...
  • Page 10 01_02...

  • Page 11: Analogue Instrument Panel

    Analogue instrument panel (01_02) A = Immobilizer LED B = Speedometer (mph) C = Total odometer D = Speedometer (km/h) E = Injection telltale light F = High-beam warning light G = Oil pressure warning light H = Digital clock I = Low fuel warning light L = Right turn indicator warning light M = Clock controls...

  • Page 12: Clock

    Clock (01_03) Located in the instrument panel, it displays hours and minutes with 1 to 12 hour time, AM or PM. Operate the function selection button «B» and month, day and seconds are also dis- played besides hours and minutes. To adjust the different functions, select the desired function with button «A»...

  • Page 13: Switch Direction Indicators

    Switch direction indicators (01_05) Move the switch «E» to the left to indicate a left turn; move the switch «E» to the right to indicate a right turn. Push the central part of the switch «E» to deactivate the turn indicators.

  • Page 14: Start-Up Button

    01_09 The immobilizer system In order to enhance theft protection, the scooter is equipped with a «PIAGGIO IM- MOBILIZER » electronic engine locking device that is activated automatically when the starter key is removed. Upon start-up, the «PIAGGIO IMMOBILIZER» system checks the starter key, and only if this key is recognised will the immobilizer system allow the scooter to be started.

  • Page 15: Immobilizerdevice Enabled Indicator Led

    01_12 THE VEHICLE). Immobilizerdevice enabled indicator led (01_13) The activation of the «PIAGGIO IMMOBILIZER» system is signalled by a flashing indicator «A» . In order to reduce battery discharge, the indicator LED turns off automatically after 48 hours of uninterrupted functioning.

  • Page 16: Programming The Immobilizer System

    RED TO THE NEW OWNER. Programming the immobilizer system (01_14) Below is described the procedure to follow for programming the PIAGGIO IMMOBIL- IZER system and/or for storing other key codes. The programming procedure should be carried out with the engine stop switch set to «RUN».
  • Page 17 Insert the «MASTER» key «A» into the key switch (in «OFF») and turn it to «ON». After 1 - 3 seconds, turn the key to «OFF » again and pull it out. INTERMEDIATE STAGE After extracting the «MASTER» key «A», insert, within ten seconds, the key that is going to be programmed «B»...

  • Page 18: Accessing The Fuel Tank

    Accessing the fuel tank (01_15, 01_16) Insert the key into the switch and press down until the glove box opens. In the event that the key switch is in «LOCK», turn the key to «OFF» or «ON» before pressing down. Press lever «B» and open the cover over the fuel tank cap «C». 01_15 01_16 Power supply socket (01_17)

  • Page 19: The Saddle

    Electric characteristic Plug socket 12 V - 180 W MAX The saddle (01_18, 01_19) The saddle is supplied with a protection cover. Lift the saddle and extract the cover from its housing to use it. Fit it over the seat without pulling excessively to avoid tearing the material; lower the saddle.

  • Page 20: Identification

    01_20 01_21 Identification (01_22, 01_23) Identification registration numbers are made up of a prefix and a number stamped on the chassis and on the engine. These numbers must always be quoted when ordering spare parts. We recommend checking that the chassis registration number stamped on the vehicle corresponds with that on the vehicle documentation.

  • Page 21: Rear Top Box Opening

    CAUTION BE REMINDED THAT ALTERING IDENTIFICATION REGISTRATION NUMBERS CAN LEAD TO SERIOUS PENAL SANCTIONS (IMPOUNDING OF THE VEHICLE, ETC.). Chassis number 01_23 To read the chassis number, remove the lid «A» in the helmet compartment. Engine number The engine number «B» is stamped near the rear left shock absorber lower support. Rear top box opening (01_24) Insert the key into the switch and press down until the glove compartment opens.

  • Page 22: Bag Clip

    Bag clip (01_25) To use the retractile bag hook «B» mounted on the knee-guard panel, pull it slightly towards the back part of the vehicle. 01_25...

  • Page 23: Use

    Beverly Tourer 250ie Chap. 02...

  • Page 24: Checks

    Checks (02_01) Before using the vehicle, check: 1. There is enough fuel in the fuel tank. 2. Front and rear brake fluid level 3. That tyres are properly inflated. 4. The correct functioning of the tail lights, the headlight, and the turn indicators. 5.

  • Page 25: Tyre Pressure

    CAUTION PETROL DAMAGES THE PLASTIC PARTS OF THE BODYWORK. CAUTION DO NOT USE THE VEHICLE TO THE COMPLETE EXHAUSTION OF THE FUEL; IN THE EVENT THAT THIS SHOULD OCCUR, DO NOT ATTEMPT TO START THE ENGINE. TURN THE KEY SWITCH TO OFF AND TOP-UP THE TANK AS SOON AS POSSIBLE.
  • Page 26 CAUTION TYRE PRESSURE SHOULD BE CHECKED WHEN TYRES ARE COLD.INCOR- RECT TYRE PRESSURE CAUSES ABNORMAL TYRE WEAR AND MAKES RID- ING DANGEROUS. TYRES MUST BE REPLACED WHEN THE TREAD REACHES THE WEAR LIMITS SET FORTH BY LAW. TYRES Front tyre Tubeless, 110/70 - 16'' 52P Rear tyre Tubeless, 140/70 - 16'' 65P...

  • Page 27: Shock Absorbers Adjustment

    Shock absorbers adjustment (02_04, 02_05) The preloading of the springs can be adjusted to 4 positions using the ring nut located in the lower part of the shock absorbers and the specific spanner supplied. Position 1: minimum preload: driver only Position 2 medium preloading: driver only Position 3 medium preloading: rider and passenger Position 4: maximum preloading: driver, passenger, and luggage.

  • Page 28: Running In

    Running in (02_06) DURING THE FIRST 1000 KM DO NOT RIDE THE VEHICLE OVER 80% OF ITS MAX. SPEED. AVOID OPENING THE THROTTLE GRIP COMPLETELY OR KEEP- ING A CONSTANT SPEED ALONG LONG SECTIONS OF ROAD. AFTER THE FIRST 1000 KM INCREASE SPEED PROGRESSIVELY, IF POSSIBLE, UNTIL THE MAXIMUM PERFORMANCE IS OBTAINED.

  • Page 29: Stopping The Engine

    WARNING THE AUTOMATIC TRANSMISSION MAKES THE REAR WHEEL TURN EVEN WHEN THE THROTTLE IS SLIGHTLY TWISTED. RELEASE THE BRAKE CARE- FULLY AFTER STARTING, AND THEN ACCELERATE GRADUALLY. CAUTION 02_08 DO NOT START-UP THE ENGINE IN CLOSED AREAS BECAUSE EXHAUST GASES ARE TOXIC. Stopping the engine (02_09) Fully untwist the throttle grip, then rotate the key in the switch «A »...

  • Page 30: Anello Antifurto

    anello antifurto (02_10) The «D» ring on the right side of the vehicle is used to fasten the vehicle to an object using a scooter chain. Do not use the ring for other purposes. WARNING THIS ACCESSORY IS NOT A THEFT PREVENTION GUARANTEE, IT IS ONLY A DETERRENT.

  • Page 31: Automatic Transmission

    CAUTION DUE TO THE HIGH TEMPERATURES THE CATALYTIC CONVERTER CAN REACH, ALWAYS TAKE CARE, WHEN PARKING THE SCOOTER, THAT THE EXHAUST DOES NOT COME INTO CONTACT WITH FLAMMABLE MATERIALS, TO AVOID SERIOUS BURNS. CAUTION DO NOT SWITCH OFF THE ENGINE WHILE THE VEHICLE IS MOVING. UN- BURNED FUEL COULD ENTER THE CATALYTIC CONVERTER AND BURN, CAUSING IT TO OVERHEAT AND POSSIBLY DESTROYING IT.

  • Page 32: Safe Driving

    Safe driving (02_13) Some simple tips are provided below that will enable you to use your vehicle on a daily basis in greater safety and peace of mind. Your skill and your mechanical knowledge are the basis of safe riding. We recommend trying out the vehicle in traffic - free zones, in order to acquire a good knowledge of the vehicle it self.
  • Page 33 THE SCOOTER CAN BE RIDDEN AT A HIGHER SPEED WITHOUT THE ACCES- SORIES MENTIONED BEFORE WITHIN THE LIMITS ESTABLISHED BY LAW. IF THERE SHOULD BE NOT-PIAGGIO ACCESSORIES INSTALLED, OR AN AB- NORMAL LOAD, OR IF THE SCOOTER IS NOT IN A GENERALLY GOOD CON- DITION, OR WHENEVER WEATHER CONDITIONS DEMAND IT, SPEED SHOULD BE REDUCED FURTHER.

  • Page 35: Maintenance

    Beverly Tourer 250ie Chap. 03 Maintenance...

  • Page 36: Engine Oil Level

    Engine oil level In 4-stroke engines, engine oil is used to lubricate the distribution elements, the bush- es and the thermal group. An insufficient quantity of oil can cause serious damage to the engine.In all four-stroke engines, a loss of efficiency in oil performance and consumption should be considered normal.

  • Page 37: Engine Oil Change

    However, this light should switch off once the engine has been started. If the light comes on during braking, at idling speed or while turning a corner, it is necessary to check the oil level and top-up if required. If after having topped- up the oil, the warning light still comes on while braking, at idle speed or while turning a corner, it will be necessary to take your vehicle to an Authorised Serv- ice Centre.

  • Page 38: Hub Oil Level

    CAUTION USED OILS CONTAIN SUBSTANCES HARMFUL TO THE ENVIRONMENT. FOR OIL REPLACEMENT, CONTACT AN AUTHORISED PIAGGIO SERVICE CENTRE, AS THEY ARE EQUIPPED TO DISPOSE OF SPENT OILS IN AN ENVIRONMEN- TALLY FRIENDLY AND LEGAL WAY. CAUTION USING OILS OTHER THAN THOSE RECOMMENDED CAN SHORTEN THE LIFE OF THE ENGINE.
  • Page 39 N.B. The notches on the hub oil level dipstick, except for the one indicating the "MAX" level, refer to other models by the manufacturer and have no specific function for this model. CAUTION RIDING THE VEHICLE WITH INSUFFICIENT HUB LUBRICATION OR WITH CON- 03_06 TAMINATED OR IMPROPER LUBRICANTS ACCELERATES THE WEAR AND TEAR OF THE MOVING PARTS AND CAN CAUSE SERIOUS DAMAGE.

  • Page 40: Tyres

    CAUTION FOR OIL REPLACEMENT, CONTACT ANY AUTHORISED SERVICE CENTRE AS THEY ARE EQUIPPED TO DISPOSE OF USED OILS IN AN ENVIRONMENTALLY FRIENDLY AND LEGAL WAY. Recommended products AGIP ROTRA 80W-90 Rear hub oil SAE 80W/90 Oil that exceeds the requirements of API GL3 specifications Characteristic Transmission oil 250 cm³...
  • Page 41 TYRES MUST BE REPLACED WHEN THE TREAD REACHES THE WEAR LIMITS SET FORTH BY LAW. WARNING THE WHEELS FITTED WITH TYRES SHOULD ALWAYS BE BALANCED. RIDING THE VEHICLE WITH VERY LOW TYRE PRESSURE OR WITH INCORRECTLY BALANCED TYRES CAN LEAD TO DANGEROUS STEERING VIBRATIONS. TYRES Front tyre Tubeless, 110/70 - 16'' 52P...

  • Page 42: Spark Plug Dismantlement

    Spark plug dismantlement (03_08, 03_09) Proceed as follows: 1. Remove the access cover over the spark plug on the right-hand side of the scooter and reach into the spark plug with your hand; 2. Disconnect spark plug HV wire cap «A» ; 3.

  • Page 43: Removing The Air Filter

    CHAMPION RG 4 PHP Electrode gap 0.7-0.8 mm Removing the air filter (03_10, 03_11) To access the air filter: 1. Lift the footrest mat and undo the three screws «A». 2. Remove the right footrest to have access to the nine screws «B» and unscrew them. 3.

  • Page 44: Cooling Fluid Level

    4. Gently squeeze the filter element, let it drip and then refit it. CAUTION IF THE VEHICLE IS USED ON DUSTY ROADS IT IS NECESSARY TO CARRY OUT MAINTENANCE CONTROLS OF THE AIR FILTER TO AVOID DAMAGING THE ENGINE. Recommended products AGIP FILTER OIL Oil for air filter sponge Mineral oil with specific additives for increased adhesiveness...
  • Page 45 If the level is not correct, proceed to top-up when the engine is cold. If it is necessary to top up the coolant frequently, or if the expansion tank is completely dry, you should look for the cause in the cooling system. It is therefore essential to have the cooling system checked at an Authorised Service Centre.

  • Page 46: Checking The Brake Oil Level

    Checking the brake oil level (03_15) The brake fluid tanks are located on the pumps under the front handlebar cover(front on the right-hand side, rear on the left-hand side). The procedures to checking the brake fluid level for the front and rear brakes are identical.

  • Page 47: Battery

    WARNING THE BRAKE FLUID IS HAZARDOUS: IN CASE OF ACCIDENTAL CONTACT, WASH OFF WITH WATER. WARNING THE BRAKING CIRCUIT LIQUID IS HYGROSCOPIC, AND ABSORBS THE HU- MIDITY OF SURROUNDING AIR. IF THE HUMIDITY IN THE BRAKING FLUID EXCEEDS A CERTAIN VALUE, IT WILL LEAD TO INEFFICIENT BRAKING. NEV- ER USE BRAKING FLUID KEPT IN CONTAINERS THAT HAVE ALREADY BEEN OPENED, OR PARTIALLY USED.

  • Page 48: Use Of A New Battery

    WARNING DO NOT DISCONNECT THE BATTERY CABLES WITH THE ENGINE RUNNING, THIS CAN CAUSE PERMANENT DAMAGE TO THE VEHICLE ELECTRONIC CON- TROL UNIT. WARNING 03_19 SPENT BATTERIES ARE HARMFUL FOR THE ENVIRONMENT. COLLECTION AND DISPOSAL SHOULD BE CARRIED OUT IN COMPLIANCE WITH CURRENT REGULATIONS.

  • Page 49: Fuses

    THE BATTERY MUST BE RECHARGED WITH A CURRENT LOAD EQUAL TO 1/10 OF THE BATTERY RATED CAPACITY AND FOR A PERIOD NOT LONGER THAN 8 HOURS. TAKE THE VEHICLE TO AN AUTHORISED PIAGGIO SERVICE CEN- TRE FOR THIS OPERATION. WHEN REFITTING THE BATTERY MAKE SURE THE LEADS ARE CORRECTLY CONNECTED TO THE TERMINALS.
  • Page 50 CAUTION MODIFICATIONS OR REPAIRS TO THE ELECTRICAL SYSTEM, PERFORMED INCORRECTLY OR WITHOUT STRICT ATTENTION TO THE TECHNICAL SPEC- IFICATIONS OF THE SYSTEM, CAN CAUSE ERRORS IN FUNCTIONING AND RISK OF FIRE. 03_21 03_22 03_23...
  • Page 51 FUSES Fuse No. 1 Capacity:30 A Protected circuits:Battery recharge circuit. Live:Fuses No. 7-8-9-10. Fuse No. 2 Capacity:5A Protected circuits:Clock, Immobilizer. Fuse No. 3 Capacity:15A Protected circuits:Plug socket, helmet compartment light, electric fan (via remote control), pre- installation for anti-theft device. Live:Saddle opening actuator.

  • Page 52: Lamps

    Fuse No. 7 Capacity:7.5 A Protected circuits:Headlight remote control, stop lights, start-up circuit. Fuse No. 8 Capacity:7.5 A Protected circuits:Tail lights, license plate light, panel lighting, horn. Fuse No. 9 Capacity:7.5 A Protected circuits:Electric fan remote control, injection load remote control, immobilizer aerial, injection electronic control unit.
  • Page 53 Front tail light bulb Type: All glass Quantity: 1 Power: 12V - 5W Turn indicator bulbs Type: Spherical Quantity: 4 Power: 12V - 10W Rear tail light bulb Type: All glass Quantity: 2 Power: 12V - 3W Stop light bulb Type: Spherical Quantity: 1 Power: 12V - 10W...

  • Page 54: Front Light Group

    Front light group (03_24, 03_25, 03_26, 03_27, 03_28) To remove the front headlight assembly, proceed as follows: 1. Remove screws «A» of the brake fluid tank cover. 2. Remove the 3 windshield screws and the windshield proper. 3. Remove the rear-view mirrors. 4.
  • Page 55 2. Turn on the headlight and check that the borderline of the projected light beam on the screen is not higher than 9/10 or lower than 7/10 of the distance from the ground to the centre of vehicle headlamp; 3. If this is not the case, regulate the headlight by turning screw «A». N.B.

  • Page 56: Front Direction Indicators

    03_30 Front direction indicators (03_31) To replace the burnt bulb, remove the screws «G» 03_31 Rear optical unit (03_32, 03_33, 03_34, 03_35, 03_36) To reach the rear light unit bulbs proceed as follows: 1. Remove the plastic cover «A» of the rear luggage rack. 2.
  • Page 57 To replace the stop light bulbs «F» take out the rubber bulb holders and slide off the bulbs. To replace the turn indicator bulbs «G» turn the bulb holder anticlockwise and extract it. Now hold the bulb, press and turn it clockwise and extract it. 03_33 03_34 03_35...

  • Page 58: Number Plate Light

    03_36 Number plate light (03_37) Remove the screw «C», then take out the bulb holder. 03_37 Helmet compartment lighting bulb (03_38) Open the helmet compartment, take out the snap-on transparent glass and replace the bulb. 03_38...

  • Page 59: Rear-View Mirrors

    Rear-view mirrors Adjust the mirrors by applying slight pressure to the side of the mirror to move it to the desired position. Front and rear disc brake (03_39) The brake disc and pad wear is automatically compensated, therefore it has no effect on the functioning of the front and rear brakes.

  • Page 60: Puncture

    CAUTION THE PRESENCE OF SAND, MUD, SNOW MIXED WITH SALT, ETC. ON THE ROAD, CAN DRASTICALLY REDUCE THE DURATION OF THE BRAKE PADS. IN ORDER TO AVOID THIS, WE RECOMMEND WASHING THE VEHICLE FRE- QUENTLY WHEN RIDING IN THESE ROAD CONDITIONS. Puncture The vehicle is equipped with tubeless tyres (without inner tube).

  • Page 61: Periods Of Inactivity

    Periods of inactivity (03_40) We recommend carrying out the following operations: 1. Clean the scooter thoroughly and then cover it with a canvas; 2. With the engine off and the piston in the bottom dead centre position, remove the spark plug, and pour into its hole 1 t0 2 cc of the recommended oil. Operate the starter button 1-2 times for roughly 1 second to turn the engine over slowly, then insert the spark plug again;...

  • Page 62: Troubleshooting

    WARNING THE USE OF A HIGH-PRESSURE WATER JET IS STRONGLY DISCOURAGED FOR ANY ENGINE CLEANING OPERATION; HOWEVER, IF NO OTHER MEANS ARE AVAILABLE, IT IS THEN NECESSARY TO: • ONLY USE THE FAN JET. • DO NOT PLACE THE NOZZLE CLOSER THAN 60 CM. •...
  • Page 63 STARTING FAILURE Emergency switch in «OFF» Set the switch back to «ON» Fuse blown Replace the blown fuse and have the vehicle checked by an Authorised Service Centre. STARTING DIFFICULTIES (SEE SECTION "DIFFICULT STARTING") Lack of fuel in tank. Refuelling Injection system fault Contact an Authorised Service Centre...
  • Page 64 Faulty ignition / injection control Contact an Authorised Service unit. Due to the presence of high Centre voltage, this check should only be carried out by an expert. LACK OF COMPRESSION Loosen spark plug. Screw in the spark plug tightly Cylinder head loose, piston gas Contact an Authorised Service rings worn.
  • Page 65 IRREGULAR AUTOMATIC TRANSMISSION Variator rollers and/or driving belt Contact an Authorised Service damaged Centre.

  • Page 67: Technical Data

    Beverly Tourer 250ie Chap. 04 Technical data...
  • Page 68 04_01...
  • Page 69 ENGINE TECHNICAL DATA Type Single-cylinder, 4-stroke Cubic capacity 244 cm³ Bore x Stroke 72 x 60 mm Compression ratio 11 ± 0.5 : 1 Engine idle speed 1,700 ± 100 rpm Timing system 4 valves, single overhead camshaft, chain-driven. Valve clearance Inlet: 0.10 mm Outlet: 0.15 mm Max.
  • Page 70 α/N three-dimensional map Ignition advance managed by control unit Spark plug CHAMPION RG 4 PHP Alternative spark plug Fuel supply Electronic injection with Ø 32-mm throttle body and electric fuel pump. Fuel Unleaded petrol (95 RON) Exhaust muffler Absorption-type exhaust muffler with 3-way catalytic converter and lambda probe.
  • Page 71 Front rim 16'' x 3.00 Rear rim 16 x 3.50'' Front tyre Tubeless, 110/70 - 16'' 52P Rear tyre Tubeless, 140/70 - 16'' 65P Front tyre pressure (with 2 bar (-) passenger) Rear tyre pressure (with 2.5 bar (-) passenger) Kerb weight 163 kg ±...

  • Page 72: Kit Equipment

    Kit equipment (04_02) The tools are located under the saddle. The tool kit includes: • One box-spanner • One twin screwdriver • One special key for adjusting rear shock absorbers 04_02...

  • Page 73: Spare Parts And Accessories

    Beverly Tourer 250ie Chap. 05 Spare parts and accessories...

  • Page 74: Warnings

    FITTED WITH ACCESSORIES OR WITH UNUSUAL LOADS. WARNING IT IS ALSO RECOMMENDED THAT "ORIGINAL PIAGGIO SPARE PARTS" BE USED, AS THESE ARE THE ONLY ONES OFFERING YOU THE SAME QUALITY GUARANTEE AS THOSE INITIALLY FITTED ON THE SCOOTER. THE USE OF NON-ORIGINAL SPARE PARTS RENDERS THE WARRANTY VOID.
  • Page 75 THE SCOOTER CAN BE RIDDEN AT A HIGHER SPEED WITHOUT THE ACCES- SORIES MENTIONED BEFORE WITHIN THE LIMITS ESTABLISHED BY LAW. IF THERE SHOULD BE NOT-PIAGGIO ACCESSORIES INSTALLED, OR AN AB- NORMAL LOAD, OR IF THE SCOOTER IS NOT IN A GENERALLY GOOD CON- DITION, OR WHENEVER WEATHER CONDITIONS DEMAND IT, SPEED SHOULD BE REDUCED FURTHER.

  • Page 77: Programmed Maintenance

    Beverly Tourer 250ie Chap. 06 Programmed maintenance...

  • Page 78: Scheduled Maintenance Table

    Scheduled maintenance table (06_01) Adequate maintenance is fundamental to ensuring long-lasting, optimum operation and performance of your vehicle. To this end, a series of checks and maintenance operations (at the owner's expense) have been suggested, which are included in the summary table on the following page. Any minor faults should be reported without delay to an Authorised Service Centre or Dealer without waiting until the next scheduled service to solve it.
  • Page 79 km x 1,000 ■ ■ ■ ■ ■ ■ ■ ■ ■ Brake fluid level * ● ■ ● ■ ● ■ ● ■ ● ■ ● ■ ● ■ ● ■ ● Engine oil ● ■ ● ■ ● ■...
  • Page 80 Product Description Specifications AGIP CITY HI TEC 4T Engine oil SAE 5W-40, API SL, ACEA A3, JASO MA Synthetic oil AGIP BRAKE 4 Brake fluid FMVSS DOT 4 Synthetic fluid SPECIAL AGIP PERMANENT fluid coolant Monoethylene glycol-based antifreeze fluid, CUNA NC 956-16 UNIT OF MEASUREMENT - CONVERSION - E NGLISH (IS).
  • Page 81 TABLE OF CONTENTS Tyre pressure: 25 Tyres: 40 Air filter: 43 Fuel: 18 Light switch: 13 Fuses: 49 Battery: 47, 48 Maintenance: 35, 77, 78 Brake: 46, 59 Headlight: 54 Mirrors: 59 Horn: 13 Hub oil: 38 Clock: 12 Saddle: 19 Scheduled maintenance: 78 Identification: 20 Shock absorbers: 27...
  • Page 82 Not all versions shown in this publication are available in all Countries. The availability of individual versions should be confirmed with the official Piaggio sales network. "© Copyright 2007 - PIAGGIO & C. S.p.A. Pontedera. All rights reserved. Reproduction of this publication in whole or in part is prohibited."...
