Monitech T Series User Manual

12.1-inch lcd
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
One touch and
you're ready to go
USER MANUAL FOR 12.1-INCH LCD
T SERIES

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T Series and is the answer not in the manual?

Questions and answers

Related Manuals for Monitech T Series

Summary of Contents for Monitech T Series

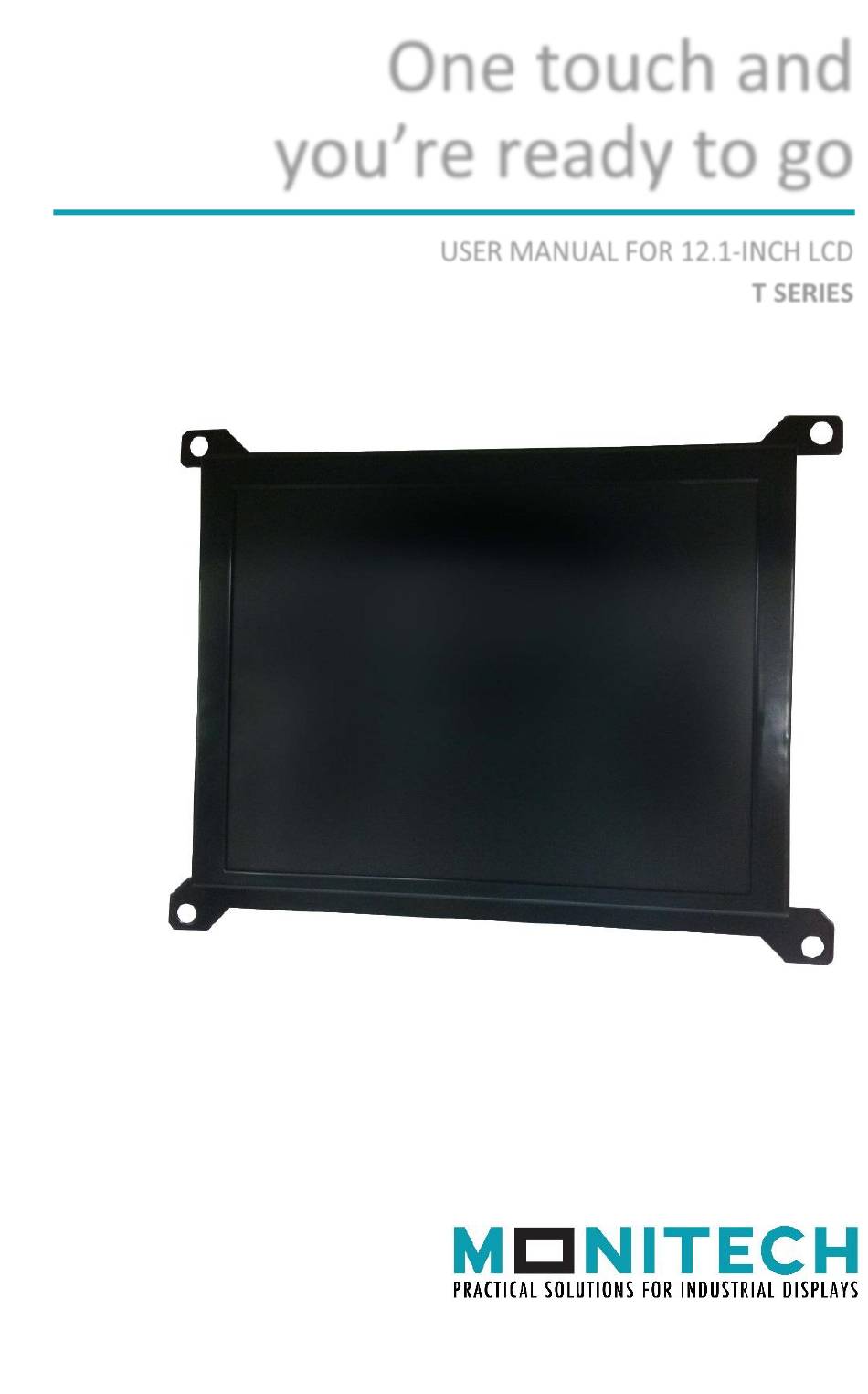

  • Page 1 One touch and you’re ready to go USER MANUAL FOR 12.1-INCH LCD T SERIES...
  • Page 2 IMPORTANT WARRANTY Before using any MONITECH product please carefully review this Manual as well as any additional documentation provided with your shipment. Attempting any of the following will void product warranty:  unauthorized repairs or parts replacement  inappropriate use or placement: exposing product to liquids, harmful gases, electrical shock, physical shock, temperatures beyond the range of -20°C to...
  • Page 3 Just press AUTO. Once you have mounted your new Monitech LCD into your control panel with the video cable attached, the indicator light on the back of the monitor may turn green. This means the video power is on. If the green light is off, press the I/O button to power it up.
  • Page 4 Fine-tuning your video image If you would like to further adjust your image values, use the buttons on the back of the LCD. Press MENU and this image will appear: Press MENU again to open the COLOR menu. To open ...
  • Page 5 PICTURE Fine-tune the image by adjusting the horizontal (H) and vertical (V) positions as well as the phase, clock and sharpness. FUNCTION Use this menu if you want to select or deselect Auto Adjust for size or Auto Color for color optimization.
  • Page 6 MISC Use this menu when you want to erase everything you have done and get a fresh start. Choose RESET. Video connector This picture shows the value for six pins on the video connector at the back of the monitor. (The other pins have no application.)
  • Page 7 Troubleshooting My screen is black. Ensure the DC power cable is fully inserted into the monitor receptacle. Use only 12V 4.16a power supply (+ on center pin). Ensure the power supply is securely connected to a 120-240V AC power source and that the green light indicates it is ON.
  • Page 8 All rights reserved. No parts of this manual may be reproduced in any form without the express written permission of Monitech. Monitech makes no representations or warranties with respect to the contents of this User Manual. In addition, information contained herein is subject to change without notice.
