Ikegami BSH-300 Operation Manual

Ikegami BSH-300 Operation Manual

Ethernet/iccp converter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Products conforming to RoHS directive
BSH-300
Ethernet/ICCP Converter
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BSH-300 and is the answer not in the manual?

Questions and answers

Related Manuals for Ikegami BSH-300

Summary of Contents for Ikegami BSH-300

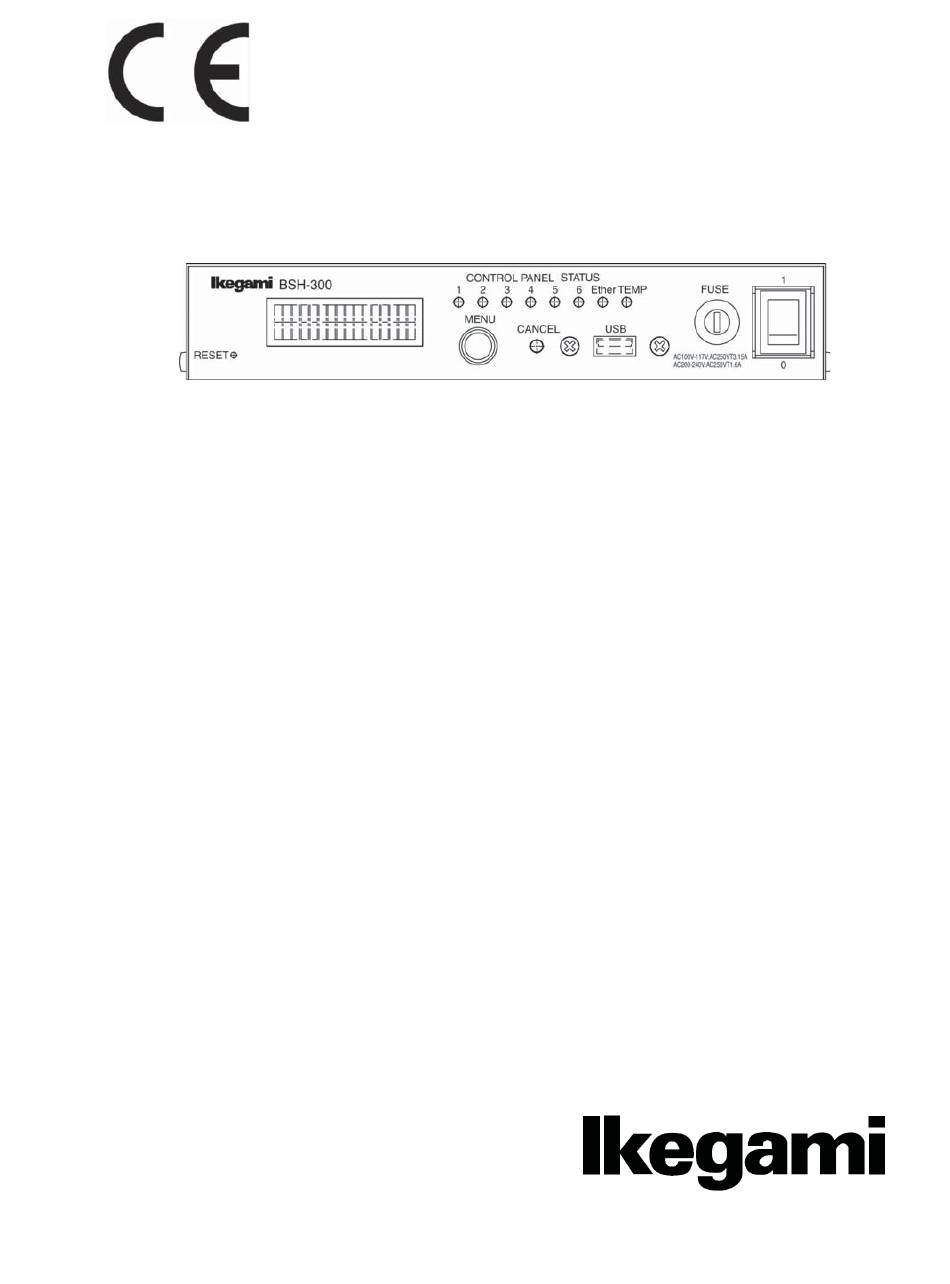

  • Page 1 Products conforming to RoHS directive BSH-300 Ethernet/ICCP Converter OPERATION MANUAL...
  • Page 3 Products conforming to RoHS directive BSH-300 Ethernet/ICCP Converter OPERATION MANUAL 1405 2 Edition (U) (E)
  • Page 4 Copyright © 2010 Ikegami Tsushinki Co., Ltd We reserve the copyright on the software we create. No part of this publication may be modified or reproduced in any form, or by any means, without prior written permission from Ikegami Tsushinki Co., Ltd.

  • Page 5: Products Conforming To Rohs Directive

    PRODUCTS CONFORMING TO RoHS DIRECTIVE Following products described in this manual are products conforming to RoHS directive. •BSH-300 Ethernet/ICCP Converter Products conforming to RoHS directive include products that do not contain specified hazardous substances such as lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyl (PBB) and polybrominated diphenyl ether (PBDE) in electrical and electronic equipment excluding following exemption applications based on the EU directive (Directive2002/95/EC).

  • Page 6: Maintenance Of Products Conforming To Rohs Directive

    ii MAINTENANCE OF PRODUCTS CONFORMING TO RoHS DIRECTIVE MAINTENANCE OF PRODUCTS CONFORMING TO RoHS DIRECTIVE Work with care about followings for maintenance of products conforming to RoHS directive. 1. Identification · For products conforming to RoHS directive, the letter “E” is appended at the end of the serial number on the label.

  • Page 7: Information To The User

    INFORMATION TO THE USER iii INFORMATION TO THE USER This equipment has been tested and found to comply with the limits for a Class A digital device, against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

  • Page 8: Safety Precautions

    iv SAFETY PRECAUTIONS SAFETY PRECAUTIONS This manual describes the precautions using various pictorial symbols for you to use the product safely. Please read these precautions thoroughly before use. The symbols and meanings are as follows:...
  • Page 9 SAFETY PRECAUTIONS v...
  • Page 10 vi SAFETY PRECAUTIONS...
  • Page 11 SAFETY PRECAUTIONS vii HOW TO READ THE OPERATION MANUAL This page explains general notes on reading the BSH-300 Operation Manual, and the symbols and notations used in the manual.
  • Page 13 BSH-300 Ethernet/ICCP Converter Operation Manual Contents...
  • Page 15 1 Overview 1.1 Overview BSH-300 is a converter that enables the conventional device that is compatible with Ikegami command system to communicate via Ethernet, and also serves as a network hub that connects to a camera head, BS/CCU and control panels that are not compatible with Ethernet.
  • Page 16 1.3 External View A-Type...
  • Page 17 B-Type...
  • Page 18 C-Type...

  • Page 19: Part Names And Functions

    2 Part Names and Functions A-Type B-Type C-Type RESET switch LCD screen MENU switch CANCEL switch RX status indicator Ethernet status indicator ALARM LED USB connector Fuse 10. Power switch 11. AC inlet 12. Connectors by type 13. SYSTEM connector 14.
  • Page 20 Press and hold the MENU switch for approximately 3 seconds while the initial screen (BSH-300) is displayed on the LCD screen to display the menu screen. This switch also serves as a rotary encoder switch. Rotate it to switch pages and settings. It is also used as an "Enter"...
  • Page 21 11. AC inlet This is a power input connector for BSH-300. This can support AC100 - 240V without switching. 12. Connectors by type Connectors vary depending on the device type. A-Type: consists of six CP connectors (female plugs). Control panel that is not compatible with Ethernet is connected with CP cable.
  • Page 23 If the CANCEL switch is kept being pressed, the screen stops at the initial screen. The structure and overview of the display screen for the device information in A-Type are shown below. BSH-300 A-Type 192.168.001.200 ROLL...
  • Page 24 * The display and structure of NETWORK INFO vary depending on the type. Description Initial screen. Displays the device name on the upper left corner, the type name on the upper right, and the IP address of this device at the bottom. Displays NG when abnormal temperature is detected.
  • Page 25 Program number for the supported camera head. "**" is displayed when it is not connected. IP address for the BSH-300. Press the MENU switch to switch to the information display on the connected BS/CCU side. Then, "CONNECT" is displayed on the upper right corner of the screen.
  • Page 26 Program number for the supported camera head. "**" is displayed when it is not connected. IP address for the BSH-300. Press the MENU switch to switch to the information display on the connected control panel. Then, "CONNECT" is displayed on the upper right corner of the screen.
  • Page 27 Program number for the supported camera head. "**" is displayed when it is not connected. IP address for the BSH-300. Press the MENU switch to switch to the information display on the connected BS/CCU side. Then, "CONNECT" is displayed on the upper right corner of the screen.

  • Page 28: Menu Screen

    3.3 Menu screen Press and hold the MENU switch for approximately 3 seconds while the initial screen or information display screen is displayed to proceed to the menu screen where you can change the settings. Press the MENU switch to proceed to the settings screen. Turn the rotary encoder to switch between pages.

  • Page 29: Subnet Mask

    IP ADDRESS Sets the IP address of this device. The IP address that is set here will be the IP address corresponding to the CP back connector 1. This IP address will be displayed on the initial screen. The setting procedure for the address is described below. I.
  • Page 30 ASSIGN(BS/CCU) Sets the IP addresses of the BS/CCU to which the control panels are connected. These panels are connected to the CP back connectors 1 to 6 of this device. See "3.3.1 A-Type menu IP ADDRESS" for the procedure of setting the address.

  • Page 31: Program Update

    VI. Once all items are set, turn the MENU switch to move the underline to the "SET" item. Jan. 01 2014 07 00 00 VII. If the MENU switch is pressed in this state, the date and time are confirmed, and the MENU screen is moved back one hierarchy.
  • Page 32 UPDATE WRITING When the file other than the update file for BSH-300 is selected, [FILE ERROR] is displayed and the update is failed. Select a correct file again. If the power supply is shut off while performing updates, it starts up with the firmware it was before the update.
  • Page 33 3.3.2 B-Type menu The structure of menu and details of settings for B-Type are shown below: Initial Screen Press and hold MENU switch * The screen with colors is the setting screen.
  • Page 34 IP ADDRESS Sets the IP address of this device. The IP address that is set here will be the IP address corresponding to the CP back connector 1. The address for CH1 that is set here will be displayed as an IP address on the initial screen. See "3.3.1 A-Type menu IP ADDRESS"...
  • Page 35 3.3.3 C-Type menu The structure of menu and details of settings for C-Type are shown below: Initial Screen Press and hold MENU switch ROLL Returns to the initial screen. * The screen with colors is the setting screen.
  • Page 36 IP ADDRESS Sets the IP address of this device. The IP address that is set here will be the IP address corresponding to the MCP back connector and CP back connectors 1 and 2. The address for MCP that is set here will be displayed as an IP address on the initial screen.
  • Page 37 ASSIGN(BS/CCU) Sets the IP addresses of the BS/CCU to which the OCP panels are connected. These OCP panels are connected to the OCP back connectors 1 and 2 of this device. You can switch the camera select No. with CH on the right upper corner of the LCD screen.
  • Page 39 4 Network This chapter describes the items for the network operation, including the setting and connection procedures for both this device and peripherals. 4.1 Conceptual diagram of the network A maximum Ethernet of six sets un-corresponding Network Hub Ethernet un- A camera selection corresponding is possible.

  • Page 41: Video Switching

    When the PREVIEW switch of OCP is pressed, the preview signal is output from the BS/CCU that is compatible with the command-connected camera network, or BSH-300. Controlling the general routing switcher with this signal enables to acquire the video signal that is linked to the Preview switch.
  • Page 42 The Preview signal is controlled in parallel by PREVIEW switch operation in OCP and the camera select operation in MCP. In the operation from OCP, it turns ON while PREVIEW switch is pressed and turns OFF when the switch is released. By setting the panel configuration, you can restrict the sending of the Preview control command in both MCP and OCP.

  • Page 43: Troubleshooting

    6 Troubleshooting In the case of network operation, the connected devices could fail simultaneously. This is caused by the network failure, in which the command control cannot be performed correctly. There are several causes for the network failure. Mistakes in the IP address setting If the IP addresses are duplicated, it may cause failure.

  • Page 45: Specifications

    7 Specifications 7.1 Rating A-Type Item Rating Remarks Power supply Power supply AC100V - 240V 50/60Hz voltage Power 150VA consumption Operating Ambient conditions 0°C - 45°C temperature Storage -25°C - +60°C temperature Operating 30% - 90% (no condensation) humidity range External dimensions W217.5 x H38.6 x D400 (Width/height/depth)
  • Page 46 B-Type Item Rating Remarks Power supply Power supply AC100V - 240V 50/60Hz voltage Power 150VA consumption Operating Ambient conditions 0°C - 45°C temperature Storage -25°C - +60°C temperature Operating 30% - 90% (no condensation) humidity range External dimensions W217.5 x H38.6 x D400 (Width/height/depth) Weight 2.6kg...
  • Page 47 C-Type Item Rating Remarks Power supply Power supply AC100V - 240V 50/60Hz voltage Power 150VA consumption Operating Ambient conditions 0°C - 45°C temperature Storage -25°C - +60°C temperature Operating 30% - 90% (no condensation) humidity range External dimensions W217.5 x H38.6 x D400 (Width/height/depth) Weight 2.6kg...
  • Page 48 Cable side: PRC05-199P9-8M (8-pin male plug) or equivalent Insert side Pin No. Name Function Direction External interface Network command data input/output (A) IN/OUT between BSH-300 and OCP/MCP Network command data input/output (B) IN/OUT between BSH-300 and OCP/MCP ---------- ---------- +12V DC+12V power supply output +12V RET...
  • Page 49 Serial command from BS/CCU to HED(+) BSH-300 Data input (+) Serial command from BS/CCU to HED - BSH-300 Data input (-) Serial command from BSH-300 to HEC(+) BS/CCU Data output (+) Serial command from BSH-300 to HEC - BS/CCU Data output (-)
  • Page 50 Select signal (COMMAND) of camera CAM SL BC Select signal (COMMAND) of camera CAM SL CC HED TX(+) Send data (+) from BSH-300 to MCP HED TX(-) Send data (-) from BSH-300 to MCP HEC RX(+) Send data (+) from MCP to BSH-300...
  • Page 51 PREVIEW connector Layout This is an video select connector that is linked to OCP/MCP. Main body side: D-sub 9-pin (socket) Cable side: D-sub 9-pin (pin), inch screw Insert side Pin No. Name Function Direction External interface CH1 ON Preview CH1 CH2 ON Preview CH2 CH3 ON...
  • Page 52 SYSTEM connector Layout This is an extension connector. Main body side: D-sub 15-pin (socket) Cable side: D-sub 15-pin (pin), inch screw Insert side Pin No. Name Function Direction External interface Camera status output 1 OUT1 Camera status output 2 OUT1 Camera status output 3 OUT3 Camera status output 4...
  • Page 53 Published in Ikegami Factory of Ikegami Tsushinki Co.,Ltd. All rights reserved. Reproduction or duplication, without permission of Ikegami Tsushinki Co., Ltd. of editorial or pictorial content in whole or in part, in any manner, is prohibited. Specifications and design are subject to change without prior notice.
  • Page 54 Ikegami Tsushinki Co., Ltd. 5-6-16, Ikegami, Ohta-ku, Tokyo, 146-8567, Japan Phone : +81-(0)3-5700-4114 Fax : +81-(0)3-5748-2200 E-Mail : info_e@ikegami.co.jp URL : http://www.ikegami.co.jp/en/ Ikegami Electronics (U.S.A.),Inc. 37 Brook Avenue, Maywood, New Jersey 07607, U.S.A. Phone : +1-201-368-9171 Fax : +1-201-569-1626 E-Mail : engineering@ikegami.com, service@ikegami.com URL : http://www.ikegami.com...
