Seismic Safety

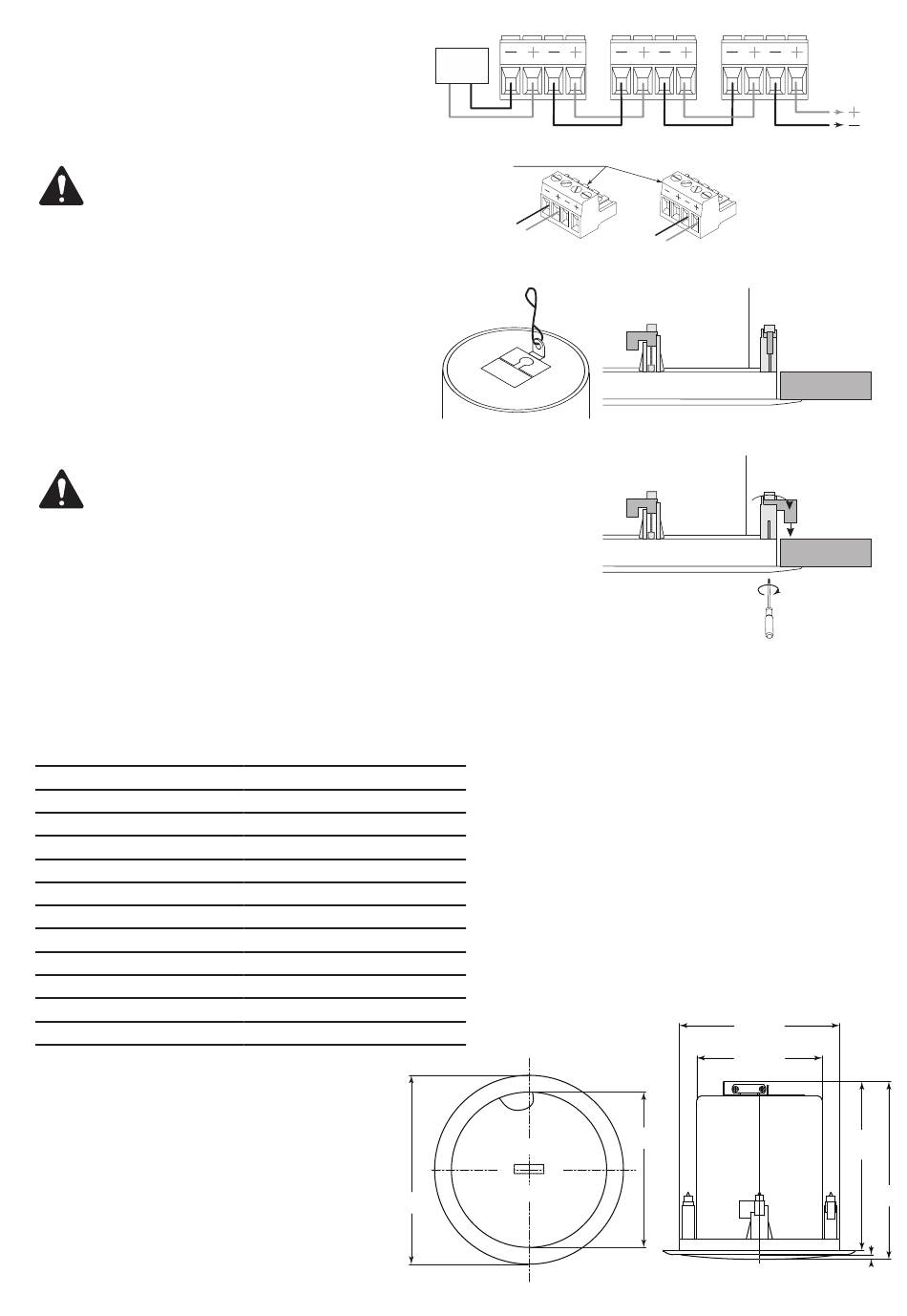

Refer to Figure 4.
1. Attach an appropriate safety line from the safety tab on the back
of the connector cover to an appropriate part of the structure.
WARNING!!: Be sure to observe local building
codes for seismic requirements.
Mount the Loudspeaker
Refer to Figure 5.
1. Make sure all of the dog-ears are up against the side of the metal
loudspeaker housing.
2. Slide the loudspeaker housing up through the hole into the
ceiling.
3. Use a Phillips screwdriver to tighten each of the four dog-ear
screws.
CAUTION!!: Do not overtighten the dog-ear screws!
4. Use a flat-tip screwdriver to set the transformer tap according to the design requirements.
5. Install the loudspeaker grille.

Specifications

Refer to Figure 6.
Name
Transducer
Rated noise power [continuous] (1)
Nominal impedance
Transformer taps
Effective frequency range
(2)
Rated coverage
(3)
Sensitivity
(4)
Maximum continuous SPL
(5)
Maximum peak SPL (5)
Net weight
Shipping weight
Product dimensions (diameter × height)
Shipping dimensions (H × W × D)
1 AES2-1984 noise signal for 2 hours; 8 ohm setting
2 Half-space, -10 dB from on-axis sensitivity
3 -6 dB from on-axis, 500 Hz – 5 kHz
4 Half-space, on-axis, 2.83 V rms, at 1 m
5 Calculated from rated noise voltage and sensitivity
TD-001530-01
Specification
2.75" treated paper cone
16 W
8 Ω
1, 2, 4, 8, 16 W, and 8Ω bypass; 70 and 100 V
70 Hz – 16 kHz
170° conical
83 dB
95 dB
101 dB
1.86 kg [4.9 lb]
5.8 kg [12.8 lb]
Ø 214 mm × 201 mm [Ø 8.4" × 7.9"]
273.1 mm × 609.6 mm × 266.7 mm [10.75"
× 24" × 10.5"]
8.43"
[214.00 mm]
Amp
Parallel Wiring Diagram
1
From
source
— Figure 3 —–
— Figure 4 —–
Turn the screw clockwise to engage
[176.00 mm]
3
To additional
loudspeakers
1
Dog-ears against loudspeaker
2
the dog-ear with the ceiling.
— Figure 5 —–
Ø7.15"
[181.50 mm]
Ø5.59"
[142.00 mm]
Ø6.93"
To additional
loudspeakers
7.5"
[191.10 mm]
7.9"
[201.05 mm]
.2"
[4.95 mm]
