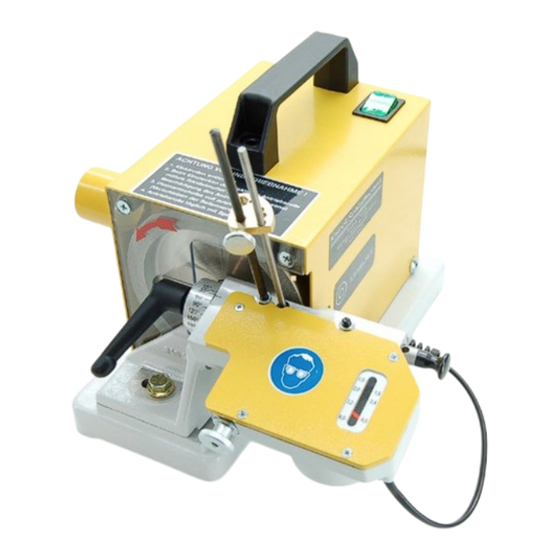

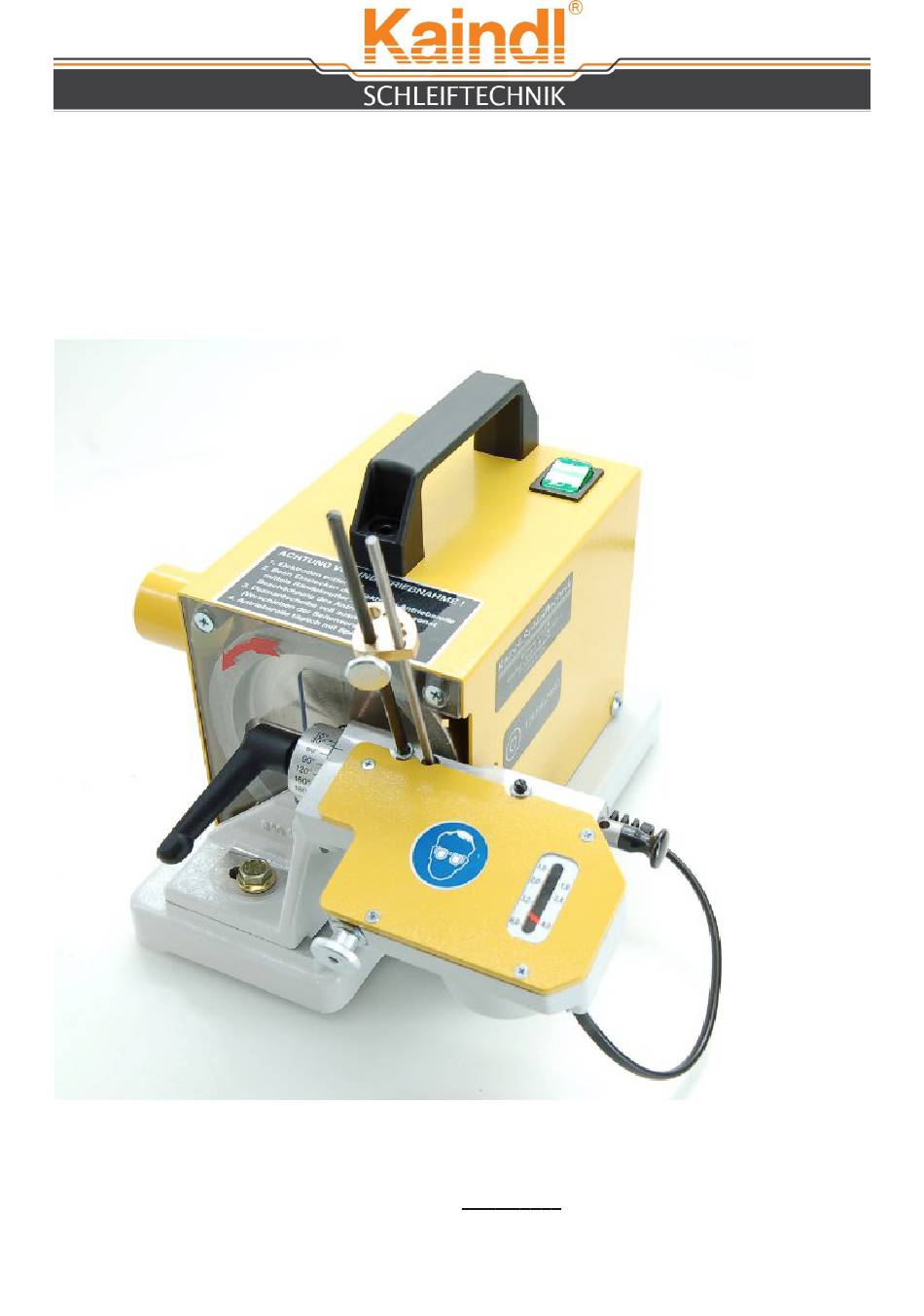

- Page 1 OPERATING INSTRUCTIONS FOR ELECTRODE SHARPENING WIG 4 MACHINE Original Please keep for further use! Kaindl-Schleiftechnik REILING GmbH, D-75203 Königsbach-Stein, Remchinger Str. 4 Germany Tel.: +49 7232/4001-0, Fax.: +49 7232/4001-30, Internet: www.kaindl.de, E-Mail: info@kaindl.de...
-
Page 2: Table Of Contents
CONTENT EC Declaration of conformity Description of product Directed use Set up Structure & Technical data General safety advice Duty of taking care by the user Starting and operation Change the grinding wheel Maintenance and care Warranty Repairs Spare parts list... -
Page 3: Ec Declaration Of Conformity
75203 Königsbach-Stein Germany declares that the machine Grinding machine described hereafter: Typ: WIG 4 Refers to the security and health requirement of EC-Machine instruction (2006/42/EC) the following EC instructions: EC-instruction EMV (2004/108/EC) Applied harmonised norms: EN ISO 12100-1 and EN ISO 12100-2; EN ISO 13857; EN ISO 13732-1;... -
Page 4: Description Of Product
Environmental conditions for set up: Use the electrode grinding machine only in dry rooms. The WIG 4 is a table machine. Please pay attention that the machine has a solid and safe stand on a plan surface. The place for set up must grant a vibration free running of the machine. -
Page 5: Structure & Technical Data
STRUCTURE (1) Main switch On/Off (5) Top angle adjustment (2) Guide for electrodes (6) Horizontal adjustment (3) Adjustment slide for electrodes (7) Connection for dust exhaust (4) Drive regulation (8) Display for electrode diameter TECHNICAL DATA Top angle 15° - 180° Electrode-Ø... -
Page 6: General Safety Advice
ATTENTION! Before removing or opening the machine, disconnect the main plug! DUTY OF TAKING CARE BY THE USER The Kaindl electrode grinding machine has been designed and constructed unter consideration of an endangering analysis and careful selection of observed harmonized normes, as well as further technical specifications. -
Page 7: Starting And Operation
START UP AND OPERATION 1. Connect the dust exhaust of industrial vacuum cleaner with Filter type M to the pipe (7) 2. Degrease the electrodes before grinding, best with spirit or similar. 3. Adjust the top angle after opening the clamping lever (5), the number on the scale corresponds to the top angle of the finished electrode 4. -
Page 8: Change The Grinding Wheel
CHANGE OF GRINDING WHEEL For changing the grinding wheel absolutely disconnect from electric current! First loosen the screw which holds the electrode drive with a 13 mm engineers wrench (page 5, No. 6). Open the screws of the transparent plastic cover with a four-way rim wrench Then tuck the hexagon socket wrench 2,5 mm through the opening on the right side of the sheet metal casing and open the setscrew. -
Page 9: Maintenance And Care
MAINTENANCE AND CARE Under standard working conditions, the Kaindl electrode-grinding machine needs a minimum on maintenance and care. The observation of some items is essential in order having the machine ready for duty for many years. 1. Check the electric cable and plug occasionally for damaging. -
Page 10: Spare Parts List
SPARE PART LIST Item Item No. Description 10745 Diamond grinding wheel D 107 (standard) incl. adaptor 10744 Diamond grinding wheel D 76 (medium) incl. adaptor 10743 Diamond grinding wheel D46 (fine) incl. adaptor 10760 Knurled screw M4 x 12 mm for guidance bloc 10758 Guidance bar M5 x 140 mm for electrode 16592...
