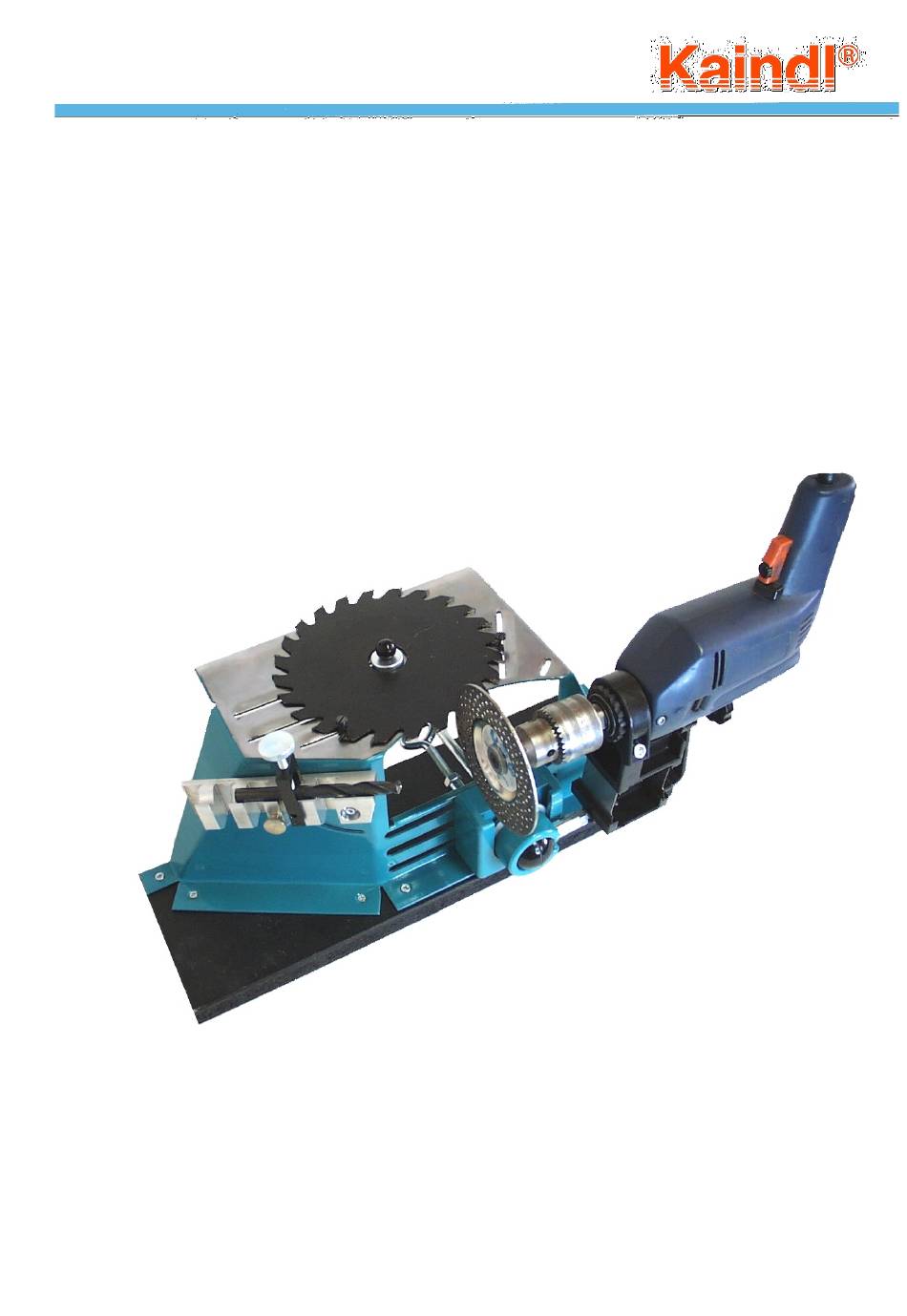

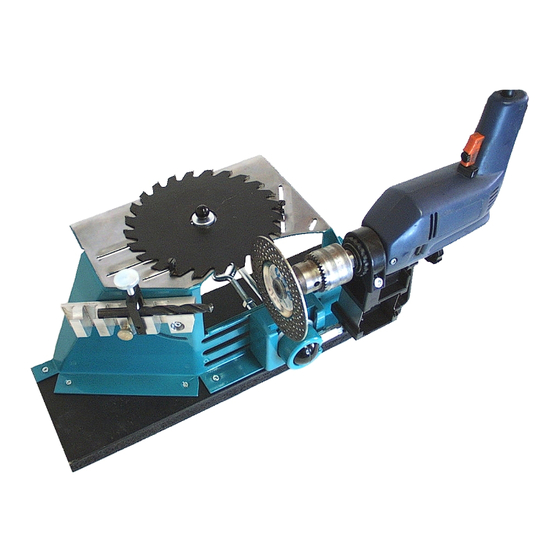

- Page 1 Operation manual KAINDL – Sharpening platform KSS for drills and circular saw blades Issue Feb. 2003, Technical changes may be done without notification...
- Page 2 The directed use includes also reading this operation manual, as well as keeping all containing directions of use – especially the safety information. In case the KAINDL KSS is not used as per intended purpose, a save operation cannot be gran- ted.
- Page 3 The manufacturer Kaindl-Schleiftechnik Reiling GmbH Remchinger Str. 4 75203 Königsbach-Stein declares that the machine Sharpening platform KSS described herein refers to the security and health EC-Machine instruction (98/37/EC) requirements of the following EC instructions Applied harmonized norms: EN 292-1 and EN 292-2...
-
Page 4: Basic Safety Advise
The machine corresponds to the state of the art and grants a maximum of safety. This safety can only be achieved in daily work, when all necessary steps are taken by the user of the KSS. It is his duty to take care, plan and control these steps. - Page 5 Fix the platform by using the designated boring holes on a fix and stable base (e.g. working table) Fix the drill (not included) on the provided 43 mm neck. Fix the KAINDL diamond wheel in the drill chuck. 2. Sharpening of drills Open both adjustment screws (11) and place the drill machine with the grinding wheel in correct position drill grinding.
- Page 6 Picture 1 Picture 2...
- Page 7 Picture 3 Picture 4 Adjustment slots for saw blade stop dog Magnet for saw blade fixation Saw blade stop dog or reversing stop dog Reversing drill prism 4a. Drill fixation screw (Reversing drill prism) Adjustment marks Drill support 6a-6d. Prism notches as support for reversing drill prism Knurled screw for fixing the drill support prism Motor feeding screw Ball joint for adjustment of different grinding wheel positions...
- Page 8 3. Sharpening of saw blades The new type of the supplied diamond wheel sharpens all saleable cutting materials. Therefore it is not necessary to change the grinding wheel for sharpening different saw blades (HSS chrome-vanadium or carbide). Open the adjustment screws (11) and place your drill machine in correct position: saw blade sharpening 3.1 Sharpening of inside tooth For adjusting the saw blade, shift both stop dogs in the way that the tooth to be sharpened is in a 90 °...
- Page 9 General information about the flexibility of the KSS Differing to the information written here, the platform allows a wide range of individual adjustments.
