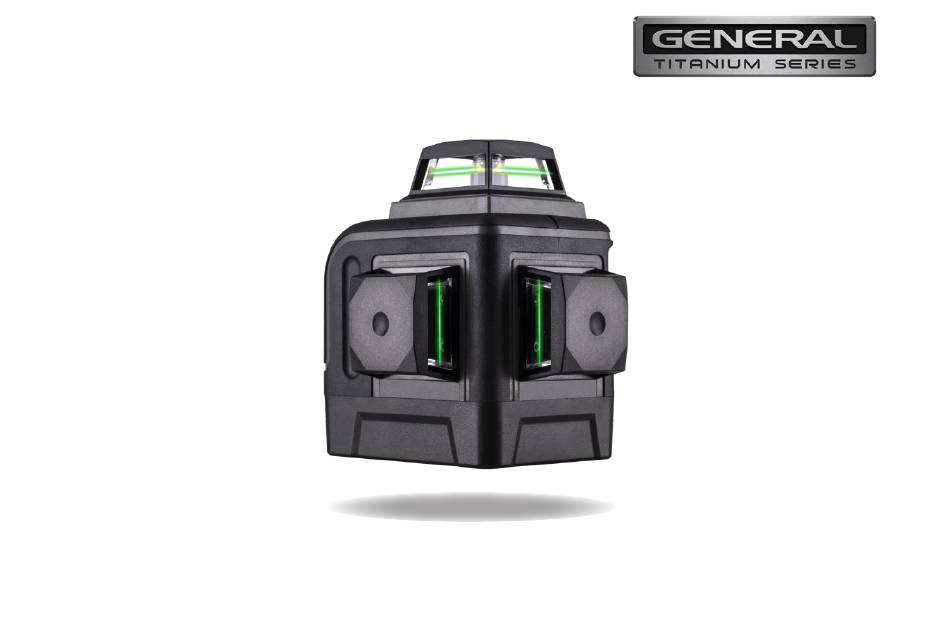

  • Page 1 T M L - 3 D G M U L T I - L I N E L A S E R I N S T R U C T I O N M A N U A L...
  • Page 2 SAFETY Read the following safety instructions before • Tool service must be performed only by qualified attempting to operate this product. repair personnel. Repairs, service or maintenance performed by unqualified personnel will void the Keep these instructions in a safe place or store warranty.
  • Page 3 CAUTION: Class 2 Laser Product • Do not let children come in contact with the laser. • Turn the laser off when it is not in use. Leaving • Never look into the laser beam directly and the laser on increases the risk of staring into the intentionally.

  • Page 4: Item Checklist

    ITEM CHECKLIST Please ensure the following items are included with your laser level. If anything is missing please contact your retailer. INCHES General Titanium Magnetic mount Laser target Laser glasses Series TML- 3DG Mains power adaptor / Micro USB charging Li-ion Carry case indoor charger...

  • Page 5: Laser Overview

    LASER OVERVIEW Laser port Control panel Laser port Locked position (power off) Micro USB charging port Unlocked position Power / locking switch (power on / self levelling) Battery door cover 1/4” tripod thread...
  • Page 6 LASER OVERVIEW: CONTROL PANEL Line mode Pulse mode Power indicator...
  • Page 7 DETECTOR OVERVIEW: FRONT The detector is an optional accessory which can be purchased from your retailer. Bubble vial LED direction indicator Laser sensor LED centre indicator LED direction indicator LED speaker indicator LED power indicator Sound on / off Power Speaker Bubble vial...

  • Page 8: Using Your Laser

    USING YOUR LASER POWER SUPPLY Charging the li-ion battery • Insert the mains power adaptor / charger into the • The instrument is supplied with two li-ion batteries Micro USB charging adaptor. as its power source. • Insert the Micro USB charging adaptor into the • The instrument also has the ability to run using micro USB port.
  • Page 9 USING YOUR LASER (continued) Mains power operation • Insert the mains power adaptor / charger into the micro USB charging adaptor. • Insert the micro USB charging adaptor into the micro USB port. Plug the charger into a power source. The instrument will operate without a battery inserted.
  • Page 10 USING YOUR LASER (continued) SET UP • If the instrument is outside the self levelling range the instrument will not level causing the laser to • Select a place as close as practical to the work beep and the beam to flash on and off repeatedly. site.
  • Page 11 USING THE MAGNETIC MOUNT Mounting onto a magnetic surface Mounting onto a tripod • Attach the instrument to the mount using the • Attach the mount onto the tripod via the 5/8” 1/4” thread. or 1/4” thread. • Attach the mount to a metal surface, ensuring •...

  • Page 12: Using Your Detector

    USING YOUR DETECTOR • Press the pulse mode button on the top of the instrument to enter into pulse mode. • Switch the detector on by pressing the power button. The speaker will beep indicating the instrument is operating. • Move the detector into the path of the laser beam. •...

  • Page 13: Troubleshooting

    TROUBLE SHOOTING Error Cause & Solution • Check the battery. It may be in the wrong way or need replacing. Laser does not turn on • Check the battery compartment for signs of damage. Ensure it is clean and not bent. • Check the battery.

  • Page 14: Care And Maintenance

    CARE AND MAINTENANCE • This is a precision measuring instrument • The operator should check the accuracy of the and should always be handled with care and instrument before precision levelling is attempted. transported within the carry pouch provided. Failure to do so may result in inaccurate measurements.

  • Page 15: Warranty

    WARRANTY 3 YEAR STANDARD WARRANTY PERIOD 7 YEAR EXTENDED WARRANTY PERIOD 1. The warranty period for your tool is 3 years from 1. The extended warranty is available on selected the date of purchase. tools only. 2. The warranty period for batteries, battery packs 2.
  • Page 16 WARRANTY (continued) Australia New Zealand “Our goods come with guarantees that cannot be For more information please visit excluded under the Australian Consumer Law. You consumerprotection.govt.nz are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.

  • Page 17: Customer Support

    CUSTOMER SUPPORT To assist you with any queries or technical questions please contact customer support Australia: 1300 658 338 New Zealand: 0800 367 527...

  • Page 18: Specifications

    SPECIFICATIONS Specifications TML-3DG Product code 88610 Warranty 7 Years* Accuracy ±2mm at 10m Operating range 50m (with optional detector) Levelling range ±4° Laser class 2 Green Battery life 5 hours+ Battery type Li-ion (4.2V 2600mAh) Vertical lines Horizontal lines IP rating Weight (kg) 0.41 Dimensions (mm)
  • Page 19 NOTES...
