Spot-On Digital/Laser RangeFinder 600
Feature：
21mm Objective Lens
6x Magnification Power
7.2°View Angle
16mm Pupil Distance
Precision To +/-1 M
Maximum Range :
LW600PRO
LW1000PRO 1000M
Closest distance :
LW600PRO
LW1000PRO 5M
3V Battery (CR2)
Waterproof
Operating Instructions
Size:
L：97mm(dose not include eyepiece)
600M
W：39mm
H：73mm（front）
4M
Weight: 175
106mm（include eyepiece）
68mm（rear）
g
Advertisement
Related Manuals for Spot-on LW600PRO
Summary of Contents for Spot-on LW600PRO
-
Page 1: Operating Instructions

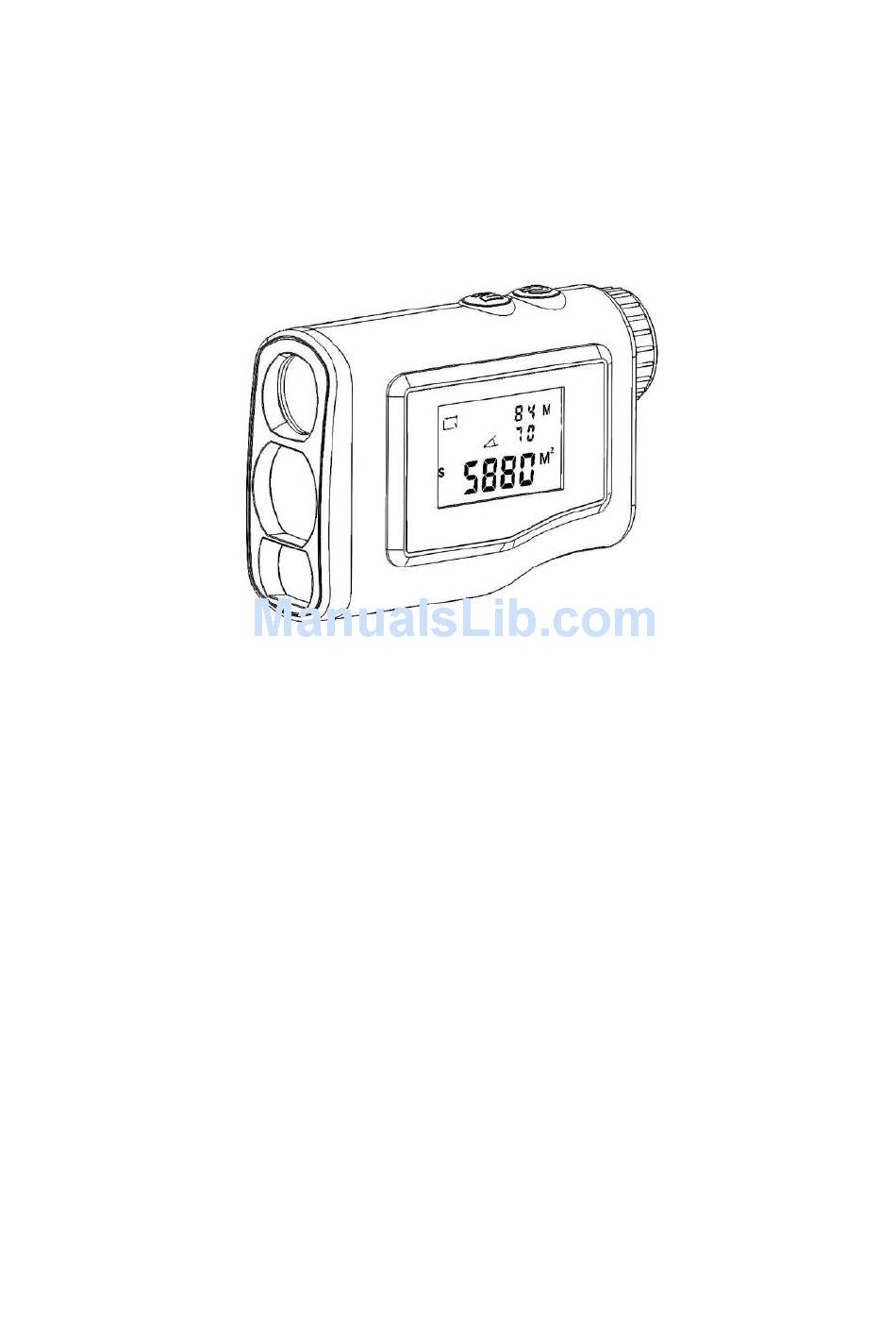

Spot-On Digital/Laser RangeFinder 600 Operating Instructions Feature： Size: 21mm Objective Lens 6x Magnification Power 7.2°View Angle L：97mm(dose not include eyepiece) 16mm Pupil Distance Precision To +/-1 M 106mm（include eyepiece） Maximum Range : LW600PRO 600M W：39mm LW1000PRO 1000M Closest distance : H：73mm（front）... - Page 2 1. The boot Press key to boot. 2. Unit conversion Long press button to switch the unit of distance, Y and M. Internal Screen Side of the screen The area of imperial units The height of imperial units...
- Page 3 3.Low voltage alarm When the the products battery voltage is too low, the low pattern has been shown to remind replace the battery. Battery Replacement indicate:...
- Page 4 4.Mode Selection Press key in the "ranging", "Rectangular area & Rectangular perimeter", "Circular area & Circumference", "Rectangular area & Rectangular perimeter with angle correction" ， "Circular area &Circumference with angle correction "，" Horizontal distance "，" Vertical height " and "Tilt angle" switch between. 4-1.“...
- Page 5 Side of the screen Press key to start ranging. Internal Screen Side of the screen Within a distance of 200 m resolution 0.5m.
- Page 6 4-2. Rectangular area & Rectangular perimeter Principle: Measuring the length of two sides of the rectangle, calculate the area and perimeter of a rectangle. Internal Screen Side of the screen...
- Page 7 Press Measure the length of a side. Internal Screen Side of the screen Press Measure the length of another side Rectangular area...
- Page 8 Rectangular perimeter 4-3. Circular area & Circumference Principle: By measuring the diameter of the circle, calculate the area and perimeter of a circle. Internal Screen Side of the screen...
- Page 9 Press Measure the diameter Circular area Circumference 4-4. Rectangular area & Rectangular perimeter with angle correction Principle:...
- Page 10 Measuring the length of two sides of the rectangle, calculate the area and perimeter of a rectangle. Tilt angle will be involved in the calculation. Internal Screen Side of the screen Press Measure the length of a side and tilt. Internal Screen...
- Page 11 Side of the screen Press Measure the length of another side and tilt. Rectangular area Rectangular perimeter...
- Page 12 4-5. Circular area & Circumference with angle correction Principle: By measuring the diameter of the circle, calculate the area and perimeter of a circle. Tilt angle will be involved in the calculation. Internal Screen Side of the screen...
- Page 13 Press Measure the diameter and tilt Circular area Circumference 4-6. Horizontal distance Principle:...
- Page 14 Measure distance：AC or AB Horizontal distance：AD Internal Screen Side of the screen Press Measure the actual distance and tilt. Internal Screen Display measure distance Side of the screen Display measure distance and horizontal distance...
- Page 15 4-7. Vertical height Principle: Measuring distance between two points (Bottom and Top) in the vertical direction, and the angle（a） between the two points, to calculate the vertical height between the two VH. Internal Screen Side of the screen...
- Page 16 Press Measured the distance between the first point. Internal Screen first point Side of the screen Press key again Measured the distance between the second point and tilt, calculate the vertical height. Internal Screen second point Side of the screen Two point distance and vertical height...
- Page 17 4-8. Tilt angle Principle: Measure the angle between the laser rangefinder and the horizontal plane. Internal Screen Side of the screen...
- Page 18 5.About the area of measurement, big data show. In the area of measurement, a distance of over 320 meters, the area will be more than 99,999 square meters, the display area will be overrun. In this case, the data display mode as follows: First appeared high byte Then display the low byte Side length1: 483m...
