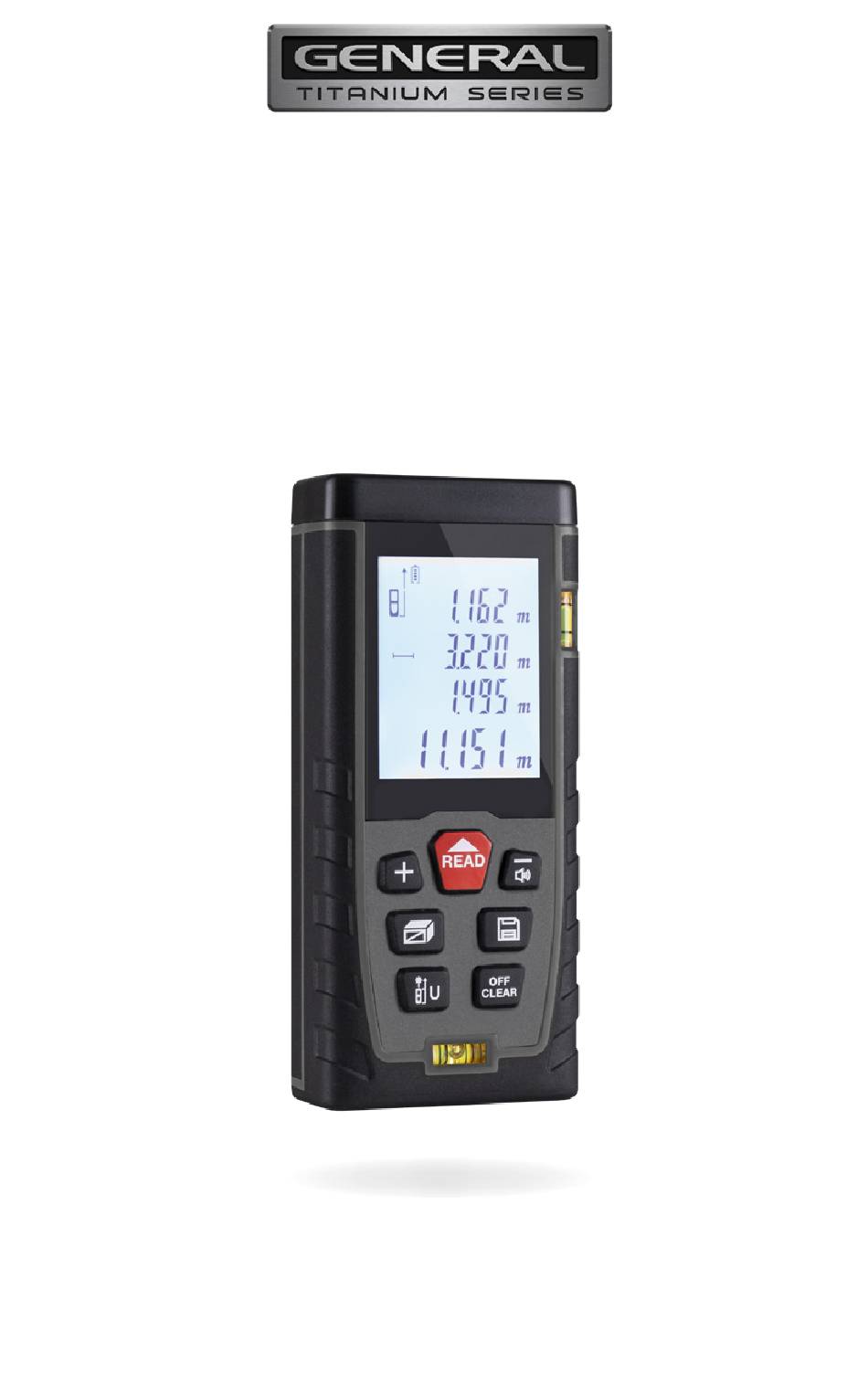

- Page 1 T L M - 3 0 M L A S E R D I S T A N C E M E A S U R E R I N S T R U C T I O N M A N U A L...
- Page 2 SAFETY Read the following safety instructions before attempting to operate this product. SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE. • W ARNING: Read and understand all instructions. • U se the laser measurer only with the specified batteries. • S tore the laser measurer out of reach of children and other untrained persons. Lasers are dangerous in the hands of untrained users. • D ue to the electromagnetic radiation interference to other equipment and devices please do not use the laser distance measurer in an airplane or around medical equipment. • D o not use in a flammable, explosive environment. • D iscarded batteries or devices shall not be processed with household garbage. Please follow related laws and regulations.
- Page 3 SAFETY (continued) • D o not position the laser near a reflective surface which may reflect the laser beam toward anyone’s eyes. Serious eye injury could result. • D o not use optical tools to view the laser beam. • D o not remove or deface warning labels. WARNING: Do Not Disassemble The Laser Measurer. T here are no user serviceable parts inside. Disassembling the laser will void all warranties on the product. Do not modify the product in any way. Modifying the tool may result in hazardous laser radiation exposure. CAUTION: Class 2 Laser Product • N ever look into the laser beam directly and intentionally. • D o not use optical tools to view the laser beam. • D o not let children come in contact with the laser measurer.
-
Page 4: Item Checklist
ITEM CHECKLIST Please ensure the following items are included with your laser distance measurer. If anything is missing please contact your retailer. General Titanium Series Carry pouch TLM-30M Carry strap Alkaline batteries... - Page 5 LASER OVERVIEW: FRONT Laser emitter Bubble vial LCD screen Control panel Bubble vial...
- Page 6 LASER OVERVIEW: BACK Battery compartment...
- Page 7 LASER OVERVIEW: CONTROL PANEL Subtraction / speaker volume Read (laser emission on) Addition Area / volume / pythagoras Data storage Reference point / unit of measurement Power off / clear...
- Page 8 LASER OVERVIEW: DISPLAY SCREEN Battery level Measurement Data storage Measurement mode Laser emission on Maximum display Minimum display Measurement unit...
- Page 9 USING YOUR LASER MEASURER POWER SUPPLY • T he instrument is supplied with two 1.5v AAA alkaline batteries. To replace batteries, remove the battery door at the back of the device. Place batteries according to polarity and replace battery door. OPERATION On/off • Press and hold the read button to turn the laser distance measurer on. • Press and hold the off / clear button for 3 seconds to turn the unit off. The device will shut off automatically after 150 seconds without use. Unit setting • The unit default setting is 0.000m. To reset the current unit of measurement press and hold the reference point / unit of measurement button. • Press and hold the reference point / unit of measurement button to cycle through the unit of measurement options.
- Page 10 USING YOUR LASER MEASURER (continued) Reference point setting To cycle between the benchmark reference points press the reference point / unit of measurement button. There are two reference points: top and bottom. MEASUREMENT Continuous measurement • Press and hold the read Single measurement button. Minimum and maximum results will be • P r ess the read button. The displayed on the display laser will be emitted. screen. • Re-press the read button • Press the read button or for a single distance off / clear button to exit measurement. Results will continuous measurement.
- Page 11 USING YOUR LASER MEASURER (continued) Area measurement • Press the area / volume / pythagoras button. A rectangle will appear on the display screen. • P ress the read button to measure the first edge (width). • P ress the read button to measure the second edge (length). • Area will be calculated automatically with results shown on the display screen. • P ress the off / clear button to clear measurement. Volume measurement • Press the area / volume / pythagoras button twice. A cube will appear on the display screen. • P ress the read button to measure the first edge (height).
- Page 12 USING YOUR LASER MEASURER (continued) Pythagoras measurement • T o calculate the unilateral distance of a triangle pythagorean mode can be used. When taking measurements of the triangle, ensure the length of the right side is shorter than the length of the hypotenuse. If not, the instrument will display an error signal. • T o ensure the accuracy of measurement, take measurements from the same starting point of the first order hypotenuse. Then follow with the measurement of the right side. Please follow the instructions according to the method required. (See diagrams on pg 11-13 to determine the appropriate method). 1. Calculate the side of a right angle triangle Press the area / volume / pythagoras button three times to enter pythagorean mode. Follow the instructions displayed on the screen as follows: • Press the read button to measure the length (a) of the hypotenuse.
- Page 13 USING YOUR LASER MEASURER (continued) 2. Calculate the hypotenuse of a right angle triangle P ress the area / volume / pythagoras button five times to enter pythagorean mode. Follow the instructions displayed on the screen as follows: • Press the read button to measure the length (a) of the rectangular side. • Press the read button to measure the length (b) of the next rectangular side. • Length (x) of the hypotenuse will be calculated automatically with results shown on the display screen.
- Page 14 USING YOUR LASER MEASURER (continued) 3. Calculate partial length of a right angle triangle P ress the area / volume / pythagoras button seven times to enter pythagorean mode. Follow the instructions displayed on the screen as follows: • Press the read button to measure the length (a) of the hypotenuse. • Press the read button to measure the length (b) of the second hypotenuse. • Press the read button to measure the length (c) of the rectangular side. • Length (x) of the vertical side will be calculated automatically with results shown on the display screen.
- Page 15 USING YOUR LASER MEASURER (continued) 4. Calculate the third side of a triangle Press the area / volume / pythagoras button six times to enter pythagorean mode. Follow the instructions displayed on the screen as follows: • Press the read button to measure the length (a). • Press the read button to measure the length (b). • Press the read button to measure the length (c). • Length (x) of the vertical side will be calculated automatically with results shown on the display screen.
- Page 16 USING YOUR LASER MEASURER (continued) Subtraction • T ake the first reading by pressing the read button. • Press the subtraction / speaker volume button. • A “-” symbol will appear on the display screen. • T ake the second reading by pressing the read button. The values will be subtracted automatically with the results shown on the display screen. • Press off / clear button to exit addition or subtraction mode. To clear the previous measurement, press the off / clear button. ADDING AND SUBTRACTING AREA MEASUREMENT • Take the area measurement as described in the Area Measurement section (pg 11) . • Press the addition or subtraction / speaker volume button. Press once for addition, or once for subtraction. A “+” or “-” symbol will appear on the display screen.
- Page 17 USING YOUR LASER MEASURER (continued) ADDING AND SUBTRACTING VOLUME MEASUREMENT • Take the volume measurement as described in the Volume Measurement section (pg 10) . • Press the addition / subtraction / speaker volume button. Press once for addition, twice for subtraction. A “+” or “-” symbol will appear on the display screen. • Take the second volume measurement as described in the Volume • Measurement section (pg 10) . • Press the read button. The values will be calculated automatically with the results shown on the display screen. STORAGE AND BROWSING Save a reading • P ress and hold the data storage button for three seconds. The data will automatically be stored in the memory of the unit.
- Page 18 USING YOUR LASER MEASURER (continued) Sound on/off • P ress and hold the subtraction / speaker volume button to turn the sound off. Press and hold the subtraction / speaker volume button to turn the sound on. CARE & MAINTENANCE Inaccurate measurement results may occur in harsh environments • such as strong sunlight, excessive temperature fluctuations, weak reflective surfaces or low battery. Whenever possible, store the instrument in a cool, dry place. Do • not store in high temperatures or strong humidity for long periods of time. Store in the carry pouch supplied in a cool, dry place. • Remove the batteries before storing the device for long periods • of time without use. To remove dust, clean the instrument with a damp, soft cloth. •...
-
Page 19: Troubleshooting
TROUBLE SHOOTING Error code Cause & solution Out of measurement range Measure within the measurement range Signal is too weak ERR1 Measure target locations that have stronger reflecting surfaces. Signal is too strong ERR2 Measure target locations that have weaker reflecting surfaces. Low battery ERR3 Charge or replace batteries. Beyond working temperature ERR4 Use the device within the specified temperature range Improper measurement in pythagorean mode ERR5 Re-measure and ensure the correct pythagorean method is used. Please refer to pg 12-15. -
Page 20: Warranty
WARRANTY 3 YEAR STANDARD WARRANTY PERIOD 1. T he warranty period for your tool is 3 years from the date of purchase. 2. T he warranty period for batteries, battery packs and chargers is 1 year from the date of purchase. 3. C alibrations are not covered under warranty as they are deemed wear and tear. 4. A ll products have a standard warranty period, you do not have to register your products to obtain the standard warranty period. 5. T o claim under this warranty, the date of purchase of the tool must be documented by an invoice/receipt. 7 YEAR EXTENDED WARRANTY PERIOD 1. T he extended warranty is available on selected tools only. 2. Y ou may extend the warranty period for your to 7 years from the date of purchase. This excludes batteries, battery packs and chargers. - Page 21 WARRANTY (continued) AUSTRALIA “Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.” For more information please visit consumerlaw.gov.au NEW ZEALAND For more information please visit consumerprotection.govt.nz...
-
Page 22: Customer Support
CUSTOMER SUPPORT To assist you with any queries or technical questions please contact customer support Australia: 1300 658 338 New Zealand: 0800 367 527... -
Page 23: Specifications
SPECIFICATIONS Specifications TLM-30M Product code 88910 Accuracy ±1.5mm Minimum measurement range 0.05m Maximum measurement range Measurement unit options m/in/ft Continuous measurement function Area measurement function Volume measurement function Add and subtract measurement function Max storage 30 units Automatic backlight Buttons sound Laser class 2 Red Laser type 635nm, <1mW Automatic laser cut off 20s Automatic shutdown 150s Storage temperature -20° to 60°C Working temperature 0° to +40°C Storage humidity RH 20% to 85% Battery 2x 1.5v AAA Weight (kg) 0.90 (inc. batteries) Dimensions 112 x 50 x 25mm *With online registration (3 years without registration). - Page 24 www.spoton.com.au...
