Waycon SX300 Series Manual

Draw wire sensor
Hide thumbs Also See for SX300 Series:
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

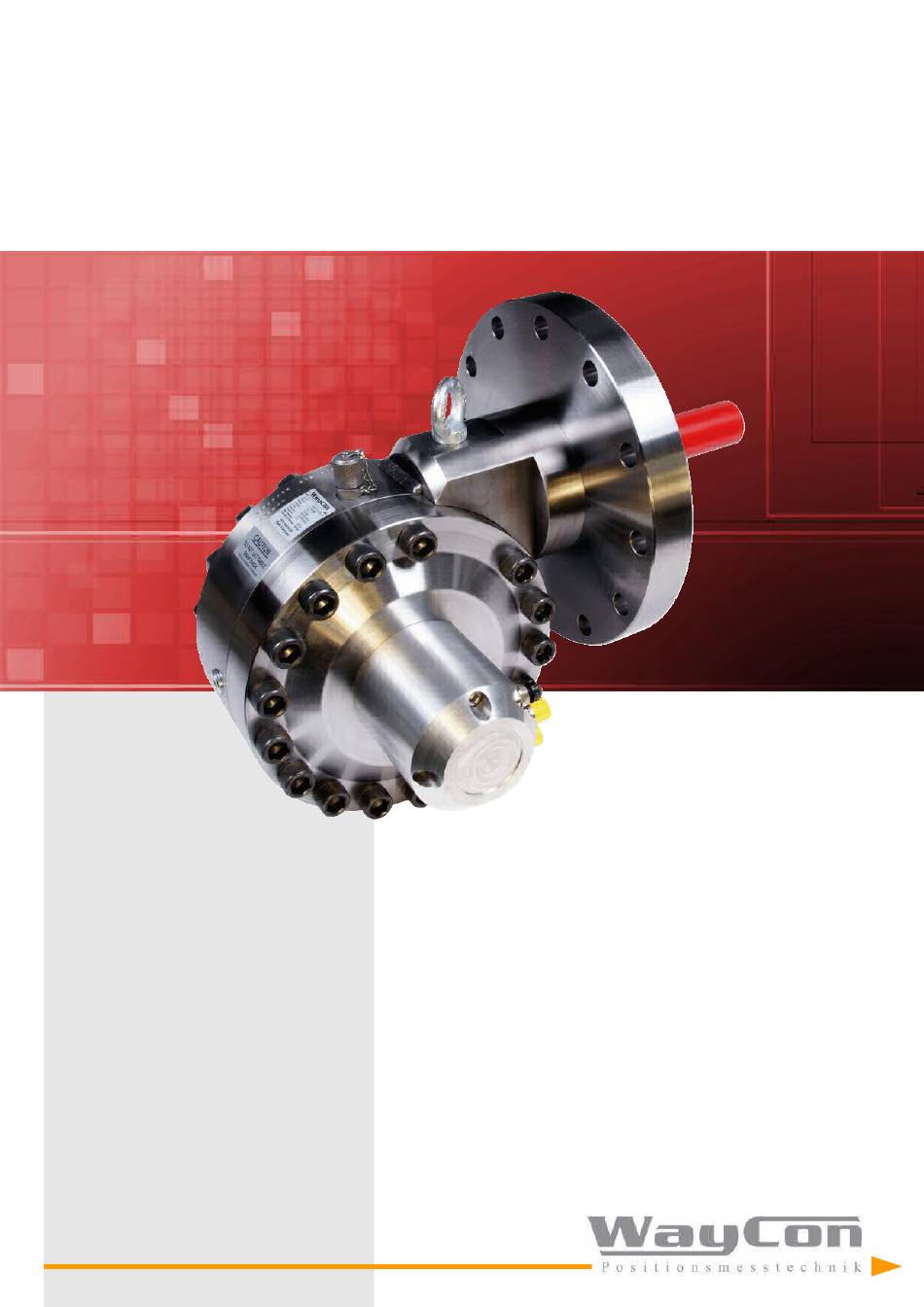

DRAW WIRE SENSOR
Content:
28/04/16
Series SX300
- Draw wire position transducer for direct
attachment to hydraulic cylinders
- Sensor element: digital absolute encoder
....2
- Output signal: SSI, Profibus, CANopen,
Profinet, EtherCAT
....3
....4
- pressure up to 300 bar
- measurement ranges up to 15 meters
....6
- unpressurised encoder
....8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SX300 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Waycon SX300 Series

Summary of Contents for Waycon SX300 Series

  • Page 1: Table Of Contents

    DRAW WIRE SENSOR Series SX300 - Draw wire position transducer for direct attachment to hydraulic cylinders Content: - Sensor element: digital absolute encoder Product Description ..2 - Output signal: SSI, Profibus, CANopen, Profinet, EtherCAT Technical Data ..3 Dimensions ..4 - pressure up to 300 bar - measurement ranges up to 15 meters Installation ..6...

  • Page 2: Product Description

    PRODUCT DESCRIPTION The WayCon SX300 Draw Wire Series is designed for use in combination with hydraulic cylinders and measuring the cylinder position. Especially designed for long stroke cylinders with pressurized housings to be flanged directly to the cylinder head. By giving feed back signals to a machine control unit, it is possible to control the position of a cylinder, to program specific movements or to manage synchronous movements of several cylinders.

  • Page 3: Technical Data

    - 3 - TECHNICAL DATA TRANSDUCER Measurement range* 10 m, 15 m Temperature range -20...+70 °C Circumference rope drum 568.9 mm Linearity ±0.05 % (depending on the used encoder) Pressure port Minimess 1620 Hydraulic fluid only non-hazardous fluids (non-flammable, non-toxic), no gaseous media Operational pressure 30 MPa (300 bar)

  • Page 4: Dimensions

    - 4 - DIMENSIONS Dimensions – flange type F1 (rod sealing type)
  • Page 5 - 5 - DIMENSIONS Dimensions – flange type F2 (piston sealing type)

  • Page 6: Installation

    - 6 - INSTALLATION The wire fixation unit has to be screwed into the piston of the cylinder and locked with counternut. Note: use screw locking device. If it is not possible to work through the cylinder head bore, you have to take off the cylinder head (please refer to the cylinder manual).
  • Page 7 - 7 - INSTALLATION Move the transducer to the cylinder head and feed the stud bolts through the flange bores. Note: Avoid guiding the rope over edges or corners. Be aware of the o-ring and refer to the cylinder manual. Don't operate the transducer if the rope is buckled or damaged.

  • Page 8: Accessories & Order Code

    * Encoder requirements: flange ø 58 mm with stator coupling, pitch circle diameter for fixing screws: 63 mm, hollow shaft ø 15 mm Subject to change without prior notice. WayCon Positionsmesstechnik GmbH Head Office Office Köln email: info@waycon.de Mehlbeerenstr. 4...
