DRAW WIRE SENSOR
Content:
27.05.19
Series SX300
Key-Features:
- Measurement range up to 15 m
- Pressure-sealed up to 300 bar
- Output signals: SSI, CANopen, Profibus, EtherCAT,
....2
Profinet, further on request
....3
- Alternative draw wire mechanics for encoder
....4
installation
....6
- Unpressurised encoder
....8
....8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SX300 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Waycon SX300 Series

Summary of Contents for Waycon SX300 Series

  • Page 1: Table Of Contents

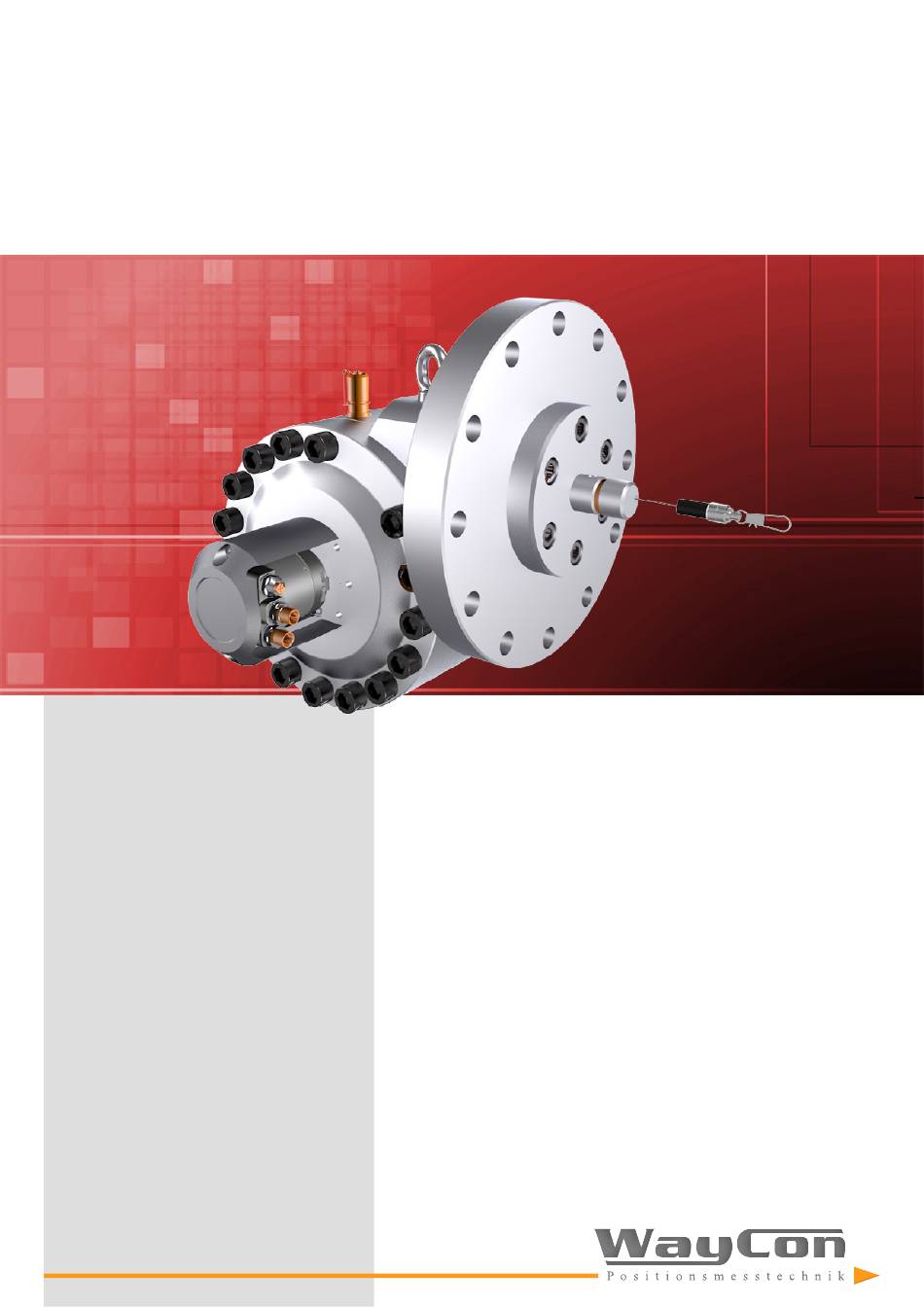

    DRAW WIRE SENSOR Series SX300 Key-Features: - Measurement range up to 15 m Content: - Pressure-sealed up to 300 bar - Output signals: SSI, CANopen, Profibus, EtherCAT, Introduction ..2 Profinet, further on request Technical Data ..3 - Alternative draw wire mechanics for encoder Technical Drawing ..4 installation...

  • Page 2: Introduction

    INTRODUCTION The Draw Wire Series SX300 by WayCon is designed for use in combination with hydraulic cylinders and measuring the cylinder position. Especially designed for long stroke cylinders with pressurized housings to be flanged directly to the cylinder head. By giving feedback signals to a machine control unit, it is possible to control the position of a cylinder, to program specific movements or to manage synchronous movements of several cylinders.

  • Page 3: Technical Data

    - 3 - TECHNICAL DATA MECHANIC Measurement range 10 / 15 Linearity ±0.05 (depending on the used encoder) Sheave circumference [mm] 568.9 Operating temperature [°C] -20...+70 Hydraulic fluid only non-hazardous fluids (non-flammable, non-toxic), no gaseous media Operating pressure [bar] 300 (30 MPa) Testing pressure [bar] 400 (40 MPa)

  • Page 4: Technical Drawing

    - 4 - TECHNICAL DRAWING Flange type F1 (rod sealing) 196,5 M10 EYE BOLT DIN 580 MINIMESS 1620 2103-01-18.00 189,5 Ra0,8 Ra0,8 SCREWED SEALING PLUG VENTILATION HOLE POSITION OF ENCODER OUTPUT AND PROTECTION CAP ROTATABLE IN STEPS OF 90° encoder cap: for SSI encoder: X = 71 mm for Profibus encoder:...
  • Page 5 - 5 - TECHNICAL DRAWING Flange type F2 (piston sealing) 196,5 M10 EYE BOLT DIN 580 MINIMESS 1620 2103-01-18.00 189,5 Ra0,8 SCREWED Ra0,8 SEALING PLUG VENTILATION HOLE FLANGE SEALING: O-RING 123,42 x 3,53 (NBR) AND BACK-UP RING POSITION OF ENCODER OUTPUT AND PROTECTION CAP ROTATABLE IN STEPS OF 90°...

  • Page 6: Installation

    - 6 - INSTALLATION The wire fixation unit has to be screwed into the piston of the cylinder and locked with counter nut. Note: use screw locking device. If it is not possible to work through the cylinder head bore, you have to take off the cylinder head (please refer to the cylinder manual).
  • Page 7 - 7 - INSTALLATION Move the transducer toward the cylinder head and insert the stud bolts through the bores in the flange. Note: Avoid leading the rope over edges or corners. Be careful not to damage the O-ring. Do not operate the sensor if there are buckles or damages in the draw wire.

  • Page 8: Accessories

    • pitch circle diameter fixing screws Ø 63 mm Sensor with encoder • hollow shaft Ø 15 mm CANopen Profibus DP EtherCAT Profinet Subject to change without prior notice. WayCon Positionsmesstechnik GmbH Head Office Office Köln email: info@waycon.de Mehlbeerenstr. 4 Auf der Pehle 1 internet: www.waycon.biz 82024 Taufkirchen 50321 Brühl...
