List Of Illustrations - Tektronix 2445A Service Manual

Figure
1-1
2-1
6-1
6-2
6-3
10-1
10-2
10-3
10-4
10-5
10-6
10-7
10-8
10-9
10-10
10-11
10-12
10-13
2445A/2455A Service

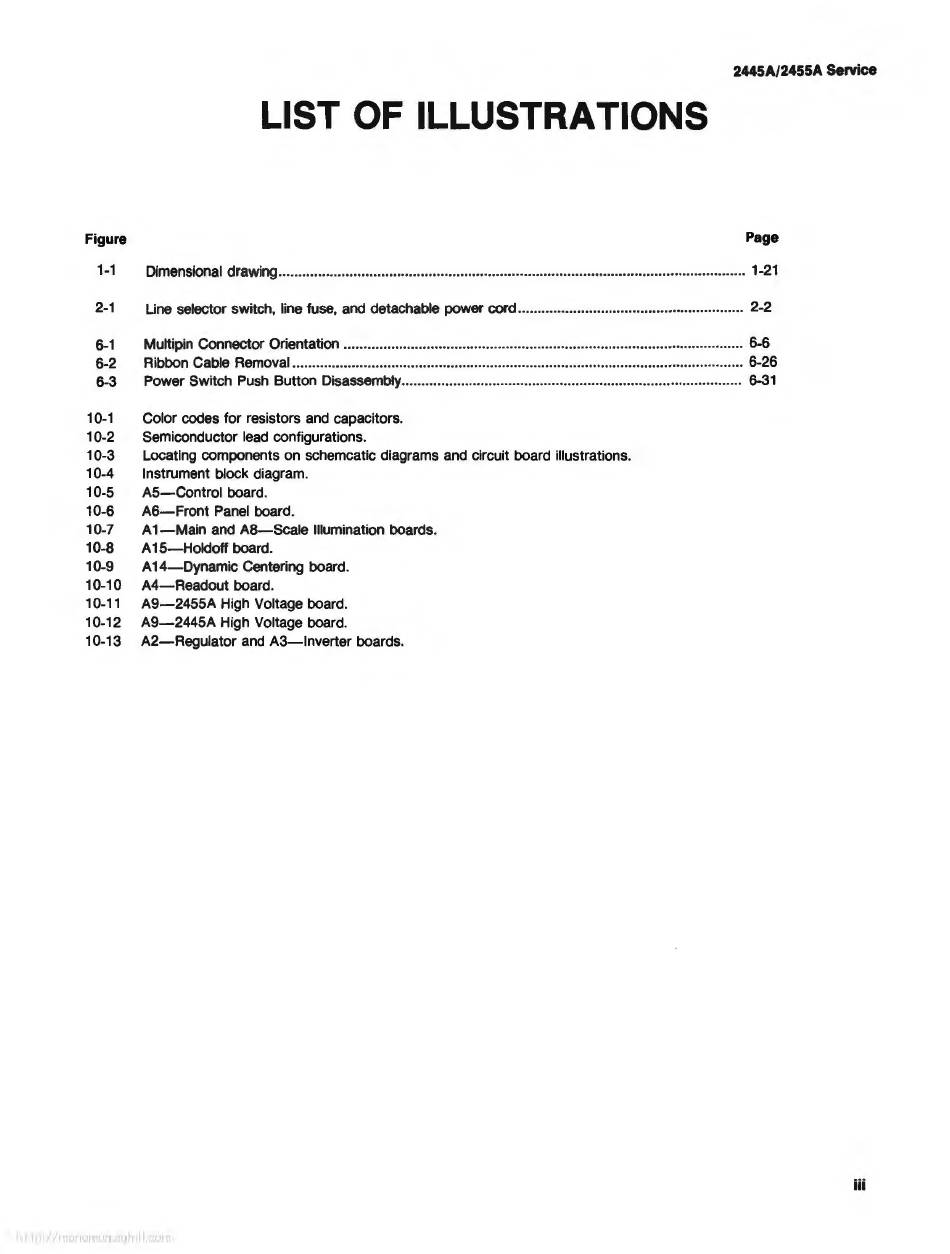

LIST OF ILLUSTRATIONS
Page
Dimensional drawing ...................................................................................................................... 1-21
Line selector switch, line fuse, and detachable power cord .. . . . . . .. . .. .. . . . . . .. ... .. .. . . . . . .. .. . •.... .. .. .. . . . . . . . . 2-2
Multipin Connector Orientation ..................................................................................................... 6-6
Ribbon Cable Removal .................................................................................................................. 6-26
Power Switch Push Button Disassembly ...................................................................................... 6-31
Color codes for resistors and capacitors.
Semiconductor lead configurations.
Locating components on schemcatic diagrams and circuit board illustrations.
Instrument block diagram.
AS-Control board.
AS-Front Panel board.
A 1-Main and AS-Scale Illumination boards.
A 15-Holdoff board.
A 14-Dynamic Centering board.
A4-Readout board.
A9-2455A High Voltage board.
A9-2445A High Voltage board.
A2-Regulator and A3-lnverter boards.
