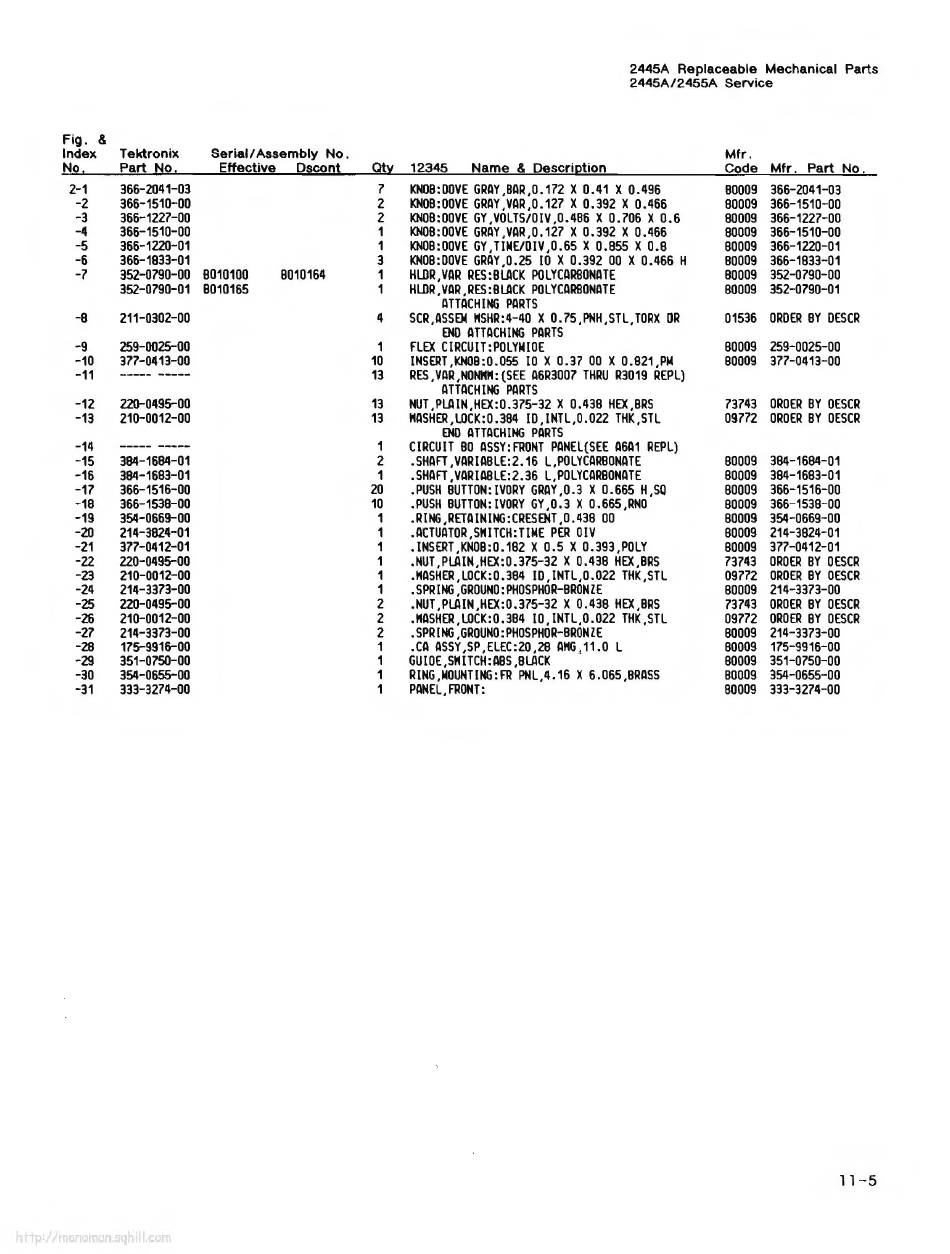

Tektronix 2445A Service Manual page 303

2445A Replaceable Mechanical Parts
2445A/2455A Service
Fig. &
Index Tektronix Serial/ Assembly No.
Mfr.
No, Part No. Effective Dscont
Qt~
12345 Name & Descri~tion Code Mfr . Part No .
2-1 366-2041-03
7
KNOB:OOVE GRAY,BAR,D.172 X 0.41 X 0.496 80009 366-2041-03
-2 366-1510-00 2 KNOB:OOVE GRAY,VAR,0.127 X 0.392 X 0.466
80009 366-1510-00
-3 366-1227-00 2 KNOB:OOVE GY,VOLTS/DIV,0.486 X 0.706 X 0.6
80009 366-1227-00
-4 366-1510-00 1 KNOB:OOVE GRAY,VAR,0.127 X 0.392 X 0.466 80009 366-1510-00
-5 366-1220-01 1 KNOB:OOVE GY,TIME/OIV,0.65 X 0.855 X 0.8 80009 366-1220-01
-6 366-1833-01
3 KNOB:OOVE GRAY,0.25 ID X 0.392 DO X 0.466 H 80009 366-1833-01
-7 352-0790-00 B010100 B010164 1 HLDR,VAR RES:Bl.ACK POLYCARBONATE B0009 352-0790-00
352-0790-01 B010165 1 HLDR,VAR,RES:Bl.ACK POLYCARBONATE 80009 352-0790-01
ATTACHING PARTS
-8 211-0302-00 4 SCR,ASSEM KSHR:4-40 X 0.75,PNH,STL,TORX OR 01536 ORDER BY DESCR
ENO ATTACHING PARTS
-9 259-0025-00 1 FLEX CIRCUIT:POLYMIDE 80009 259-0025-00
-10 377-0413-00 10 INSERT,KNOB:0.055 10 X 0.37 00 X 0.821,PM 80009 377-0413-00
-11
----- -----
13 RES,VAR,NONKK:(SEE A6R3007 THRU R3019 REPL)
ATTACHING PARTS
-12 220-0495-00 13 NUT,PLAIN,HEX:0.375-32 X 0.438 HEX,BRS 73743 ORDER BY OESCR
-13 210-0012-00
13
KASHER,LOCK:0.384 ID,INTL,0.022 THK,STL 09772 ORDER BY OESCR
ENO ATTACHING PARTS
-14
-----
-----
1
CIRCUIT BO ASSY:FRONT PANEL(SEE A6A1 REPL)
-15 384-1684-01 2 .SHAFT,VARIABLE:2.16 L,PDLYCARBONATE 80009 384-1684-01
-16 384-1683-01 1 .SHAFT,VARIABLE:2.36 L,POLYCARBONATE 80009 384-1683-01
-17 366-1516-00 20 .PUSH BUTTON:IVORY GRAY,0.3 X 0.665 H,SQ 80009 366-1516-00
-18 366-1538-00 10 .PUSH BUTTON:IVORY GY,0.3 X 0.665,RNO 80009 366-1538-00
-19 354-0669-00 1 .RING,RETAINING:CRESENT,0.438 DO 80009 354-0669-00
-20
214-3824-01
1 .ACTUATOR,SKITCH:TIME PER OIV 80009 214-3824-01
-21 377-0412-01 1 .INSERT,KNOB:0.182 X 0.5 X 0.393,POLY 80009 377-0412-01
-22 220-0495-00 1 .NUT,Pl.AIN,HEX:0.375-32 X 0.438 HEX,BRS 73743 ORDER BY OESCR
-23 210-0012-00 1 .KASHER,LOCK:0.384 ID,INTL,0.022 THK,STL 09772 ORDER BY OESCR
-24 214-3373-00 1 .SPRING,GROUNO:PHOSPHOR-BRONZE 80009 214-3373-00
-25 220-0495-00 2 .NUT,Pl.AIN,HEX:0.375-32 X 0.438 HEX,BRS 73743 ORDER BY OESCR
-26
210-0012-00 2 .KASHER,LOCK:0.384 IO,INTL,0.022 THK,STL 09772 ORDER BY OESCR
-27 214-3373-00 2 .SPRING,GROUNO:PHOSPHOR-BRONZE 80009 214-3373-00
-28 175-9916-00
1
.CA ASSY,SP,ELEC:20,28 AKG,11.0 L
80009 175-9916-00
-29 351-0750-00
1
GUIOE,SKITCH:ABS,BLACK 80009 351-0750-00
-30 354-0655-00 1 RING,MOUNTING:FR PNL,4.16 X 6.065,BRASS 80009 354-0655-00
-31 333-3274-00 1 PANEL, FRONT: 80009 333-3274-00
