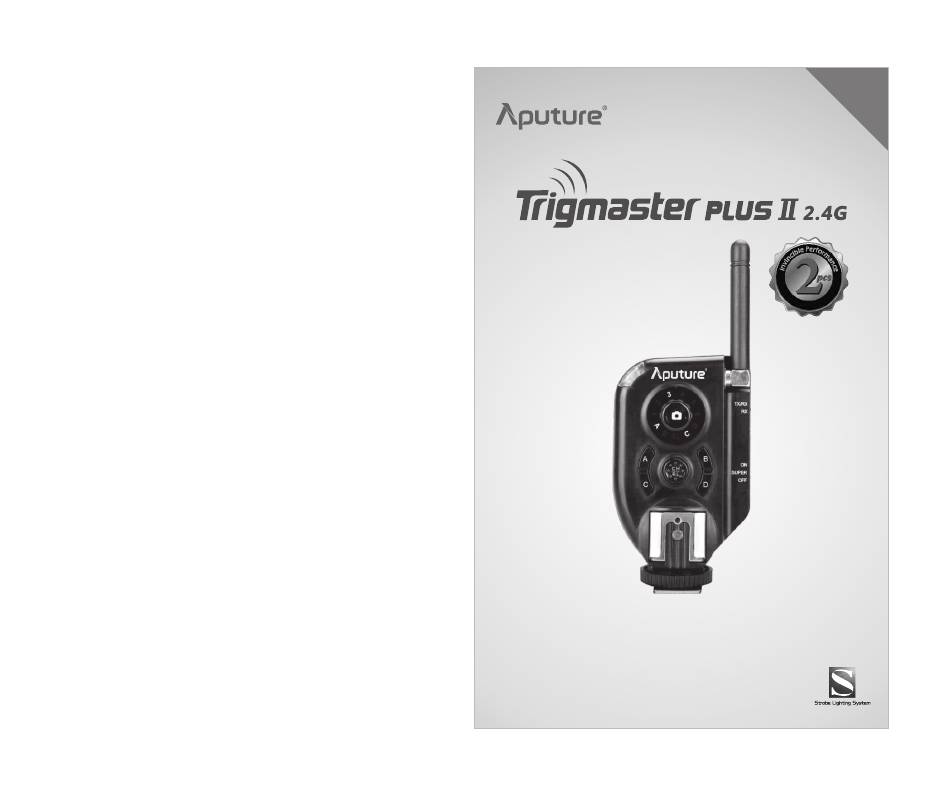

  • Page 1 User Manual AP-013II II 2.4G -2013 LOGO Friday, May 31, 2013 2:07:57 PM...

  • Page 2: Table Of Contents

    Index 5. Extra Functions Safety Notice Zone Control Foreword Relay Mode Product Introduction Interlink Triggering Mode Main Features Multi-Camera Control 2. Components Compatibility Body 6. Specifications Accessories 7. Notice 3. Getting Started and Basic Operation 8. Trouble Shooting Ordering Options Battery Installation Modes Triggering Range Setting...

  • Page 3: Safety Notice

    Foreword Safety Notice Thank you for purchasing Aputure Trigmaster Plus II. It's an exciting new To prevent damage to your product or injury to yourself or to others, read the flash trigger full of features to improve your photography. Read this user following safety precautions in their entirety before using this equipment.

  • Page 5: Getting Started And Basic Operation

    Test Triggering 3. Getting Started and Basic Operation Local Test (Uses 1pcs TP2) Ordering Options Press TEST button of unit on the flash (this unit 1) Order an extra unit as receiver. should be set to RX) to trigger the flash. 2) Order extra shutter cables to control different cameras.

  • Page 6: Indicator Lights

    Indicator Lights 4. Function and Operation Transmitter Receiver Triggering Mode Operation 1) Remote Flash Triggering TX/RX TX/RX 1. Place one unit on camera hot shoe or connect with camera by PC cable and set to TX/RX. Half press Light green Light green No indicator 2.

  • Page 7: Remote Shutter Control

    Remote Shutter Control 1. Set both units to TX/RX and the same channel. 2. Set camera to appropriate mode (either Continuous drive mode or Bulb mode) 1) Wired Shutter Control 3. Hold down trigger button for 3 seconds (LED on transmitter will turn off, and TP2 can act as a wired shutter release.

  • Page 8: Relay Mode

    3) Switch between zone A and C on the transmitter to control the flash of your choice. 2. Set 1st triggering unit to TX/RX. 4) Press camera shutter to fire either corresponding flash. 3. Set 2nd and 3rd units to RX. 4.

  • Page 9: Multi-Camera Control

    6. Specifications Note: 1. Set all units to the same channel. 2. Can use zones to trigger more flashes in this mode. Just set zones on the shutter camera Type: 2.4G wireless signal trigger or flash transmitter and no need to set zones on the handle trigger. Channel: 6 channels Zone:...

  • Page 10: Trouble Shooting

    8. Trouble Shooting Unable to trigger flash. Ensure enough battery power. Set the transmitter and receiver to the same channel and zone settings are correct. Make sure the transmitter and receiver are set to the correct mode (TX/RX or RX). Make sure the hot shoe mount or PC cable are completely connected.
  • Page 11 Aputure Imaging Industries Co., Ltd Company : Aputure Trigmaster Plus II Name: TXII-set Model Number: FCC ID: 2AABZTXII-SET This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
