Summary of Contents for Aputure Sidus One

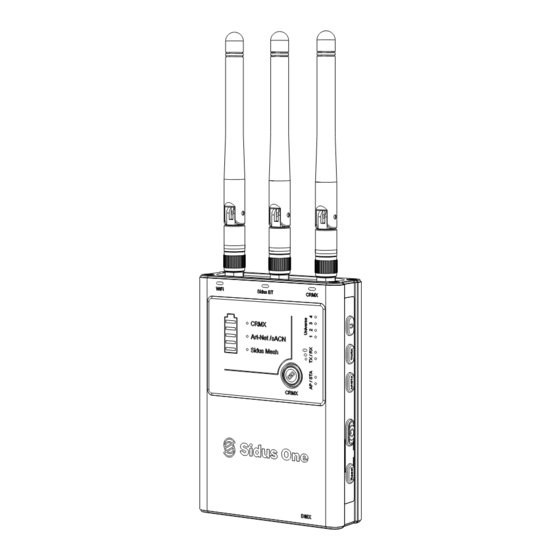

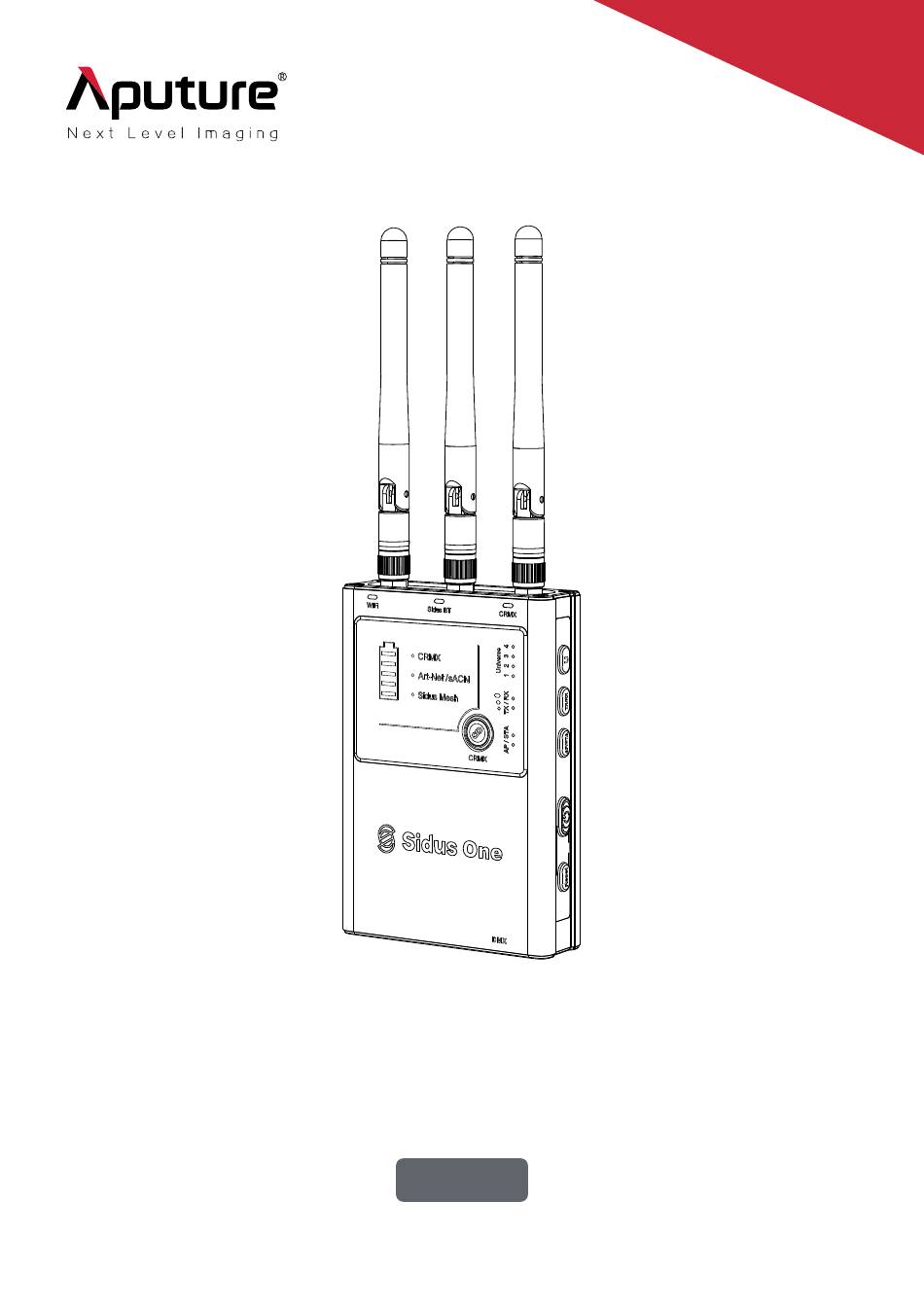

- Page 1 Sidus One Product Manual English...
-
Page 2: Table Of Contents
2. Powering & Charging............................14 2.1 Powering On/Off.............................14 2.2 Charging ..............................15 3. Connectiong Sidus One ............................16 3.1 Art-Net/sACN over WiFi IN to CRMX Transmitter /Wired DMX OUT........16 3.2 CRMX Receiver IN to Wired DMX OUT.....................18 3.3 Wired DMX IN to CRMX Transmitter OUT ..................20 3.4 CRMX Bluetooth IN to CRMX Transmitter/Wired DMX OUT............21... - Page 3 5. Restore factory settings.............................27 5.1 Restore factory settings........................27 5.2 Reset Bluetooth ............................27 Product Specification..............................28 Technical Parameters..............................29 Disclaimer ...................................30...
-
Page 4: Introduction
2. CRMX Bluetooth IN to Wired DMX Out Sidus BT: When Sidus One is set as the Master Node in the Sidus Link App, it provides enhanced stability of the Sidus Mesh network and improves the reliability of a Sidus Link setup. -
Page 5: Safety Instructions
Safety Instructions When using this product, basic safety precautions should always be followed, including: ● Please read this product manual carefully. ● Keep this product manual. Always include this product manual when passing the product(s) on to third parties. ● Heed all warnings and follow all instructions in this product manual. -
Page 6: Fcc Declaration Of Conformity
FCC Compliance Statement Changes or modifications to this product that are not expressly approved by the manufacturer are prohibited and voids the user warranty. This equipment has been tested and found to comply with the limits for a Class B digital device,pursu- ant to Part 15 of the FCC Rules. -
Page 7: Components List
Components List USB power cable (0.8m) x 1 Sidus BT / CRMX Antenna x 2 (White) Sidus One x 1 3-Pin Push-Pull Connector Wi-Fi Dual Frequency to 5-Pin XLR DMX IN/OUT Antenna x 1 (Red) adapter x 1 QR code card x 1... -
Page 8: Product Overview
Switch between Access Point (AP), Wi-Fi Mode Settings AP/STA Hold for 1s Station (STA) Modes and Wi-Fi Off Power Power Sidus One ON/OFF Hold for 3s Restore factory settings Reset to Factory Hold for 3s Settings (All Status Lights will flash) -
Page 9: Indicator Status Lights
2. Indicator Status Lights 1. CRMX Status Light 2. Wi-Fi Status Light 5. Art-Net/sACN over Wi-Fi 3. Battery Capacity Universe Status Light Indicator Light 6. CRMX Mode and RX Signal 4. Sidus BT Status Light Strength Light 7. Wi-Fi Mode Status Light 8. - Page 10 1 on Lights 1 on, then blinks off Continued table: every 5 seconds Waterfall Charging Off (TX Mode) Sidus Mesh is unavailable Slow Flash (RX Mode) Sidus Mesh BT is ready to be paired Sidus Mesh Sidus BT status Solid (RX Mode) Sidus Mesh BT has been paired Flashing Rapidly Sidus Mesh BT is resetting...
-
Page 11: Ports
5 Sidus BT antenna port (White) 6 CRMX antenna port (White) ID Number Item Usage Charging Sidus One and USB USB Type-C port Firmware Updates 3-Pin Push-Pull Connector DMX Adapter Port Send/Receive Wired DMX 1/4”-20 threaded receiver Mounting Wi-Fi antenna port (Red) -
Page 12: Application Scenarios
1. Art-Net/sACN over Wi-Fi IN to CRMX Transmitter/Wired DMX OUT CRMX Transmitter OUT: Connection through Connection Wi-Fi (Art-Net / sACN) through CRMX INFINIBAR Sidus One serves as the CRMX Transmitter Wired DMX OUT: Connection through Wi-Fi (Art-Net / sACN) DMX512 Sidus One as CRMX Receiver 2. -
Page 13: Crmx Bluetooth In，Crmx Transmitter/Wired Dmx Out
3. CRMX Bluetooth IN to CRMX Transmitter/Wired DMX OUT CRMX Transmitter DMX OUT: Connection Connection through CRMX BT through CRMX INFINIBAR Sidus One serves as the CRMX Transmitter Wired DMX OUT: Connection through CRMX BT DMX512 4. Wired DMX IN to CRMX Transmitter OUT Sidus One serves as... -
Page 14: Operating Instructions
2. Power and Charging 2.1 Powering On/Off Press and hold the Power Button to turn the Sidus One on and off. The Mode Status Lights and Battery Capacity status lights will illuminate when the unit is turned on. Powered Off - All Lights Off... -
Page 15: Charging
Art-Net/sACN Universe 3 Device set to listen to 4 On To charge Sidus One, connect the included USB power cable to a 5V/2A charging block. When Sidus One Universe Art-Net/sACN Universe 4 is charging, the battery capacity lights will perform a "waterfall" effect. When Sidus One is powered off and All 4 Universe lights flash... -
Page 16: Connectiong Sidus One
Universe Sidus is listening for from the control device, then the ArtNet/sACN indicator light will be solid. If DMX data is patched on the Universe Sidus One is set to listen for, the the DMX indicator light will also be solid. - Page 17 Unlink. (2) On the Sidus One, tap the CRMX Link button to initiate CRMX linking. The CRMX Status Light will flash while linking. The CRMX Status Light will be solid on the TX if DMX data is present; if no data is present, the CRMX Status Light will blink slowly.
-
Page 18: Crmx Receiver In To Wired Dmx Out
(1) Press and Hold TX/RX button to set to RX mode Press and Hold to switch between TX/RX mode (2) Connect Sidus One to the DMX IN/OUT Adapter. Connect the 5 Pin DMX OUT to the fixture's DMX IN port. ① Insert DMX Adapter into the DMX ②... - Page 19 (3) If the CRMX Status light on the Sidus One is blinking rapidly, it is still linked to a previous transmitter. Press and hold the CRMX Link button for 3 seconds to Unlink from the previous transmitter. (4) On the CRMX Transmitter, tap the CRMX button to send the link signal to the Sidus One Receiver.
-
Page 20: Wired Dmx In To Crmx Transmitter Out
3.3 Wired DMX IN to CRMX Transmitter OUT (1) Set Sidus One to TX mode Press and Hold to switch between TX/RX mode. (2) Connect the DMX IN/OUT adapter to the 3 Pin Port and connect the DMX IN Male cable to the console. -
Page 21: Crmx Bluetooth In To Crmx Transmitter/Wired Dmx Out
Sidus One TX. 3.4 CRMX Bluetooth IN to CRMX Transmitter/Wired DMX OUT 3.4.1 CRMX BT connection IN (1) On the control device APP, browse to connection methods and connect to Sidus One via CRMX Blue- tooth. *NOTE: Not compatible with Sidus Link 3.4.2 CRMX Transmitter OUT... - Page 22 (2) On the light fixture, browse to the CRMX Settings menu. If the light has been previously linked to another transmitter, press Unlink. (3) On the Sidus One TX, tap the CRMX Link button to initiate CRMX linking. ① Tap CRMX Linking button ②...
-
Page 23: Sidus Bt Master Node To Sidus Bt Compatible Fixtures
DMX IN port. *Note: When used with Aputure fixtures that utilize a USB Port for DMX, an Aputure Active DMX Adapter must be used on the Light. If the product is amaran, an amaran DMX Adapter must be used on the light. - Page 24 （2）On your Sidus Link compatible device, connect to Sidus One by adding it as a "New Wireless Device" in the "Add Fixtures" section of your chosen Sidus Link "Scene". ② Select add new device ① Open your scene. ③ Click the + Sign to add a "New Wireless Device"...
-
Page 25: Update The Firmware
4.1 Update via Sidus Link with an active internet connection ② Press Firmware Update ① From the Fixture List, select the ③ Sidus Link App will check Sidus One to be updated by pressing for newer Firmware. its 3 dot icon. -
Page 26: Update By Usb Flash Disk
Update failed ④ Click Update Now ⑤ Update successful 4.2 Update by USB 4 lights blink "Waterfall" Effect together 1. Insert the USB flash drive with the latest firmware 2. RESET + Power Button (hold for 1s) 3. Update Successful: All lights on 4. -
Page 27: Restore Factory Settings
5. Resetting the Device 5.1 Restore Factory Settings Press and Hold RESET button for 3 seconds The Mode Status lights all flash when resetting to default. Function Default Wi-Fi Mode AP Mode TX Mode CRMX Mode Universe Wireless connection Reset 5.2 Reset Bluetooth ①... -
Page 28: Product Specification
Product Specifications Name Sidus One Product size 113 x 75 x 23.3mm (without antennas) 302g Net product weight Operating temperature From -20°C to 45°C Protection level IP54 Gross product weight 756g Package size 237 x 218 x 50mm... -
Page 29: Technical Parameters
Note: 1. Transmission distances may vary depending on your environment. 2. RDM function: On the non-RDM version of Sidus One, RDM is functional in RX Mode only. On the RDM version, both TX Mode and RX Mode have RDM functionality. -
Page 30: Disclaimer
Product Manual Users assume responsibility for their own conduct and any resulting consequences. Aputure is not liable for any damages suffered as a result of the user’s failure to use the product in accordance with Product Manual.
