- Page 1 THINK GLOBAL value is always in style. INSTALLATION GUIDE ®...

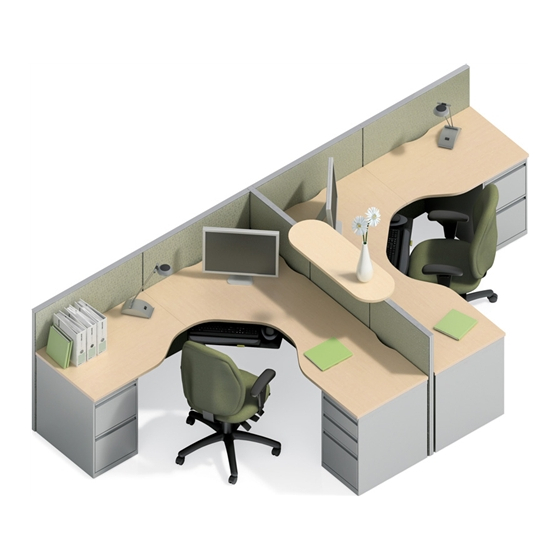

- Page 2 eO+ WORK STATIONS WITH OVERHEAD STORAGE UNITS INSTALLATION RULES IMPORTANT: When specifying and installing eO+ workstations with overhead storage units (shelves and overheads) and/or worksurfaces, the following rules must be followed. Failure to adhere to these rules may compromise the integrity of the installation and void the warranty. Rule #1 Panels supporting overhead storage units and/or worksurfaces must be vertically stabilized.
- Page 3 Rule #4 Wherever possible "balance" the layout by using the same size and type of overhead storage unit on both sides of the same panel. This type of layout will ensure strait panel runs. Rule #5 48" and 60" wide overhead storage units require corner posts and wing panels on both sides of the supporting panel. Rule #6 A run of panels without worksurfaces should be no longer than 9'-0"...
-
Page 4: Worksurface Installation
Worksurface Installation 1. Corner Brackets – typically used to support worksurfaces at the corners. They are “handed” metal brackets. Brackets are shipped in pairs. 2. Mid-Support Gable – used to attach two adjacent worksurfaces to a run of panels and provides solid support along a run of panels. Should be used anywhere a worksurface spans two panels. - Page 5 End Gable An End Gable attaches a worksurface to a panel and provides solid support at the end of a run of worksurfaces. Identify the correct setting of the Worksurface Mounting Brackets left or right, and install the Panel Mounting Brackets accordingly. 1.
- Page 6 Worksurface Supporting Pedestals According to your plan, select the type of pedestal to be used for worksurface support. Identify which side of the pedestal is to be attached to the panel slots and attach the Pedestal Connecting Brackets accordingly. 1. While ensuring that the bracket hooks are pointing downward, align the outer corner of the top Pedestal Connecting Bracket with the outer edge of the pedestal just below the top lip (A).
- Page 7 Overhead Storage Installation Overhead Storage Unit NOTE: • Always ensure that all overhead storage units are attached to a panel that has either an adjacent 66” panel or 66” post connected to it on both sides. • Always ensure that wing panel, Mid-Support Gable, End Gable or Worksurface Supporting Pedestal is attached to each side of a panel that supports an overhead storage unit.
- Page 8 Low Profile Shelf NOTE: • Always ensure that all overhead storage units are attached to a panel that has either an adjacent 66” panel or 66” post connected to it on both sides. • Always ensure that wing panel, Mid-Support Gable, End Gable or Worksurface Supporting Pedestal is attached to each side of a panel that supports an overhead storage unit.
- Page 9 (800) 929-2936 t (888) 418-4800 t (800) 863-7300 f (954) 846-8110 f (913) 310-9976 f (972) 236-1372 f (510) 897-4156 f (301) 362-9444 For a complete listing of Global terms and conditions, please refer to the current Global List Price Book.
