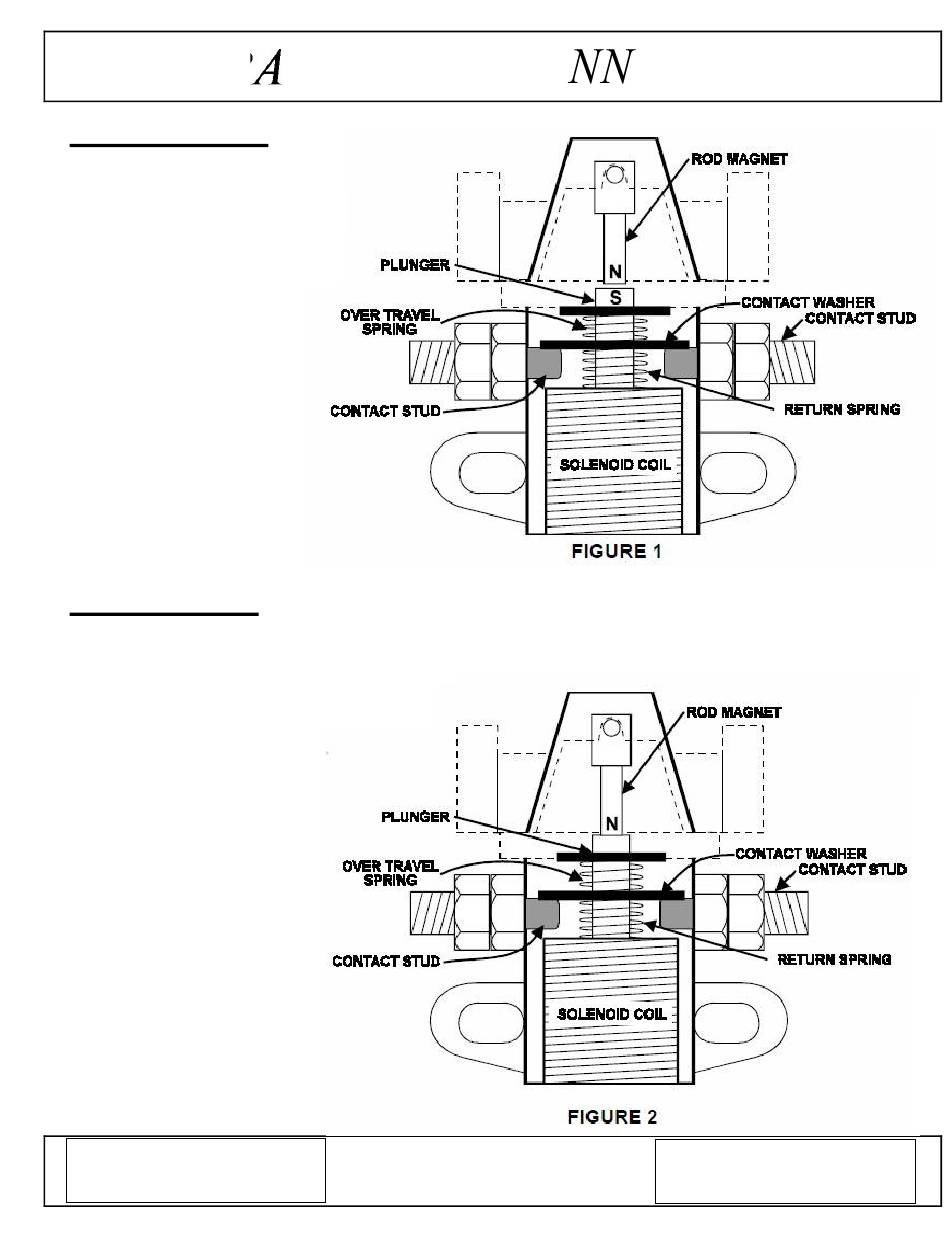

Relay Closing
Positive polarity applied
to coil. Current flowing
in coil. Plunger pulled in
to coil. Rod magnet
attracted to plunger by
opposite polarity.
Relay Closed
Power removed from coil. Magnet
blocks plunger from coming up,
maintaining contact.
