Summary of Contents for Watersnake Ambush 54/48

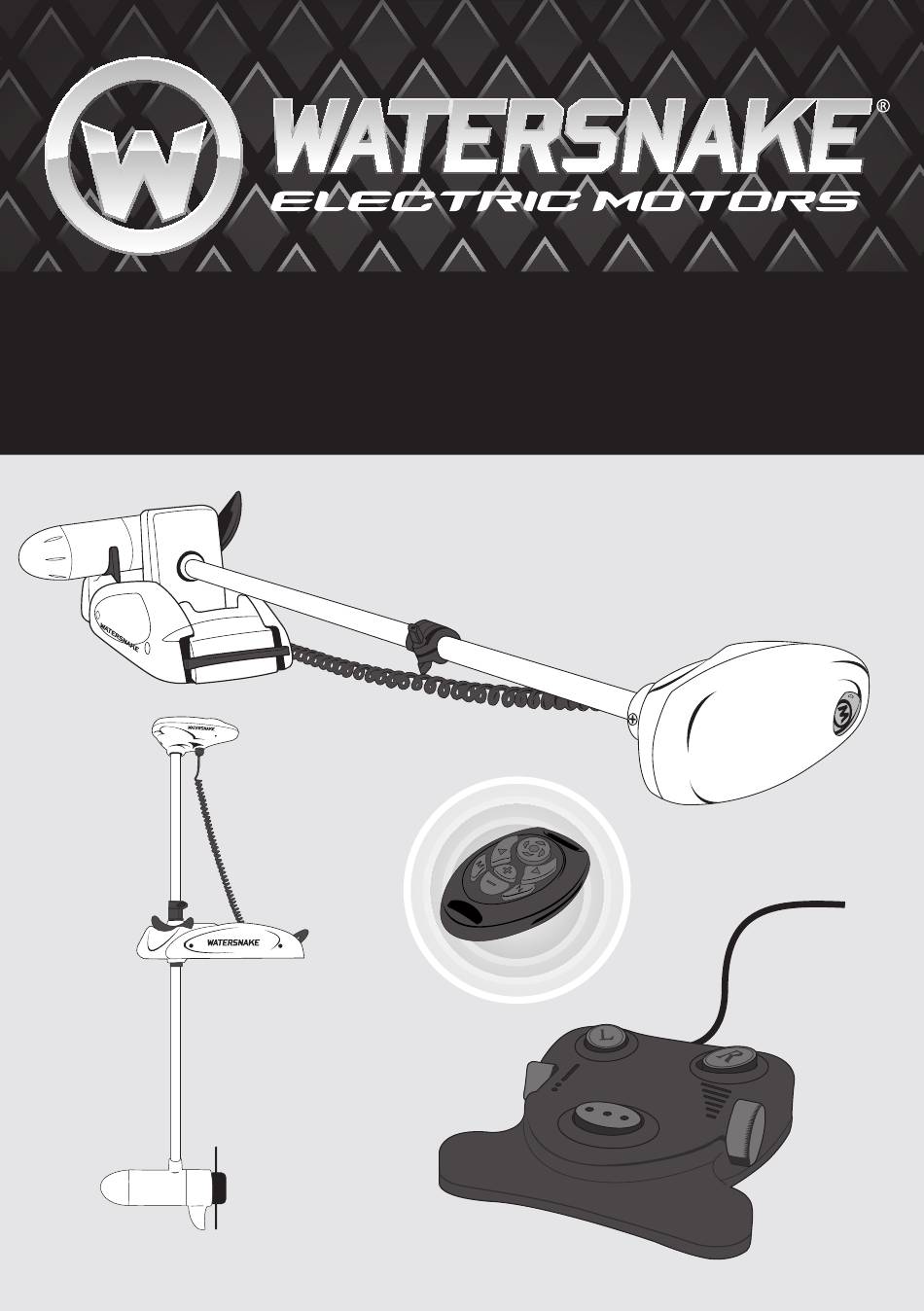

- Page 1 AMBUSH BOW MOUNT ELECTRIC MOTOR OWNERS MANUAL...
- Page 2 85 - 105 AMP HOUR ** ** NOTE - this is to be used as a guide only. Check with your battery supplier to confi rm required size of 12 volt deep cycle marine battery that will be appropriate for your situation. Watersnake...
- Page 3 Watersnake motor • Select desired mounting location on boat • 12 v deep cycle marine battery (your Watersnake motor is not designed for use with car / truck / motorcycle type batteries) – for more information about appropriate batteries for your Watersnake motor, refer to page 9 •...
- Page 4 IMPORTANT PLEASE READ BEFORE USE. HOW TO STOW AND DEPLOY YOUR WATERSNAKE BOW MOUNT ELECTRIC MOTOR. DEPLOYING YOUR MOTOR To deploy the motor press down on the pedal (A) and simultaneously slide the shaft (B) through the gear box and lower carefully into the water.
- Page 5 WATERSNAKE ELECTRIC MOTORS Congratulations and welcome to a world of silent motoring. Powerful yet silent, the Watersnake electric motors are built to suit all angling conditions. High quality materials, superior design and precision engineering make these motors longwearing and reliable.
- Page 6 Head unit Remote control unit. Depth collar height adjustment Quick lock and release lever Mounting bracket Composite shaft Motor Assembly unit Foot control unit with 5 meter cable Weedless propeller Watersnake...
- Page 7 2: Align the propeller against the shear pin on the shaft (there is a groove on the back of the propeller which the shear pin needs to slot into) and then tighten the propeller nut securely. Shear Pin Propeller Propeller Shaft Propeller www.watersnake.com.au...
- Page 8 50 amps. Anderson plugs are a popular choice amongst many Watersnake motor owners and are readily available. A Watersnake circuit breaker is supplied and attached to the red power cable to protect the circuit boards of the motor.
- Page 9 STOWING When your Watersnake motor is not in use always stow and store it properly. Press the quick locking and release lever and raise the motor, pulling towards the stern of your boat until it is secure on the locking cradles and locked into the horizontal (stowed) position.
- Page 10 CR2032 and can be changed by removing the 4 phillips head screws from the back of the unit. NOTE – Your remote control hand unit must be re-synced with your Watersnake motor after changing the battery.
- Page 11 NOTE – It may take several attempts for the remote control hand unit to sync successfully with your Watersnake motor. This is not necessarily an indication of a fault although if repeated attempts fail it may indicate that...
- Page 12 The speed of propulsion can then be controlled by the variable speed control dial (5) 5. Variable speed control dial Controls the speed of the propeller. The propeller can be slowed to a complete stop by turning the dial back fully Watersnake...
- Page 13 AMBUSH MAINTENANCE Your Watersnake Electric Motor should provide many seasons of dependable service. However, like any tool, electric motors must be cared for. After each day of fi shing, the motor should be cleaned thoroughly. A light rinse with fresh water (do not direct a high pressure stream of water at the motor) and wash with warm soapy water to remove any remaining salt / debris particles should be completed.
- Page 14 If your boat is not stored under cover, it is recommended to remove your Watersnake motor and store separately under cover, out of direct sunlight and away from wet or damp areas. If you are not able to remove your Watersnake from the boat, we recommend covering your Watersnake with a weatherproof cover to protect the electronics.
- Page 15 No power / Reduced power NOTE – your Watersnake motor is fi tted with a tilt switch that prevents the motor from running unless it is in the deployed (vertical) position. • Check that battery connection has not been reversed (reversed polarity) •...
- Page 16 • Refer to foot control operation guide on page 12 A number of service videos are available on the Jarvis Walker Brands Youtube channel – search “Jarvis Walker Brands” from the Youtube search function. Please contact Jarvis Walker or your nearest service agent should issues persist. Watersnake...
- Page 17 Foot Control/ Remote Fob Variable 3-Blade 55309 Ambush XB 65/54 65lb 11-50 90-420 2100 54" White Composite Foot Control/ Remote Fob Variable 3-Blade Model range and specifications are correct at time of printing. For new models not listed here find specifications at: www.jarvismarine.com.au www.watersnake.com.au...
- Page 18 MOTOR SELECTION GUIDE WATERSNAKE Transom Mount Suggested Transom Mount Measurement SHAFT LENGTH to Water Level Shaft Length GUIDE Up to 8” 24” Up to 10” 26” With your boat in the Up to 12” 30” water, measure the 10” to 14”...
- Page 19 AMBUSH SERVICING YOUR WATERSNAKE ELECTRIC MOTOR When it’s time for your Watersnake electric motor to be serviced, it is recommended you choose to use an Authorised Service Agent such as Anglers’ Central Service Centre to perform the service. Watersnake electric motors are precision instruments that rely on exacting alignment of numerous components;...
- Page 20 AMBUSH 54/48 Watersnake...
- Page 21 AMBUSH 54/48 BRACKET www.watersnake.com.au...
- Page 22 AMBUSH 65/54 Watersnake...
- Page 23 AMBUSH 65/54 BRACKET www.watersnake.com.au...
- Page 24 Watersnake Propeller Kits (Sold Separately) Watersnake Propeller kits contain a propeller, nut and shear pins. It is recommended you keep a spare propeller on your boat at all times. The Mini 2- Bladed Kit is suitable for the T-18 and T-24 motors. The 2-Bladed Propeller Kit is suitable for 28lb, 30lb and 34lb motors.
- Page 25 Watersnake Trolling Motor Connectors Watersnake Motor Connector Plugs makes it very quick and simple to remove and replace your motor from the boat as well as providing a better connection to your power source. Available in a 12v plug. 55505...
- Page 26 Watersnake offers an extensive range of PFDs for both adult’s and children. They come in a range of styles and sizes and they all meet the Australian and New Zealand safety standard. See your nearest Watersnake stockist for the full range or visit our website:www.watersnake.com.au for more information.
- Page 27 NOTES: www.watersnake.com.au...
- Page 28 +0303 798 744 Watersnake and Jarvis Marine are registered ® ® trademarks of Watersnake Distribution Pty. Ltd. United Kingdom Masterline Walker +44 0 1684 299 000 © Watersnake Distribution Pty. Ltd. All Rights Reserved. Specifications are subject to change without notice.
