Rexnord FALK HF132 Installation & Maintenance

How To Use This Manual
This manual applies to standard Falk Types HF132 & 132-1
couplings. This manual provides detailed instructions on
installation, maintenance, and parts identification. Use the
following Table of Contents to locate required information.
Table Of Contents
General Information . . . . . . . . . . . . . . . . . . . . . . Pages 1 & 2
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Pages 2
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 2 thru 7
CAREFULLY FOLLOW THE INSTRUCTIONS IN THIS
MANUAL FOR OPTIMUM PERFORMANCE AND TROUBLE
FREE SERVICE.
Introduction
Type HF couplings are designed for horizontal operation. Refer
to the Factory for coupling operation other than horizontal or
for limited end float requirements.
Maximize Performance and Life
The performance and life of couplings depend largely upon
how you install and maintain them. Before installing couplings,
make certain that foundations of equipment to be connected
meet manufacturers' requirements. Check for soft foot. The
use of stainless steel shims is recommended. Measuring
misalignment and positioning equipment within alignment
tolerances is simplified with an alignment computer. These
calculations can also be done graphically or mathematically.
It is recommended that final alignment be checked using either
an alignment computer or graphical analysis. Both methods
allow the incorporation of "cold offsets", which will
compensate for shaft position changes due to thermal growth.
WARNING: Lockout power source and remove external loads
from the drive before servicing unit or accessories.
WARNING: When opening the drain plug, filler plug or orifice
seal plug of a warm or hot fluid coupling, place a rag over the
plug and loosen the plug slowly to relieve any internal
pressure.
WARNING: Consult applicable local and national safety codes
for proper guarding of rotating members. Guard must not
restrict free flow of air, but the portion of the guard in line with
fusible plugs must be solid construction.
CAUTION: DO NOT PAINT fluid coupling. Painting will
reduce fluid coupling thermal heat dissipation characteristics.
CAUTION: DO NOT spray water on a hot fluid coupling, as
this may result in crackin gof aluminum components.
Identification:
Tschan Coupling — Refer to Figures 6 & 7, Page 3, and
Table 4, Page 4.
Fluid Coupling — Size and Type are stamped on coupling
perimeter. Refer to the Factory for replacement parts.
Rexnord Industries, LLC, Coupling Group
5555 S. Moorland Rd., New Berlin, WI 53151-7953 USA Telephone: 262-796-4060
Fax: 262-796-4064 e-mail: info@rexnord.com web: www.rexnord.com

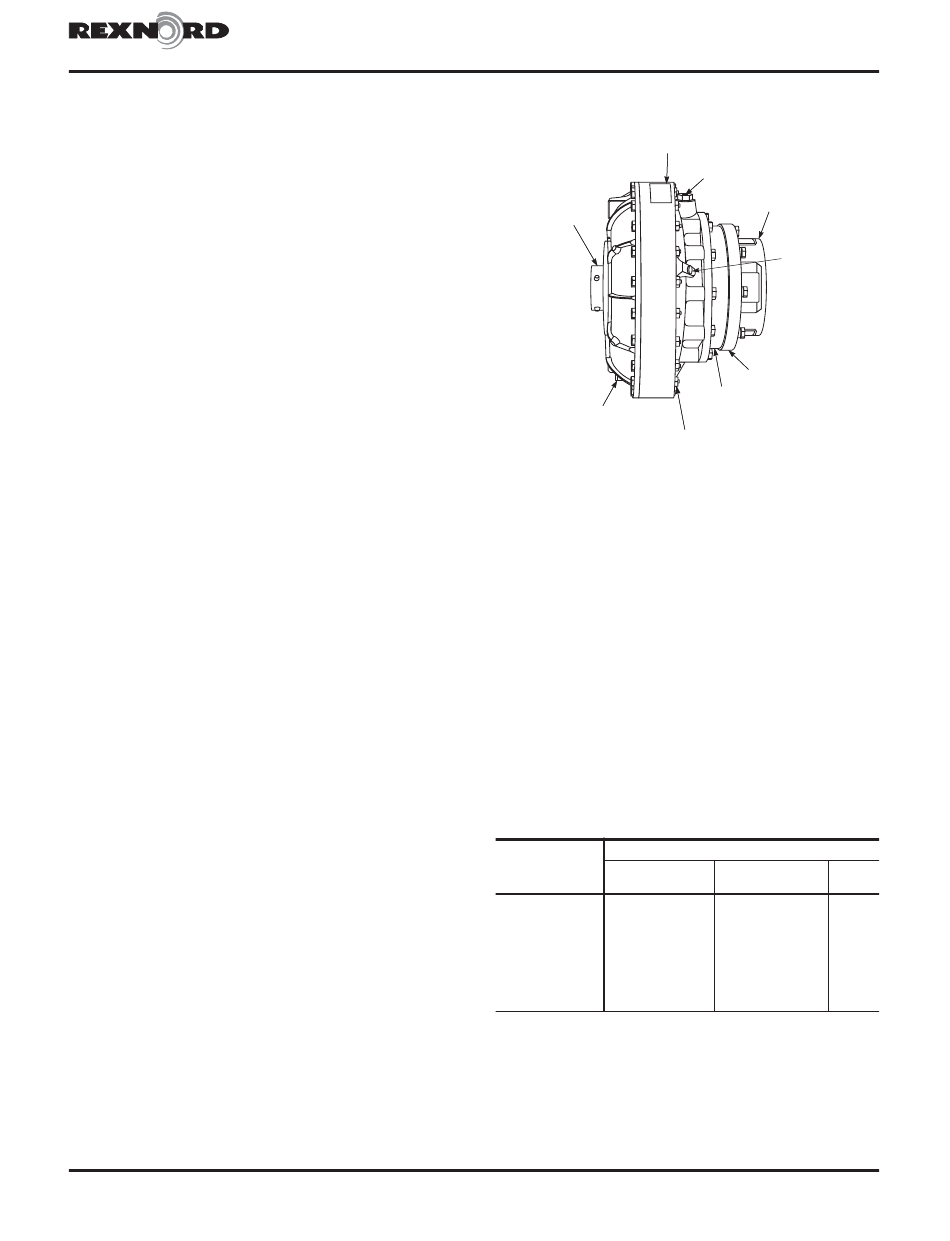

Falk™ Fluid Couplings With Tschan
Types HF132 & 132-1
·
·
®
Input
Sizes 270 thru 870 & 1420 thru 1760
ORANGE LABEL
HOLLOW SHAFT
DRAIN PLUG
248ºF (140ºC)
Figure 1
Fluids
The following specifications and fluids listed in Table 1 apply
to fluid couplings. Refer to the Factory for use of fire resistant
fluids. NOTE: Fluids listed are typical products ONLY and
should not be construed as exclusive recommendations.
ISO Viscosity Grade — 46
Viscosity at 104°F(40°C) — 46 cSt (215 SSU)
Viscosity Index — 105 or greater.
Pour Point — Must be 5°F(3°C) lower than minimum
starting temperature.
Flash Point — 400°F(204°C)
Specific Gravity — 0.87
Antioxidant and Anti-foaming Additives
TABLE 1 — Fluids & Operating Temperatures
Manufacturer
20°F
(-7°C)
American Ind. Oil 46 American Ind. Oil 46
Amoco Oil Co.
Exxon Co., USA Teresstic 46
Gulf Oil Corp. Harmony 46
Mobil Oil Corp. DTE Medium
Tellus 46
Shell Oil Co.
Rando 46
Texaco Inc.
Regal R&O 46
Texaco Canada
Unax VG 46
Union Oil Co. of Calif.
Installation & Maintenance
(Page 1 of 7)
FILL PLUG
392ºF (200ºC)
SHAFT HUB
ORIFICE
SEAL PLUG
(1000 SERIES
ONLY)
INPUT ADAPTER
DELAY FILL
CHAMBER
PERIMETER
FASTENERS
Operating Temperature Greater Than:
-20°F
(-29°C)
. . .
. . .
Mobilfluid 423
. . .
Rando 46
. . .
Unax VG 46
528-358
June 2006
Supersedes 2-94
-50°F
(-46°C)
. . .
. . .
. . .
SHC 624
. . .
. . .
. . .
. . .
