e) Optional Zone Master Status

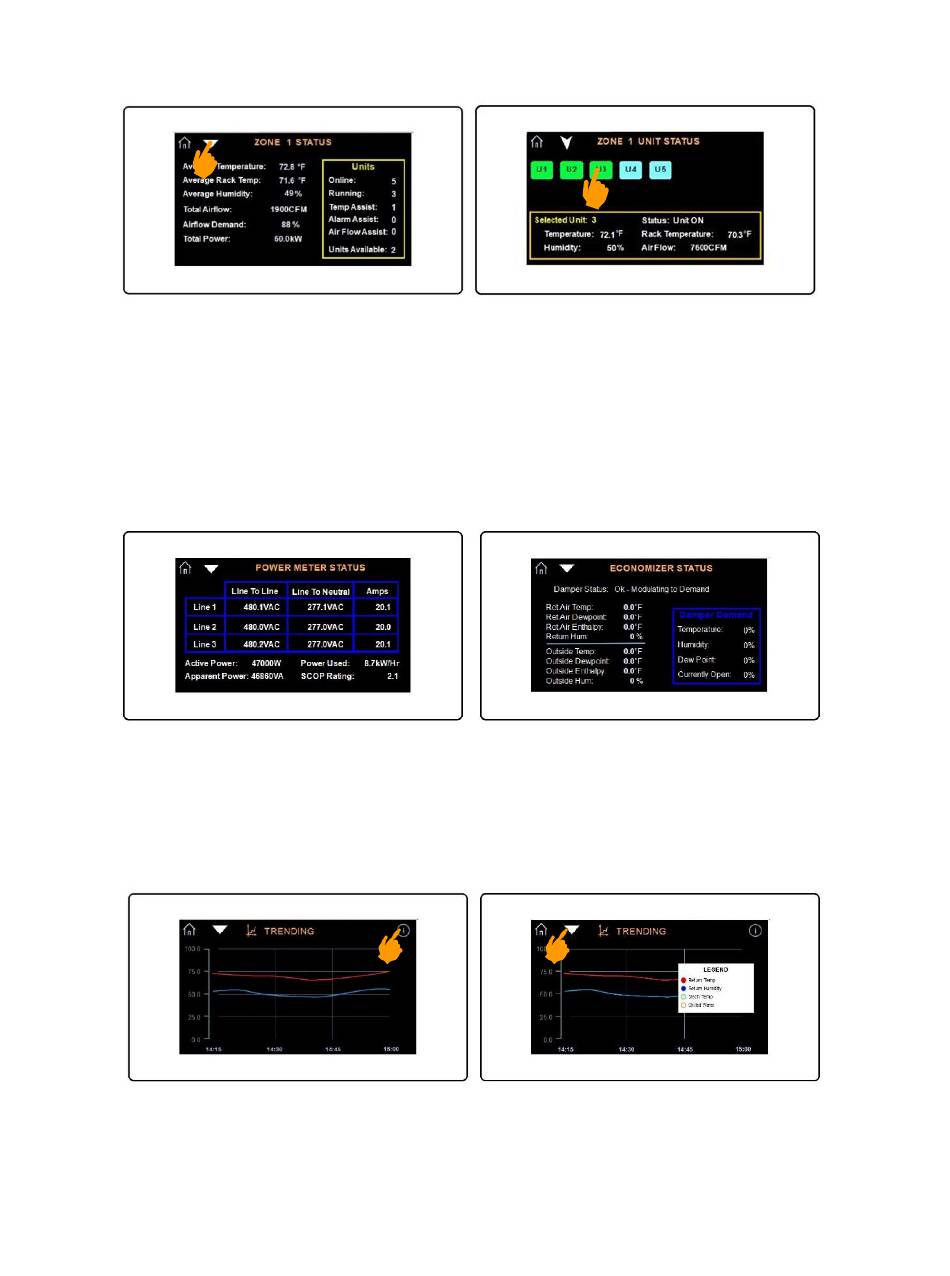

If the unit is the master in a Zone Master network, the following screens will appear.
All units in the network indicate their status by color:
Green = Unit is On
participate in the zone master control.
Touch the unit's icon to see specific information about that unit.
f) View Optional Power Meter and Airside Economizer Status
If unit equipped with an optional power meter or Airside economizer damper option, their status screens
will appear.
g) View Trending of Temperature and Humidity
These screens display trends of the return air temperature, humidity and optional discharge air
temperature and chilled water temperature. To display the legend information, touch the information icon
located at the top right corner. The Historical Trends screen can be scrolled forward or backwards by
pressing and dragging. Press the Clock icon to set the history time range, from 1 minute to 8 hours.
Blue = Unit is in Standby Red = Unit is in Alarm
5
Gray = Unit is set to not to
