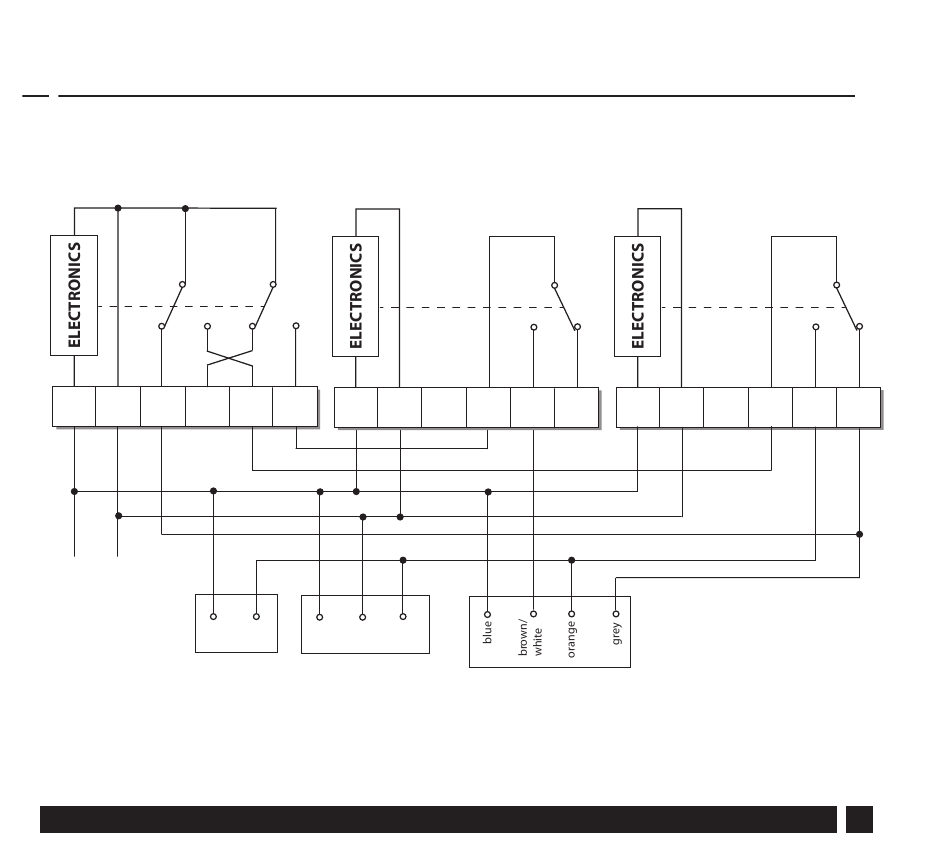

Danfoss CET2000B-RF Installation Manual page 13

Wireless Heating & Hot Water Control, with
3 Port Mid Position Valve
FP715 Programmer FP715 Programmer
N L 1 2
HW OFF HTG OFF
230Vac
N
Pump
Danfoss Heating
RX1-S Receiver -
paired to RET2000B-RF
3 4
N L
HW ON HTG ON
L Sw.L
N L
Boiler
1 2 3 N
3 Port Mid-Position Valve
RX1-S Receiver -
paired to CET2000B-RF
L 1 2 3
