Summary of Contents for Swiss Bionic Solutions IMRS

  • Page 3: Table Of Contents

    3.1. Essential performance characteristic of iMRS ....... . . 12 Possible applications .

  • Page 4: Preliminary Comments

    The contents of this manual are subject to periodic revision and update. The most current version please contact Swiss Bionic Solutions Schweiz GmbH at info@swissbionic.com. 2. Safety instructions – what you should take note of...
  • Page 5 The iMRS is intended for operation in an ELECTROMAGNETIC ENVIRONMENT as given below. The customer or user of the iMRS should ensure that it is operated in such an environment. © Swiss Bionic Solutions Schweiz GmbH / 8834 Schindellegi / 2016...
  • Page 6 Guidelines and manufacturer‘s declaration - electromagnetic interference emissions The iMRS is intended for operation in an ELECTROMAGNETIC ENVIRONMENT as given below. The customer or user of the iMRS should ensure that it is operated in such an environment. Interference IEC 60601 Test...
  • Page 7 (50/60 Hz) acc. to values typical of a business IEC 61000-4-8 or hospital environment. Remark: Ut is the mains AC voltage before the application of the test level. © Swiss Bionic Solutions Schweiz GmbH / 8834 Schindellegi / 2016...
  • Page 8 Guidelines and manufacturer‘s declaration - electromagnetic immunity The iMRS is intended for operation in an ELECTROMAGNETIC ENVIRONMENT as given below. The customer or user of the iMRS should ensure that it is operated in such an environment. Interference IEC 60601...
  • Page 9 If the field strength measured at the location where the iMRS is being is used exceeds the COMPLIANCE LEVEL mentioned above, the iMRS should be kept under observation in order to verify the FUNC- TION for the intended use.
  • Page 10 The iMRS is intended for operation in an ELECTROMAGNETIC ENVIRONMENT in which RF inter- ference is controlled. The customer or the user of the iMRS can help here in avoiding electro- magnetic interference by keeping to the minimum distance between portable/mobile RF tele- communication devices (transmitters) and the iMRS –...

  • Page 11: Contraindications

    • if the person has had electronic devices implanted such as a unipolar pacemaker or insulin pump • In the case of oversensitivity to electromagnetic radiation The iMRS system may only be used with the approval of a doctor, and under his/her supervi- sion in the case of: • Tumour illnesses •...

  • Page 12: Essential Performance Characteristic Of Imrs

    3.1. Essential performance characteristic of iMRS The essential performance characteristic of the iMRS is the generation of specified magnetic field pulses and the reinforcement of the body›s own energy fields. Possible applications The Magnet-Resonance-Stimulation-System iMRS can be used: •...
  • Page 13 Applicator mat (V1.0) Applicator cushion (V1.0) Applicator probe (V1.0) (part of the iMRS complete and iMRS professional as standard, not included in delivery for the iMRS wellfit) Hardcase for Applicator Probe (V1.0) (part of the iMRS complete and iMRS professional as standard, not included in delivery for the iMRS wellfit) ©...
  • Page 14 Page 14 / Operator‘s Guide / iMRS 2 Operator‘s Guide 1 iMRS Control unit 3 SD Card 4 Plug-In Power Pack 5 Applicator mat 6 Applicator cushion 7 Applicator probe 8 Hardcase © Swiss Bionic Solutions Schweiz GmbH / 8834 Schindellegi / 2016...

  • Page 15: Installation And Description Of The Equipment

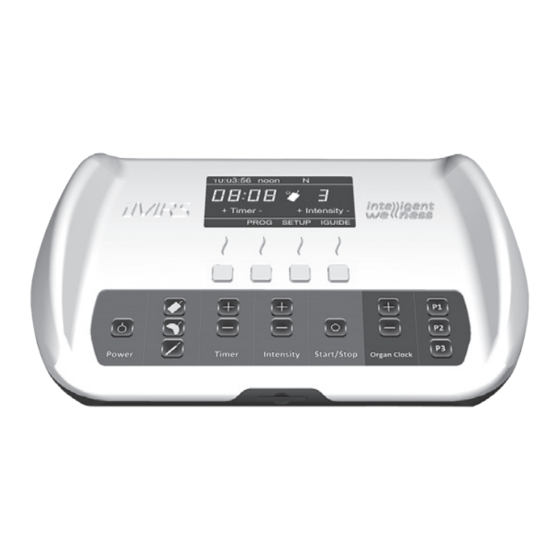

    Front of the control unit: Display Softkey-buttons Membrane keyboard Power-button Applicator selection: (applicator mat, applicator cushion, applicator probe only for iMRS complete and iMRS professional) Time selection display for the length of the application SD Card slot Intensity selection key Start/Stop key 10.
  • Page 16 15. Connecting socket for the plug of any of the three available applicators 16. Connecting socket for the plug of the iMORE-sensor (iMORE optional) 17. Connection socket for the headphones (iSLRS optional) 18. Connection socket for the goggles (iSLRS optional) © Swiss Bionic Solutions Schweiz GmbH / 8834 Schindellegi / 2016...
  • Page 17 21. Display for the polarity of the magnetic field (N= North, S= South) 22. Heart-/Pulse frequency 23. Heart Rate Variability (1, 2 and 3) 24. Info display level 25. Main display 26. Softkey display level © Swiss Bionic Solutions Schweiz GmbH / 8834 Schindellegi / 2016...

  • Page 18: Installation

    7.7ft/2.37m long) and plug the jack plug of any applicator mat into one of the sockets (13, 14 and 15) on the rear of the control unit. The iMRS automatically detects the connected applicator. Use only original accessories and when plugging the plugs into the sockets please check the firm connection between the jack and the socket.

  • Page 19: Starting Up

    IGUIDE ENTER Using the softkey below „SETUP“ you get to the main settings of the iMRS. Please be aware, that you must adjust several basic settings before using the iMRS for the first time. Pls choose your language (English, German, French) as well as the basic volume of the build-in speaker for the signal melodies and possible failure alerts.

  • Page 20: Clock

    3 months. An additional memory battery is not necessary. If the iMRS is not connected to an electrical outlet for more than 3 months, you must adjust the clock again manually. The iMRS must hereby be connected to an electrical outlet 9.1.2.

  • Page 21: Language

    9.1.5. iMRS Options: Here you can check your SD Card options and the serial number of the control unit (The serial number is a necessary information in order to upgrade your iMRS with additional options). 9.1.6. Factory Settings: By pressing the soft key below „YES“, the iMRS will be Factory Settings restored to factory settings.

  • Page 22: Save And Recall Of Preprogrammed Settings

    Page 22 / Operator‘s Guide / iMRS 9.2. Save and recall of preprogrammed settings All 3 iMRS variants (wellfit, complete, professional) provide you with the possibility of pre - programmed settings for 3 different users (P1, P2 and P3). You can preprogram all 3 available applicators over all 4 organ clocks with all available intensities and time ranges and activate them by pressing the designated memory location on the memb- rane keyboard (11).

  • Page 23: Recall The Storage

    The intensities are divided in 7 steps, sen- sitive, 10, 25, 50, 100, 150, 200 (iMRS wellfit) or in 8 steps, sensitive, 10, 25, 50, 100, 150, 200, 400 (iMRS complete, iMRS professional).

  • Page 24: Applicator Mat

    3.2ft/1m and in the foot area at a distance of approximately 5ft/1.5m. This application can only be used with the original applicator mat. If no applicator has been © Swiss Bionic Solutions Schweiz GmbH / 8834 Schindellegi / 2016...

  • Page 25: Applicator Cushion

    At the highest intensity setting, the average peak field strength of the applicator cushion is less than 40 µT (iMRS wellfit) or 70 µT (iMRS complete and iMRS professional) which is approxi- mately equivalent to the Earth-Magnetic-Field. According to the preliminary standard for DIN 0848, the recommended upper limit for 24-hours constant use is 400 µT.

  • Page 26: Applicator Probe (Imrs Complete, Imrs Professional)

    3.2ft/1m from the probe at right angles to the probe. If the applicator probe is used, the iMRS automatically selects a fixed specified program for local application. This application can only be used with the original applicator probe. If no applicator has been connected or an applicator is defective, the display of the iMRS singalizes a failure (Applicator not plugged, Applicator broken).

  • Page 27: Application

    Choose the applicator mat by pressing the button (5) on the membrane keyboard. You can select an application period of 8, 16 or 24 minutes (iMRS wellfit, iMRS complete) using the time selection key (6). The iMRS professional can be individually adjusted between 2 and 60 minutes in one minute steps.

  • Page 28: Local Application Using The Applicator Cushion

    (e.g. shoulder = 25 - 50, back = 50 – 100, hips = 100 – 150, thigh = 150 – 200, calf and foot = 200 (iMRS complete and iMRS professional –...

  • Page 29: Local Application Using The Applicator Probe

    Start/Stop key (9). The iMRS professional can be individually adjusted between 2 and 60 minutes in one minute steps. To completely disconnect the device from the mains, the Plug-In Power Pack must be removed from the wall outlet.

  • Page 30: Cleaning And Caring For The System

    The cover of the applicator mat and the applicator cushion is made of medically approved vinyl and can be wiped clean or disinfected using the appropriate cleaning agents and surface disin- fectants as described under section 10 and 11. © Swiss Bionic Solutions Schweiz GmbH / 8834 Schindellegi / 2016...

  • Page 31: Maintenance/Check

    Wrong SD Card (i.e. wrong serial number, not formatted) Repairs and service can only be carried out by the manufacturer: Manufacturing: Swiss Bionic Solutions Schweiz GmbH Schulhausstrasse 17 8834 Schindellegi Switzerland Phone: +41-62-2955951 Fax: +41-62-2955952 Email: ch@swissbionic.com © Swiss Bionic Solutions Schweiz GmbH / 8834 Schindellegi / 2016...

  • Page 32: Identification, Technical Data

    Applied part, Type B law for used electric devices DC-Symbol (direct current) Protection class II The conformity according to EC directives is explained for the equipment described in this Ope- rators Guide. © Swiss Bionic Solutions Schweiz GmbH / 8834 Schindellegi / 2016...

  • Page 33: Technical Data Imrs

    26.5 x 16.9 x 6.1 cm Temperature (Operating) +10°C to +40°C Temperature (Storage) -20°C to +45°C Humidity (Operating) 30% - 75% RH (without condensation) Humidity (Storage) 10% - 95% RH (without condensation) © Swiss Bionic Solutions Schweiz GmbH / 8834 Schindellegi / 2016...
  • Page 34 49 x 28 x 3.8 cm Cable length 2.37 m Applicator probe Coils 1 coil with core Cover Anodized metal Dimensions 1.9 x 12.3 cm Cable length 2.6 m © Swiss Bionic Solutions Schweiz GmbH / 8834 Schindellegi / 2016...

  • Page 35: Guarantee

    65,00 17. Guarantee The iMRS systems are the result of innovative research and development. Swiss Bionic Solutions will grant a 36 month warranty – from the date of purchase – on materials and workmanship. This warranty can only be honored if the device and all accessories are used as specified. There- fore please follow the instructions in this manual very carefully.
  • Page 36 Swiss Bionic Solutions Schweiz GmbH Schulhausstrasse 17 | 8834 Schindellegi, Schweiz Phone: +41 (62) 295 5951 | Fax: +41 (62) 295 5952 | E-Mail: ch@swissbionic.com Swiss Bionic Solutions Deutschland GmbH Biberacher Str. 87 | 88339 Bad Waldsee, Deutschland Phone: +49 (7524) 996 950 | Fax: +49 (7524) 996 9518 | E-Mail: de@swissbionic.com Swiss Bionic Solutions USA Inc.
