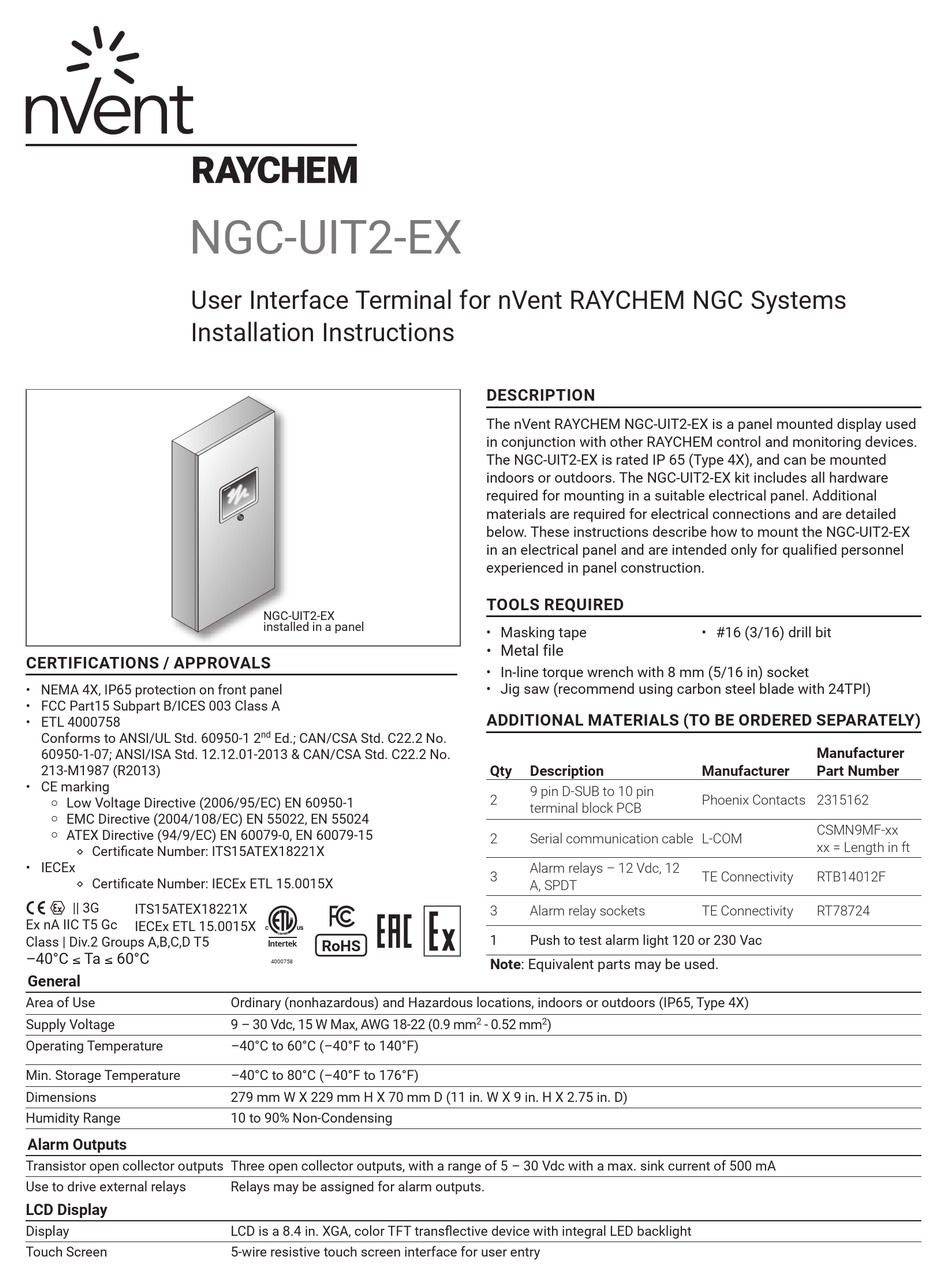

nvent Raychem NGC-UIT2-EX Installation Instructions Manual

NGC-UIT2-EX
User Interface Terminal for nVent RAYCHEM NGC Systems

Installation Instructions

CERTIFICATIONS / APPROVALS
• NEMA 4X, IP65 protection on front panel
• FCC Part15 Subpart B/ICES 003 Class A
• ETL 4000758
Conforms to ANSI/UL Std. 60950-1 2
60950-1-07; ANSI/ISA Std. 12.12.01-2013 & CAN/CSA Std. C22.2 No.
213-M1987 (R2013)
• CE marking
Low Voltage Directive (2006/95/EC) EN 60950-1

EMC Directive (2004/108/EC) EN 55022, EN 55024

ATEX Directive (94/9/EC) EN 60079-0, EN 60079-15

Certificate Number: ITS15ATEX18221X

• IECEx
Certificate Number: IECEx ETL 15.0015X

|| 3G
ITS15ATEX18221X
Ex nA IIC T5 Gc
IECEx ETL 15.0015X
Class | Div.2 Groups A,B,C,D T5
–40°C ≤ Ta ≤ 60°C
General
Area of Use
Supply Voltage
Operating Temperature
Min. Storage Temperature
Dimensions
Humidity Range
Alarm Outputs
Transistor open collector outputs Three open collector outputs, with a range of 5 – 30 Vdc with a max. sink current of 500 mA
Use to drive external relays
LCD Display
Display
Touch Screen
NGC-UIT2-EX
installed in a panel
nd
Ed.; CAN/CSA Std. C22.2 No.
RoHS
4000758
Ordinary (nonhazardous) and Hazardous locations, indoors or outdoors (IP65, Type 4X)
9 – 30 Vdc, 15 W Max, AWG 18-22 (0.9 mm
–40°C to 60°C (–40°F to 140°F)
–40°C to 80°C (–40°F to 176°F)
279 mm W X 229 mm H X 70 mm D (11 in. W X 9 in. H X 2.75 in. D)
10 to 90% Non-Condensing
Relays may be assigned for alarm outputs.
LCD is a 8.4 in. XGA, color TFT transflective device with integral LED backlight
5-wire resistive touch screen interface for user entry
DESCRIPTION
The nVent RAYCHEM NGC-UIT2-EX is a panel mounted display used
in conjunction with other RAYCHEM control and monitoring devices.
The NGC-UIT2-EX is rated IP 65 (Type 4X), and can be mounted
indoors or outdoors. The NGC-UIT2-EX kit includes all hardware
required for mounting in a suitable electrical panel. Additional
materials are required for electrical connections and are detailed
below. These instructions describe how to mount the NGC-UIT2-EX
in an electrical panel and are intended only for qualified personnel
experienced in panel construction.
TOOLS REQUIRED
• Masking tape
• Metal file
• In-line torque wrench with 8 mm (5/16 in) socket
• Jig saw (recommend using carbon steel blade with 24TPI)
ADDITIONAL MATERIALS (TO BE ORDERED SEPARATELY)
Qty Description
9 pin D-SUB to 10 pin
2
terminal block PCB
2 Serial communication cable L-COM
Alarm relays – 12 Vdc, 12
3
A, SPDT
3 Alarm relay sockets
1 Push to test alarm light 120 or 230 Vac
Note: Equivalent parts may be used.
2 - 0.52 mm 2 )
• #16 (3/16) drill bit
Manufacturer
Manufacturer Part Number
Phoenix Contacts 2315162
CSMN9MF-xx
xx = Length in ft
TE Connectivity RTB14012F
TE Connectivity RT78724
