TOUCH 1500
User Interface Terminal for RAYCHEM NGC Systems Installation Instructions
APPROVALS / CERTIFICATIONS
Hazardous Locations
Class I, Division 2 Groups A, B, C, D
Touch 1500-HAZ-CPU
40JY 23BJ
I.T.E. for use I.T.E.
in Hazardous Hazardous location
Locations designation
Class I, Division 2
Groups A, B, C, D, T5
Hazardous Locations

General

Area of use Nonhazardous or hazardous locations, indoor or
outdoor (Type 4X, IP66)
Supply voltage Touch 1500-HAZ-CPU: 10 – 36 Vdc
Touch 1500-HAZ-TS: 19 – 30 Vdc
Amperage rating Touch 1500-HAZ-CPU: 2 A @ 24 Vdc
Touch 1500-HAZ-TS: 2.62 A @ 24 Vdc
Operating temp (CE)* Touch 1500-HAZ-CPU: –20°C to 60°C (–4°F to 140°F)
Touch 1500-HAZ-TS: –20°C to 60°C (–4°F to 140°F)
Operating temp (UL)* Touch 1500-HAZ-CPU: –10°C to 60°C (14°F to 140°F)
Touch 1500-HAZ-TS: 0°C to 50°C (32°F to 122°F)
Storage temperature –30°C to 80°C (–22°F to 176°F)
Dimensions (W x D x H) Touch 1500-HAZ-CPU: 85.5 x 139 x 152 mm
Touch 1500-HAZ-TS: 422 x 68 x 338 mm
Alarm Outputs
Relay output One Form C relay rated 3 A @ 250 Vac.
Relay is used as a common alarm.
* Note: Temperature ratings are without space heaters
WARNING:
The TOUCH 1500 is an electronic unit. During installation,
take the following precautions to avoid damage to its
electronic components.
• Handle with care to avoid mechanical damage.

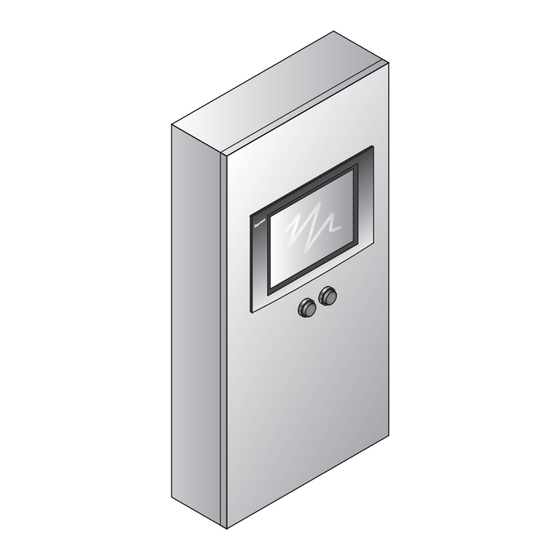

Touch 1500-HAZ-CPU and
Touch 1500-HAZ-TS
installed in a panel
Touch 1500-HAZ-TS
I.T.E. for use 316N/23BJ
in Hazardous Hazardous location
Locations designation
Class I, Division 2
Groups A, B, C, D, T4A
Hazardous Locations
(3.4 x 5.5 x 6 in)
(16.61 x 2.68 x 13.31 in)
• Keep electronics dry.
• Avoid exposure to static electricity.
• Avoid contamination with metal filings, liquids, or
other foreign matter.

DESCRIPTION

The Touch 1500-HAZ nVent RAYCHEM is a panel mounted touch screen
display used in conjunction with RAYCHEM NGC-40 and NGC-20 (Europe
only) control and monitoring devices. The Touch 1500-HAZ display is rated
NEMA 4X (IP65) and can be mounted indoors or outdoors in a hazardous
location. For outdoor installation, a space heater will be required in the panel
for low ambient conditions. The Touch 1500-HAZ kit includes all hardware
required for mounting in a suitable electrical panel. Additional materials are
required for electrical connections and are detailed below. These instructions
describe how to mount the Touch 1500-HAZ in an electrical panel and are
intended only for personnel experienced in panel construction.

TOOLS REQUIRED

• Metal file • Masking tape
• Phillips screwdriver • #16 (3/16) drill bit
• Jig saw (recommend using carbon steel blade with 24TPI)

ADDITIONAL MATERIALS

Qty Catalog number Description
1 Touch 1500-HAZ-TS Touch Screen
1 Touch 1500-HAZ-CPU Computer
1 Touch 1500-HAZ-CK Cables/Mounting Hardware:
4-ft USB A/B Cable
4-ft VGA Cable
Touchscreen Mounting Clips
(1) 8-ft DB9 to RS-485 Cable
1 ADAM-4069-C1D2 Alarm Module
1 Push-to-Test Alarm Light (24 Vdc)

Network Connection

Remote Port (com 3) Connects to common alarm module (ADAM-4069)
RS-485
Data rate
Field Port (com 4) Not used
RS-485
Data rate
LAN
USB Ports
LCD Display
Display
Touch Screen
• Use agency-approved conduit bushings, adapters,
and cable glands to keep the enclosure protected
from dust and fluids.
(TO BE ORDERED SEPARATELY)
Mfg
TTC
TTC
TTC
Advantech
A non-insulated 9 pin D sub male
To 9600 to 57000 baud
A non-insulated 9 pin D sub male
To 9600 baud
10/100 Base-T Ethernet port with Link
and Activity Status LEDs (X3)
USB 2.0 host ports (X4)
LCD is a 15-in XGA, color TFT
transflective device with integral LED
backlighting.
5-wire resistive touch screen interface
with enhanced ITO film for user entry.
Mfg/
PTM PN
10332-011
10332-010
10332-027
