Hardware Setup - SMC Networks SMC EZ Connect SMCHT-ETH User Manual

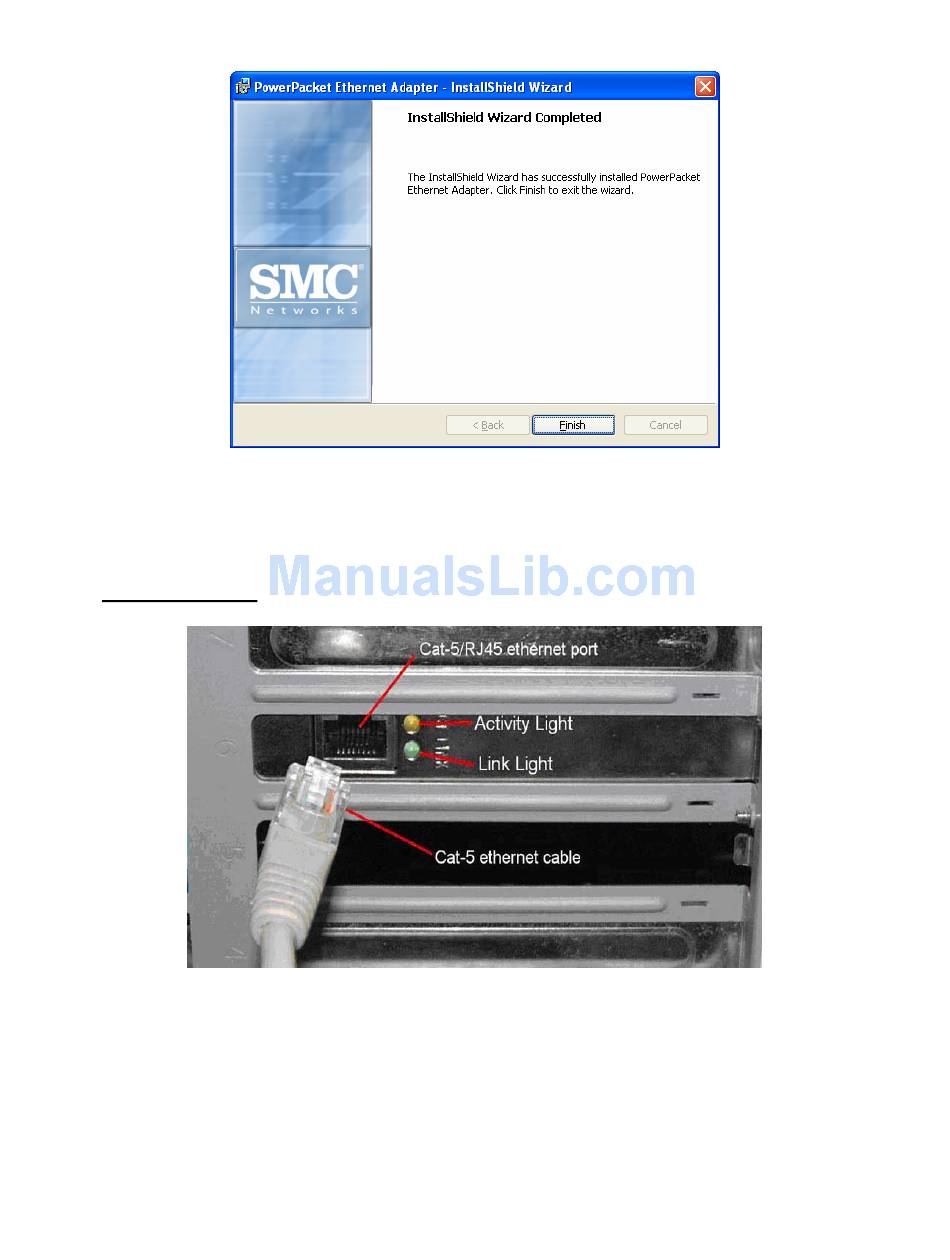

This screen shows that the installation was completed successfully. Click on 'Finish' to exit the
wizard. Now its time to setup your hardware connections please refer to the next diagrams.

Hardware Setup

1. Plug your network cable into the computer's RJ-45 network adapter port.
2. Plug the other end of your network cable into the RJ-45 port located at the back of the
HomePlug Turbo Ethernet Adapter.
3. Plug your power connector of your power cable into the power connector at the back of the
HomePlug Turbo Ethernet Adapter.
8
