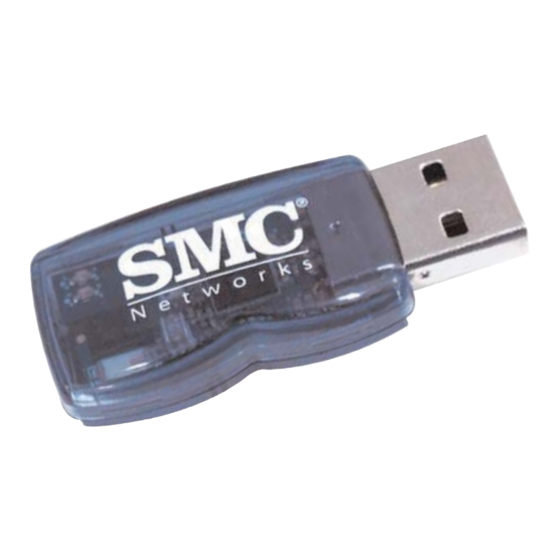

Wireless bluetooth usb adapter
Hide thumbs Also See for SMC-BT10 EZ Connect:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMC-BT10 EZ Connect and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SMC Networks SMC-BT10 EZ Connect

Summary of Contents for SMC Networks SMC-BT10 EZ Connect

  • Page 2 No license is granted by implication or otherwise under any patent or patent rights of SMC. SMC reserves the right to change specifications at any time without notice.
  • Page 3 Wireless 2.4 GHz Band Statements: As the SMC-BT10 Wireless Bluetooth USB Adapter can operate in the 2400-2483 MHz frequency band it is limited by the FCC, Industry Canada and some other countries to indoor use only so as to reduce the potential for harmful interference to co-channel Mobile Satellite systems.
  • Page 4 Produktkategorie. Spanish Por medio de la presente SMC Networks declara que el Radio LAN device cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE. The official EC-Declaration of Conformity can be found under the corresponding product section on the web http://www.smc.com.
  • Page 5 United Kingdom, Portugal, Greece, Ireland, Iceland Requirements for outdoor operation, like license requirements and allowed channels of operation apply in some countries. Please contact your local regulation authority or SMC Networks for details on current restrictions for outdoor use. Dutch Dit toestel is een 2.4 Ghz draadloze Lan transceiver, bestemd voor...
  • Page 6 Los requisitos para su uso exterior, como requerimiento de licencia y canales de operación permitidos se aplican en algunos países. Por favor contacte la autoridad reguladora local o SMC Networks para más detalles en relación con las restricciones actuales para uso exterior.
  • Page 7 13. Öffnen sie niemals das Gerät. Das Gerät darf aus Gründen der elektrischen Sicherheit nur von authorisiertem Servicepersonal geöffnet werden.

  • Page 8: Table Of Contents

    Contents BlueSoleil™ Introduction... 10 BlueSoleil™ Graphical User Interface ... 11 Start BlueSoleil™ ... 11 Exit BlueSoleil™ ... 11 BlueSoleil™ Main Window ... 12 2.3.1 My Device Icon ...12 2.3.2 Remote Bluetooth Device Icons...13 2.3.3 Bluetooth Service Icons ...14 Service Window ... 15 2.4.1 My Service Icons ...17 Personal Area Networking...
  • Page 9 Exchange PIM Data with a Cellular Phone... 64 Set up SYNC Connection between Two Computers... 66 Synchronization Configuration ... 70 9.4.1 My Synchronization Service... 70 Hardcopy Cable Replacement ...71 10.1 Introduction... 71 10.2 Print a Document Using a Bluetooth Printer ... 71 Human Interface Device ...74 11.1 Introduction...

  • Page 10: Bluesoleil™ Introduction

    BlueSoleil™ Introduction BlueSoleil™ is a Windows-based Bluetooth Wireless software suite from IVT. It is fully compliant to the latest Bluetooth SIG specifications. BlueSoleil™ incorporates Bluetooth and computer technologies to enable users to wirelessly access computing devices, form networks, and exchange information. BlueSoleil™...

  • Page 11: Bluesoleil™ Graphical User Interface

    BlueSoleil™ Graphical User Interface Start BlueSoleil™ After installing BlueSoleil™, there are two ways to start the program: 1. A BlueSoleil™ shortcut icon on the Windows desktop. 2. An IVT BlueSoleil™ program group entry in the Windows’ Start | Programs menu. Double-click the BlueSoleil™...

  • Page 12: Bluesoleil™ Main Window

    BlueSoleil™ Main Window The BlueSoleil™ Main Window displays all surrounding Bluetooth devices. From the BlueSoleil™ Main Window users can search for surrounding Bluetooth devices and can execute connect/ disconnect functions. Remote Device Service Local Device lcon Remote Device Figure 2.2: BlueSoleil™ Main Window The main elements in the BlueSoleil™...

  • Page 13: Remote Bluetooth Device Icons

    2.3.2 Remote Bluetooth Device Icons The icons in the table below represent the remote Bluetooth devices. Device Type Headset Keyboard LAN Access Point Laptop Mobile Modem Mouse Personal Computer Printer Scanner Unknown device The following colors are used to indicate the status of the remote Bluetooth device: Icon...

  • Page 14: Bluetooth Service Icons

    ♦ White (Idle) This is the normal status of the device. ♦ Yellow (Selected) The device has been selected by the user. ♦ Green (Connected) The device has been connected. Functions: 6. Single-click to select. 7. Double-click to get the services remote Bluetooth device supports. 8.

  • Page 15: Service Window

    Basic lmaging The following colors are used to indicate the status of the Bluetooth service: ♦ White (Idle) This is the normal status. ♦ Pink (Available) The Bluetooth service is available for the selected device. ♦ Yellow (Selected) The service icon has been selected by the user. ♦...
  • Page 16 Figure 2.4: BlueSoleil™ Service Window Main Elements: ♦ My Service Icons...

  • Page 17: My Service Icons

    2.4.1 My Service Icons These icons represent ‘my Bluetooth services’. My Bluetooth Service Personal Area Networking Serial Port A Serial Port B Object Push File Transfer Information Synchronization LAN Access AV Headset Basic Image Icon...
  • Page 18 Headset AG The following colors indicate the status of the Bluetooth service: ♦ White (Idle) Normal status. ♦ Pink (Started) My Bluetooth service is started. ♦ Green (Connected) A remote device has connected to my Bluetooth service. Functions: 13. Single-click to select. 14.

  • Page 19: Personal Area Networking

    Personal Area Networking Introduction The Bluetooth Personal Area Networking (PAN) is a Bluetooth application, which enables devices to form an ad-hoc network or to access a remote network through a network access point. The PAN application can be used in the following scenarios: ♦...
  • Page 20 Figure 3.1: Security Configuration Step 5: Start the PAN service on Computer A. ♦ In the BlueSoleil™ Main Window, click View | Service Window. ♦ In the Service Window, right-click the Personal Area Networking icon. Choose Start Service. (Figure 3.2) Figure 3.2: Start PAN Service on Computer A...
  • Page 21 Step 6: Search for Computer A on Computer B. ♦ Double-click the My Device Icon (center ball). The surrounding discovered Bluetooth devices appear. ♦ Check to see if Computer A appears. If it does not appear, double-click the My Device Icon again. Repeat the operation until you find Computer A.
  • Page 22 ♦ Right-click the PAN service icon; select Connect on the pop-up menu. (Figure 3.5) ♦ The connection is established successfully (Figure 3.6). Wait until the valid IP address is shown on the bottom right status bar on both Computer A and Computer B. Figure 3.5: Connect to PAN Service...
  • Page 23 Figure 3.6: Connection is established successfully. Step 9: Computer A and Computer B are now connected. On Computer B, go to Windows | My Network Places to find Computer A and copy files. Figure 3.7 shows where to input Computer A’s name. In Figure 3.7, Computer A is named ‘mike’.
  • Page 24 A or from Computer B. ♦ On Computer B, right-click on the PAN service icon and choose Disconnect. (Figure 3.8) ♦ On Computer A, right-click on the PAN service icon and choose Stop Service. (Figure 3.9) Figure 3.8: Disconnect the PAN service from Computer B...

  • Page 25: Computer With Pan Acting As A Tcp/Ip Gateway

    Figure 3.9: Stop the PAN service on Computer A Advanced Usage: ♦ Computer A is now the center node. Other computers, for example, Computers C, D and E, can connect to Computer A with BlueSoleil™ following the same steps as those for Computer B. ♦...

  • Page 26: Connect To The Internet Using Ics

    Step 1: Enable Internet access sharing on Computer A. ♦ See “Section 3.2: Connect Two Computers”, and complete Steps 1 to 7. ♦ Refer to steps outlined in “Section 3.4.1 Connect to the Internet using ICS”, to set up Internet sharing. Step 2: Computer B can now access the Internet.

  • Page 27: Settings On The Pan Server

    3.3.2 Settings on the PAN server Step 1: Right-click the My Network Places icon and select Properties. (Figure 3.10) Figure 3.10: Select Properties on My Network Places Step 2: Right-click the connection through which you access the Internet, and then select Properties. (Error! Reference source not found.) Figure 3.11: Click the connection through which you access the Internet Step 3:...
  • Page 28 Figure 3.12: Internet Connection Sharing for a Local Area Connection on Windows 2000 Step 4: If this connection is a dial-up one, and you want automatic dialing when another computer in your home network attempts to access external resources, then check the Enable on-demand dialing check box.

  • Page 29: Pan Configuration

    Figure 3.14: Confirm Enabling Internet Connection Sharing Note: The Internet Connection Sharing wizard will set the IP address of the BT network adapter to 192.168.0.1, and a DHCP server will be run on Computer A. PAN clients in the Bluetooth network can be set statically or dynamically to any IP address in the range 192.168.0.2 to 192.168.0.253.

  • Page 30: Dial-Up Networking

    Dial-Up Networking Introduction The Bluetooth Dial-up Networking (DUN) service allows a Bluetooth-enabled client to access the Internet wirelessly through a modem on another Bluetooth device or a cellular phone. The other Bluetooth device or the cellular phone is called the gateway (server) as it provides access to the public network.
  • Page 31 screen. Press Yes to confirm you want to initialize pairing. ♦ The T68 will ask for the Bluetooth passkey. You can input any number, for example, “1”. ♦ On the BlueSoleil™ side, the Enter Bluetooth Passkey window pops up requesting the Bluetooth passkey. Input the same Bluetooth passkey you have input in the T68 and click OK.
  • Page 32 Figure 4.1: Connect BlueSoleil™ DUN Connection Step 10: The Connect BlueSoleil™ DUN Connection window appears (Figure 4.1). ♦ Input a valid username, password and the Internet Service Provider’s (ISP’s) phone number, then click the Dial button. ♦ If the dial-up is successful, a small icon appears on the bottom right hand of the Windows taskbar, indicating that the dial up connection is successfully established.
  • Page 33 Figure 4.2: BlueSoleil™ DUN Connection Status window...

  • Page 34: Bluetooth Serial Port

    Bluetooth Serial Port Introduction The Bluetooth Serial Port (SPP) provides a virtual serial port via Bluetooth as an alternative to a hardwired serial cable between a computer and device. Any program that uses a standard serial port can use the Bluetooth serial port without any change. The SPP profile can be used in the following scenarios: ♦...
  • Page 35 Figure 5.1: Start the SPP Service Step 6: Connect Computer B to Computer A. ♦ On Computer B double click the ‘My Device icon’ until you find the device, Computer A. ♦ Double-click the Computer A device to find its SPP service (Figure 5.2).
  • Page 36 Figure 5.2: Double-click the Computer A device icon Figure 5.3: Choose Connect ♦ The connection is established successfully as shown in Figure 5.4. Wait for 10 seconds until the serial port number is shown on the right bottom status bar on Computer B. (Figure 5.5)

  • Page 37: Use Spp To Print A Document

    Figure 5.4: The connection is established successfully Figure 5.5: The serial port number is shown Use SPP to Print a Document This section outlines the steps involved in connecting a computer to a Bluetooth Printer Adapter using SPP. Computer A: Notebook/Laptop, PIII, 800MHz, 128M A Bluetooth USB dongle Windows 2000...
  • Page 38 Configurations | Security menu). Step 5: Connect Computer A to the Bluetooth Printer Adapter B using SPP. ♦ Go to Computer A; double click the My Device icon’ until you find the device Bluetooth Printer Adapter B. ♦ Double-click the Bluetooth Printer Adapter B device to find it’s SPP service.

  • Page 39: Spp Configuration

    SPP Configuration 5.4.1 My SPP Service In the BlueSoleil™ Service Window, right-click the Serial Port icon. On the pop-up menu, select Properties to configure the ‘my SPP service’. Figure 5.6: SPP Service Configuration. Setting Items: ♦ Auto start this service when my Bluetooth starts Check this option to automatically start my Bluetooth SPP service every time BlueSoleil™...

  • Page 40: Bluetooth File Transfer

    Bluetooth File Transfer Introduction The File Transfer profile (FTP) supports the file transfer usage model, which offers the ability to transfer files from one Bluetooth device to another. The FTP profile can be used in the following scenarios: ♦ A computer can transfer files to/from another computer. ♦...
  • Page 41 Figure 6.1: Service Window Figure 6.2: The Service Configuration window ♦ In the Share this folder field input the folder that you want to share with other computers via Bluetooth. Click the button under Share this folder and a new window Set FTP Server Root Folder pops up.
  • Page 42 computers can copy or delete files\ directories to this directory. Note: Do not share your Windows system directory in Read and Write mode. Other users may delete important Windows’ files. Figure 6.3: Set FTP Server Root Folder Figure 6.4: Select the shared folder Step 5: Search for Computer A on Computer B.
  • Page 43 Figure 6.5: Double-click the Computer A device icon Step 7: Connect to Computer A. ♦ Right-click the FTP service icon; select Connect on the pop-up menu. The connection is now established (Figure 6.6). The remote folder is displayed in a Windows Explorer folder window (Figure 6.7).
  • Page 44 Figure 6.7: The remote folder is displayed Step 8: Copy files and directories. ♦ From Computer B to Computer A – upload Select files\ directories on Computer B and drag files into the Remote Shared Folder. (Figure 6.8) ♦ From Computer A to Computer B – download Select files\ directories from the Remote Shared Folder and drag files into the desktop or a folder on Computer B.
  • Page 45 Figure 6.9: Download files from Computer A...

  • Page 46: Ftp Configuration

    FTP Configuration 6.3.1 My FTP Service In the BlueSoleil™ Service Window, right-click the File Transfer icon. On the pop-up menu, select Properties to configure the ‘my FTP service’. Figure 6.10: Configure FTP service Setting Items: ♦ Auto starts this service when my Bluetooth starts Check this box to automatically start the File Transfer service every time BlueSoleil™...

  • Page 47: Lan Access

    LAN Access Introduction The Bluetooth LAN Access Profile (LAP) allows Bluetooth-enabled devices to access the services of a LAN using Point-to-Point Protocol. In this usage model, multiple data terminals use a LAN access point as a wireless connection to a Local Area Network (LAN). Once connected, data terminals operate as if they are connected to the LAN via dial-up networking and can access all the services provided by the LAN.
  • Page 48 Figure 7.1: Select Start Service Step 6: Make incoming connection on Computer A ♦ Right-click on My Network Places; select Properties. (Figure 7.2) ♦ On the Network and Dial-up Connections panel, right-click the Incoming Connection icon, and then select Properties on the pop up menu.
  • Page 49 Figure 7.3: Select Properties on the pop up menu ♦ Click Networking on the Incoming Connections Properties pop-up window. (Figure 7.4) ♦ Choose Internet Protocol (TCP/IP) and click Properties. (Figure 7.5) Figure 7.4: Incoming Connections Properties...
  • Page 50 Figure 7.5: Choose Internet Protocol (TCP/IP) ♦ Select Specify TCP/IP addresses, and input the two IP addresses. The subnet mask of the two IP addresses should be the same as the subnet of the LAN Computer A belongs to. (Figure 7.6) Figure 7.6: Input the IP addresses Step 7: Search for Computer A on Computer B.
  • Page 51 Figure 7.7: Double-click the Computer A device icon Step 9: Connect to Computer A. ♦ Right-click the LAP service icon; select Connect on the pop-up menu. (Figure 7.8) Figure 7.8: Select Connect ♦ The Connect BlueSoleil™ LAP Connection window pops up.
  • Page 52 Input a username and password. (Figure 7.9) ♦ The connection is then established. (Figure 7.10) Figure 7.9: Input Username and Password Figure 7.10: Successful connection to LAP...

  • Page 53: Object Push

    Step 10: Computer B can now access the LAN via Computer A. Object Push Introduction The Bluetooth Object Push profile (OPP) is an application that offers a way to send and receive Personal Information Management (PIM) data objects from one Bluetooth device to another Bluetooth device.
  • Page 54 (Figure 8.1). ♦ Check the boxes, Send Business Card on Request, Accept Business Card, Accept Calendar Items, Accept Email Messages and Accept Notes. ♦ To set ‘my business card’, click the box Send My Business Card (*.VCF). This opens the Open File window. Select a VCF file as your own business card and click the Open button.
  • Page 55 ♦ Open MS Outlook, and select the Contacts item in Outlook Shortcuts. (Figure 8.3) Figure 8.3: MS Outlook main window ♦ If there are no contacts entered, the following message appears on the main window “There are no items to show in this view.
  • Page 56 directory where you want to save the file. Select the vCard Files (*.vcf) item in the Save as type box. Click the Save button. (Figure 8.5) Figure 8.5: Save new Contact Step 6: Set the T68 to be discoverable. ♦ Press the Menu button on the T68 to find the menu list, and then select the Connect item.
  • Page 57 unsuccessful, the message Pairing failed. Please try again. Retry? In this case press Yes to retry or No to cancel. ♦ If the pairing succeeds, you will see the services of the T68 include the OPP service. (Figure 8.7) If you have never created a shortcut DUN, the following dialog pops up asking you whether Create a Shortcut on the windows desktop.

  • Page 58: Transfer Objects From A Bluetooth Cellular Phone To A Computer

    Figure 8.8: Four types of operation Transfer Objects from a Bluetooth Cellular Phone to a Computer This section outlines the steps involved in transferring OPP objects from a Bluetooth cellular phone to a computer. Computer A: Notebook/Laptop, PIII, 800MHz, 128M A Bluetooth USB dongle Windows 2000 IVT BlueSoleil™...
  • Page 59 ♦ The Service Configuration window pops up. Select the Object Push item. Configure My Business Card (See “Section 8.2: Transfer Objects from a Computer to a Bluetooth Cellular Phone”, Step 4) and configure other OPP service attributes for Computer A. Figure 8.9: Configure the OPP service ♦...
  • Page 60 Figure 8.10: Select the Start Service Step 5: Discover and pair Computer A on the T68. ♦ Select Menu | Connect | Bluetooth | Discover on the T68. A list of the surrounding devices appears. Select ‘Computer A’. ♦ When the Add to paired device devices? message appears, press the Yes key and enter a passkey, for example “1”.
  • Page 61 and you can send an object to it from other Bluetooth devices. ♦ To send all business cards. From the Business cards menu, select Send all and then select Via Bluetooth. Select the destination device Computer A. The T68 then sends all its *.vcf files to Computer A.

  • Page 62: Transfer Objects Between Two Computers

    Transfer Objects between Two Computers This section outlines the steps involved in transferring OPP objects between two Computers (Computer A and Computer B). Computer A: Notebook/Laptop, PIII, 800MHz, 128M A Bluetooth USB dongle Windows 2000 IVT BlueSoleil™ Step 1: Insert Bluetooth USB dongles in both computers. Step 2: Start BlueSoleil™...

  • Page 63: Configure Opp Service

    Configure OPP Service 8.5.1 My OPP Service In the BlueSoleil™ Service Window, right-click the Object Push icon. To configure ‘my OPP service’, select Properties on the pop-up menu. Figure 8.11: Configure OPP service Setting Items: ♦ Auto start this service when my Bluetooth starts Select this item if you want to automatically start the OPP service every time BlueSoleil™...

  • Page 64: Synchronization

    Synchronization Introduction Using Bluetooth Synchronization (SYNC), Bluetooth devices can synchronize messages, notes, calendars and cards with each other. The objects Synchronization (SYNC) supports are: ♦ Business cards (*.vcf) ♦ Calendar entries (*.vcs) ♦ Notes (*.vnt) ♦ Messages (*.vmg) The SYNC application is typically used in the following scenarios: ♦...
  • Page 65 Step 5: Configure the T68. ♦ Set T68 to be discoverable. Press the Menu button on the T68 and select Connect | Bluetooth | Discoverable. Press Yes to confirm the selection. ♦ To confirm Pairing. Press the Menu button on the T68 and select Connect | Bluetooth | Discover.

  • Page 66: Set Up Sync Connection Between Two Computers

    Set up SYNC Connection between Two Computers This section outlines the steps involved in setting up a SYNC connection between two computers, Computer A and Computer B. Computer A works as a server that provides the BlueSoleil™ SYNC service. Computer B works as a client that uses the SYNC service provided by Computer A.
  • Page 67 Figure 9.2: Select Properties on the Information Synchronization icon Figure 9.3: Service Configuration...
  • Page 68 Figure 9.4: Select Start Service Step 6: Start the SYNC client on Computer B. ♦ Search the Bluetooth device and find the SYNC service. In the Main Window, click the My Device icon, and wait for a few seconds. When all device icons have appeared, click the Bluetooth device named Computer A.
  • Page 69 ♦ Double-click the Bluetooth Information Synchronization service icon. The color of the SYNC service icon changes to green (Figure 9.6), indicating the connection is successfully established. Figure 9.6: Connection is established successfully ♦ The SYNC clients can now start synchronization. Press the green button to begin synchronization.

  • Page 70: Synchronization Configuration

    ♦ During synchronization push the red button if you want to stop the synchronization. ♦ Click the yellow explore button to check the information data after synchronization. Synchronization Configuration 9.4.1 My Synchronization Service In the BlueSoleil™ Service Window, right-click the Information Synchronization icon. To configure the synchronization service select Properties on the pop-up menu.

  • Page 71: Hardcopy Cable Replacement

    Hardcopy Cable Replacement 10.1 Introduction The Bluetooth Hardcopy Cable Replacement profile (HCRP) provides services to replace the cable between a host and peripheral device with a Bluetooth link. The most common devices using these services are laptops and desktop computers, however other devices are not excluded.
  • Page 72 ♦ If there is no driver installed for the Bluetooth printer, then BlueSoleil™ displays a message asking the user to install a driver for the Bluetooth Printer, see the Windows system icons in the bottom right hand corner of the Windows desktop. (Figure 10.1) Install the driver for the printer on Computer A and set its port to COMx.
  • Page 73 Figure 10.3: Disconnect from the Bluetooth Printer...

  • Page 74: Human Interface Device

    Human Interface Device 11.1 Introduction A typical Bluetooth Human Interface Devices (HID) is a Bluetooth-enabled mouse, keyboard or joystick. The HID service allows wireless communication to Bluetooth HID devices. The HID profile can be used in the following scenarios: ♦ Connecting a computer to a Bluetooth Mouse.
  • Page 75 Figure 11.1: Find Bluetooth mouse and its service Step 7: Double-click the HID service icon to connect to Mouse B. After the connection is successfully set-up, a dashed line appears between the center ball and the Mouse B icon. The HID service icon turns green (Figure 11.2).
  • Page 76 Step 8: Install drivers for Bluetooth mouse. ♦ If this is the first time Computer A has connected to a Bluetooth mouse, wait for a few seconds to allow Windows to install drivers for a Bluetooth mouse. ♦ You will see two new devices in Computer A: Bluetooth HID Mouse in ‘Human Interface Devices’...

  • Page 77: Connect A Computer To A Bluetooth Keyboard

    11.3 Connect a Computer to a Bluetooth Keyboard This section outlines how to connect a computer (Computer A) to a keyboard (Bluetooth Keyboard B). Computer A: Desktop, PIII, 800MHz, 128M A Bluetooth USB dongle Windows 2000 IVT BlueSoleil™ Step 1: Insert the Bluetooth USB dongle into the computer.
  • Page 78 Figure 11.4: Find Bluetooth keyboard and its service Step 7: Double-click the HID service icon to connect to Keyboard B. After the connection is successfully set-up, a dashed line appears between the center ball and the Keyboard B icon. The HID service icon turns green (Figure 11.5).
  • Page 79 Step 8: Install drivers for the Bluetooth keyboard. ♦ If this is the first time Computer A has connected to a Bluetooth keyboard, wait for a few seconds to allow Windows install drivers for a Bluetooth keyboard. ♦ You will see two new devices in Computer A: Bluetooth HID Keyboard in ‘Human Interface Devices’...

  • Page 80: Connection Shortcut

    Connection Shortcut 12.1 Introduction Connection shortcut profile is used to save time used in searching for devices and browsing services. Once a connection has been established, it can be saved as a shortcut. The shortcut is then used to re-establish the connection, without having to search for the remote Bluetooth device and required Bluetooth service.
  • Page 81 Step 5: In the BlueSoleil™ Main Window, click Tools | My Bluetooth Shortcuts. The Bluetooth Shortcuts window pops up. (Figure 12.2) Figure 12.2: Bluetooth Shortcuts window Step 6: Check the Auto Start box and click Connect. (Figure 12.3) Figure 12.3: Bluetooth Shortcuts Step 7: Once the connection is successfully established, click OK in the Bluetooth Shortcuts window.
  • Page 82 Figure 12.4: Click OK on Bluetooth Shortcuts Step 8: Start to use the PAN service provided by Computer A.

  • Page 83: Bluetooth Glossary

    Bluetooth Glossary Bluetooth Authentication Bluetooth authentication is the procedure to verify whether another Bluetooth enabled device has the right to access your computer. During this procedure, a Bluetooth passkey is requested on both sides of the connection. If the passkeys are the same, the authentication procedure is a success and the connection can be setup.
  • Page 84 Bluetooth File Transfer This is the implementation of the Bluetooth File Transfer profile (FTP). Bluetooth File Transfer enables the transfer files between Bluetooth devices. Bluetooth HCRP This is the implementation of the Bluetooth Hardcopy Cable Replacement profile (HCRP). HCRP provides services to replace the cables between hosts and peripheral devices with a Bluetooth link.
  • Page 85 Bonding Bonding is the creation of a relationship between two devices, which are known to each other prior to the bonding procedure. A user initiates the bonding procedure and enters a passkey to create a bond between two devices. This differs from the authentication procedure where the user is requested to enter a passkey during the establishment of the link.
  • Page 86 Radio Signal Strength Bluetooth operates on the 2.4G ISM band. The radio signal is stronger when the remote device is closer or the remote device has a higher radio output. The radio signal is weak when the remote device is distant or the remote device has a weak radio output.

  • Page 87: Specification

    Specification Standard Bluetooth V1.2 Interface USB (Type A) Link Mode ACL, eSCO (Extended Synchronous Connection-Oriented) Data Rate Asynchronous:723.2kbps/57.6kbps Synchronous:433.9kbps/433.9kbps Frequency Band ISM 2.4GHz Compatible OS Microsoft Windows 98 SE/2000//ME/XP, Mac OS v10.2 and higher Bluetooth Software support PAN, DUN, SPP, LAN, FTP, Synchronization, OBEX, HCRP, HID, FAX, BIP, AV, HS Receiver Signal Range Better than –76dBm @0.1%BER RF Output Power...
  • Page 88 FOR TECHNICAL SUPPORT, CALL: From U.S.A. and Canada (24 hours a day, 7 days a week) (800) SMC-4-YOU; Phn: (949) 679-8000; Fax: (949) 679-1481 From Europe : Contact details can be found on www.smc-europe.com or www.smc.com INTERNET E-mail addresses: techsupport@smc.com european.techsupport@smc-europe.com...
