Scott Safety MultiFlame FV-40 Series User Manual

Flame detector
Hide thumbs
Table of Contents

Advertisement

Quick Links

MULTIFLAME
FV‐40 Series Flame Detector
User Guide
087-0056
Rev. F

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MultiFlame FV-40 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Scott Safety MultiFlame FV-40 Series

Summary of Contents for Scott Safety MultiFlame FV-40 Series

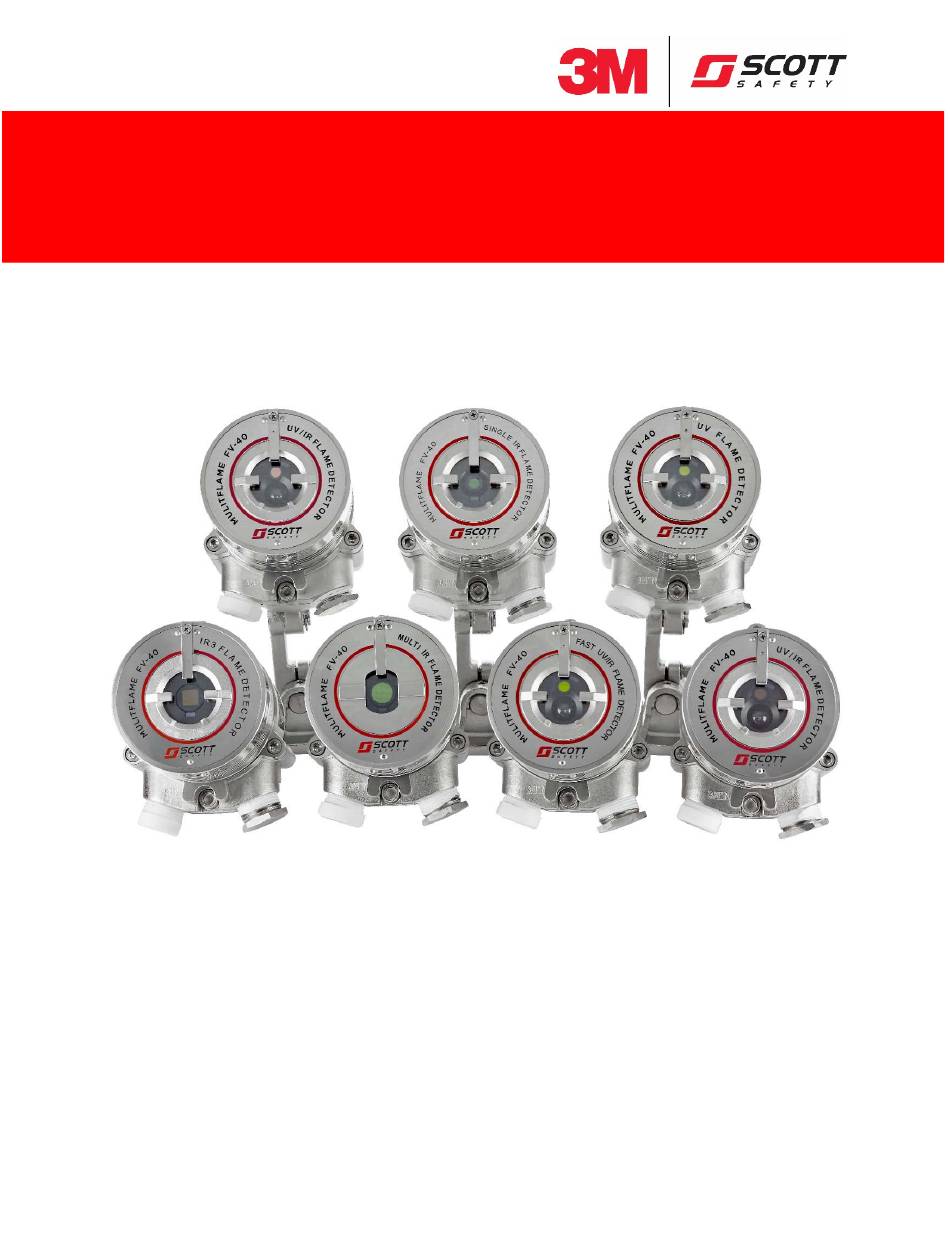

  • Page 1 MULTIFLAME    FV‐40 Series Flame Detector  User Guide 087-0056 Rev. F...
  • Page 2 MultiFlame FV‐40  User  Guide        FLAME DETECTOR...
  • Page 3 Scott Safety reserves the right to revise this documentation and to make changes in content from time to time without obligation on the part of Scott Safety to provide notification of such revision or change. Scott Safety provides this documentation without warranty, term, or...

  • Page 4: Warranty

    Purchaser/Distributor that the products are free from defects in materials and workmanship for a period of five (5) years, commencing with the date of shipment from SCOTT SAFETY. SCOTT SAFETY expressly excludes damage incurred in transit from the factory or other damage due to abuse, misuse, improper installation, or lack of maintenance or “Act of God”...
  • Page 5 Warning: If the device does not function as described herein, remove from service and mark for maintenance. Only use Scott Safety replacement parts. Warning: Only use the device to monitor the zone for the flame types for which it is set-up to detect.

  • Page 6: Related Product Documentation

    HART protocol. If you have any questions regarding the product of this manual, contact Scott Safety at 1-800-247-7257, or refer to Technical Support section for other contact information. 087-0056 REV F...

  • Page 7: Release History

    Important Information FV-40 Series Flame Detector Release History Revision History Initial Release Not released. Updated ATEX approvals. Removed references to the Mini Laptop Kit and its I.S. Handheld Unit manual. Update to ATEX and IECEX certificate numbers. Technical/Specification updates. Product brand changed to ‘MultiFlame’.

  • Page 8: About This Guide

    Important Information FV-40 Series Flame Detector About this Guide This guide describes the MultiFlame FV-40 Series Flame Detector and its features and provides instructions on how to install, operate and maintain the detector. This guide includes the following chapters and appendixes: ...

  • Page 9: Abbreviations And Acronyms

    Important Information FV-40 Series Flame Detector Abbreviations and Acronyms Abbreviation Meaning ATEX Atmosphere Explosives American Wire Gauge Built In Test Electromagnetic Compatibility End of Line Field of View HART Highway Addressable Remote Transducer- communication protocol Immune at Any Distance IECEx International Electrotechnical Commission Explosion Isopropyl Alcohol Infrared...

  • Page 10: Table Of Contents

    Important Information FV-40 Series Flame Detector Table of Contents Legal Notice ....................iii   Warranty...................... iv   Warnings ..................... iv   Related Product Documentation ............... vi   Release History ..................... vii   About this Guide ..................viii   Abbreviations and Acronyms ................ix  ...
  • Page 11 Important Information FV-40 Series Flame Detector Required Tools ..................28     General Instructions ................29     2.4.1 Special Instructions for Safe Use ............. 29     Installation Cables ................31     2.5.1 Conduit Installation ............... 31    ...
  • Page 12 Important Information FV-40 Series Flame Detector Troubleshooting .................. 45     Appendices ....................47   Specifications ..................48     Technical Specifications ............... 48     Electrical Specifications ................ 51     Outputs ..................... 52     Mechanical Specifications ..............54  ...
  • Page 13 Important Information FV-40 Series Flame Detector List of Figures Figure 1: Indication LED ................... 19   Figure 2: Detector with Tilt Mount ..............32   Figure 3: Tilt Mount Assembly ................32   Figure 4: Tilt Mount Assembly (dimensions in mm and inches) ......33  ...
  • Page 14 Important Information FV-40 Series Flame Detector List of Tables Table 1: Base Part Number / Sensor Type ............7   Table 2: Part Dash Number / Configuration Code ........... 8   Table 3: Configuration Code Key ................. 9   Table 4: Detector Sensitivity Range Levels ............16  ...

  • Page 15: Introduction

    FV-40 Series Flame Detector Introduction Overview Depending on the model selected, the FV-40 Series can provide a combination of UV and IR sensors, where the IR sensor operates at a wavelength of 2.5-3.0 µm, and can detect hydrocarbon-based fuel and gas fires, hydroxyl and hydrogen fires, as well as metal and inorganic fires with ultrafast ability to detect fire or explosion in less than 20 msec.

  • Page 16: Model And Types

    Introduction FV-40 Series Flame Detector Model and Types Failure to choose and use the proper model and detector sensor type for a given site and location may result in serious injury or death. The FV-40 Series flame detectors are provided in various configurations depending on: ...

  • Page 17: Table 2: Part Dash Number / Configuration Code

    Introduction FV-40 Series Flame Detector Following the base part number is a two digit “Dash” number -01 through -40 which identifies specific features as defined below: Table 2: Part Dash Number / Configuration Code   Dash  Config  Dash  Config  Dash  Config ...

  • Page 18: Table 3: Configuration Code Key

    Introduction FV-40 Series Flame Detector Table 3: Configuration Code Key Approval / Thread  Wiring  type / Max Temp  Housing  1  RS485, 4‐20mA as Sink, Fault relay  F  Factory Mutual, 3/4  S  Stainless  NC, no Accessory relay, Alarm relay  English Thread and  Steel  NO, HART  75C  2  RS485, 4‐20mA as Source, Fault relay  A   ATEX, M25 Thread,  A  Aluminum  NC, no Accessory relay, Alarm relay  75C  NO/NC, HART  3  RS485, 4‐20mA as Source, Fault relay  C   ATEX, 3/4 English        NO, no Accessory relay, Alarm Relay ...

  • Page 19: Features And Benefits

    Introduction FV-40 Series Flame Detector Features and Benefits  F4-2V, F4-2B, F4-4V, and F4-4B UV/IR Dual Sensor  UV/IR Dual Sensor  High Speed Response: 200msec. response to flash fire  F4-I3 Triple IR Sensor  Advanced Digital Processing of the Dynamic Characteristics of Fire: Flickering, threshold correlation and ratio.

  • Page 20: Principles Of Operation

    Introduction FV-40 Series Flame Detector  FM approved per FM3260  EN54-10 pending by VdS Principles of Operation This section describes the FV-40 Series principles of operation and includes:  Detection Principles  Heated Optics  HART Protocol  RS-485 Modbus ...
  • Page 21 Introduction FV-40 Series Flame Detector F4-2V, F4-2B, F4-4V, and F4-4B UV/IR Dual Sensor The UV/IR Radiation Flame Detector is a dual spectrum optical detector sensitive to two separate ranges of the radiation spectrum, both of which are present in fires. The detector monitors the protected volume, by measuring the radiation intensity in it, within two frequency ranges of the electromagnetic spectrum, namely the Ultra-Violet (UV) and the Infra-Red (IR).

  • Page 22: Heated Optics

    Introduction FV-40 Series Flame Detector  Sensing Elements The IR sensor in FV-40 Models is sensitive to radiation over the range of 2.5-3.0 µm where the H emission has a unique spectral peak that enables detection of hydrocarbon fires, gas fires, hydroxyl and hydrogen fires as well as metal and inorganic fires.

  • Page 23: Hart Protocol

    Introduction FV-40 Series Flame Detector 1.4.3 HART Protocol The FV-40 Series Flame Detectors use the HART protocol. HART Communication is a bi-directional industrial field communication protocol used to communicate between intelligent field instruments and host systems. HART is the global standard for smart process instrumentation and the majority of smart field devices installed in plants worldwide are HART- enabled.
  • Page 24 Introduction FV-40 Series Flame Detector This product is suitable to use in hazardous zones 1 and 2 with IIC gas group vapors present, and zones 21 and 22 with IIIC dust type present. 1.4.5.2 FM, CSA The FV-40 Series Flame Detectors are approved to FM Explosion Proof and FM Functionality approved per FM3260: ...

  • Page 25: Performance Considerations

    Introduction FV-40 Series Flame Detector Performance Considerations This section describes performance aspects of the FV-40 Series Detectors and includes:  Detection Sensitivity  Cone of Vision  False Alarms Prevention  Visual Indicators  Output Signals  Detector Status  Auxiliary Relay as End-of-Line Resistor 1.5.1 Detection Sensitivity...

  • Page 26: Cone Of Vision

    Introduction FV-40 Series Flame Detector Model F4-UF Ultra Fast UV/IR The default detection distance for the ALARM level is 65 ft. (20m) from a standard fire Note: Zeta parameters may vary significantly with changes in temperature, air pressure, humidity, visibility conditions, and so on. 1.5.1.3 Other Fuels The detector reacts to other types of fire as follows: ...

  • Page 27: False Alarms Prevention

    Introduction FV-40 Series Flame Detector 1.5.3 False Alarms Prevention To prevent false alarms, the detector will not alarm or react to the radiation sources specified in Table 6. Table 6: False Alarms Prevention F4-UV, F4- F4-2V, F4- F4-I3, F4- 2B, F4-4V, F4-4B, F4- Immunity Radiation Source...

  • Page 28: Visual Indicators

    Introduction FV-40 Series Flame Detector F4-UV, F4- F4-2V, F4- F4-I3, F4- 2B, F4-4V, F4-4B, F4- Immunity Radiation Source Immunity Distance Distance Immunity ft. (m) ft. (m) Dist ft.(m) Lit cigarette >1 (0.3) 5 (1.5) Match, wood, stick including flare up >13 (4) 16.5 (5) 3.3 ft.

  • Page 29: Output Signals

    Introduction FV-40 Series Flame Detector 1.5.5 Output Signals Outputs are available according to the default configuration or the wiring options selected for the FV-40 series detector. Determine the outputs for your model according to Table 9. The detector incorporates several types of output suitable to different control systems: ...

  • Page 30: Detector Status

    Introduction FV-40 Series Flame Detector 1.5.6 Detector Status Failure to understand the detector statuses and their outputs could lead to serious injury or death. The possible detector function statuses are listed in Table 10: Detector Status A more detailed fault analysis can be seen via HART or RS485. Table 10: Detector Status Status Description...

  • Page 31: Auxiliary Relay As End-Of-Line Resistor

    Introduction FV-40 Series Flame Detector The detector will remain in BIT Fault state until it has passed a successful BIT. The Auxiliary Relay can be activated at the Warning level or Alarm level, depending on programmed function. The outputs depend on the wiring options. 1.5.6.1 Optional Latching Alarms are set as non-latching by default.

  • Page 32: Built-In-Test (Bit)

    Introduction FV-40 Series Flame Detector  Software  Memory  Oscillator frequency Response to Fault Indication If a failure is found, the detector indicates by:  Fault relay:  Opens in wiring option: 1 or 2, and 4  Closes in wiring option: 3 and 5 ...

  • Page 33: Table 12: Result Of A Successful Bit

    Introduction FV-40 Series Flame Detector 1.6.1.2 Automatic BIT The detector automatically performs a BIT every 15 minutes. A successful BIT sequence does not activate any indicator. All outputs of BIT results function as described in Table 12 and Table 13. Table 13: Results of an Unsuccessful BIT, and the BIT is automatically executed every 1 minute.

  • Page 34: Table 14: Results Of A Successful Manual Bit

    Introduction FV-40 Series Flame Detector Table 14: Results of a Successful Manual BIT Output Result FAULT relay Wiring options: 1 or 2 or 4 remains CLOSED (Normal)  Wiring options: 3 and 5 remains OPEN (Normal)  ALARM relay Activated for 3 sec (only when the function Alarm BIT is set to YES) AUXILIARY For wiring options: 4 and 5 is activated for 3 sec (only...

  • Page 35: Installing The Detector

    FV-40 Series Flame Detector Installing the Detector ➣ In this chapter… General Guidelines Unpacking the Product Required Tools General Instructions Installation Cables Installing the Tilt Mount Connecting the Detector Configuring your Detector This chapter provides basic guidelines for installing the detector. It does not attempt to cover all of the standard practices and codes of installation.

  • Page 36: Unpacking The Product

    Installing the Detector FV-40 Series Flame Detector  To fully comply with EMC directive and protect against interference caused by RFI and EMI, the cable to the detector must be shielded and the detector must be grounded. The shield should be grounded at the detector end.

  • Page 37: Checking The Product Type

    Installing the Detector FV-40 Series Flame Detector 2.2.1 Checking the Product Type Check that your product has the configuration / options that you ordered. Check the detailed part number on the label and compare this information with the descriptions contained in Model and Types. Required Tools The detector can be installed using general-purpose common tools and equipment.

  • Page 38: General Instructions

    Installing the Detector FV-40 Series Flame Detector General Instructions Warning: Do not open the detector, even when isolated, when flammable atmosphere present. Failure to do so may result in serious injury or death. 2.4.1 Special Instructions for Safe Use The dimensions of the flame paths are other than the relevant minimum or maximum, as required by Table 2 of EN 60079-1:2014, as detailed below: Table 17: Flame path dimensions Flame path...
  • Page 39 Installing the Detector FV-40 Series Flame Detector Use the following certification instructions:  The cable entry point may exceed 167°F (75°C). Suitable precautions should be taken when selecting the cable.  The equipment may be used with flammable gases and vapors with apparatus groups IIA, IIB and IIC: ...

  • Page 40: Installation Cables

    Installing the Detector FV-40 Series Flame Detector Installation Cables Follow the following guideline for the cable installation:  All cables to the detector must be well shielded in order to comply with EMC requirement (see  Insert the battery into the flame simulator. Screw on the locking disc (Item 3).

  • Page 41: Installing The Tilt Mount

    Installing the Detector FV-40 Series Flame Detector Installing the Tilt Mount The Tilt Mount (part no. 093-0543) enables the detector to be rotated up to 60º in all directions. Figure 2 shows the Detector mounted on the Tilt Mount. Figure 2: Detector with Tilt Mount 2.6.1 Tilt Mount Assembly Figure 3 shows the Tilt Mount Assembly.

  • Page 42: Figure 3: Tilt Mount Assembly

    Installing the Detector FV-40 Series Flame Detector Figure 4 shows the Tilt Mount Assembly with dimension in both millimeters and inches. Figure 4: Tilt Mount Assembly (dimensions in mm and inches) ➣ To install the Tilt Mount and Detector: Place the tilt mount in its designated location and secure it with four (4) fasteners through four (4) holes 7 mm in diameter.

  • Page 43: Connecting The Detector

    Installing the Detector FV-40 Series Flame Detector Connecting the Detector This section describes how to connect the electric cabling to the detector (figure 7). ➣ To connect the detector to the electrical cables Disconnect the power. Remove the back cover of the detector by removing four (4) socket head-screws in the cover bolts.

  • Page 44: Verifying The Detector Wiring

    Installing the Detector FV-40 Series Flame Detector Figure 5: Detector with Cover Removed 2.7.1 Verifying the Detector Wiring The detector has five output wiring options within the Exde integral terminal section of the enclosure. There are 12 terminals labeled 1-12. Table 18 describes the function of each terminal for all the wiring options.

  • Page 45: Configuring Your Detector

     USB RS485 Harness Kit (P/N 8000453): The USB RS-485 Harness Kit with RS485/USB converter, used with the Scott Safety host software, enables you to connect to any available PC or laptop to re-configure settings or perform diagnostics on all FV-40 series flame detectors.

  • Page 46: Sensitivity

    Installing the Detector FV-40 Series Flame Detector The factory Default settings listed for each function are:  Sensitivity – 30  Alarm Delay – 3 Sec.  Alarm Latch – No  Auxiliary Relay – No  Automatic BIT – Yes ...

  • Page 47: Address Set-Up

    Installing the Detector FV-40 Series Flame Detector The Alarm delay option affects the output relays and the 0-20mA. The LEDs and outputs indicate warning levels during the delay time only if the fire condition exists. 2.8.3 Address Set-up The detector provides up to 247 addresses that can be changed with the RS485 communication link or the HART protocol.
  • Page 48 Installing the Detector FV-40 Series Flame Detector You can define the start temperature below which the window will be heated. The temperature can be defined between 32°F and 122°F (0°C to 50°C). 087-0056 REV F...

  • Page 49: Operating The Detector

    FV-40 Series Flame Detector Operating the Detector ➣ In this chapter… Powering Up Safety Precautions Testing Procedures This chapter describes how to power up and test the detector. It also includes some very important safety checks that you should make before operating the detector.

  • Page 50: Safety Precautions

    Operating the Detector FV-40 Series Flame Detector  Disconnect power (Terminal Number 1 or Terminal Number 2).  Initiate a Manual BIT. Safety Precautions After powering-up, the detector requires almost no attention in order to function properly, but the following should be noted: ...

  • Page 51: Testing Procedures

    This section describes the proof testing procedure for proper operation of the detector. The detector can be tested using the Manual Built-in-Test or the Scott Safety Flame Simulators. The detector performs internal test continuously and automatic BIT test every 15 minutes for more details refer to Built-In-Test (BIT).

  • Page 52: Table 22: Results Of Successful Fire Simulator Test

    Power up the system and wait up to 60 seconds for the detector to turn to a normal state. The Power LED turns on. Aim the appropriate Scott Safety Flame Simulator (depending on the model type of your Flame Detector) at the target point of the detector ( Figure 13), in a way that the radiation emitted by it is facing directly towards the detector.

  • Page 53: Maintenance And Troubleshooting

    This chapter deals with preventive maintenance, describes possible faults in detector operation and indicates corrective measures. Ignoring these instructions may cause problems with the detector and may invalidate the warranty. Whenever a unit requires service, please contact Scott Safety or its authorized distributor for assistance. Maintenance Failure to properly maintain your MultiFlame FV-40 Series Flame Detector could result in serious injury or death.

  • Page 54: Periodic Procedures

     Entries for every maintenance operation performed, including the description of the operation, date and personnel ID. If a unit is sent to Scott Safety or a distributor for service, a copy of the maintenance records should accompany it. Troubleshooting This section is intended to be a guide to correct problems which may happen during normal operation.

  • Page 55: Table 23: Troubleshooting Table

    Maintenance and Troubleshooting FV-40 Series Flame Detector Table 23: Troubleshooting Table Problem Cause Corrective Action LEDs Off No power at the Check that the correct power  Fault Relay at N.O unit is sent to the detector. 0-20mA at 0mA Check power polarity.

  • Page 56: Appendices

    FV-40 Series Flame Detector Appendices 087-0056 REV F...

  • Page 57: A Specifications

    FV-40 Series Flame Detector Specifications Failure to review and understand the specifications for your model could result in serious injury or death. ➣ In this appendix… Technical Specifications Electrical Specifications Outputs Mechanical Specifications Environmental Specifications Technical Specifications Please refer to the appropriate section depending on your detector model: Triple IR F4-I3 / Multi IR F4-MM Spectral Response Three IR Bands...
  • Page 58 Specifications FV-40 Series Flame Detector Fields of View Model F4-I3: Horizontal 100, Vertical 95 Model F4-MM: Gasoline: Horizontal 67, Vertical 70 Hydrogen: Horizontal 80, Vertical 80 Built-In-Test (BIT) Automatic (and Manual) Dual Sensor UV/IR F4-2V, F4-2B, F4-4V, and F4-4B Spectral Response F4-2V, F4-2B UV:0.185 –...
  • Page 59 Specifications FV-40 Series Flame Detector Fields of View Horizontal 100, Vertical 95 Built-In-Test (BIT) Automatic (and Manual) UV Sensor F4-UV, F4-VB Spectral Response UV:0.185 – 0.260µm Detection Range Fuel ft. / m Fuel ft. / m (at highest Sensitivity Gasoline 50 / 15 Methanol 37 / 11...

  • Page 60: Electrical Specifications

    Specifications FV-40 Series Flame Detector Response Time Typically 3 seconds Flash fire High speed 20 msec response to Adjustable Time Delay Up to 30 seconds Sensitivity Ranges 1 ft (0.1m ) n-heptane pan fire from 65 ft. (20 m) Fields of View Horizontal 100, Vertical 90...

  • Page 61: Outputs

    Specifications FV-40 Series Flame Detector Outputs Electrical There are five output-wiring options. These options must Interface be defined at the factory per the customer order and cannot be changed at the customer facility. See General Instructions for Electrical Wiring for the wiring/terminal diagram for each option.

  • Page 62: Table 26: 20 Ma Current Output

    Specifications FV-40 Series Flame Detector 0-20mA Current Output: The 0-20mA can be Sink  or Source according to the wiring option source (see General Instructions for Electrical Wiring). The maximum permitted load resistance is 600Ω. Table 26: 20 mA Current Output State Output Fault...

  • Page 63: Mechanical Specifications

    Weight Stainless Steel: 6.1 lb. (2.8 kg)  Aluminum: 2.8 lb. (1.3 kg)  Environmental Specifications The MultiFlame FV-40 Series is designed to withstand harsh environmental conditions. Designed to meet MIL-STD-810C, method High Temperature  501.1 procedure II Operating temperature: +167°F (+75 °C) ...

  • Page 64: Table 27: Electromagnetic Compatibility (Emc)

    Specifications FV-40 Series Flame Detector Designed to meet MIL-STD-810C, method Salt Fog  509.1, procedure I Exposure to a 5% Salt Solution Fog for  48 hours Designed to meet MIL-STD-810C, method Dust  510.1, procedure I Exposure to a dust concentration of 0.3 ...

  • Page 65: B Wiring Instructions

    FV-40 Series Flame Detector Wiring Instructions Failure to review and understand these instructions could lead to improper wiring which could create an improperly functioning detector and may cause serious injury or death. ➣ In this appendix… General Instructions for Electrical Wiring Typical Wiring Configurations General Instructions for Electrical Wiring Follow the instructions detailed in this section for determining the correct...

  • Page 66: Table 29: Wiring Length In Feet (Meter)

    Wiring Instructions FV-40 Series Flame Detector Table 29: Wiring length in feet (meter) Power Number Supply Recommended Wire Diameter (AWG) Range Detectors (VDC) 22-32 22-32 22-32 20-32 20-32 4 and less 20-32 Ft (m) (50) (100) (150) (200) (240) Max. Length from Power Supply to Last Detector Calculation Formula Use the following formula to calculate minimum wire gauge per wire length...

  • Page 67: Typical Wiring Configurations

    Wiring Instructions FV-40 Series Flame Detector Typical Wiring Configurations This section describes examples of typical wiring configurations. Figure 6: Wiring Terminals 087-0056 REV F...

  • Page 68: Figure 7: Typical Wiring For 4 Wire Controllers (Using Option 1 Or 2 Wiring)

    Wiring Instructions FV-40 Series Flame Detector Table 30: Wiring Connections Wiring Terminals Option Analog Fault Relay 0-20mA 0-20mA (N.C) (Sink) (Sink) Output Analog Fault Relay Alarm 0-20mA (N.C) Relay Output Source (N.C) Analog Fault Relay Alarm 0-20mA (N.O) Relay Source Output (N.C) Fault Relay...

  • Page 69: Figure 8: 0-20Ma Wiring Option 1 (Sink 4-Wire) - Default

    Wiring Instructions FV-40 Series Flame Detector Figure 8: 0-20mA Wiring Option 1 (Sink 4-Wire) - Default Figure 9: 0-20mA Wiring Option 1 (Converted to Source 3-Wire) 087-0056 REV F...

  • Page 70: Figure 10: 0-20Ma Wiring Option 1 (Non-Isolated Sink 3-Wire)

    Wiring Instructions FV-40 Series Flame Detector Figure 10: 0-20mA Wiring Option 1 (Non-isolated Sink 3-Wire) Figure 11: 0-20mA Wiring Option 2 and 3 (Source 3-Wire available with the HART Protocol) Note: There are no 0-20mA outputs in wiring options 4 and 5. 087-0056 REV F...

  • Page 71: Crs-485 Communication Network

    247 on the same four (4) wires. When using the RS-485 network, it is possible to read each detector status (FAULT, WARNING, and ALARM) and to initiate a BIT to each detector individually. For more details, consult Scott Safety. Figure 12: RS-485 Networking 087-0056 REV F...

  • Page 72: D Accessories

    FV-40 Series Flame Detector Accessories If any accessories are used with the detector, follow these installation instructions. Failure to do so could lead to improperly installed accessories which could lead to serious injury or death. ➣ In this appendix… Long Range Flame Simulator Tilt Mount Duct Mount Weather Protection...

  • Page 73: Unpacking

    Accessories FV-40 Series Flame Detector D.1.1 Unpacking Verify that you have received the following contents:  Delivery form  Fire Simulator with integral batteries  Battery charger  User Manual and Tool keys  Storage case D.1.2 Operating Instructions Warning: Do not open the Fire Simulator to charge the batteries or for any other reason in a hazardous area.

  • Page 74: Charging The Battery

    Accessories FV-40 Series Flame Detector Notes:  The minimum distance from the detector is 30 inches (75 cm). At extreme temperatures, there is a 15% maximum reduction in the range. Important: Keep the Fire Simulator in a safe place when not in use. D.1.4 Charging the Battery Failure to use properly charged batteries could lead to serious injury...
  • Page 75 Accessories FV-40 Series Flame Detector Screw on the locking disc (Item 3). Screw on the back cover (Item 4). Lock the back cover with the locking screw. 087-0056 REV F...

  • Page 76: Technical Specifications

    Accessories FV-40 Series Flame Detector D.1.5 Technical Specifications Temperature Range: –4°F to +122ºF / –20ºC to General  +50ºC Vibration Protection: 1g (10–50Hz)  Power: 14.8V (4 X 3.7V rechargeable lithium-ion Electrical  battery) Max. Current: 4A  Battery Capacity: 2.2AH ...

  • Page 77: Tilt Mount

    Accessories FV-40 Series Flame Detector Tilt Mount The Tilt mount P/N 093-0543 provides accurate directional selection for optimum area coverage. Figure 15: Tilt Mount 087-0056 REV F...

  • Page 78: Duct Mount

    It comprises a special duct mount arrangement with a specific optical window to allow installation in high temperature duct applications. The mount can be used with all Scott Safety FV-40 Series flame detectors. Figure 16: Duct Mount 087-0056 REV F...

  • Page 79: Weather Protection

    Accessories FV-40 Series Flame Detector Weather Protection The weather protector P/N 093-0552 protects the detector from different weather conditions, such as snow and rain. Figure 17: Weather Protection 087-0056 REV F...

  • Page 80: Laser Detection Coverage Pointer

    Accessories FV-40 Series Flame Detector Laser Detection Coverage Pointer The Laser Detection Coverage Pointer P/N 093-0549 evaluates detector coverage on-site. The device is an add-on accessory that enables designers and installers to optimize detector location and assess the actual coverage of installed detectors.

  • Page 81: Air Shield

    Accessories FV-40 Series Flame Detector Air Shield The Air Shield P/N 093-0548 enables you to install the detector in dirty areas and using compressed air, keep the window clean. This prevents the accumulation of dirt on the window and enables the detector to continue to operate under harsh conditions.

  • Page 82: Sil-2 Features

    FV-40 Series Flame Detector SIL-2 Features ➣ In this appendix… FV-40 Series Flame Detector FV-40 Series Flame Detector This appendix details the special conditions to comply with the requirements of EN 61508 for SIL 2. (Approval pending for some models). The FV-40 Series Flame Detector can only be used in low or high demand mode applications, see IEC 61508.4, Chapter 3.5.12.
  • Page 83 SIL-2 Features FV-40 Series Flame Detector E.1.2.1 Conditions for Safe Operating The flame detector shall consist only of the approved hardware and software modules. The 24V power supply must fulfill the requirements for PELV / SELV of EN 60950. The automatic BIT (Built-In-Test) must be activated. The set-up parameters must be verified (as described in Using the 0-20mA Interface for Alerting, point 0 and in Using the Alarm Relay Contact for Alerting, point 0) and the function of the FV-40 Flame...
  • Page 84 SIL-2 Features FV-40 Series Flame Detector E.1.2.4 Other The complete function of the flame detector (flame detection, function of the 0-20mA interface, the relays) must be examined at least every six or twelve months (see Safety Relevant Parameters, when the flame detector must be switched OFF and ON.

  • Page 85: F F Online Fv-40 Configurator Part Code

    F Online FV-40 Configurator Part Code When ordering online, the product configuration detail is included in the product part number (and on the sales order confirmation) and takes the form: F4-XX-X-X-X-XX-X-X-X-X, where XX-X-X-X-XX-X-X-X-X defines the model according to the Table 33 and Table 34. To modify the default or pre-ordered configuration and perform maintenance tasks, please refer to the HART Protocol 087-0057, WinHost for FV-40 Flame Detectors 087-0058 or...

  • Page 86: Table 34: Configurable Options (Online Ordering)

    SIL-2 Features FV-40 Series Flame Detector Series Model Wiring Approvals/ Housing Temp UV/IR 4um wavelength UV/IRB wavelength Ultra Fast UV/IR Note: Highlighted area designate default settings. Table 34: Configurable Options (Online Ordering) 087-0056 REV F...
  • Page 87 SIL-2 Features FV-40 Series Flame Detector Alarm Heating Built in Test Sensitivity Function Alarm/Automatic BIT Accessory relay 00‐ 0 Seconds N‐ None 0‐ none 0‐ none 5m/15ft 0A‐ Anti Flare O‐ 1‐ Alarm latching  1‐ Activate accessory relay  15m/50ft enabled on Warning 03‐ 3 Seconds A‐ Automatic on  2‐ Enable Automatic  2‐ Activate Accessory Relay  30m/100ft temperature ...

  • Page 88: Technical Support

    3M Asia Pacific Pte Ltd Attn: Alfeo P. Sinogaya Portable & Fixed Gas Flame Detection Scott Safety l Detcon l Oldham l Simtronics l GMI 3M Personal Safety Division, Safety & Graphics Business Group 1 Yishun Avenue 7 | Singapore 768923...
  • Page 89 SIL-2 Features FV-40 Series Flame Detector Monroe Corporate Center P.O. Box 569 Monroe, NC 28111 Phone: (800) 247-7257 Fax: (704) 291-8330 Web-Site: www.scottsafety.com 087-0056 REV F...
