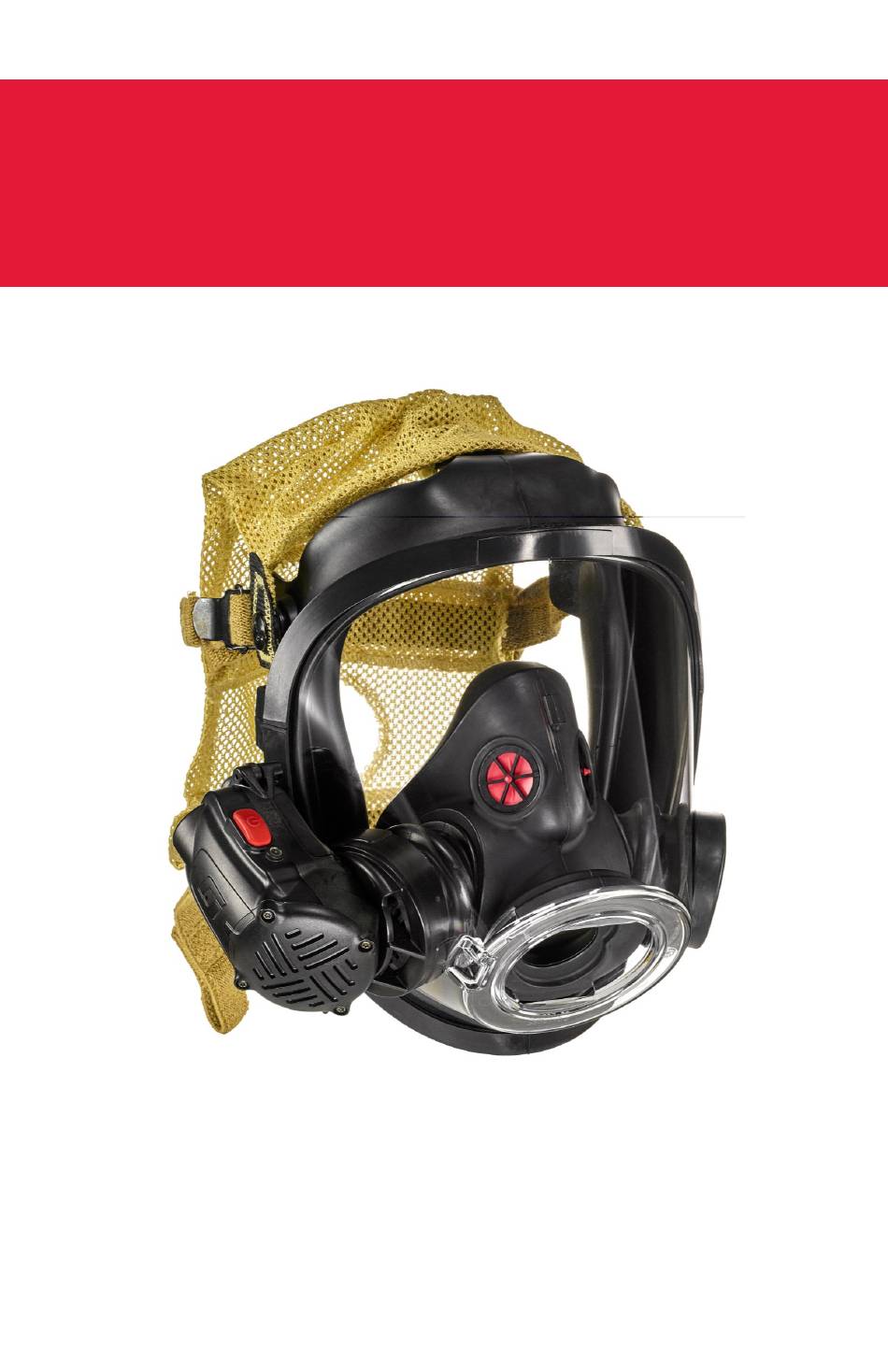

- Page 1 EPIC 3 RDI VOICE AMPLIFIER Quick Reference Guide...
- Page 2 SCOTT EPIC 3 RDI VOICE AMPLIFIER FEATURES Power / Function Button Voice Amplifier / Radio RX Front Speaker LED Indicator Light Voice Amplifier / Radio RX Rear Speaker Battery Cover Locking Spring lever...
- Page 3 MOTOROLA APX FIELD RADIO FEATURES NOTE: THIS GUIDE DEPICTS THE APX RADIO MODEL WITH TWO DISPLAYS. Top Display On/Off/ Volume Control Main Display 1, 2 & 3 Menu Buttons Home 4-Way Button Navigation Arrows APX Radio Front View APX Radio Back View On/Off Search On/Off...
-
Page 4: Key Definitions
FAILURE TO ADHERE TO WARNINGS MAY RESULT IN SERIOUS INJURY OR DEATH THE EPIC 3 RDI VOICE AMPLIFIER AND ITS ACCESSORIES ARE INTENDED TO BE USED WITH SCOTT RESPIRATORS WHICH MAY SUPPORT HUMAN LIFE IN HAZARDOUS ATMOSPHERES. FAILURE TO CAREFULLY FOLLOW... - Page 5 INSTALLATION TO FACE PIECE NOTE: The EPIC 3 RDI Voice Amplifier is compatible with the entire line of Scott Safety Full Face Pieces. Pictures depicted within this guide reflect the AV3000-HT Face Piece. Hold the RDI Voice Amplifier in the upright position with the red power button to the right.
- Page 6 INITIAL BLUETOOTH PAIRING NOTE: Before operating the EPIC 3 RDI amp with the APX radio, please ensure the APX radio firmware has been updated to R15.00 or higher and the radio has been configured for Bluetooth operation. For instructions on updating the APX radio, please refer to the Motorola Radio Configuration For Use With EPIC 3 RDI Amp guide.
- Page 7 INITIAL BLUETOOTH PAIRING BT ON — No Connected Device Motorola APX Field Radio with TWO Displays BT ON — Device Connected Ensure the APX The APX radio will Enter the Bluetooth radio is powered on display the number of settings by pressing and the Bluetooth devices connected.
- Page 8 INITIAL BLUETOOTH PAIRING BT ON—No Connected Device Motorola APX Field Radio with ONE Display BT ON—Device Connected Ensure the APX radio If the Bluetooth Follow the initial indicator is not is powered on and the Bluetooth pairing visible, press the Bluetooth indicator instructions for the “BT On/Off”...
- Page 9 RECONNECT BLUETOOTH PAIRED DEVICES BT ON—No Connected Device BT ON—Device Connected Power on the RDI Voice Amplifier by Ensure the APX radio is pressing and holding the red power button. powered on and the The RDI Voice Amplifier will emit an audio Bluetooth indicator appears tone and the LED will switch from off to in the top right hand corner.
- Page 10 RDI VOICE AMPLIFIER/ APX RADIO TRANSMIT & RECEIVE OPERATION After the EPIC 3 RDI Voice Amplifier & APX Radio have been Bluetooth paired, follow the instructions below to transmit & receive. To activate radio transmit on the RDI Voice Amplifier, press the Push-to-Talk (PTT) button on the Motorola XE RSM.
- Page 11 REMOVING BLUETOOTH DEVICE PAIRING INFORMATION Once an EPIC 3 RDI Voice Amplifier and APX radio have been paired and connected, the Bluetooth device pairing information will be maintained until it is manually removed. This ensures the RDI amp and APX radio will reliably and quickly reconnect when oper- ated as a Bluetooth paired set.
- Page 12 ©2017 SCOTT Safety, SCOTT, the SCOTT SAFETY Logo, and SCOTT Safety, are registered and/or unregistered marks of SCOTT Technologies, Inc. or its affiliates. P/N 31003792, REVISION A, ECN 147724, RELEASED 1/31/2007...
