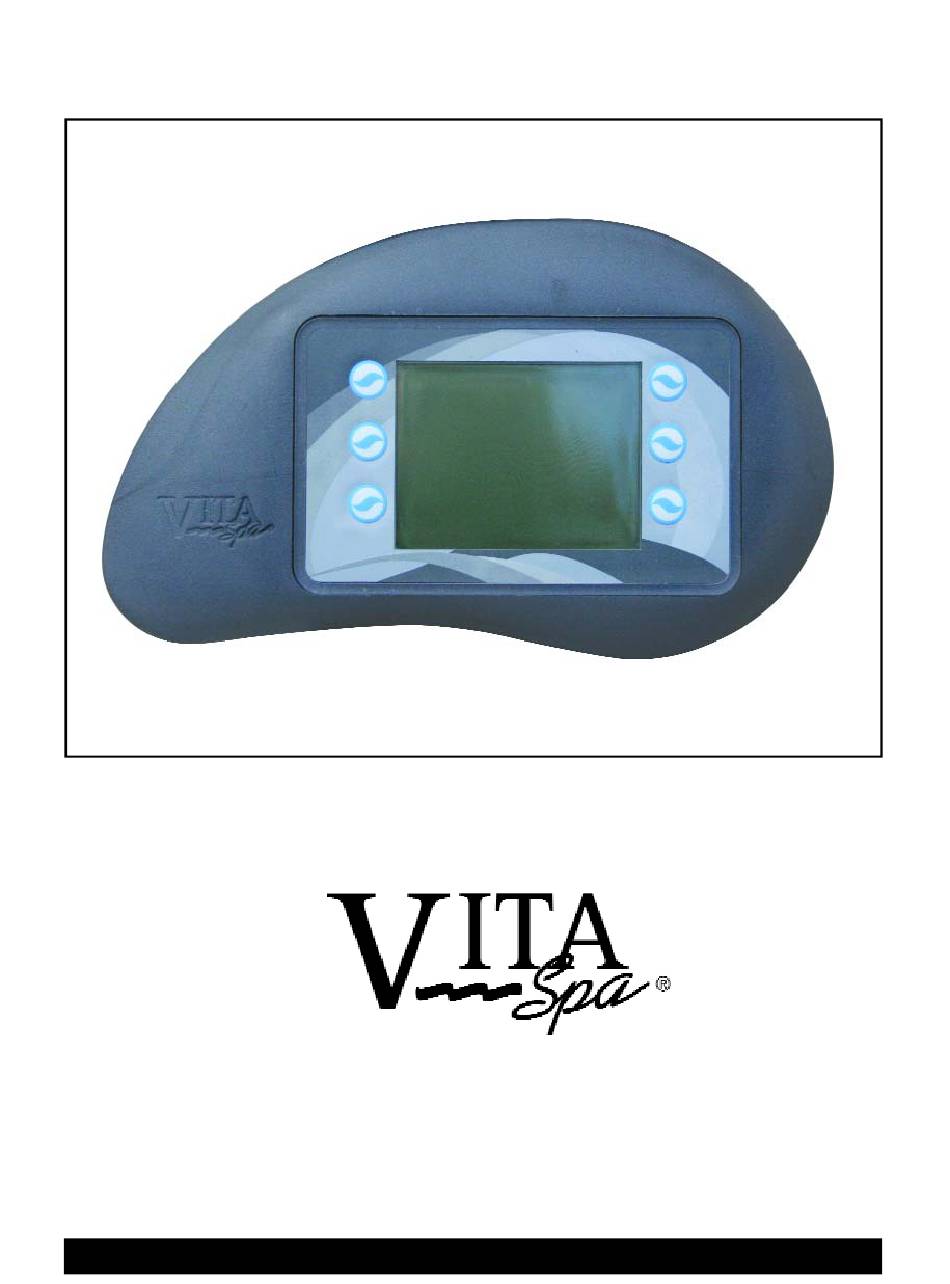

- Page 1 GRAPHIC SERIES OWNER’S MANUAL VITA INTERNATIONAL 2320 N.W. 147th Street Miami, Florida 33054 h e a l t h a n d r e l a x a t i o n f o r l i f e...
- Page 3 GRAPHIC SERIES OWNER’S MANUAL VITA INTERNATIONAL 2320 N.W. 147th Street Miami, Florida 33054 OWNER’S RECORD DATE PURCHASED: _____________________________________ DATE INSTALLED: _______________________________________ DEALER: _______________________________________________ A D D RESS: _____________________________________________ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ T E L E PH O NE: ___________________________________________ ❋...
-
Page 5: Table Of Contents
TABLE OF CONTENTS GENERAL INFORMATION SPA MAINTENANCE • Filter Maintenance ..........20 • Owner's Record and Service Information .. front piece • Draining Your Spa ..........20 • Important Safety Instructions......2-3 • Winterizing Your Spa ..........21 • Manufacturer's Do's and Don'ts/WARNINGS ..3 •... - Page 7 Congratulations! Thank you for the purchase of your new VITA SPA. You are now the proud owner of one of the most comfortable and therapeutic spas in the world. This Owner’s Manual has been designed to familiarize you with your Vita Spa operations and general maintenance.
-
Page 8: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WHEN INSTALLING AND USING THIS ELECTRICAL EQUIPMENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING: WARNING – To reduce the risk of injury, do not DANGER – RISK OF ELECTRICAL SHOCK- Do permit children to use this product unless they not permit any electrical appliances, such as a are closely supervised at all times. -
Page 9: Manufacturer's Do's And Don'ts/Warnings
The use of elevated decking may encourage children to climb onto the thermal cover – IT IS NOT DESIGNED AS A SA FETY OR CHILD RESIS TANT CO V ER ! Every Vita Spa comes with a thermal cover which is provided with locking straps. I n s tall the locks for your child’s safety. -
Page 10: Electrical Information
ALL WIRING TO THE SPA SHOULD BE IN ACCORDANCE WITH ALL LOCAL AND NATIONAL ELECTRICAL CODES. ALL WIRING SHOULD BE PERFORMED BY A LICENSED ELECTRICIAN KNOWLEDGEABLE IN THE OPERATION AND WIRING OF A GFCI PROTECTED SYSTEM. 1 . The spa must be permanently connected 5 . -
Page 11: Cover Installation
COVER INSTALLATION C o v e r Tie Down S t ra p Lo c k S c r ew s (2) Ke y INSTALLING THE SPA COVER 1. Position the cover squarely over the spa. 2. Position the locks for the tie-downs on the sides of the spa. You should allow approximately 1/2” to 3/4”... -
Page 12: Operation Instructions

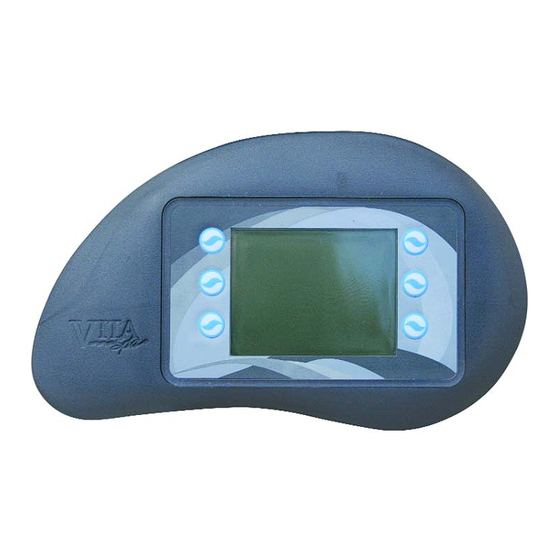

OPERATING INSTRUCTIONS Welcome and congratulations on your purchase of the newest a latest technological topside control for hot tub performance and personal comfort. Before we start getting to know the operations of the topside control, let’s go over a few things. The six buttons alongside the display screen work in conjunction with the displayed boxes. - Page 13 Press the “INVERT” button and the screen will clear and reset itself. As with many computer screens, the change in display may take up to 30 seconds to be completed. If at anytime you choose to change your viewing setting to the factory default, merely press “RESET”...
-
Page 14: Using Your Spa
USING YOUR SPA “Welcome” screen give you the option of going into any of the operations Press “Mood” for spa options. Press “Help” to view directions for this screen Press “Back” to return to “Mood” display. Press “LIGHTS” to cycle through light sequences. Use “ON/OFF”... -
Page 15: Media Setting
Use “BACK” to return to “MOOD” display Press “MEDIA” to enter stereo mode Use “SOURCE” to cycle through Line, TV, AM, and FM Use “SELECT” to change from media to “VOLUME” to “BASS” Use “ARROWS” to adjust accordingly. PAGE 9... -
Page 16: Therapy Setting
Press “BACK” to return to welcome screen. Press “DISPLAY” to enter displaying mode. Press “THERAPY” to operate the pumps. Press “SOA K” to operate Low Speed on pumps 1 and 2 Press “JET 1” to operate high speed pump 1 Press “JET 2”... -
Page 17: Setup Setting
Press “SETUP” to enter section. The setup section will allow adjustments to “TEMPERATURE” “TIME / DATE” “SKIM AWAY” “CIRCULATION” “LOCK SPA” “FEHRENHEIT” “CELCIUS” “COUNTRY CODE” Use “UP” and “DOWN” arrows to cycle past the selections. Use the “SELECT” key to choose your selection then adjust accordingly. Press “BACK”... -
Page 18: Special Feature
Press “MY SPA” to enter your personal settings. After pressing “E D I T” y o u may now enter name then “SAVE”. You will notice your name displayed on main screen. The name entered and all your own personal setting are saved on the system The set programming name setting will appear on screen... -
Page 19: Status Feature
If there is an error that the spa has found it will flash “RUN SELF TEST” will flash on your screen. You then press “MAINT” to enter the maintenance mode you will have to be in. Press “STATUS” to view status of pump setting, amp draw, and other settings Status screen, press any button... -
Page 20: Advanced Feature
Press “MAINT” to enter servicing section. Press “TEST” to enter systems check. Press “BEGIN” to start 4:00 minute countdown for testing. “ALL GOOD” “Error: ” No problems found Problem found will display PAGE 14... -
Page 21: Jet Operation
JET OPERATION Your Vita Spa is designed with a unique jet system to allow you to select a wide variety of massage patterns. The following is a description of the various types of jets and their operation you may use to tailor your spa to your specific massage needs. -
Page 22: Turbo Jet
(D) TURBO JET (E) THREE—WAY POWER DIVERTER VALVE The Turbo Whirlpool Jet is not individually adjustable. To adjust the flow, you must open or This valve is functional when the primary or close air control valve. s e c o n d a r y, two-speed pumps are operating. Water may be diverted to two individual sections The Turbo Whirlpool Jet utilizes a high flow of jets or a combined operation of both sections. -
Page 23: Air Control
(H) AIR CONTROL (I) WATERFALL OPERATIONS The Air Controls are used to introduce air into the On the Nuage and Romance model spas. This water jet stream. They allow the user to increase valve increases or decreases volume of water (open) jet pressure or decrease (close) jet from the waterfall. -
Page 24: Vitaroma Therapy System
Your spa is equipped with a unique “Above the Water” aromatherapy induction system. To activate VitAroma, insert one of Vita Spa’s exclusive aromatherapy scents and turn on the VitAroma Induction System. The system is activated when the air blower button is depressed. This system dispenses aromatherapy through the small ports adjacent to the spa pillows and through the underwater air injection system. -
Page 25: Water Purification System
WATER PURIFICATION SYSTEM VITAZONE SPARKLE CLEAR (L700C Series) Located in the equipment compartment, the VitaZone ozonator converts O into O . In such The cartridge is housed in your filter attached to form, it acts as an oxidizer, and reduces the need the filter cap. -
Page 26: Spa Maintenance
SPA MAINTENANCE Your Vita Spa is manufactured with the highest quality and most durable materials available. A spa care and maintenance program is recommended to increase your comfort, maintain the spa’s reliability, and protect your investment. FILTER MAINTENANCE TO DRAIN YOUR SPA Vita Spas are designed with the most efficient Turn the power off at the GFCI breaker. -
Page 27: Winterizing Your Spa
S PA LIGHT EXCEL-PLUS CABINET MAINTENANCE The exterior of your Vita Spa cabinet is made from a newly formulated high strength material that is factory stained and sealed. Depending on the location and exposure of the spa to nature’s... -
Page 28: Diverter Valve Cleaning
S PA MAIN T E N A N C E DIVERTER VALVE PRIMING THE PUMP Over a period of time sand or grit may intrude Every so often after a spa is filled or refilled a into your spa. The diverter valves may become pump is operating but the water is not flowing difficult to turn. -
Page 29: Water Quality & Maintenance
For specific guidelines for water spas as a water treatment method. In addition to quality maintenance, consult your Vita Spa dealer being a strong oxidizer, Ozone makes spa waters who can assist you to develop a program based easier to maintain, creates “softer”... -
Page 30: Important Maintenance Procedures
IMPORTANT WATER MAINTENANCE PROCEDURES DAILY Check water level. Keep water above bottom of skimmer door and a minimum of 1” above highest jet. 3 days a week Check and adjust chlorine level to 1.0 to 3.0 ppm if chlorine is used as sanitizer. If Sparkle Clear is used, check weekly. - Page 31 Water treatment is an important factor in the Use a 3-Way Spa Water Test Strip or test kit to enjoyment of your Vita Spa. Proper water measure the pH and Alkalinity of your water. Th e sanitation is essential to your health as well as following instructions utilize test strips for testing.
-
Page 32: Balancing Spa Water
BALANCING THE SPA WATER 3 DAY A WEEK SPA CARE PROGRAM ALKALINITY VERY LOW ADD SO D IU M MONDAY BI CA RB O N AT E 1. TEST THE WATER USING “3-WAY SPA TO IN C RE A S E WATER TEST STRIPS”. -
Page 33: Water Maintenance Do's And Don'ts
WATER MAINTENANCE DO’S AND DON’TS DO Add all chemicals slowly with the hydro jets CHEMICAL SAFETY INSTRUCTIONS operating in high speed. When using chemicals, read labels carefully and follow directions precisely. Though chemicals DO Use care when handling chemicals. protect you and your spa when used correctly, they may be hazardous in a concentrated form. -
Page 34: Water Troubleshooting
SPA WATER TROUBLESHOOTING SYMPTOM PROBABLE CAUSE SO LU T I O N S Cloudy Water Inadequate filtration/dirty filter Clean filter with a filter cleaner or d e gr e a s e r. Shock the spa with “POTA S S IU M Excessive oils/organic matter PE R OXY MONOSUL FAT E ”. -
Page 35: Water Troubleshooting
SPA WATER TROUBLESHOOTING SYMPTOM PR O BA BLE CAUSE SO LU T I O N S Algae High pH Shock with “POTA S S IUM PE R OXY M O N O S UL FAT E ”, adjust pH. Low free chlorine/bromine Shock with “POTA S S IUM PE R OX Y M O N O S UL FAT E ”, maintain sanitizer at recommended level. -
Page 36: Diagnostics & Troubleshooting
DIAGNOSTIC & TROUBLESHOOTING SYMPTOM ME A NIN G ACTION Spa Inoperative Power failure outside of spa. Check power source Breaker and GFCI; Reset breaker/GFCI. Call Electrician if it will not start. Top Side Inoperative Top Side could be locked. Press unlock button 4 times. IF ANY ERRORS ARE FOUND, THE FOLLOWING REPLACEMENT MESSAGES MAY BE DISPLAYED: MESSAGE Blower Error... -
Page 37: Maintenance Log Recording Area
Maintenance Log Use these pages to keep a record of when you perform any maintenance on your spa. _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _... - Page 38 Maintenance Log _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _...
- Page 40 Is a Registered Trademark of Vita Inte r n a t i o n a l Division of MIAMI FLORIDA DM Industries, Ltd., 2320 Northwest 147th Street, Miami, Florida 33054 Phone: (305) 908-8187 • Toll Free: (877) 240-9457 SPAGR-060617 © 2006 DM INDUSTRIES • ALL RIGHTS RESERVED...
