Summary of Contents for Vita Spa xStream

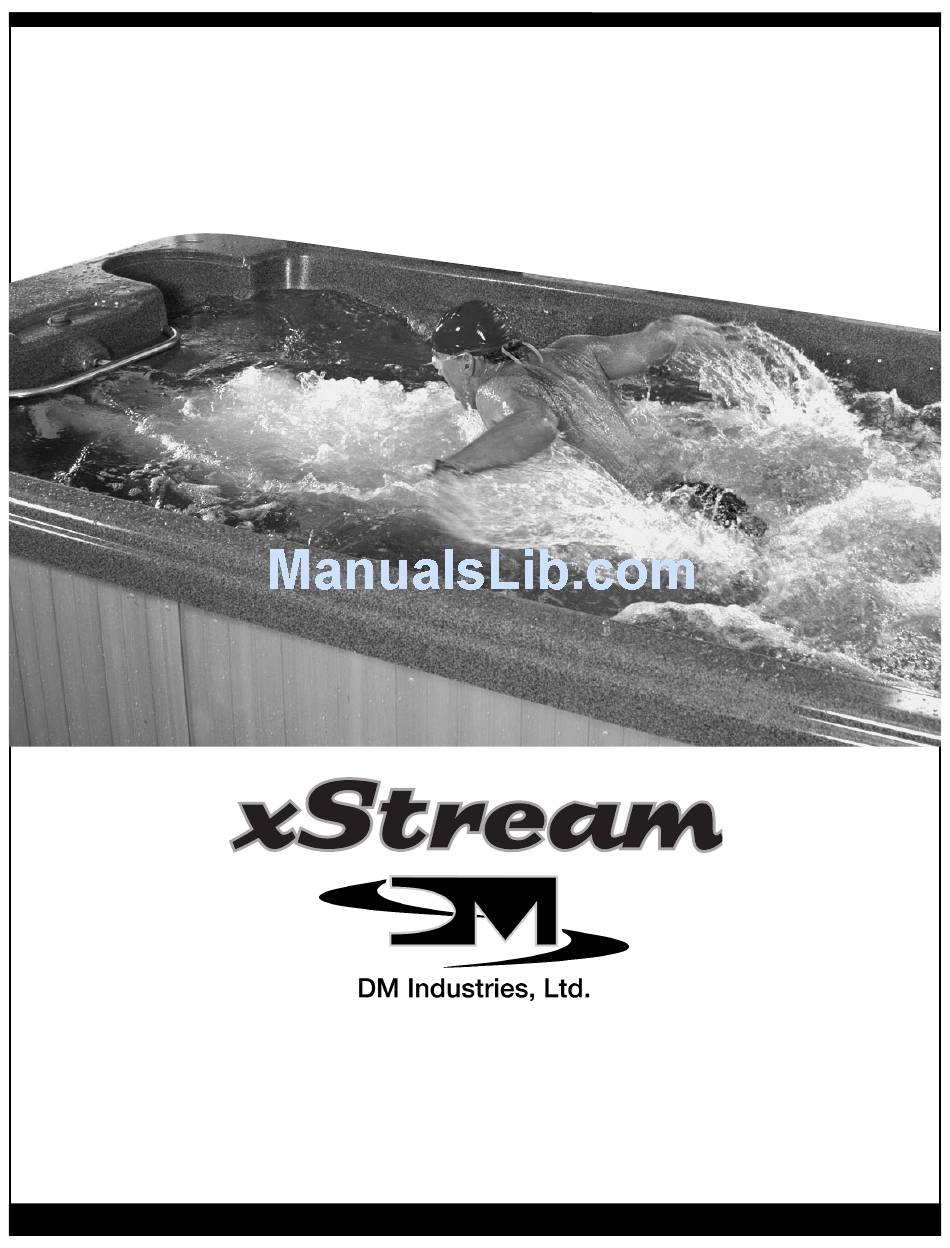

- Page 1 IMPORTANT SAFETY INSTRUCTIONS READ ENTIRE MANUAL BEFORE INSTALLING SPA. PLEASE SAVE THIS MANUAL OWNER’S MANUAL for models xStream • xStreamPro • xStreamDuoPro DM INDUSTRIES, LTD. 2320 N.W. 147th Street Miami, Florida 33054 www.dmindustries.com h e a l t h a n d...
-
Page 2: Serial Number
ID PLATES ARE LOCATED IN THE FRONT OF THE SPA. A SMALL ID TAG IS FOUND IN THE BASE OF THE UNIT, AND A COMPLETE ID TAG IS FOUND ONCE THE FRONT Model Number 09D12345BTZ P817G2DC117ACB PANELS ARE REMOVED. Serial Number P817G2DC117ACB 09D12345BTZ DM Industries, LTD. - Page 3 OWNER’S MANUAL for models xStream • xStream Pro • xStream Duo Pro O W N E R ’ S R E C O R D DATE PURCHASED: ________________________________________ DATE INSTALLED: _________________________________________ DEALER: __________________________________________________ ADDRESS: ________________________________________________ ___________________________________________________________ TELEPHONE: ______________________________________________ SERIAL #: _________________________________________________...
-
Page 5: Table Of Contents
• Filling the Spa ......5 • Testing GFCI ......5 xSTREAM DUO PRO OPERATION THERAPY OPERATION •... -
Page 7: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WHEN INSTALLING AND USING THIS ELECTRICAL EQUIPMENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING DANGERS: 1. WARNING - To reduce the risk of injury. Do not permit children to use this product unless they are closely supervised at all times. -
Page 8: Manufacturer's Do's And Don'ts
SET UP AND INSTALLATION INSTRUCTIONS SITE SELECTION Structure: The spa should always be placed on a structurally strong, smooth and level surface. Concrete is preferred. The xStream spa models have a loading capacity of 850kg/m - 930kg/m (175lbs. - 190lbs. /sq. ft). -
Page 9: Warning Label Installation
WARNING LABEL INSTALLATION COVER INSTALLATION Tie Down Strap Lock Screws (2) Position warning label in visible area prior to entry of spa. For instructions, please refer to posted warnings located on page 1 If replacements are needed please contact local dealer and order using part number: “0461536 - Warning Label”... -
Page 10: Spa Schematics And Part Numbers
817G3 NO DIVING TILES 817G1 (2 ea) 0532064 817G2 DRAIN (2 ea) 0532064 Cascade Cover Plate 0663005 (1 ea) 0212305-TRB PAGE 4 DRAIN (1 ea) 0212318 DRAIN (2 ea) 0212318 (2 ea) 0212318 DRAIN... -
Page 11: Filling The Spa
NOTE: FOR BEST RESULTS, READ EACH STEP CAREFULLY AND ENTIRELY BEFORE PROCEEDING TO THE NEXT. FILLING YOUR SPA Wipe the interior of the spa with a damp, soft cloth to remove any residue that may be on the surface. Fill with a garden hose by inserting the nozzle of the hose in the filter inlet (After filling is complete, remember to put the filter cartridge in place prior to starting the spa).As the... -
Page 12: Xstream Duo Pro Operation
Duo Pro Therapy Control Center Operates functions on therapy portion of Duo Pro The xStream Duo Pro spa has been designed for your maximum enjoyment and comfort, with two totally independent areas, one for swimming exercises and one for therapy. -
Page 13: Therapy Programming Instructions
THERAPY PROGRAMMING INSTRUCTIONS REFER TO PROGRAMMING INSTRUCTIONS ON PAGE 21 FOR QUICK PROGRAMMING STEPS A. PROGRAMMING MENU ... Note: All programming functions are shown sequentially. To access any specific programming step, you have to enter programming from the beginning, as explained here. Press and hold for three (3) seconds until “dISC”... -
Page 14: Setting Heat Days & Temperature
THERAPY PROGRAMMING INSTRUCTIONS E. HEAT DAYS & TEMPERATURE ... Your spa is pre-programmed from factory to heat “All” days, “hd=A”. It has however the ability to be programmed for different temperatures on different days of the week. To do so, follow these steps: Example: Let's assume that you don’t normally use the spa between Mondays and Thursdays and you want to save on your electric bill by reducing the spa’s energy consumption. -
Page 15: Therapy Advanced Programming Instructions
8 seconds. A2. PUMP SETUP... The Therapy side of the xStream Duo Pro should be set to “P=1” ONLY. Changing this setting will cause the pump to follow button commands incorrectly. A3. POWER SERVICE LEVEL ... The Therapy side of the xStream Duo Pro should be set to “S=0” ONLY. -
Page 16: Initial Startup & Operation
Date and time must be set at this time by following the Swim Programming Instructions, which also allow all other spa features to be programmed. The xStream Control Center controls each function directly with a dedicated button. A brief description of each button is as follows:... -
Page 17: Setting Temperature For The Day
The calibration process is indicated by a flashing of the (sun) icon on the Control Center display. BADU-STREAM II JETS (Standard on PRO & DUOPRO MODELS • Optional on XSTREAM) To start swimming, jogging or running it is suggested that the two nozzles be pointed slightly inward and slightly upward so that the water “breaks”... -
Page 18: Operating The Lights
SWIM OPERATING INSTRUCTIONS TURNING ON THE LIGHT Standard Light: Press to turn light on and off. LED Light: Press once to turn underwater lights on. Pressing a second time will turn on Aquabrite/ Chromatherapy, Pressing a third time will turn lights off. color/intensity programming, Aquabrite/Chromatherapy instructions below. -
Page 19: Swim Programming Instructions
SWIM PROGRAMMING INSTRUCTIONS REFER TO PROGRAMMING INSTRUCTIONS ON PAGE 22 FOR QUICK PROGRAMMING STEPS A. PROGRAMMING MENU ... Note: All programming functions are shown sequentially. To access any specific programming step, you have to enter programming as explained here. Press and hold for three (3) seconds until “dISC”... -
Page 20: Clock & Calendar Setting
SWIM PROGRAMMING INSTRUCTIONS E. CLOCK AND CALENDAR SETTING ... The display will sequence through the time and calender settings as pressed. Sequence is: “H=12” – 12-hr or “H=24” – 24-hr clock Hours setting Minutes setting Month setting Day setting Year setting F. -
Page 21: Swim Advanced Programming Instructions
Pro and Duo Pro A3. POWER SERVICE LEVEL ... The Swim Control of the xStream spas should be set to “S=0” ONLY. This indicates that the heater will shut off when any pump is turned on high speed, except for the filtration (circulation) pump. -
Page 22: Euro Cluster Massage Jet
THERAPY JET OPERATION Your xStream Swim Spa’s therapy section is designed with a unique jet system to allow you to select a wide variety of massage patterns. The following is a description of the various types of jets and their operation you may use to tailor your spa to your specific massage needs. -
Page 23: Safety Features
SAFETY FEATURES A. FREEZE PROTECTION If the temperature in the spa plumbing falls below 10°C (50°F), the water pump will turn on low speed and run for 30 seconds. After 30 seconds, if the water is still at 10°C (50°F), the heater will turn on and raise the temperature 2°C (10°F). The top side control will display the message "ICE"... -
Page 24: Spa Maintenance
EXCEL-PLUS and EXCEL-X CABINET MAINTENANCE The exterior of your xStream Duo Pro Spa cabinet is made from newly formulated high strength materials that are factory stained and sealed. Depending on the location and exposure of the spa to nature’s elements, it is recommended that you clean the cabinet once or twice a year with warm water and a mild soap. -
Page 25: Winterizing Your Spa
Although this is a fairly simple process, if you have any doubts, we suggest that you contact your local Vita Spa Service Tech to have your spa professionally winterized. PAGE 19... -
Page 26: Resetting Your Spa
DIAGNOSTIC & TROUBLESHOOTING Resetting Your Spa Like your PC at home, your spa electronics could get corrupted by electrical surges and operate improperly. If your spa system is not operating properly or shows any of the following messages, please reset it before calling for service to see if the malfunction disappears. -
Page 27: Therapy Control Programming Chart
Duo Pro Therapy Pack Programming Instructions Self Test (2 min.) If display does not show AH or ECO, call a service tech. Auto-Heat or ECOnomy mode Cycles through Filtration hours. Changes between: Filtration Non-filtration Heating Days: 1/2/3/4/5/6/7/A Temperature in ºF or ºC Switches between ºF and ºC... -
Page 28: Swim Control Programming Chart
Pro and xStream Duo Pro Swim Pack Programming Instructions Self Test Function not applicable to Swim Packs. If display shows AH or ECO, call a service tech. The Swim Pack has a Circulation Pump. Auto-Heat and ECOnomy modes do not apply. - Page 30 MIAMI FLORIDA DM Industries, Ltd., 2320 Northwest 147th Street, Miami, Florida 33054 Email: customercare@dmindustries.com and techhelp@dmindustries.com www.dmindustries.com File: xStream_Own_Man_0905a.pdf DM Part Number 0463502-8170509 © 2009 DM INDUSTRIES • ALL RIGHTS RESERVED • SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
