Tango User Guide
Introduction/Overview
Congratulations on your purchase of Tango headphones from Turtle Beach. You have
chosen well. You now have in your possession a premium product that will bring your
gaming experience to a whole new level, heightening your senses, sharpening your reflexes
and enhancing your communications. Welcome to excellence!
Table of Contents
1. What's Included
2. Feature/Function Map (Location of controls/inputs)
3. Setting Up (Connections etc.)
4. Pairing Instructions
5. System Settings
6. Chat Settings

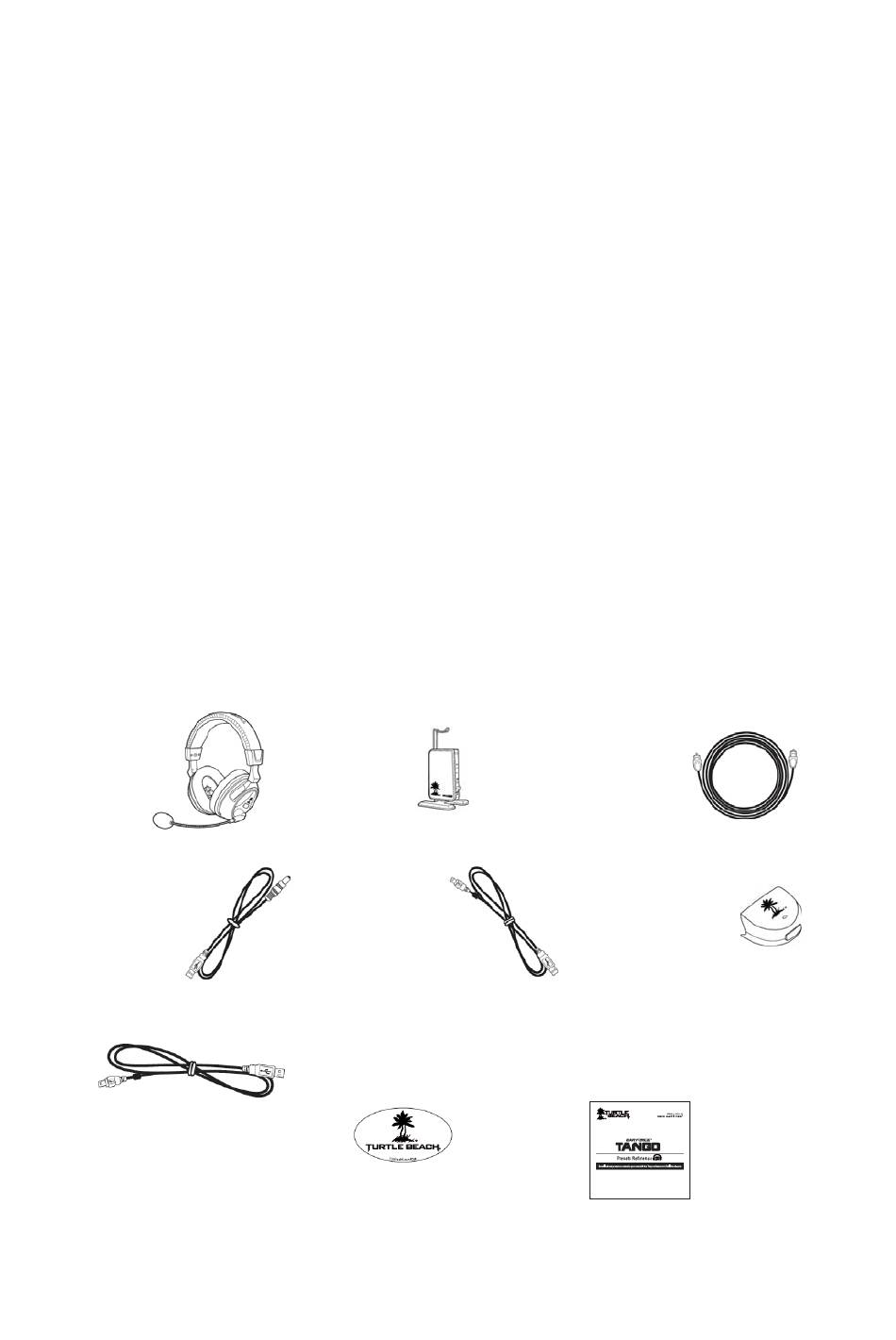

What's Included
Headset
USB Power Cable
Headset Charging Cable
RF Transmitter
USB Programming Cable
Quick Start Guide (Don't have art for this)
Sticker
Digital Optical Cable
XBA Bluetooth Adapter
Presets Manual
Advertisement
Table of Contents
Related Manuals for Turtle Beach Tango
Summary of Contents for Turtle Beach Tango
- Page 1 Tango User Guide Introduction/Overview Congratulations on your purchase of Tango headphones from Turtle Beach. You have chosen well. You now have in your possession a premium product that will bring your gaming experience to a whole new level, heightening your senses, sharpening your reflexes and enhancing your communications. Welcome to excellence! Table of Contents 1. What’s Included 2. Feature/Function Map (Location of controls/inputs) 3. Setting Up (Connections etc.) 4. Pairing Instructions 5. System Settings 6. Chat Settings 7. Recharging 8. Safety 9. Conformity What’s Included Headset RF Transmitter Digital Optical Cable USB Power Cable USB Programming Cable XBA Bluetooth Adapter ...
- Page 2 Feature/Function Map Headset 1. Power 2. Game Presets 3. Chat/Mic. Presets 4. Main 5. Charging LED 6. Headset Charging Port 5 RF Transmitter 1. Power/Pairing LED 4 2. SURROUND ON/OFF 3. SURROUND ANGLES 4. DIGITAL IN/OUT Jacks 5. LINE IN (Left/Right) 5 ...
- Page 3 Setting Up (Connections etc.) 1. Connect optical cable* and transmitter power cables (included) to game console NOTE: Remove protective caps from both ends of the optical cable. Optical Cable Game Console Transmitter Power Cable * Original XBOX 360 models require XBOX 360 HDMI Audio Adapter Cable (sold separately). 2. Insert Microphone Boom 3. Power headset ON a. Press and hold Power button until LED turns solid b. Listen for voice prompt 4. Power transmitter ON ...
- Page 4 1. Headset should be powered OFF 2. Press and hold Pairing button on the transmitter until the LED Flashes Press and Hold 3. Press and hold Power button on the headset until the LED flashes Press and Hold Using your Tango Headset on PS3 (Use this header on related pages in the layout) Your Turtle Beach Tango headphones are designed to work on PS3 Game Consoles (Versions?). In order to get ideal functionality from your headphones, follow the directions below. PS3 Bluetooth Configuration 1. Go to PS3 Settings (We should include screen captures for these) • Choose “Accessory Settings” (screen captures) • Choose “Manage Bluetooth Devices” (Tango Bluetooth OFF) 2. Scan for Bluetooth Devices (screen captures) 3. Power Tango ON: a. Press and Hold Bluetooth Button until LED flashes blue and red. ...
- Page 5 Press and Hold b. Select “Turtle Beach Tango.” c. When prompted for a passcode, enter, “0000.” LED will flash blue once per second d. You are now paired with PS3. PS3 Output Settings 1. Go to Settings (We should include screen captures for these) • Choose “Sound Settings” (screen captures) o Choose “Audio Output Settings” (Tango Bluetooth OFF) i. Choose “Optical Digital” 1. Choose “Dolby Digital 5.1 Ch.” 2. Go to Settings (We should include screen captures for these) • Choose “Sound Settings” (screen captures) o Choose “Audio Multi‐Output” (Tango Bluetooth OFF) i. Adjust PSN chat volume using Bluetooth Volume button on the right ear cup. ...
- Page 6 PS3 Microphone Settings 1. Go to PS3 Settings (We should include screen captures for these) • Choose “Accessory Settings” (screen captures) • Choose “Input/Output Device” (Tango Bluetooth OFF) • Choose “Turtle Beach Tango” 2. Adjust microphone volume level Using your Tango Headset on XBOX 360 (Use this header on related pages in the layout) Your Turtle Beach Tango headphones are designed to work on XBOX 360 Game Consoles (Versions?). In order to get ideal functionality from your headphones, follow the directions below. XBOX Wireless Settings 1. Turn on XBOX 360 Controller (Need Line Art for this) and plug in the XBA (turned off) to the headset jack. 2. Press and hold XBA button for four (4) seconds until the LED begins to blink. 3. You are now in Pairing mode. 4. Press and hold Bluetooth MFB for five (5) seconds. LED will change from Blue to Red. 5. Release the button. Voice prompt “Bluetooth Paired.” •...
- Page 7 XBOX Configuration 1. Go to XBOX Settings. a. Choose “Audio” Choose “Accessory Settings.” ii. Choose “Audio Device Settings.” iii. Set “Digital Output” to “Dolby Digital 5.1.” 2. Go back to XBOX Settings a. Choose “Preferences.” Choose “Voice.” ii. Under “Voice Output,” choose “Play Through Headset.” ...
- Page 8 Bluetooth Settings (Use this header on related pages in the layout) Pairing (Bluetooth) with a phone 1. Turn Headset ON 2. Press and hold Bluetooth Button until LED flashes Blue and Red 3. Set mobile phone to Bluetooth search mode* 4. Choose “Turtle Beach Tango” 5. When prompted for a passcode, enter “0000.” * Each phone will differ. Refer to the user’s guide for your phone. Dual Bluetooth Pairing Turtle Beach Tango headphones can pair with two devices at once. This feature allows on‐ line chatting with other gamers and the ability to instantly switch to phone calls. Follow the instructions below for dual Bluetooth pairing. 1. Turn Headset OFF 2. Press and hold Bluetooth Button until LED flashes Blue and Red 3. Set device to Bluetooth search mode* 4. Choose “Turtle Beach Tango” ...
- Page 9 Surround Sound Settings Turtle Beach Tango headphones have a surround sound feature bringing additional realism to your gaming experience. 1. Press SURROUND ON/OFF to turn ON the surround sound function. 2. Press the SURROUND ANGLES button on the transmitter to scroll through six (6) different presets. 3. The LED will blink in sequence to indicate which preset was selected. ...
- Page 10 Recharging Turtle Beach Headphones feature a rechargeable battery enabling continuous gaming for up to ten (10) hours. When the headset battery charge is low, a tone will sound every ten (10) seconds. The headphones can be charged without interrupting game‐play using the included headset charging cable. ...
- Page 11 Regulatory Compliance Statements for the EAR FORCE TANGO RX & TX Models Federal Communications Commission (FCC) Compliance Notices This section includes the following FCC statements for the EAR FORCE TANGO RX & TX Models: • FCC ID: XGB-TB2290 & XGB-TB2291 • Class B Interference Statement • RF Radiation Exposure & Hazard Warning • Non‐Modification Statement • Deployment Statement Class B Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. ...
