SMC Networks SMC EZ Connect g SMCWTK-G User Manual page 12

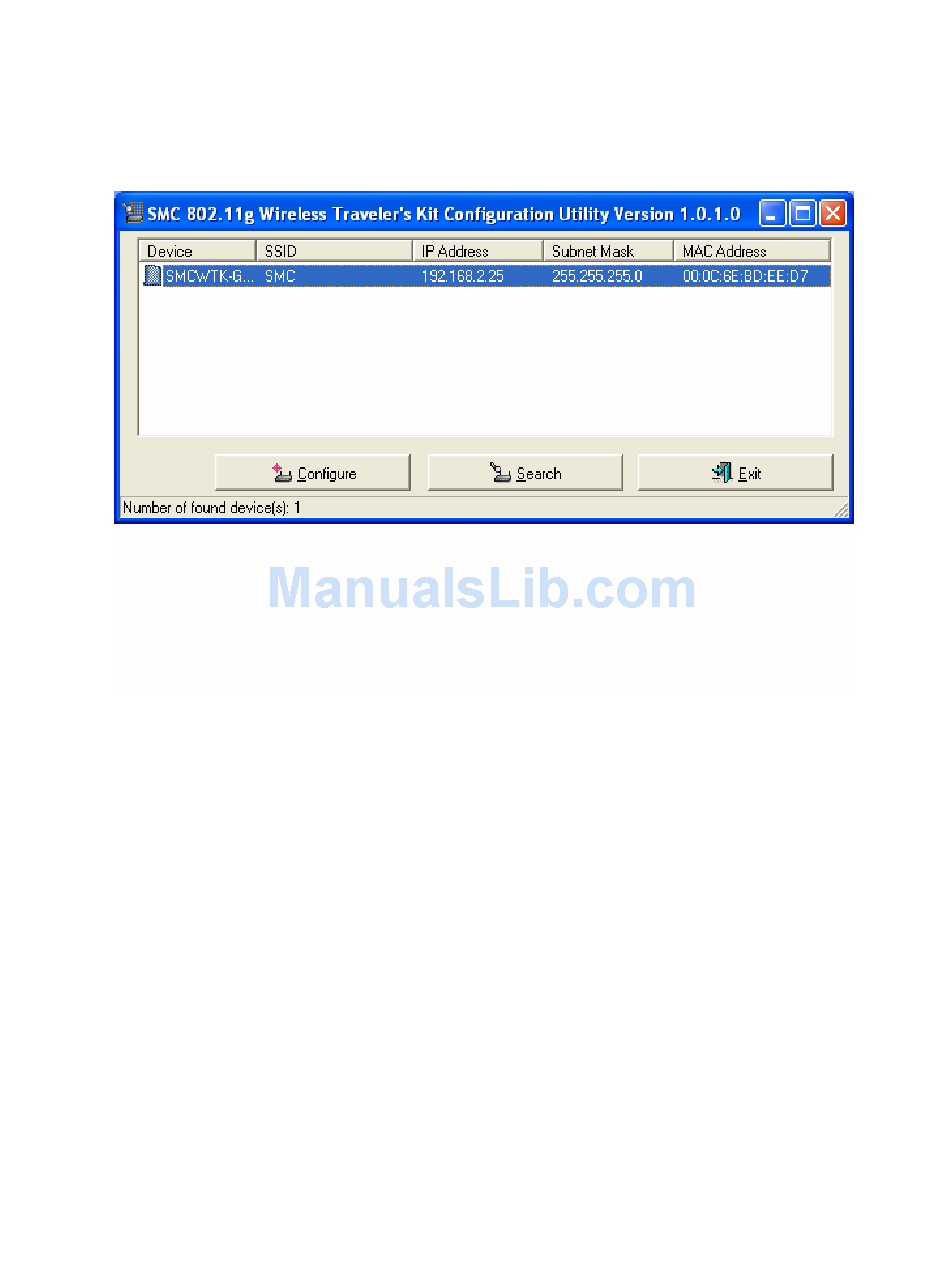

7. Highlight the SMCWTK-G that you would like to configure and click "Configure". If your PC
has the same IP address subnet range as the SMCWTK-G, then the login screen will appear.
Enter the username and password. The default IP address of the SMCWTK-G is 192.168.2.25.
The username is "admin" and the password is "smcadmin". Skip to Step 10.
8. Make sure the PC has an IP address on the 192.168.2.xxx subnet, such as 192.168.2.30. If
not, the IP window will appear, as shown below. From this window, set the static IP address of
the PC to be in the same subnet as the SMCWTK-G, e.g. 192.168.2.30. Set the "Subnet
Mask" to be "255.255.255.0". Default Gateway is usually the IP address of your router, e.g.
192.168.2.1. Click OK. Your PC may require a reboot after changing the IP address. Click
"Yes" to reboot PC if prompted.
