EN 14 5. LC9.1A LA
5.2.2 Service Default Mode (SDM)
Purpose
Set the TV in SDM mode in order to be able to create a pre-
defined setting for measurements to be made. In this platform,
a simplified SDM is introduced (without protection override and
without tuning to a frequency of 475.25 MHz).
Specifications
• Set linear video and audio settings to 50%, but volume to
25%. Stored user settings are not affected.
• All service-unfriendly modes (if present) are disabled, since
they interfere with diagnosing/repairing a set. These
service unfriendly modes are:
– (Sleep) timer.
– Blue mute/Wall paper.
– Auto switch "off" (when there is no "ident" signal).
– Hotel or hospital mode.
– Child lock or parental lock (manual or via V-chip).
– Skipping, blanking of "Not favourite", "Skipped" or
"Locked" presets/channels.
– Automatic storing of Personal Preset or Last Status
settings.
– Automatic user menu time-out (menu switches back/
OFF automatically.
– Auto Volume levelling (AVL).
How to Activate
To activate SDM, use one of the following methods:
• Press the following key sequence on the remote control
transmitter: "062596" directly followed by the MENU button
(do not allow the display to time out between entries while
keying the sequence).
• Short one of the "Service" jumpers on the TV board during
cold start (see Figure
(remove the short after start-up).
Caution: Activating SDM by shorting "Service" jumpers will
override the DC speaker protection (error 1), the General
I2C error (error 4), and the Trident video processor error
(error 5). When doing this, the service-technician must
know exactly what he is doing, as it could damage the
television set.

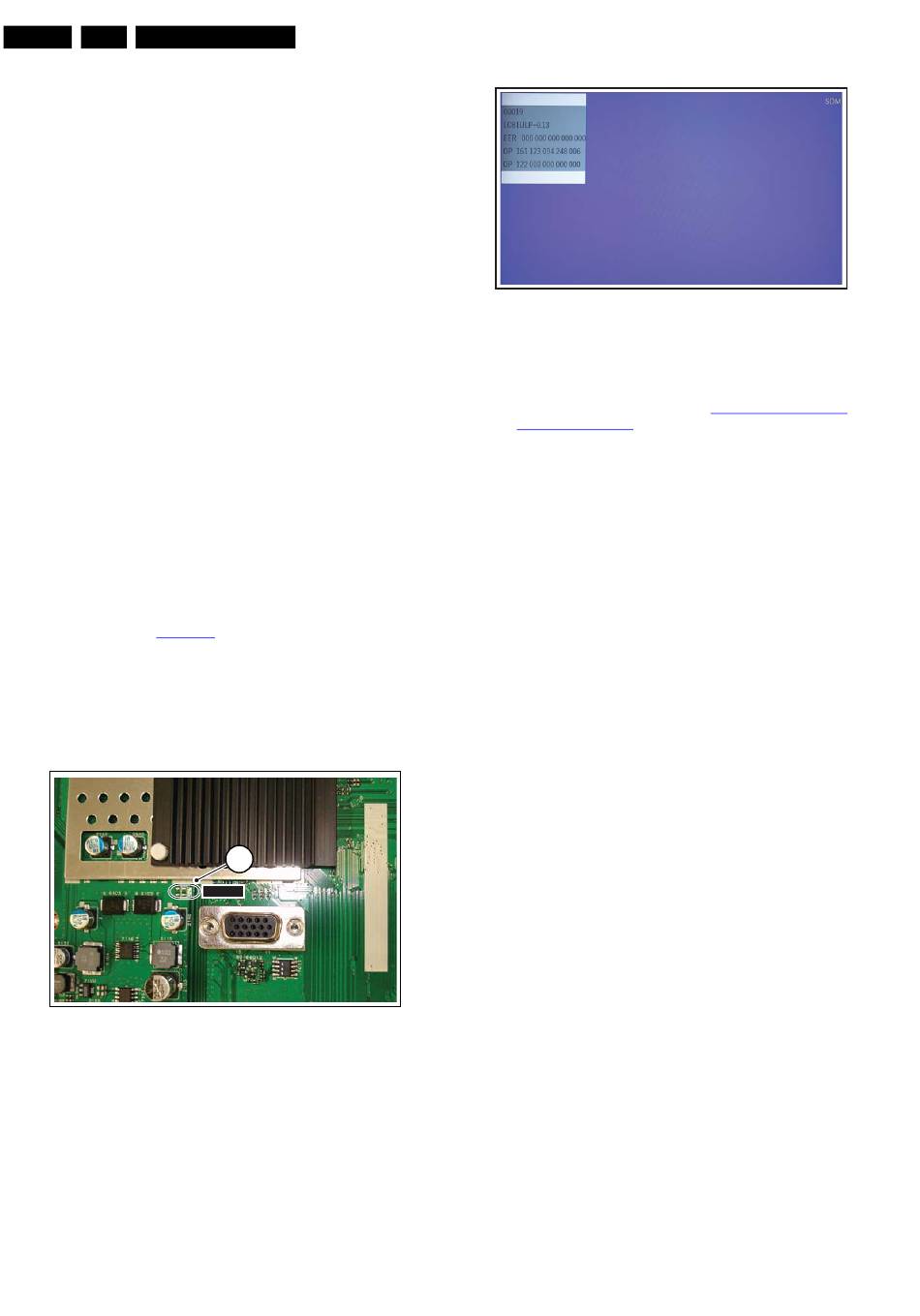

Figure 5-2 Service jumper (SSB component side)
On Screen Menu
After activating SDM, the following screen is visible, with SDM
in the upper right corner of the screen to indicate that the
television is in Service Default Mode.
2009-Apr-10
Service Modes, Error Codes, and Fault Finding
5-2). Then press the mains button
1 1
SDM SDM
18490_201_090409.eps
Menu explanation:
• HHHHH: Are the operating hours (in decimal).
• AAAABCD-X.YY: See paragraph
Version, and Cluster
• ERR: Shows all errors detected since the last time the
buffer was erased in format <xxx> <xxx> <xxx> <xxx>
<xxx> (five errors possible).
• OP: Used to read-out the option bytes. See "Options" in the
Alignments section for a detailed description. Ten codes (in
two rows) are possible.
How to Navigate
As this mode is read only, there is not much to navigate. To
switch to other modes, use one of the following methods:
• Command MENU from the user remote will enter the
normal user menu (brightness, contrast, colour, etc...) with
"SDM" OSD remaining, and pressing MENU key again will
return to the last status of SDM again.
• To prevent the OSD from interfering with measurements in
SDM, command "OSD" or "i+" ("STATUS" or "INFO" for
NAFTA and LATAM) from the user remote will toggle the
OSD "on/off" with "SDM" OSD remaining always "on".
• Press the following key sequence on the remote control
transmitter: "062596" directly followed by the OSD/
STATUS/INFO/i+ button to switch to SAM (do not allow the
display to time out between entries while keying the
sequence).
How to Exit
Switch the set to STANDBY by pressing the mains button on
the remote control transmitter or on the television set.
If you switch the television set "off" by removing the mains (i.e.,
unplugging the television), the television set will remain in SDM
when mains is re-applied, and the error buffer is not cleared.
The error buffer will only be cleared when the "clear" command
is used in the SAM menu.
Note:
• If the TV is switched "off" by a power interrupt while in SDM,
the TV will show up in the last status of SDM menu as soon
090409
as the power is supplied again. The error buffer will not be
cleared.
• In case the set is in Factory mode by accident (with "F"
displayed on screen), by pressing and hold "VOL-" and
"CH-" together should leave Factory mode.
Figure 5-3 SDM menu
Software Identification,
for the SW name definition.
H_17740_030.eps
