Mounting Dimensions - POWERPATH PS-8 Installation Instructions Manual

Nac extender power supplies
Hide thumbs
Table of Contents

Advertisement

NOTE: All dimensions shown are measured in inches.
P84905-001 A

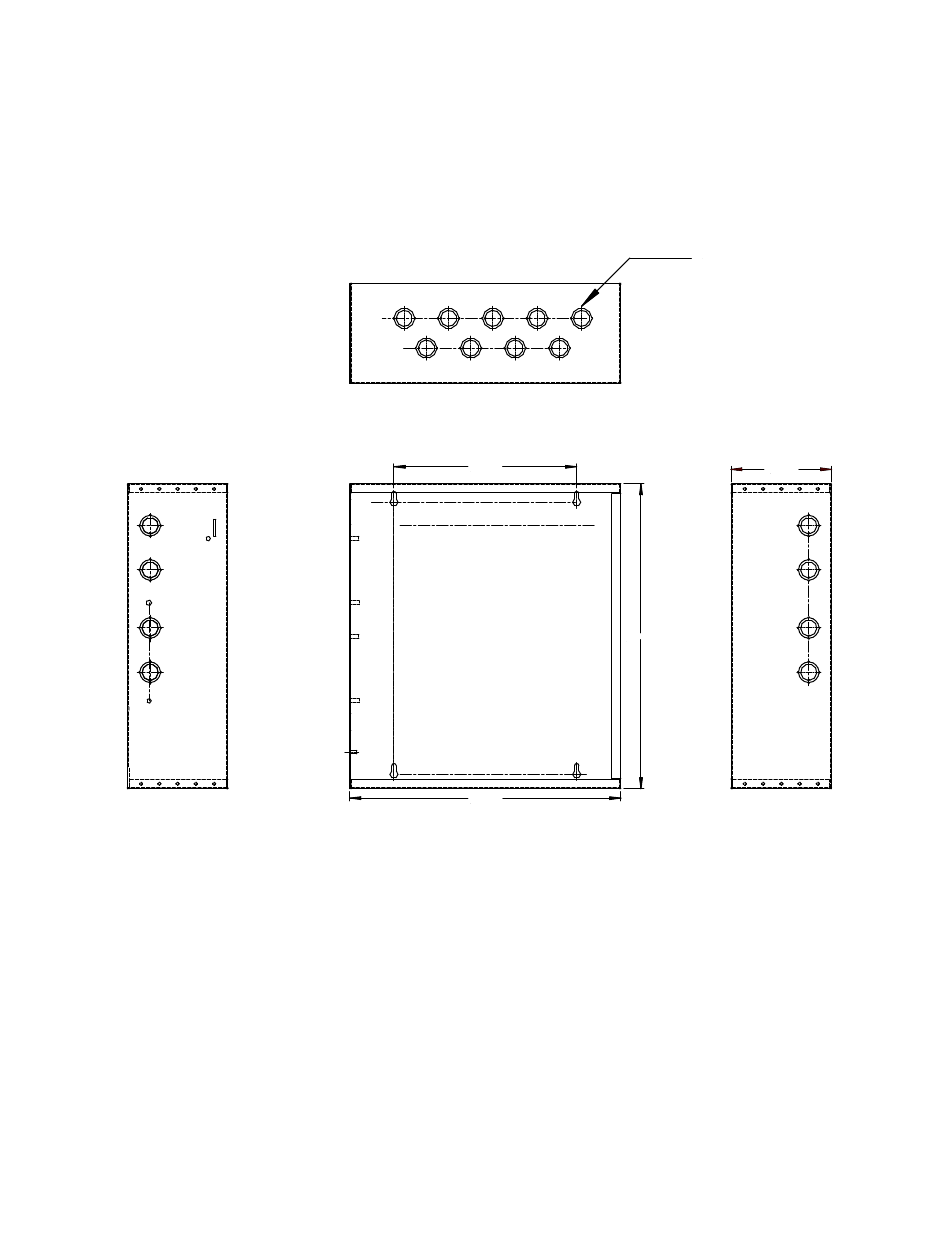

Figure 3: PS-8

Mounting Dimensions

DIMENSIONS (H x W x D) – 16.7" x 14.8" x 5.5"
10.0"
16.7"
14.8"
KNOCKOUTS TYP.
17X 0.882+/-.023 & 01.117+/-0.23
FLUSH ON OUTSIDE OF ENCLOSURE
ORIENTATION OPTIONAL
5.5"
Sheet 7 of 36
