2.0 INSTALLATION INSTRUCTIONS:

NOTE: The POWERPATH NAC Extender Power Supply shall be installed in accordance with the National Fire
Protection Association (NFPA), National Electrical Code (NEC) and all applicable state and local regulations.

2.1 UNPACKING

The POWERPATH was carefully checked before leaving the factory. Inspect shipping container and unit
carefully for indications of improper handling. If damage is detected, make an immediate claim to the carrier.
Remove the POWERPATH from the shipping container and check that the door lock keys, door lock, and
battery connection wires are inside. Make sure the printed circuit boards are within their proper packaging of
the enclosure.

2.2 MOUNTING

A Mount the POWERPATH in the desired location using the mounting dimensions in Figure 3 (PS-8) and
Figure 4 (PS-6).
B. Mount the panel in an indoor and dry area that does not exceed a temperature range of 32° F to 120° F (0°
C to 49° C) and a humidity equal to 10% to 85% at 86° F (30° C) non-condensing.
NOTE: When mounting on interior walls, use proper screw anchors in plaster. When mounting to concrete,
especially when moisture is expected, first attach a piece of ¾ inch plywood to the concrete surface.
Attach the POWERPATH to the plywood.
C. Remove desired knockouts and mount conduit and conduit fittings to the enclosure.
P84905-001 A
SW1
Power Supply/Battery
Charger PC Board
D36 D35 D34
D21
TB1
J2
IN1 FOLLOWER
D37
IN2 FOLLOWER
SBUS IN1/IN2
D8 D7 D6 D5 D4 D3
TROUBLE LATCH
SW2
NAC1 SYNC/TEMPORAL
NAC2 SYNC/TEMPORAL
SW5
NAC3 SYNC/TEMPORAL
NAC4 SYNC/TEMPORAL
SW1
NAC1 IN1/IN2
NAC2 IN1/IN2
NAC3 IN1/IN2
NAC4 IN1/IN2
SW4
SBUS MASTER/REMOTE
SBUS SYNC/TEMPORAL
SYNC PROTOCOL
SYNC PROTOCOL
SW3
NAC1-NAC2 CLASS B/A
NAC3-NAC4 CLASS B/A
AUX POWER CP/MP
GF DETECT
SW6
TB1 TB2
SBUS SBUS SIL
IN1 RET1 CC1 IN2 RET2 CC2 IN RET IN
Battery Compartment for
two – 12V, 7Ahrs
Rechargeable Batteries

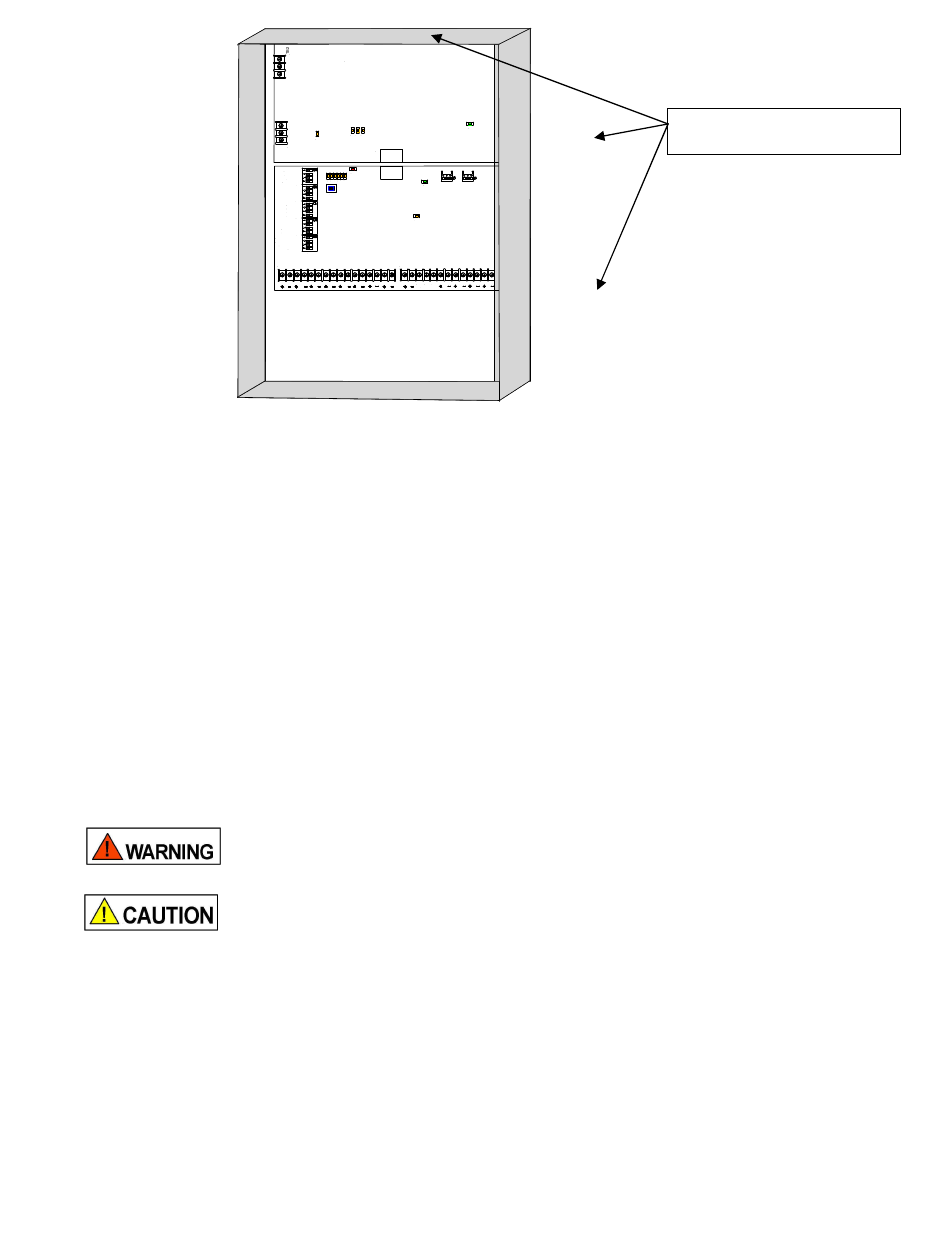

Figure 2: PS-6 Enclosure Layout
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS UNIT
TO RAIN OR MOISTURE.
This product is not intended for use in hazardous locations as defined by the National
Electrical Code (NEC) and by the National Fire Protection Association (NFPA).
D24
D9
D2
Control PC Board
COM NC NO AUX NAC1 NAC2 NAC3
TROUBLE OUT OUT OUT OUT
1/2" and 3/4" Knockouts (13)
