L
GND
N
AC LOSS Form "C"
Relay Terminals
AC LOSS TRB
COM
D21
NO
NC
TB1
Terminal Block
Identification
Numbers (Figure 1)
TB1 - 1,2,3
TB2 - 1,2,3
TB2 - 1,2,3
TB3 - 1,2
JP1 - 1,2
P84905-001 A
AC Input AC Input
120VAC 240VAC
50 – 60 Hz 50 – 60 Hz
(PS-6, PS-8) (PS-6E, PS-8E)
BATTERY
POWER
D24
D38
POWER

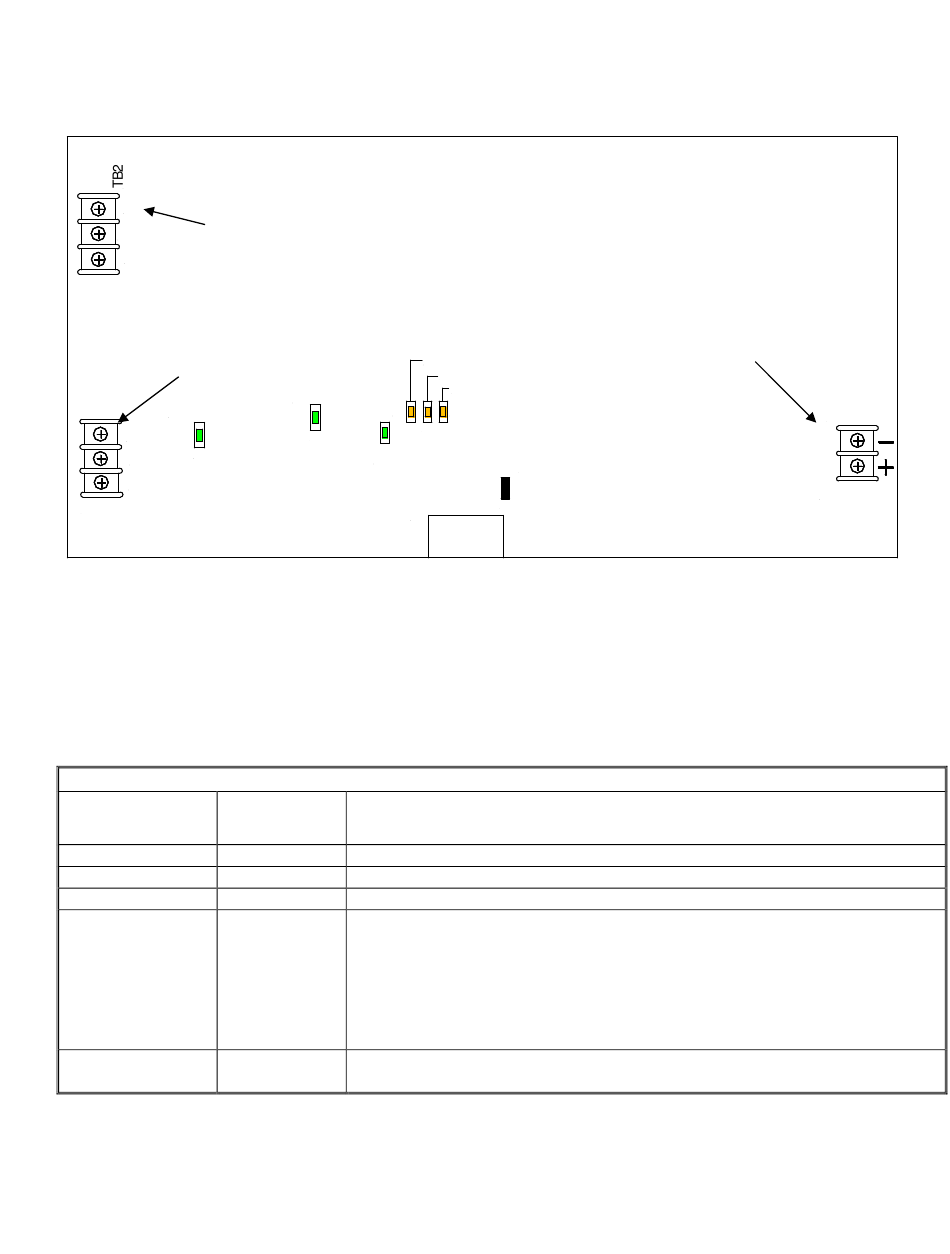

Figure 6: Power Supply/Battery Charger PC Board

Table 1: Power Supply/Battery Charger PC Board Terminal Identification

Terminal
Identification
AC Trouble Form "C" contacts rated 24VDC at 1 Amp used for external trouble alerts.
AC Input Input power terminals for 120VAC, 50 to 60 Hz. Non-Power Limited (PS-6, PS-8)
AC Input Input power terminals for 240VAC, 50 to 60 Hz. Non-Power Limited (PS-6E, PS-8E)
Backup battery terminals: 24VDC, 7 to 33 Ahrs, Sealed Lead Acid Non-Power Limited.
PS-8 – Two 12VDC 12 Ahrs batteries fit inside the enclosure. Batteries larger than 12
Ahrs require an external enclosure such as the Wheelock Product BATC.
Battery
PS-6 – Two 12VDC 7 Ahrs batteries fit inside the enclosure. Batteries larger than 7
Ahrs require an external enclosure such as the Wheelock Product BATC.
Jumper Sets Delay for Remote AC LOSS Annunciation.
JP1
JP1 IN = 0 Min Delay
MICROPROCESSOR TROUBLE
BATTERY CHARGER TROUBLE
BATTERY TROUBLE
D36 D34
D35
AC LOSS DELAY
JP1 IN = 0 MIN
JP1 OUT = 170 MIN
JP1
J2
Function/Description
JP1 OUT = 170 Min Delay
Battery Terminals
24VDC, 7 to 33 Ahrs
Sheet 10 of 36
TB3
BATTERY
