3.4. USB

This connector is used to upload code into Waspmote with a male to male USB cable provided by Libelium. Just connect one
side of the cable to this connector, removing protection cap and connect the other side to a PC to upload a code. Next picture
shows an example.

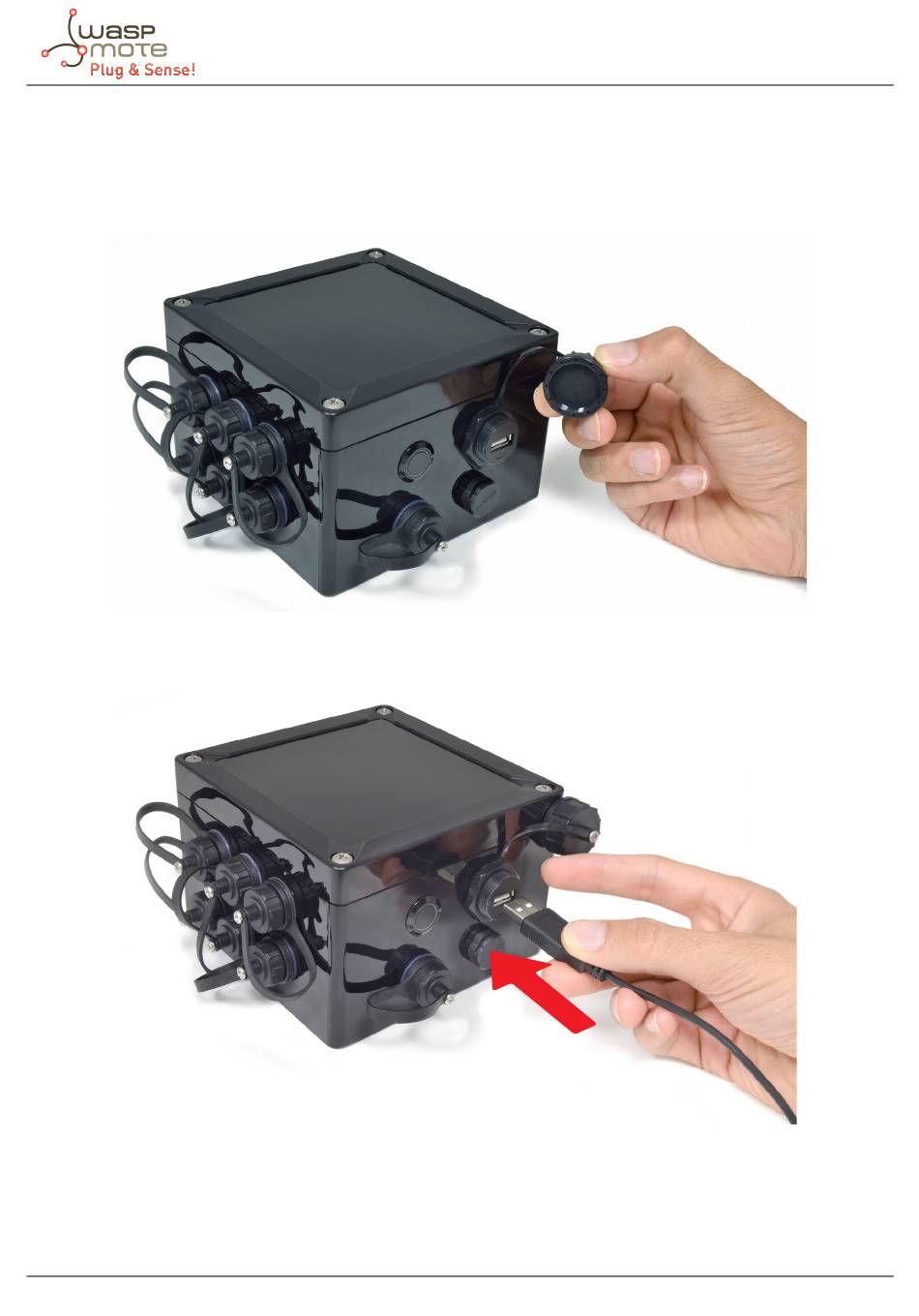

Figure : USB connector and protective cap
Figure : Connecting the USB cable to Waspmote
When uploading processes are finished, do not forget to screw firmly the protection cap to avoid connector damage.
