i3Projector
User's Manual
(L3503W / L3403FHD / L3403UW)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L3503W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for i3-TECHNOLOGIES L3503W

Summary of Contents for i3-TECHNOLOGIES L3503W

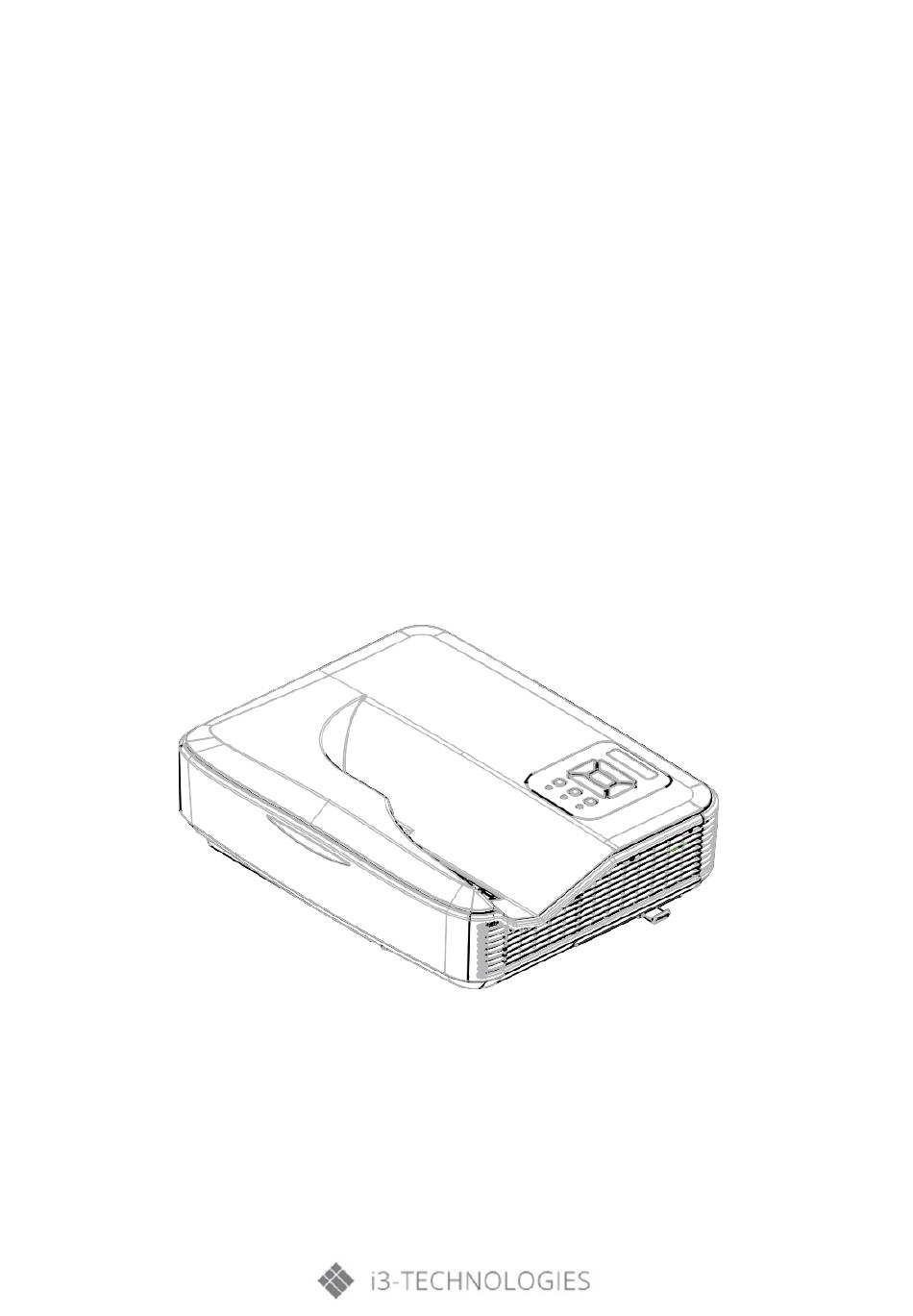

  • Page 1 User’s Manual (L3503W / L3403FHD / L3403UW)

  • Page 2: Table Of Contents

    Table of Contents Usage Notice ..................................4 1.1. Safety Information ..............................4 1.2. Precautions ................................... 5 Introduction .................................... 6 2.1. Package overview ..............................6 2.2. Product overview ............................... 7 Main Unit ..................................7 Control Panel ................................8 Input/ Output Connections ........................... 9 Remote Control ...............................
  • Page 3 Options/Laser Settings ............................36 3D ....................................36 Blending Mode ................................ 37 Interactive .................................. 38 LAN ....................................46 4.3. EZView ..................................53 4.4. Crestron ..................................57 Multimedia ................................... 60 5.1. Accessing Multimedia Files ..........................60 How to access Multimedia Mode ........................60 Appendices ...................................

  • Page 4: Usage Notice

    Usage Notice 1. Usage Notice 1.1. Safety Information The lightning flash with arrow head within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

  • Page 5: Precautions

    Usage Notice 1.2. Precautions Please follow all warnings, precautions and maintenance as recommended in this users guide. Warning: Do not look into the projector’s lens when the lamp is on. The bright light may hurt and • damage your eyes. Warning: To reduce the risk of fire or electric shock, do not expose this projector to rain or •...

  • Page 6: Introduction

    Introduction 2. Introduction 2.1. Package overview Unpack and inspect the box contents to ensure all parts listed below are in the box. If something is missing, please contact your nearest customer service centre. Due to different applications in each country, some regions may have different accessories Optional accessories for interactive solution.

  • Page 7: Product Overview

    Introduction 2.2. Product overview A) Main Unit 1. Control panel 2. Focus switch 3. Ventilation (inlet) 4. IR Receiver 5. Ventilation (Outlet) 6. Speaker 7. Power Socket 8. Input/output Connections 9. Lens Note: The interface is subject to model’s specifications.

  • Page 8: B) Control Panel

    Introduction B) Control Panel 1. Power LED 2. Enter 3. Temp LED 4. Lamp LED 5. Menu 6. Input 7. Four Directional Select Keys 8. Power/Standby button 9. IR Receiver...

  • Page 9: C) Input/ Output Connections

    Introduction C) Input/ Output Connections 1. VGA1-In/yPbPR Connector (PC Analog Signal/Component Video Input/HDTV/YPbPr) 2. HDMI2 Input Connector 3. HDMI1 Input Connector 4. USB Connector (Connect to PC for Remote Mouse function) 5. RJ45 Connector (Optional) 6. USB Type A Connector (Optional) 7.

  • Page 10: D) Remote Control

    Introduction D) Remote Control 1. Infrared transmitter 2. LED Indicator 3. Power ON/OFF 4. OK 5. Four Directional Select Keys 6. Menu 7. Exit 8. Zoom in 9. Reset 10. Auto 11. Source 12. Zoom out 13. Volume +/- 14. Keystone +/- 15.

  • Page 11: E) Ir Pen (*Optional Accessory)

    Introduction E) IR PEN (*Optional accessory) 1. Strap hole 2. Pen tip 3. LED indicator 4. Power Switch button 5. Battery cover Function Description Power management On/Off switch Power indicator Dual color LED x1 Battery AAA Battery (alkaline) x 1 Usage time 18 hours (continuous use) Light source...

  • Page 12: Installation

    Installation 3. Installation 3.1. Connecting the Projector A) Connect to Computer/Notebook 1. *RS232 Cable 2. VGA Cable 3. *HDMI Cable 4. *USB Cable 5. *Audio Cable/RCA 6. *RJ45 Cable 7. Power Cord 8. *VGA Output Cable 9. DC to DC Cable 10.

  • Page 13: B) Connect To Video Sources

    Installation B) Connect to Video Sources 1. *15-Pin to 3 RCA Component/HDTV Adaptor 2. HDMI Cable 3. *Audio Cable/RCA 4. *Audio Cable 5. Power Cord 6. *Composite Video Cable 7. *Audio Cable/RCA 8. *Audio Input Cable Note: Due to the difference in applications for each country, some regions may have different •...

  • Page 14: A) Powering On The Projector

    Installation A) Powering On the Projector 1. Securely connect the power cord and signal cable. When connected, the POWER/STANDBY LED will turn Orange. 2. Turn on the lamp by pressing “ ” button either on the projector or on the remote. At this moment, the POWER/STANDBY LED will now turn Blue.

  • Page 15: B) Powering Off The Projector

    Installation B) Powering Off the Projector 1. Press the ” button on the remote control or on the control panel to turn off the projector. The following message will be displayed on the screen. Press the ” button again to confirm otherwise the message will disappear after 10 seconds. When you press the ”...

  • Page 16: D) Led Lighting Message

    Installation D) LED Lighting Message Power LED Temp_LED Lamp_LED Message Blue Standby State ＊ (Input Power cord) ＊ Power on Warning Up Flashing State Flashing Flashing Burn-in ON Flashing Flashing Burn-in OFF ＊ ＊ Power NG Flashing Fan Lock slow:3s Flashing CW breakdown fast:500ms...

  • Page 17: Adjusting The Projected Image

    Installation 3.3. Adjusting the projected image A) Adjusting the Projector’s height The projector is equipped with adjustable feet for adjusting the image height position. 1. Locate the foot you want to adjust on the underside of the projector. 2. Turn the adjustable foot counter-clockwise to move it outwards or clockwise to move it inwards. Repeat with the remaining feet as needed.

  • Page 18: B) Adjusting The Projector's Focus

    Installation B) Adjusting the Projector’s focus To focus the image, slide the focus switch to left/right until the image is clear. 1080p series: The projector will focus at distances (lens to wall) from 1.59~1.87 feet (0.49~0.57 • meters) Ultra Wide series: The projector will focus at distances (lens to wall) from 2.36~2.75 feet •...

  • Page 19: C) Adjusting Projection Image Size (Diagonal)

    Installation C) Adjusting Projection Image Size (Diagonal) 1080p series: Projection Image Size from 87” to 102” (2.21 to 2.59 meters). • Ultra Wide series: Projection Image Size from 120” to 140” (3.05 to 3.56 meters). • WXGA series: Projection Image Size from 85” to 115” (2.16 to 2.92 meters). •...
  • Page 20 Installation Ultra Wide (16:6) Wall mount installation measurement chart Distance from Distance from surface of Distance from Distance from Distance from surface of Diagonal Diagonal Image Image whiteboard to top of image top of image top of image to whiteboard to image size image size width...
  • Page 21 Installation WXGA (16:10) Wall mount installation measurement chart Distance from Distance from surface of surface of Diagonal Diagonal Image Image Distance from Distance from Distance from whiteboard to whiteboard to image size image size width height top of image to top of image to top of image center of...
  • Page 22 Installation Projector installation measurement chart Table Mount Ultra Wide (16:6) Table mount installation measurement chart Diagonal image Diagonal image Distance from surface Distance from bottom Image height (H) Image width (W) in size size of whiteboard to back of image to top of table in mm of projector (T1) in mm (O3) in mm...
  • Page 23 Installation 1080P (16:9) Table mount installation measurement chart Diagonal image Diagonal image Distance from surface Distance from bottom Image height (H) Image width (W) in size size of whiteboard to back of image to top of table in mm (S) in inch (S) in mm of projector (T1) in mm (O3) in mm...
  • Page 24 Installation Image alignment process Step 1: Pitch, Roll and Yaw adjustment Adjust the knobs of pitch, roll and yaw adjustment to make the image to ben rectangle as shown • below. Step 2: Vertical, horizontal and size adjustment Adjust the image vertically by turning the hexagon screw head. •...

  • Page 25: User Controls

    User Controls 4. User Controls 4.1. Control panel and Remote Control A) Control Panel Using the Control Panel Refer to the “Power On/Off the POWER Projector” section. Enter Press “Enter” to confirm your item selection. INPUT Press “INPUT” to select an input signal. Press “MENU”...

  • Page 26: B) Remote Control

    User Controls B) Remote Control Using the Remote Control Infrared Sends signals to the projector. transmitter LED Indicator. Refer to the “Power On/Off the Projector” Power section. Exit Press “Exit” to close the OSD menu. Zoom in Zoom in the projector display. Return the adjustments and settings to the factory default values.
  • Page 27 User Controls Using the Remote Control Blank Momentarily turns off/on audio and video (black screen on/off). Image Select the display mode from Bright, PC, Movie, Game, and User. Aspect Use this function to choose your de- sired aspect ratio. VGA1 Press “VGA1”...

  • Page 28: On-Screen Display Menus

    User Controls 4.2. On-screen Display Menus The Projector had multilingual On-screen Display menus that allow you to make image adjustments and change a variety of settings. A) How to operate? 1. To open the OSD menu, press “Menu” on the Remote Control or Projector Keypad. 2.

  • Page 29: B) Picture

    User Controls B) Picture Colour Mode There are many factory presets optimized for various types of images. Use the ◄ or ► button to select the item. Bright: For brightness optimization. • PC: For meeting presentation. • Movie: For playing video content. •...
  • Page 30 User Controls Saturation Adjust a video image from black and white to fully saturated color. Press the ◄ button to decrease the amount of saturation in the image. • Press the ► button to increase the amount of saturation in the image. •...

  • Page 31: C) Screen

    User Controls C) Screen Aspect Ratio Auto: Keep the image with original width-height ratio and maximize the image to fit native • horizontal or vertical pixels. 4:3: The image will be scaled to fit the screen and displayed using a 4:3 ratio. •...

  • Page 32: D) Settings

    User Controls Orientation Front: The image is projected straight on the screen. • Front Ceiling: This is the default selection. When selected, the image will turn upside down. • Rear: When selected, the image will appear reversed. • Rear Ceiling: When selected, the image will appear reversed in upside down position. •...

  • Page 33: Volume

    User Controls LAN (Standby) Choose “On” to enable LAN connection. Choose “Off” to disable LAN connection. VGA-2 (Function) Input: Choose “Input” to let the VGA port works as a VGA input function. • Output: Choose “Output” to enable the VGA Out function once the projector is powered on. •...

  • Page 34: F) Options

    User Controls Volume Press the ◄ button to decrease the volume. • Press the ► button to increase the volume. • Microphone Volume Press the ◄ button to decrease the microphone volume. • Press the ► button to increase the microphone volume. •...
  • Page 35 User Controls Input Press ► button to enable/disable input sources. The projector will not search for inputs that are not selected. Auto Power Off (Min) Sets the countdown timer interval. The countdown timer will start, when there is no signal being sent to the projector.

  • Page 36: G) Options/Laser Settings

    User Controls G) Options/Laser Settings Laser Hours Used (Normal) Display the projection time of normal mode. Laser Hours Used (ECO) Display the projection time of ECO mode. Laser Power Mode Normal: Normal mode. • ECO: Use this function to dim the projector laser diode which will lower power consumption and •...

  • Page 37: I) Blending Mode

    User Controls 3D Format Use this feature to select the 3D format. Options are: “Frame Packing”, “Side-by-Side (Half)”, “Top and Bottom”, “Frame Sequential”, and “Field Sequential”. 1080p@24 Use this feature to select 96 or 144Hz refresh rate as using 3D glasses in the1080p @ 24 frame packing. Note: “Frame Sequential”...

  • Page 38: J) Interactive

    User Controls BLENDING APPLICATION Example of system architecture Meeting Room Laptop, Switch and Camera is for image calibration only • Laptop Source: Image source • Blending Box • Multiple projectors (here two) • For more details, please check the blending HW/SW specifications •...
  • Page 39 User Controls Use the enclosed USB cable (maximum length: 5m). To extend the USB cable length over 5m, a certified active extension USB cable is required. Notes: The Interac- tive function is available when • displaying graphic source from HDMI/VGA input. Other sources are not supported. •...
  • Page 40 User Controls STEP 2: INTERACTIVE MODE Windows 7 and Windows 8 operating system support multi-point touch control. Users can select default Touch Mode ( ) for multi-point touch if using the LCT (optional accessory). Select Active Pen Mode ( ) when using the IR pen. Note: Only single-point touch is available for Mac OSX.
  • Page 41 User Controls If fail message pops up, switch to Manual Touch Area Setting. b) Select Manual Touch Area Setting After the camera captures the projection image, a Touch Area window will pop up. If the captured • image is not clear enough, please re-select “Ambient light mode selection” from “Auto” to “Bright” or “Dim”...
  • Page 42 User Controls Touch Area Boundary Fine-tuning • Step 1: Click on P1, use mouse to drag P1 to upper left corner. Align adjustable green zone with projected white frame. Step 2: Adjust P2 to P4 accordingly; adjustable green zone should completely overlaps the projected white frame.
  • Page 43 User Controls b) Select Manual Calibration Note: Manual Calibration is suggested for better accuracy. STEP 5: TOUCH SENSITIVITY When touch function is unresponsive, or writing is intermittent. You can adjust the sensitivity by adjusting Touch Sensitivity level: Note: Touch Sensitivity is not adjustable under Active Pen Mode. Default: 4 •...
  • Page 44 User Controls STEP 6: TROUBLE-SHOOTING VIEWER Sometimes infrared red light (IR light) from ambient light sources may interfere with touch performance. The troubleshooting viewer shows real time images for debugging purposes. Any light interference is marked in green. If green obstacles appear within image area, remove to secure proper interactivity. Note: Interactive function is disabled under trouble-shooting viewer, click to exit.
  • Page 45 User Controls Appendix: Specification I. General Specifications Calibration Auto Calibration Manual Calibration Multi-touch 10-touch points (Win 7 and Win8 compliant) Multi-touch ≥40mm Min. Distance Hover (Z-depth) Default hover height is 5.5mm. 70”~100” @XGA(co-operate with TR0.25 UST projector) 80”~100” @WXGA(co-operate with TR0.25 UST projector) 80”~100” @1080P(co- Working operate with TR0.25 UST projector) Projection...

  • Page 46: K) Lan

    User Controls K) LAN Status Display the network connection status. DHCP Configure the DHCP settings. On: Choose “On” to let the projector to obtain an IP address automatically from your network. • Off: Choose “Off” to assign IP, Subnet Mask, Gateway, and DNS configuration manually. •...
  • Page 47 User Controls HOW TO USE A WEB BROWSER TO CONTROL YOUR PROJECTOR? You can control the projector remotely via a web browser on your controlling device. You can connect directly or via a network. 1. When making LAN connection from your computer to the projector: Step 1: Turn on DHCP to allow a DHCP server to automatically assign an IP, or manually enter the required network information.
  • Page 48 User Controls...
  • Page 49 User Controls 2. When making WI-FI connection between your computer and the projector Step 1: Setup the WiFi connection Insert a WiFi dongle (optional/accessory) in the USB socket in the projector. • Go to Input → Multimedia → Settings → WiFi. •...
  • Page 50 User Controls Step 3: Access to the Web Management Page in AP mode. Open your web browser and type in the IP address 192.168.111.1 in the URL then press “Enter”. Projector Information User can retrieve the Projector Information in this page and select the content display in different languages.
  • Page 51 User Controls LAN Setting User can configure LAN parameters and edit the projector information in this page. Wi-Fi User can install EZView for different platforms and operating systems. Projector Status and Control User can control the projector in this page.
  • Page 52 User Controls mail Alert User can assign the email address and categorize alert notice.

  • Page 53: Ezview

    User Controls Password Setting User can set the password to get access to web management. Crestron control: See “Crestron“ section on how to control the projector via Crestron flash UI. 4.3. EZView EZView is an APP and software that can wirelessly transfer content from a smart phone, tablet, laptop, desktop, etc.
  • Page 54 User Controls Step 2: Start EZView on the device by clicking the icon below. on PC or Laptop, on tablet or smartphone. EZView on PC or Laptop Step 1: Connect your PC/Laptop to the projector (AP mode) or connect both the PC/Laptop and the projector to a common WiFi or LAN network (Client mode) Step 2: Start EZView on the device by clicking below icon on PC or Laptop and access Multimedia mode on the projector.
  • Page 55 User Controls Step 4: For screen display function, select ‘mirror’ or ‘extension mode’ to project the image from the device. The selection of image position (1/4, 1/2 or 1/1 of screen) Mirror Mode Display Extension Mode Display Link to Web management page (AP mode and client mode via LAN network only) Exit Display Mode : Video or Graphic Compatible Mode...
  • Page 56 User Controls EZView on Tablet or Smart phone Step 1: Connect your mobile/tablet to the projector (AP mode) or connect both the mobile/tablet and the projector to a common WiFi or LAN network (Client mode). Step 2: Start EZView on the device by clicking below icon on tablet or smart phone Step 3: Start EZView APP and go to multimedia →...

  • Page 57: Crestron

    User Controls 4.4. Crestron The user can control the projector via Crestron flash UI. Based on Crestron flash UI for the input-string in [tools] tab, the limitation for Input-Length is in the below list (“space” and the other punctuation key included): Input-Length Category Item...
  • Page 58 User Controls Crestron RoomView Control Tool Crestron RoomView™ provides a central monitoring station for 250+ control systems on a single Ethernet network (more are possible, the number depends on the combination of IP ID and IP address). Crestron RoomView monitors each projector, including projector’s online status, system power, lamp life, network setting and hardware faults, plus any custom attribute as defined by the Administrator.
  • Page 59 User Controls c) Edit Attribute d) Edit Event For further information, please visit: http://www.crestron.com & www.crestron.com/getroomview.

  • Page 60: Multimedia

    Multimedia 5. Multimedia 5.1. Accessing Multimedia Files This projector supports two methods to project media files (photos, videos, music, documents) stored on following devices: 1. Via wireless dongle (see above) – wirelessly access the media files stored on your mobile phone, tablet PC, notebook or desktop.
  • Page 61 Multimedia Mobile Display To access the media files stored on your mobile device or tablet PC, do the following: 1. In the Multimedia menu, select “Mobile/Tablet”. 2. On your mobile device or tablet PC: Install the “EZView” application for your operating system 3.
  • Page 62 Multimedia Desktop Display To access the media files stored on your desktop, do the following: 1. In the Multimedia menu, select “Desktop”. 2. Open your web browser and enter the IP address displayed on the screen. Then select WiFi on the left side of the screen and install the EZView application for your operation system.
  • Page 63 Multimedia USB Storage Display To access the media files stored on your USB flash drive, do the following: 1. In the Multimedia menu, select “USB Disk”. 2. Use the keys to select the file category and press the “Enter” key.
  • Page 64 Multimedia Configuring Multimedia settings To change the settings, do the following: 1. In the Multimedia menu, select “Settings”: 2. Use the keys to select the desired menu option and press “Enter” to enter the submenu. System: Select this option to view the firmware version and update firmware. •...

  • Page 65: Appendices

    Appendices 6. Appendices 6.1. Installing and cleaning the dust filters We recommend you to clean the dust filters every 500 hours of operation, or more often if you are using the projector in a dusty environment. When the warning message appears on the screen, do the following to clean the air filters: Note: The dust filters must •...

  • Page 66: Compatibility Modes

    Appendices 6.2. Compatibility Modes A) VGA Analog a. PC signal Modes Resolution V. Frequency H. Frequency [Hz] [KHz] 640x480 31.5 640x480 35.0 640x480 37.9 640x480 37.5 640x480 43.3 720x400 31.5 800x600 35.1 800x600 37.9 800x600 48.1 SVGA 800x600 46.9 800x600 53.7 Apple, MAC 832x624...

  • Page 67: B) Hdmi Digital

    Appendices c. Component signal Modes Resolution V. Frequency H. Frequency [Hz] [KHz] 720x480 480i 59.94(29.97) 15.7 (1440x480) 720x576 576i 50(25) 15.6 (1440x576) 480p 720x480 59.94 31.5 576p 720x576 31.3 1280x720 45.0 720p 1280x720 37.5 1920x1080 60(30) 33.8 1080i 1920x1080 50(25) 28.1 1920x1080 23.98/24...
  • Page 68 Appendices 1280x960 60.0 QuadVGA 1280x960 75.2 SXGA+ 1400x1050 65.3 UXGA 1600x1200 75.0 b. Extended wide timing Modes Resolution V. Frequency H. Frequency [Hz] [KHz] 1280x720 44.8 1280x800 49.6 WXGA 1366x768 47.7 1440x900 59.9 WSXGA+ 1680x1050 65.3 UWHD 1920x720 44.4 c. Video signal Modes Resolution V.
  • Page 69 Appendices C) Video Compatibility NTSC M/J, 3.58 MHz, 4.43 MHz B, D, G, H, I, M, N (4.43 MHz) SECAM B, D, G, K, K1, L, (4.25 / 4.4 MHz) SDTV 480i, 480p HDTV 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60 Hz...

  • Page 70: Rs232 Commands And Protocol Function List

    Appendices 6.3. RS232 Commands and Protocol Function List A) RS232 Port Settings Items Method Communication Method Asynchronous Communication Bits per seconds 19200 Data bits 8 bits Parity None Stop bits Flow control None B) RS232 Signals Connection Note: RS232 shell is grounded.

  • Page 71: C) Commands Set List

    Appendices C) Commands set list Command Projector ASCII Code n value Note Description Return : Off Power #0000 n : On : Up : Left : Right : Down : Menu Emulate Remote #0001 n : Source : Keystone+ : Keystone- : Volume+ : Volume- Resync...
  • Page 72 Appendices : Arabic : Dutch : Norwegian : Danish : Simplified Chinese 10 : Polish : Korean Language #0030 n : Russian : Spanish : Traditional Chinese 15 : Italian : Portuguese : Turkish : Japanese 1 : Top Left 2 : Top Right 3 : Center : Bottom Left Menu Location...

  • Page 73: Ceiling Mount Installation

    Appendices 6.4. Ceiling Mount Installation 1. To prevent damage to your projector, please use the Coretronic ceiling mount. 2. If you wish to use a third party ceiling mount kit, please ensure the screws used to attach a mount to the projector meet the following specifications: Screw type: M4*4 •...

  • Page 74: Regulation & Safety Notices

    Appendices 6.5. Regulation & Safety Notices This appendix lists the general notices of your projector. FCC notice This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 75 Appendices Declaration of Conformity for EU countries EMC Directive 2004/108/EC (including amendments) • Low Voltage Directive 2006/95/EC • R & TTE Directive 1999/5/EC (if product has RF function) • Disposal instructions Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle it.
  • Page 76 Appendices WARNING This projector is a Class 2 laser device that conforms with IEC 60825-1:2007 and CFR • 1040.10 and 1040.11. Class 2 laser product, Do Not Stare Into Beam. • This projector has built-in Class 4 laser module. Disassembly or modification is very •...
