www.ceriatone.com
AH Deluxe 50 and 100
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AH Deluxe 50 and is the answer not in the manual?

Questions and answers

Related Manuals for Ceriatone AH Deluxe 50

Summary of Contents for Ceriatone AH Deluxe 50

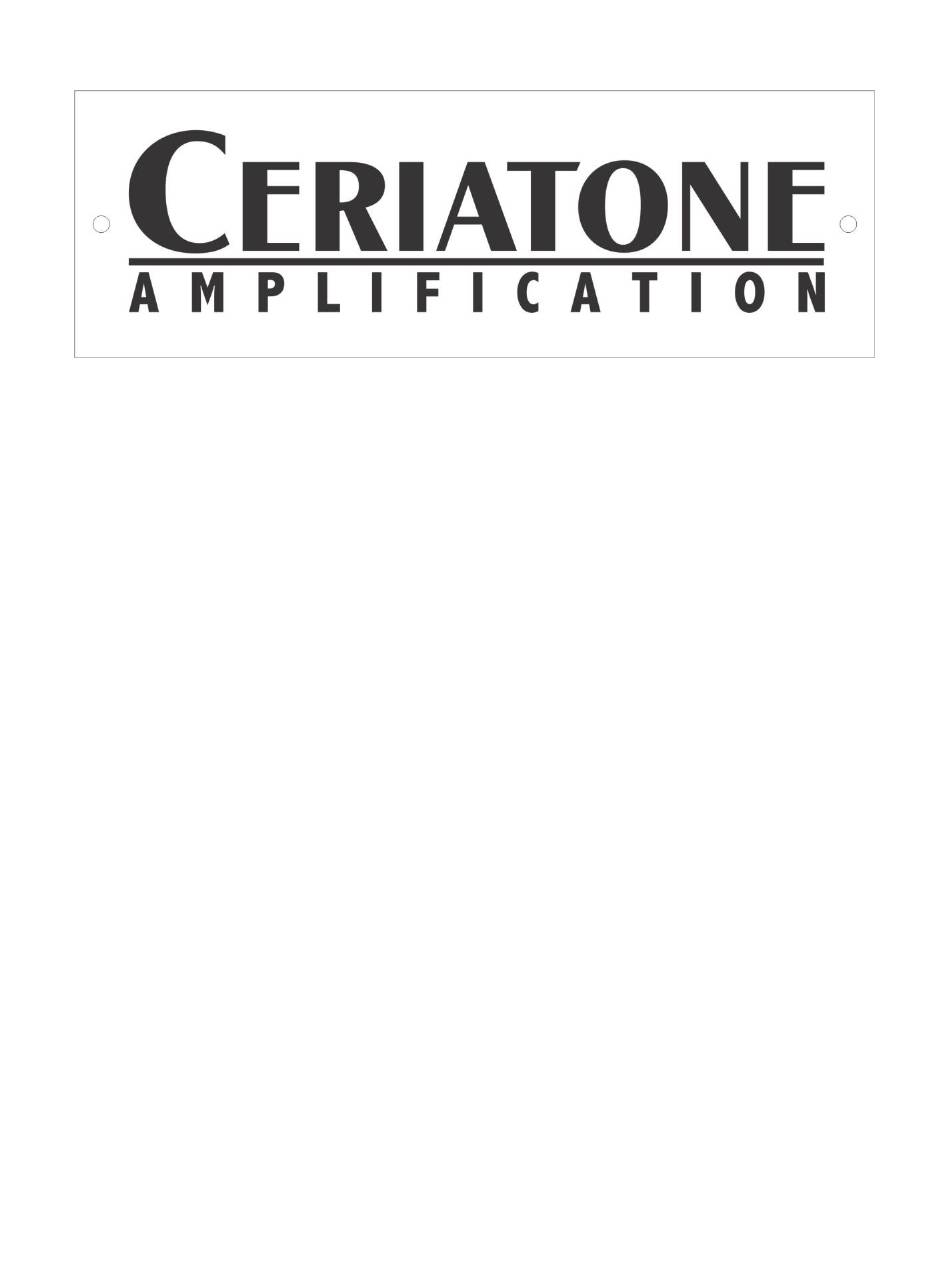

  • Page 1 AH Deluxe 50 and 100 Instruction Manual...
  • Page 2 Thank you for your kind support, and congratulations on the new amp that we at Ceriatone think will be a great addition to your tone arsenal! Overview: -Channel Switching amp with Clean and 2 Gain Channels (OD + HOD) - EL34 Power Tubes (100W = x4, 50W = x2)
  • Page 3 The Ceriatone AH Deluxe model is a 3 channel amp that will provide you with tones ranging from pristine, and rich cleans, to classic rock crunch, and to the heaviest of metals. Each channel has multiple voicing options to enable wide variety of tonal palette to the user.
  • Page 4 Power Switch: This will turn on the power to the amp. Standby Switch: This will put your amp to play mode. Do leave the amp on standby for 30-60 seconds before putting to play position, to allow the vacuum tubes to warm up, and for the toanz to be ready for your onslaught.
  • Page 5 Gain 1 Control: This is the gain/distortion control of the OD channel. Clean Volume Control: Adjust the level of the Clean channel. Treble Control: This is the treble control of the Clean channel Middle Control: This is the midrange control of the Clean channel Bass Control: This is the low end control of the Clean channel Texture Switch (OD and HOD channels):...
  • Page 6 “S” switch (OD and HOD channels): This allows for selection of gain for the overdrive channels. It basically selects 3 different configs of cathode bypass resistors/capacitors on V2B tube. Era Switch (OD and HOD channels): This gives 3 options of gain, compression, and saturation to the overdrive channels. It works by adding clippers to the circuit, while center is without a clipper.
  • Page 7 Mains Input: This is to plug the IEC power cable to your wall voltage outlet. We wire accordingly to your country, or request (100, 120, 220, 230 or 240V). Do not plug wrong voltage into the amp, damage can occur. Mains Fuse: Replace with same value and type as indicated.
