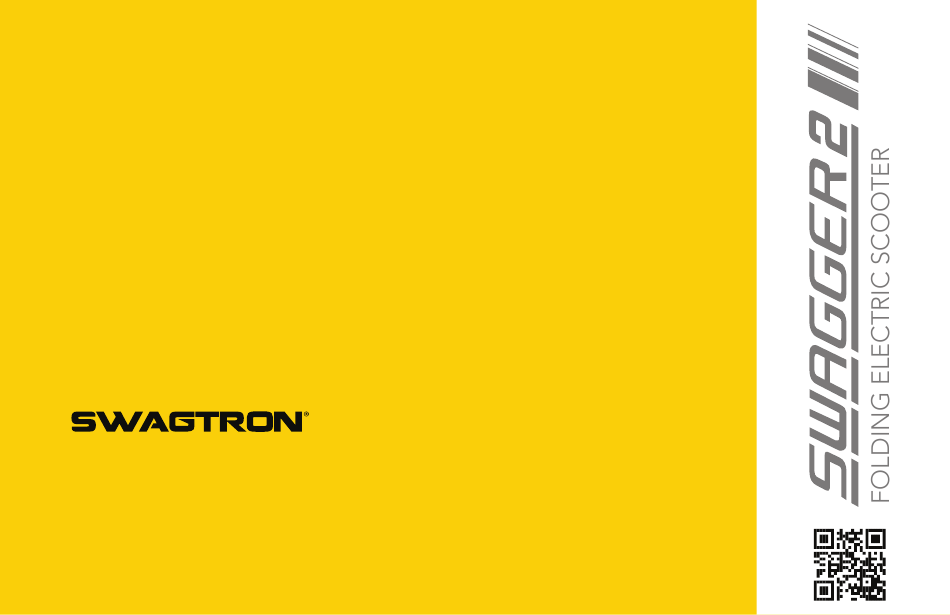

USER MANUAL
Ver. 1.0 10/23/18
In order to continue serving our customers and providing the best products, our product information including our user manuals may receive updates from
time to time. Please check our website for the latest user manuals and product materials.
SWAGTRON SWAGGER 2 FOLDING ELECTRIC SCOOTER
01
ENGLISH

Advertisement

Table of Contents
loading

Related Manuals for SWAGTRON SWAGGER 3

Summary of Contents for SWAGTRON SWAGGER 3

  • Page 1 In order to continue serving our customers and providing the best products, our product information including our user manuals may receive updates from time to time. Please check our website for the latest user manuals and product materials. SWAGTRON SWAGGER 2 FOLDING ELECTRIC SCOOTER ENGLISH...
  • Page 3 Thank you for your purchase of the Swagger 2 Folding Electric Scooter by SWAGTRON ® To ensure your safety and the safety of others, please read the guidelines in this user manual and follow them during riding. If you have any questions regarding the Swagger 2, contact us at 1-844-299-0625 for further assistance.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS SECTION 3: CHARGING ........18 SECTION1: GENERAL INFORMATION ....05 3.1 How to Charge ..........18 1.1 Safety Warnings and Important Information . 05 3.2 Safety Warnings ..........19 SECTION 4: USAGE ..........20 1.2 FCC Information ..........06 4.1 Getting Started ..........

  • Page 5: Section1: General Information

    To better insure your safety, ALWAYS USE APPROPRIATE PROTECTIVE GEAR, read and follow all instructions and warnings in the user manual. Appropriate protective gear should include shoes, kneepads, elbow pads and an ASTM F1492 approved helmet. SWAGTRON SWAGGER 2 FOLDING ELECTRIC SCOOTER ENGLISH...

  • Page 6: Fcc Information

    1.2 FCC Information DECLARATION OF CONFORMITY: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC RELATED INFORMATION: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 7: Disposal At End-Of-Life

    For additional information about where you should drop off your batteries and electrical or electronic waste, please contact your local or regional waste management office, your household waste disposal service, or your point-of-sale. SWAGTRON SWAGGER 2 FOLDING ELECTRIC SCOOTER ENGLISH...

  • Page 8: Section 2: Features

    SECTION 2: FEATURES 2.1 What’s in the Box? ■ 1x Swagger 2 Folding Electric Scooter ■ 2x Handles ■ 1x Charging Cable / Adapter ■ 2x Allen Keys ■ 1x User Manual 2.2 Assembly The scooter comes mostly assembled within the package.

  • Page 9: Swagger 2 Diagram

    4. Headlight 5. Handlebar Stem 6. Suspension 7. Motorized Front Wheel 8. Folding Latch 9. Kickstand 10. Deck 11. Footbrake 12. Rear Passive Wheel 13. Reflector 14. Handbrake 15. Charging Port 16. Throttle SWAGTRON SWAGGER 2 FOLDING ELECTRIC SCOOTER ENGLISH...

  • Page 10: Display Overview

    2.4 Display Overview Press and hold the POWER button for ~3s to turn on the display. The display is made up of these parts: 1. Screen 2. Up Button 3. Power Button 4. Down Button DO NOT expose the display to direct sunlight or high heat for extended periods of time. DO NOT store the scooter inside a vehicle or other location subject to high heat.
  • Page 11 This icon indicates current gear. There are 3 speed gears. Gear 1 is 0~3.7 mph. Gear 2 is 0~9.3 mph. Gear 3 is 0~15.5 mph. Use the UP and DOWN buttons to adjust gears as desired. SWAGTRON SWAGGER 2 FOLDING ELECTRIC SCOOTER ENGLISH...
  • Page 12 Fault Indicators: There are four icons which will appear under abnormal circumstances and/or if the internal system or parts inside the scooter encounter some type of issue. In the event that any of these icons appears, first turn the scooter off and back on again. Mp/h Km/h DISODO...
  • Page 13 This icon is related to tracking the time you travel per trip. To reset, turn the scooter off. 4. Voltage: The icon will show upon start-up. The voltage is related to internal settings within the scooter and is not user-accessible. SWAGTRON SWAGGER 2 FOLDING ELECTRIC SCOOTER ENGLISH...

  • Page 14: Display Program Settings

    2.6 Display Program Settings The display features 6 program settings which are not readily indicated on the screen by default. To access settings, press and hold the UP and DOWN buttons simultaneously to enter the settings’ screen, then press the POWER button to cycle between P1~P9 setting screens.
  • Page 15 DOWN buttons simultaneously or wait to exit and clear ODO data. P 6, P 7, and P 9 settings are for factory use and not meant to be user-accessible, do not attempt to adjust them. SWAGTRON SWAGGER 2 FOLDING ELECTRIC SCOOTER ENGLISH...

  • Page 16: Standing, Folding, And Unfolding

    2.7 Standing, Folding, and Unfolding • Before moving, lifting, or otherwise transporting the scooter, turn it off. • Keep fingers away from all movable parts of the scooter to prevent injury to fingers or other body parts. Standing Before using the kickstand, bring the scooter to a complete stop and turn it off. Before riding the scooter again, lean the scooter off the kickstand and push the kickstand up. 1. Locate the kickstand on the side of the scooter’s deck. 2.
  • Page 17 Make sure the pin slides into the notch and the lever fully moves back in place otherwise the scooter may fold. SWAGTRON SWAGGER 2 FOLDING ELECTRIC SCOOTER ENGLISH...

  • Page 18: Section 3: Charging

    CHARGING SECTION 3: CHARGE THE SCOOTER BEFORE USING IT. 3.1 How to Charge Step 1. Make sure the scooter is turned off and remove charging port’s cap. Connect the charging cable and adapter together if needed. Step 2. Connect the charging cable to the scooter, then connect it to a wall outlet. Step 3.

  • Page 19: Safety Warnings

    - Use only the charging accessories provided by the manufacturer. - Do not continue charging the battery if it does not recharge within the specified charging time. - The temperature range within which the battery can be charged is 32°F~104°F (0°C~40°C). SWAGTRON SWAGGER 2 FOLDING ELECTRIC SCOOTER ENGLISH...

  • Page 20: Section 4: Usage

    - Do not discharge the scooter using any device except for the specified device. SECTION 4: USAGE ■ Protective gear including a ASTM F1492-approved helmet must be worn at all times. ■ The scooter supports up to 200 lbs (90 kg). ■...
  • Page 21 Step 4. Once the scooter reaches approximately 4 mph (6km/h), press the throttle to start powered acceleration. Step 5. To stop, release the throttle and use the handbrake, footbrake, or both to gradually coast to a stop then step off the scooter one foot at a time. SWAGTRON SWAGGER 2 FOLDING ELECTRIC SCOOTER ENGLISH...

  • Page 22: Practicing Guidelines

    Cruise Control Step 1. Accelerate to reach the desired speed. Step 2. Hold the throttle for ~6 seconds to turn on Cruise Control and maintain speed. Step 3. Use the throttle or the handbrake to turn off Cruise Control. While riding, you can use the front headlight to improve visibility if needed. To use the light, simply press the button just above the light to turn it on or off.

  • Page 23: Section 5: Maintenance

    ■ If storing for more than one month, discharge and recharge the battery every three months. ■ DO NOT store in an unheated garage, shed, or other location with extreme temperature fluctuations or ranges. SWAGTRON SWAGGER 2 FOLDING ELECTRIC SCOOTER ENGLISH...

  • Page 24: Section 6: Specifications

    SECTION 6: SPECIFICATIONS Performance Indicators Item Parameters Folding Size 43.3 x 17 x 11.8 in. Size Open Size 43.3 x 17 x 37.8 in. Weight Vehicle Weight About 22.5 lbs (10.2 kg) Max. Load 200 lbs (90 kg) Maximum Speed About 15.5 mph (25km/h, based on terrain) Range per Charge 9 miles (14.5 km)
  • Page 25 100 - 240 VAC 50/60Hz 0.8A; Output: 29.4V Model: FY0422941000; I 1A; Manufactured by: Shenzhen Fuyuandian Power Co.,Ltd. Address: 8F, Building A9, TianRui Industrial Park, 1st Fuyuan Road, Xinhe, Fuyong, Baoan, shenzhen, Guangdong, China SWAGTRON SWAGGER 2 FOLDING ELECTRIC SCOOTER ENGLISH...

  • Page 26: Section 7: Warranty Information

    Warranty services are provided by SWAGTRON . If a hardware defect arises and a valid claim is received ® within the Warranty Period, at its option and to the extent permitted by law, SWAGTRON will: (1) repair the ® hardware defect by using new or refurbished parts that are equivalent to new in performance and reliability; or (2) exchange the Product with a product that is new or refurbished which is substantially equivalent to the original product.
  • Page 27 (g) normal wear and tear; or (h) external causes such as accidents, abuse, or other actions or events beyond our reasonable control. Important: Do not disassemble the Product. Disassembling the Product will void this Warranty. Only SWAGTRON or a party expressly authorized by SWAGTRON should perform service on this Product. ® ®...
  • Page 28 COPYRIGHT © 2018 SWAGTRON. ALL RIGHTS RESERVED.
