Installing/Adjusting Headrest

After ANY adjustments, repair or service and before use, make sure all
attaching hardware is tightened securely - otherwise injury or damage
may occur.
Installing Headrest
NOTE: For this procedure, refer to FIGURE 8.2.
1. Install the back brace. Refer to Installing removing the standard back brace
paragraph.
2. Set the Headrest bracket (mounting bolts, headrest bracket and the hand wheel A)
in the fixing holes on the standard back brace tube.
3. Introduce the vertical tube that support the headrest cushion into the headrest
bracket.
4. Adjust to the appropriate height position with the user sat into the chair, tighten the
hand wheel A.
5. Adjust the headrest cushion (depth and angle position) and tighten securely the
screws C and the handle D.
Headrest Cushion
Mounting Bolts
Hand Screws
Vertical tube

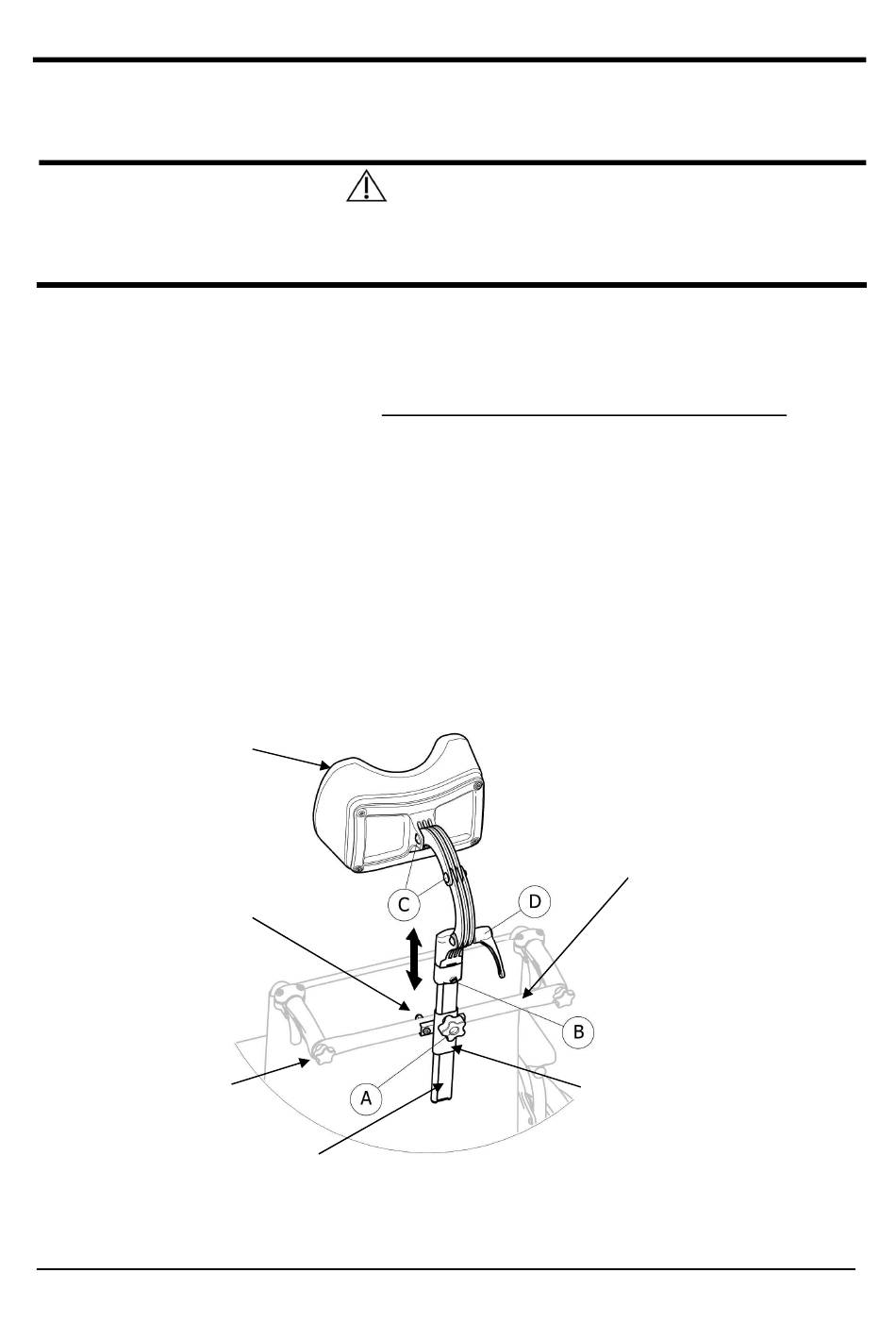

FIGURE 8.2
W A R N I N G
Installing Headrest
4 6
SECTION 9—ANTI-TIPPERS
Back Brace
Headrest Bracket
