Mine Site Technologies MinePhone MP70 User Manual

Hide thumbs Also See for MinePhone MP70:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Administrator's Manual, User Manual
MP70 MinePhone
User Guide
Revision D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MinePhone MP70 and is the answer not in the manual?

Questions and answers

Related Manuals for Mine Site Technologies MinePhone MP70

Summary of Contents for Mine Site Technologies MinePhone MP70

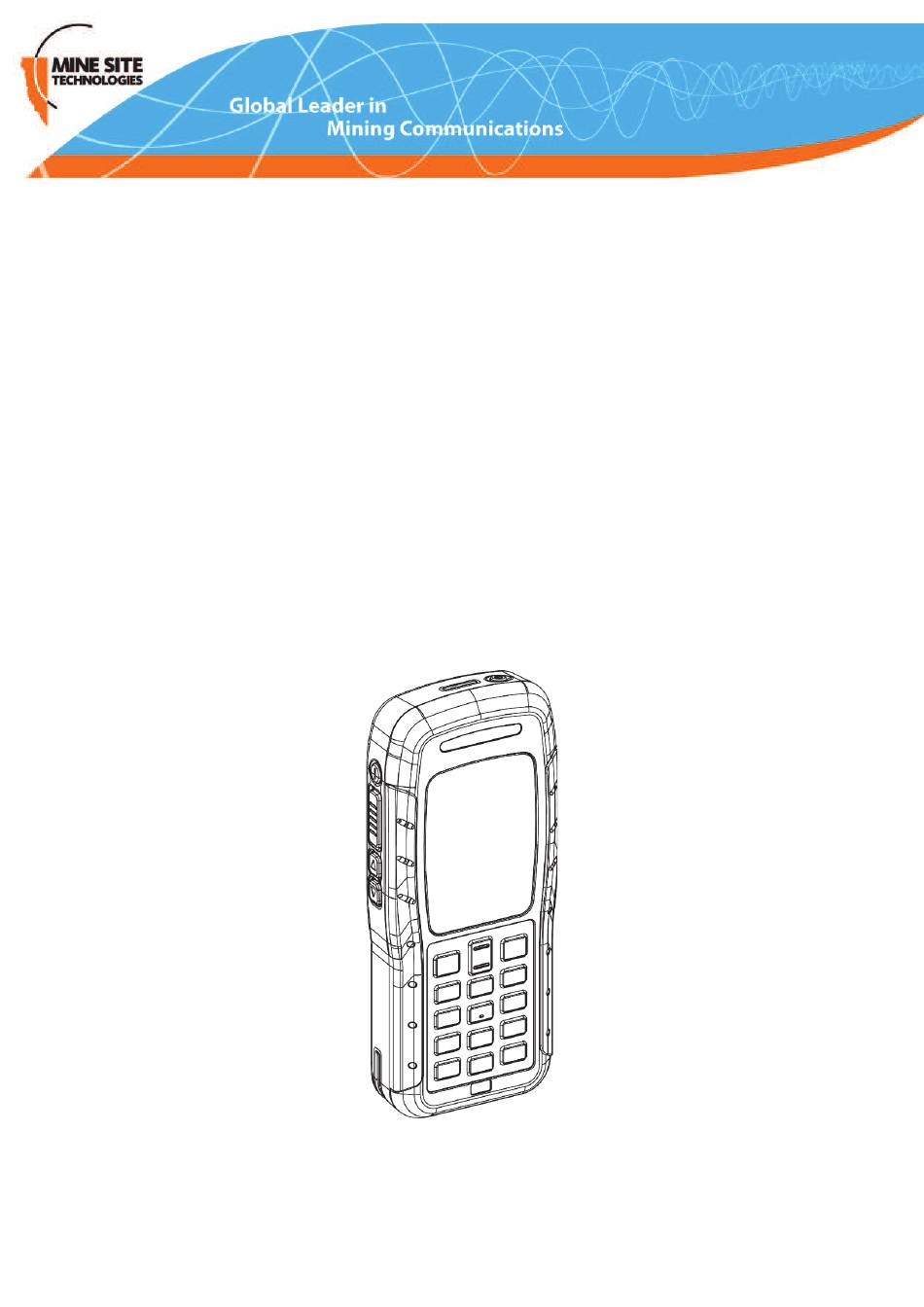

  • Page 1 MP70 MinePhone User Guide Revision D...

  • Page 3: Table Of Contents

    Contents Revision History............................5 Contact Information............................7 About this Guide............................9 Chapter 1: Product Overview..............11 1.1 Inside the Box..........................12 1.2 Hardware Features ........................13 1.3 Display............................14 1.4 Charging the Phone........................15 Chapter 2: User Basics................17 2.1 Switching the MinePhone On and Off..................18 2.2 Accessing Menu Features......................18 2.3 Changing the Speaker Volume....................19 2.4 Changing the Backlight Time and Brightness................20 2.5 Writing a Text Message......................22...
  • Page 4 5.3 Viewing Network Details......................44 5.4 Locator App..........................45 Chapter 6: Call Logs.................47 6.1 Viewing Call Logs........................48 Appendix A: Troubleshooting Guide............51 Appendix B: MP70 MinePhone Specification........53 Appendix C: Acronyms................55 Appendix D: Hardware Warranty............57 Appendix E: Firmware End User License Agreement......59 MP70 MinePhone User Guide Revision D...

  • Page 5: Revision History

    2012 Mine Site Technologies Pty Ltd. All rights reserved. Mine Site Technologies Pty Ltd reserves the right to make changes to specifications and information in this manual without prior notice. Mine Site Technologies Pty Ltd accepts no responsibility for any errors or omissions contained in this guide.

  • Page 7: Contact Information

    Contact Information AUSTRALIA - Sydney 113 Wicks Road North Ryde NSW 2113 AUSTRALIA Tel: +61 2 9491 6500 CANADA - Sudbury 1085 Kelly Lake Road Sudbury Ontario P3E 5P5 CANADA Tel: +1 705-675 7468 CHINA - Hangzhou Building 5 1413 Moganshan Road Hangzhou CHINA 310011 Tel: +86 571 85803320x206 UNITED STATES - Denver...

  • Page 9: About This Guide

    About this Guide This manual describes the features and operation of the MP70 Minephone. The Table of Contents and Index will help find the information you need. You will get the most out of the MinePhone if you read each section. Conventions used in this manual This publication uses specific formatting for certain data types.
  • Page 10 About this Guide prior to use. Under no circumstances will MST be responsible for any damages whatsoever resulting from the use of, or reliance upon, the Information. MP70 MinePhone User Guide Revision D...

  • Page 11: Chapter 1: Product Overview

    This chapter describes the features of the MP70 MinePhone and the charging dock. Inside the Box • The Mine Site Technologies’ MP70 MinePhone is a Voice over WLAN Hardware Features • (VoWLAN) phone designed for use in hazardous mining environments.

  • Page 12: Inside The Box

    Product Overview 1.1 Inside the Box When you open the MinePhone packaging it will contain the following: • MinePhone handset • MinePhone User Guide • Charging dock • Power adaptor and three wall plug connectors • Belt clip • Screw and washer for attaching the belt clip •...

  • Page 13: Hardware Features

    Product Overview 1.2 Hardware Features Description Function Display TFT display. Speaker Phone speaker. Top microphone Microphone for Push To Talk (PTT) calls. Lower microphone Microphone for phone calls. Emergency / Man Down Emergency override button broadcasting to all MinePhone users. button Push to talk (PTT) button Button for Push To Talk (PTT) communication.

  • Page 14: Display

    Product Overview Description Function Beltclip mounting hole Mounting hole for a attaching the included beltclip or optional metal beltclip. Approvals label IEC / MSHA approvals label. Left selection key / Call key Button to answer a call or left selection on the display. Keypad Keypad for entering contact numbers and text messaging.

  • Page 15: Charging The Phone

    Caution: Use only charging docks and power adaptors approved by Mine Site Technologies. Use of any other type may be dangerous, breach Intrinsic Safety requirements and will void the warranty.
  • Page 16 Product Overview Step Procedure Picture The charging indicator will be red if the battery is flat or less than fully charged. If the handset is flat, charging time will take about 3 hours. The fully charged indicator will be green when the handset is fully charged.

  • Page 17: Chapter 2: User Basics

    Chapter User Basics Topics: This chapter describes the most commonly used functions of the phone. Switching the MinePhone On • and Off Accessing Menu Features • Changing the Speaker Volume • Changing the Backlight Time • and Brightness Writing a Text Message •...

  • Page 18: Switching The Minephone On And Off

    User Basics 2.1 Switching the MinePhone On and Off To turn on the phone: 1. Press and hold down the Power button for 3 seconds. A splash screen briefly displays the hardware (HW), firmware (FW) and resource file (RES) version. 2.

  • Page 19: Changing The Speaker Volume

    User Basics 2.3 Changing the Speaker Volume There are three options for changing the speaker volume as described below. 1. Adjusting speaker volume during a call: a) Use the vertical Navigation keys to adjust the volume. 2. Changing the speaker volume for phone calls: a) Select Menu on the Home screen, scroll to the Sound option and press Select.

  • Page 20: Changing The Backlight Time And Brightness

    User Basics 3. Changing speaker volume for Push To Talk (PTT) calls: a) Select Menu on the Home screen, scroll to the Sound option and press Select. b) Select PTT Speaker Volume. c) Adjust the volume level with the vertical Navigation keys, and select OK. 2.4 Changing the Backlight Time and Brightness Context for the current task 1.
  • Page 21 User Basics b) Scroll to Backlight Time with the Navigation keys and press Select. c) Use the Navigation keys to select the desired backlight time and press Select. 2. To change the Backlight Brightness: a) Select Menu on the Home screen, scroll to the Settings option and click Select. b) Scroll to Backlight Brightness and press Select.

  • Page 22: Writing A Text Message

    User Basics Note: Lower screen brightness will reduce battery power consumption. 2.5 Writing a Text Message The MinePhone can use traditional or predictive text modes when writing text messages. When writing messages, press the * key to cycle between: • Numeric input displayed as a icon •...
  • Page 23 User Basics b) Use the Navigation keys to scroll to the contact, or use keypad to type the contact number and press Select. 2. Alternatively, messaging can be accessed via the Contact List: a) Select Contacts on the Home screen. b) Use the Navigation keys to scroll to the contact, or use keypad to type the contact number and press Select.
  • Page 24 User Basics d) Select Send Message and press Select. 3. Type the message using the keypad. 4. Select Option and press Send. MP70 MinePhone User Guide Revision D...

  • Page 25: Chapter 3: Voice Communications

    Chapter Voice Communications Topics: This chapter describes how to use the Push To Talk and phone calling features of the MinePhone. Using Push To Talk • Phone Calls • Revision D MP70 MinePhone User Guide...

  • Page 26: Using Push To Talk

    Voice Communications 3.1 Using Push To Talk The MinePhone's Push To Talk (PTT) feature is a "walkie talkie" style of communication using selectable PTT group channels. It can operate in three ways: Regular PTT Communication where one person talks and the other MinePhones in the same PTT group receive. Note that if a recipient MinePhone is already on a phone call, it will not receive the PTT call.

  • Page 27: Broadcast Push To Talk

    Voice Communications 3.1.2 Broadcast Push To Talk To make a Broadcast Push To Talk: call to all MinePhones on the network: 1. Change the PTT group channel to Channel: Broadcast using the left or right Navigation keys. 2. Press and hold the PTT button. Wait for the 2 short beeps before speaking. Your transmission will be broadcast to all MinePhones.

  • Page 28: Phone Calls

    Voice Communications 2. The emergency call is broadcast to all users for 30 seconds. To end the call, press and hold any key for 3 seconds. 3.2 Phone Calls Phone calls can be made to other MinePhones on the network and phones outside of the network (dependent upon the site network configuration).

  • Page 29: Receive A Call

    Voice Communications 3. Select the contact using the Navigation keys and/or use the keypad to enter the first few letters of the contact name. Note: The Contacts list cannot be edited in the MinePhone. They are managed by the System Administrator on the server side.

  • Page 30: Hold A Call

    Voice Communications 3.2.3 Hold a Call To put a call on hold: 1. During a call, select Option. 2. Use the Navigation keys to select Hold and press Select. 3. Call will be put on hold. 4. To remove the call from hold, select Option and select Unhold. MP70 MinePhone User Guide Revision D...
