MP70 MinePhone
Quick Start Guide
Revision A
MP70_QSG_EN_A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MP70 MinePhone and is the answer not in the manual?

Questions and answers

Related Manuals for Mine Site Technologies MP70 MinePhone

Summary of Contents for Mine Site Technologies MP70 MinePhone

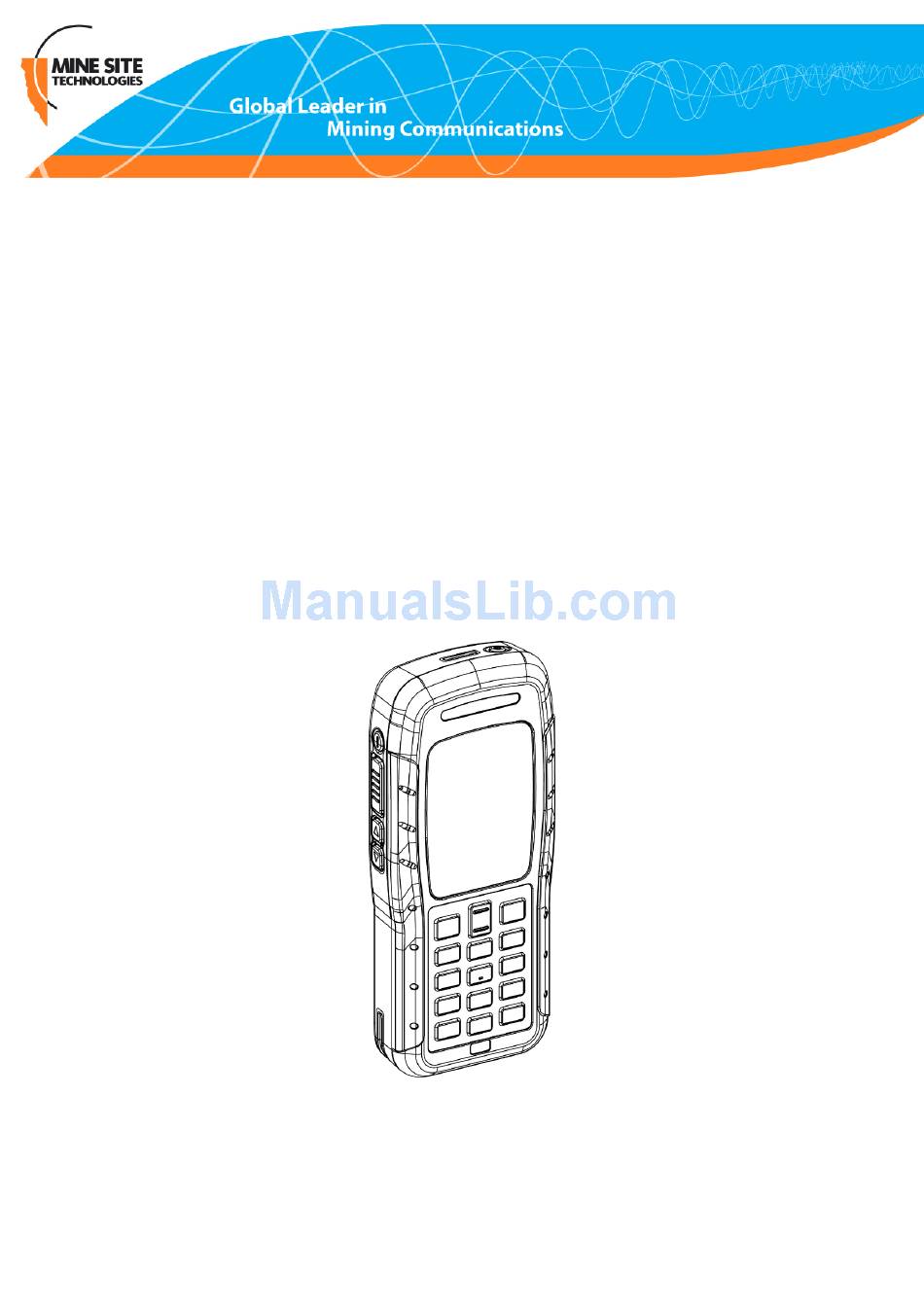

  • Page 1 MP70 MinePhone Quick Start Guide Revision A MP70_QSG_EN_A...

  • Page 3: Table Of Contents

    3.1.1 Push To Talk..................29 3.1.2 Broadcast Push To Talk..............31 3.1.3 Emergency "Man Down" Call............31 3.2 Phone Calls......................32 3.2.1 Make a Call..................32 3.2.2 Receive a Call..................35 Appendix A: MP70 MinePhone Specification......37 Appendix B: Acronyms.............39 Appendix C: Hardware Warranty...........41 Revision A MP70 Quick Start Guide...
  • Page 4 Appendix D: Firmware EULA..........43 MP70 Quick Start Guide Revision A...

  • Page 5: Revision History

    2012 Mine Site Technologies Pty Ltd. All rights reserved. Mine Site Technologies Pty Ltd reserves the right to make changes to specifications and information in this manual without prior notice. Mine Site Technologies Pty Ltd accepts no responsibility for any errors or omissions contained in this guide. Revision A...

  • Page 7: Contact Information

    Contact Information AUSTRALIA - Sydney 113 Wicks Road North Ryde NSW 2113 AUSTRALIA Tel: +61 2 9491 6500 CANADA - Sudbury 1085 Kelly Lake Road Sudbury Ontario P3E 5P5 CANADA Tel: +1 705-675 7468 CHINA - Hangzhou 4F, Building 1 1413 Moganshan Road Hangzhou CHINA 310011 Tel: +86 571 85803320x206...

  • Page 9: About This Guide

    Related Documentation The following documents, available from MST, include information relevant to the configuration and operation of the MP70 MinePhone: • MinePhone Administrator Guide • MinePhone MP70 User Guide • ICA Administration Console User Manual •...
  • Page 10 About this Guide Additional Support For additional support please visit our website: http://www.minesite.com.au/ Note: The information provided in this document ("Information") is presented in good faith and believed to be correct as at the date of this document. MST makes no representations as to the accuracy or completeness of the Information.

  • Page 11: Chapter 1: Product Overview

    Chapter Product Overview This chapter describes the features of the MP70 MinePhone and the charging dock. Note: The MP70 series includes both the yellow MP70 for Intrinsically Safe environments, and the orange MP71 for Hard Rock environments, which supercedes the discontinued Hard Rock MP70. Unless otherwise specified, all references to the MP70 apply equally to the MP71.

  • Page 12: Hardware Features

    Product Overview 1.1 Hardware Features 1. Display - TFT display 2. Speaker - Phone speaker. 3. Top Microphone - Microphone for Push To Talk (PTT) calls. 4. Bottom microphone - Microphone for voice calls. 5. Emergency / Man Down Button - 6.

  • Page 13: Display

    Product Overview 12. Approvals label - IEC / MSHA approvals label. 13. Left softkey / Call - Left selection on the display or answer a call. 14. Keypad - Keypad for entering contact numbers and text messaging. 15. Navigation key - Moves selection up or down when accessing the phone menu. 16.

  • Page 14: Charging The Minephone

    Product Overview 1.3 Charging the MinePhone The MinePhone has an internal battery providing up to 48 hours standby and 4 hours talk time. It can be charged using the supplied charging dock and power adaptor, which can operate at 110-240v AC. The charger should be placed in a well ventilated, non-hazardous area with access to power.
  • Page 15 Product Overview 4. The red indicator light will show if the battery is flat or less than fully charged. If the handset is flat, charging time will take about 3 hours. 5. The green indicator light will come on when the handset is fully charged. Revision A MP70 Quick Start Guide...
  • Page 16 Product Overview MP70 Quick Start Guide Revision A...

  • Page 17: Chapter 2: User Basics

    Chapter User Basics This chapter describes the most commonly used functions of the phone. 2.1 Switching the MinePhone On and Off To turn on the phone: 1. Press and hold down the Power button for 3 seconds. A splash screen briefly displays the hardware (PCB), firmware (FW) and resource file (RES) versions.

  • Page 18: Accessing Menu Features

    User Basics 2.2 Accessing Menu Features To access the menu: 1. Press the left softkey below the Menu option on the Home screen. 2. Use the vertical Navigation keys to scroll up and down the phone menu. MP70 Quick Start Guide Revision A...

  • Page 19: Changing The Speaker Volume

    User Basics 2.3 Changing the Speaker Volume There are three options for changing the speaker volume as described below. 1. Adjusting speaker volume during a call: a) Use the vertical Navigation keys to adjust the volume. 2. Changing the speaker volume for phone calls: a) Select Menu on the Home screen, scroll to the Sound option and press Select.
  • Page 20 User Basics b) Select Phone Call Volume. c) Adjust the volume level using the vertical Navigation keys, and select OK. 3. Changing speaker volume for Push To Talk (PTT) calls: a) Select Menu on the Home screen, scroll to the Sound option and press Select. MP70 Quick Start Guide Revision A...
  • Page 21 User Basics b) Select PTT Speaker Volume. c) Adjust the volume level with the vertical Navigation keys, and select OK. Revision A MP70 Quick Start Guide...

  • Page 22: Changing The Backlight Time And Brightness

    User Basics 2.4 Changing the Backlight Time and Brightness Context for the current task 1. To change the Backlight Time: a) Select Menu on the Home screen, scroll to the Settings option and press Select. b) Scroll to Backlight Time with the Navigation keys and press Select. c) Use the Navigation keys to select the desired backlight time and press Select.
  • Page 23 User Basics 2. To change the Backlight Brightness: a) Select Menu on the Home screen, scroll to the Settings option and click Select. b) Scroll to Backlight Brightness and press Select. c) Adjust the brightness using the Navigation keys, and press OK. Revision A MP70 Quick Start Guide...

  • Page 24: Writing A Text Message

    User Basics Note: Lower screen brightness will reduce battery power consumption. 2.5 Writing a Text Message The MinePhone can use traditional or predictive text modes when writing text messages. When writing messages, press the * key to cycle between: • Numeric input displayed as a icon •...

  • Page 25: Sending A Text Message

    User Basics Traditional text input Press a number key between 2 and 9 repeatedly until the required character appears. If the next character is located on the same key as the present one, wait until the cursor appears and enter the letter / number. Predictive text input The MinePhone has a built in dictionary for predictive text input.
  • Page 26 User Basics 2. Alternatively, messaging can be accessed via the Contact List: a) Select Contacts on the Home screen. b) Use the Navigation keys to scroll to the contact, or use keypad to type the contact number and press Select. c) If there are multiple numbers for the contact, select the correct one.
  • Page 27 User Basics d) Select Send Message and press Select. 3. Type the message using the keypad. 4. Select Option and press Send. Revision A MP70 Quick Start Guide...
  • Page 28 User Basics MP70 Quick Start Guide Revision A...

  • Page 29: Chapter 3: Voice Communications

    Chapter Voice Communications This chapter describes how to use the Push To Talk and phone calling features of the MinePhone. 3.1 Using Push To Talk The MinePhone's Push To Talk (PTT) feature is a "walkie talkie" style of communication using selectable PTT group channels. It can operate in three ways: Regular PTT Communication where one person talks and the other MinePhones in the same PTT group receive.
  • Page 30 Voice Communications 2. Press and hold the PTT button. Wait for the short beep before speaking. 3. When you have finished speaking, release the PTT button. This allows one of the recipients to talk back on the PTT group. MP70 Quick Start Guide Revision A...

  • Page 31: Broadcast Push To Talk

    Voice Communications 3.1.2 Broadcast Push To Talk To make a Broadcast Push To Talk call to all MinePhones on the network: 1. Change the PTT group channel to Channel: Broadcast. 2. Press and hold the PTT button. Wait for the 2 short beeps before speaking. Your transmission will be broadcast to all MinePhones.

  • Page 32: Phone Calls

    Voice Communications Press and hold the Emergency button for 3 seconds. An emergency broadcast screen is displayed with a countdown to broadcast. 2. The emergency call is broadcast to all users for 30 seconds. To end the call, press and hold any key for 3 seconds.
  • Page 33 Voice Communications To make a call: 1. If you know the number of the person you are calling, use the keypad to type the number and press the Call button or left softkey. 2. To look up a number, select Contacts from the Home screen. 3.
  • Page 34 Voice Communications Note: The Contacts list cannot be edited in the MinePhone. They are managed by the System Administrator on the server side. 4. Select Option. 5. Select Call to make the call. To end the call press the End key. MP70 Quick Start Guide Revision A...

  • Page 35: Receive A Call

    Voice Communications 3.2.2 Receive a Call To answer a call press the Call button. To end the call, press the End/Hang up button. Revision A MP70 Quick Start Guide...

  • Page 37: Appendix A: Mp70 Minephone Specification

    Appendix MP70 MinePhone Specification Physical Dimensions 150mm (W) x 75mm (D) x 35mm (H) Weight 250g Display 240 x 320 Colour TFT Battery (internal) 1100mAh Battery life 4 hours talktime 48 hours standby time Transmit Power +17dBm Enclosure Ingress IP54...
  • Page 38 MP70 MinePhone Specification Wireless Security WEP (64/128 bit encryption) WPA2 Voice Features G.711 (A-Law & u-Law 64kbps) G.729A (8kbps) Acoustic echo cancellation Background noise cancellation Jitter buffer control (default 80ms, max 320ms) Voice Voice-over-IP (P2P, PBX, PTT) Communication IEEE 802.11 b/g...

  • Page 39: Appendix B Acronyms

    Acronyms Acronym Meaning Access Point DHCP Dynamic Host Configuration Protocol ImPact Communication Appliance Media Access Control Mine Site Technologies Network Time Protocol Push To Talk Peer to Peer Remote Speaker Microphone RSSI Received Signal Strength Indicator Real Transport Protocol Session Initiation Protocol...

  • Page 41: Appendix C: Hardware Warranty

    Appendix Hardware Warranty Mine Site Technologies provide a 12 month warranty for hardware supplied to the original purchaser. Mine Site Technologies warrants that the hardware supplied will be free from material defects in workmanship and materials from the date of original purchase.
  • Page 43 1. GRANT OF LICENSE The MST firmware is licensed as follows: (a) Installation and Use Mine Site Technologies grants you the right to install and use copies of the MST firmware on associated MST hardware. (b) Backup Copies You may also make copies of the MST firmware if necessary for backup and archival purposes.
  • Page 44 'authorised users' use of or inability to use the MST firmware, even if Mine Site Technologies has been advised of the possibility of such damages. In no event will Mine Site Technologies be liable for loss of data or for indirect, special, incidental, consequential (including lost profit), or other damages based in contract, tort or otherwise.
