MP10 MinePhone
Quick Start Guide
Revision B
MP10_QSG_EN_B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MP10 MinePhone and is the answer not in the manual?

Questions and answers

Related Manuals for Mine Site Technologies MP10 MinePhone

Summary of Contents for Mine Site Technologies MP10 MinePhone

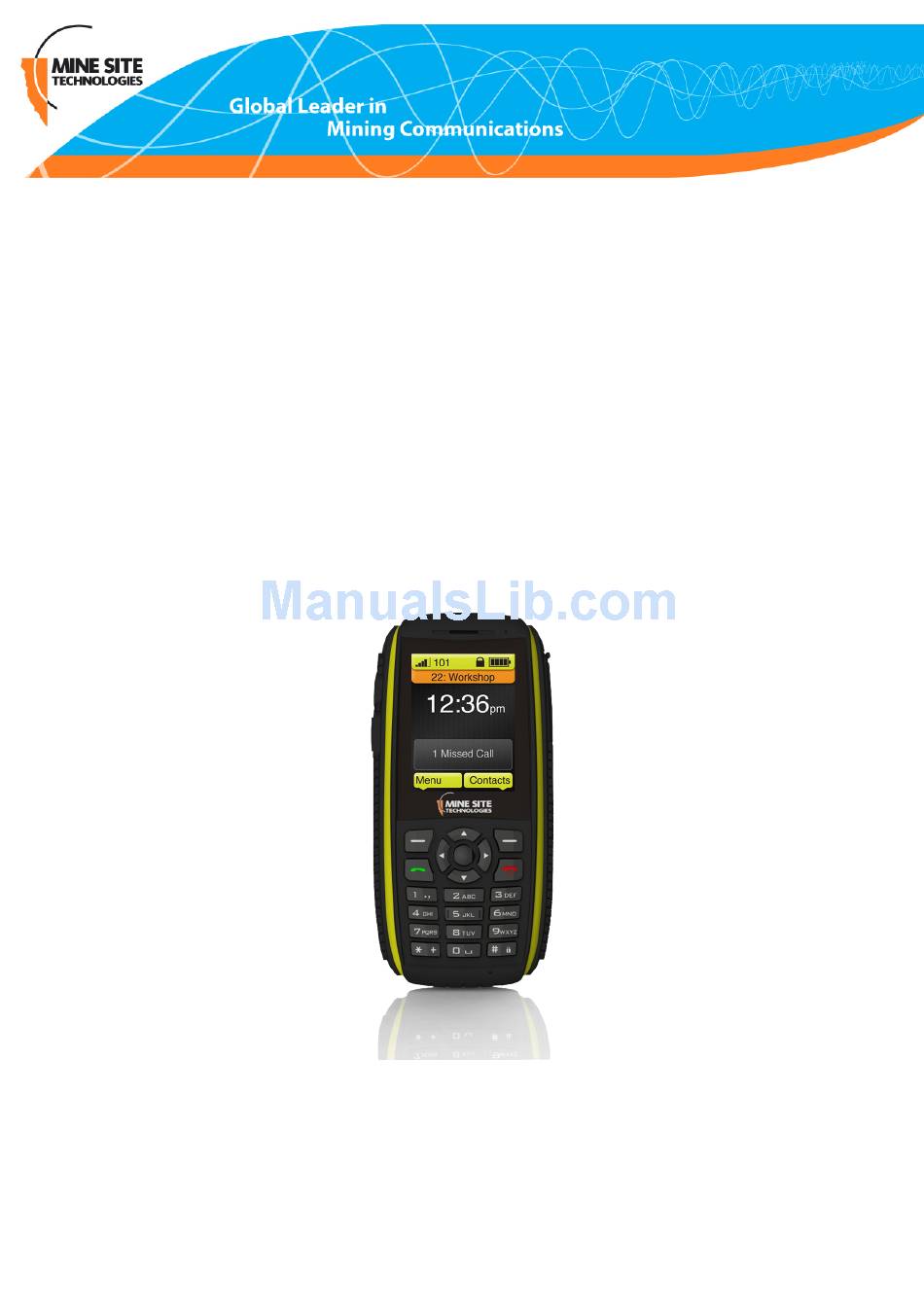

  • Page 1 MP10 MinePhone Quick Start Guide Revision B MP10_QSG_EN_B...

  • Page 3: Table Of Contents

    3.1.1 Changing the PTT Channel..........30 3.1.2 Making a PTT call.............32 3.1.3 Broadcast Push To Talk.............33 3.1.4 Emergency "Man Down" Call..........34 3.2 Phone Calls...................35 3.2.1 Make a Call...............35 3.2.2 Receive a Call..............36 Appendix A: MP10 MinePhone Specification.....39 Revision B MP10 Quick Start Guide...
  • Page 4 Appendix B: Acronyms..........43 Appendix C: Hardware Warranty........45 Appendix D: Firmware EULA........47 MP10 Quick Start Guide Revision B...

  • Page 5: Revision History

    2012 Mine Site Technologies Pty Ltd. All rights reserved. Mine Site Technologies Pty Ltd reserves the right to make changes to specifications and information in this manual without prior notice. Mine Site Technologies Pty Ltd accepts no responsibility for any errors or omissions contained in this guide. Revision B...

  • Page 7: Contact Information

    Contact Information AUSTRALIA - Sydney 113 Wicks Road North Ryde NSW 2113 AUSTRALIA Tel: +61 2 9491 6500 CANADA - Sudbury 1085 Kelly Lake Road Sudbury Ontario P3E 5P5 CANADA Tel: +1 705-675 7468 CHINA - Hangzhou Building 5 1413 Moganshan Road Hangzhou CHINA 310011 Tel: +86 571 85803320x206 UNITED STATES - Denver...

  • Page 9: About This Guide

    About this Guide This manual describes the features and operation of the MP10 Minephone. You will get the most out of the MinePhone if you read each section. Conventions used in this manual This publication uses specific formatting for certain data types. These may differ or appear similar in certain languages.
  • Page 10 About this Guide Related Documentation The following documents, available from MST, include information relevant to the configuration and operation of the MP10 MinePhone: • MinePhone Administrator Guide • MinePhone MP10 User Manual • ICA Administration Console User Manual • MineDash User Manual...

  • Page 11: Chapter 1: Product Overview

    MinePhone and charger. • Hardware Features • Display The Mine Site Technologies’ MP10 MinePhone is • Charging the Phone a Voice over WLAN (VoWLAN) phone designed for use in hazardous mining environments. It provides two way voice and text communication over the underground wireless network.

  • Page 12: Hardware Features

    Product Overview 1.1 Hardware Features 1. Lanyard mounting point - Mounting hole for a attaching a lanyard strap. 2. Notification light - LED on top of the phone, indicates charging status and flashes during calls. 3. Emergency / Man Down button - Emergency override button broadcasting to all MinePhone users.

  • Page 13: Display

    Product Overview 11. End / Power button - Short press to end call or exit to the home screen. Long press to turn phone on/off. 12. Select key - Selects the highlighted option in a menu. 13. Navigation keys - Navigation arrows when accessing the phone menu. 14.

  • Page 14: Charging The Phone

    The charger should be placed in a well ventilated, non-hazardous area with access to power. Caution: Use only power adaptors approved by Mine Site Technologies. Check that the supplied charger operates at the correct voltage for your country before use. Use of non-approved chargers may be dangerous or breach safety requirements, and will void the warranty.
  • Page 15 Product Overview 4. The indicator light will be red if the battery is flat or less than fully charged. If the handset is flat, charging time will take 4-5 hours. 5. The indicator light will turn green when the handset is fully charged. Revision B MP10 Quick Start Guide...

  • Page 17: Chapter 2: User Basics

    Chapter User Basics Topics: This chapter describes the most commonly used functions of the phone. • Switching the MinePhone On and Off • Accessing Menu Features • Changing the Speaker Volume • Changing the Backlight Time and Brightness • Writing a Text Message •...

  • Page 18: Switching The Minephone On And Off

    User Basics 2.1 Switching the MinePhone On and Off To turn on the phone: 1. Press and hold down the Power/End button for 3 seconds. A splash screen briefly displays the hardware (HW), firmware (FW) and resource file (RES) version. 2.

  • Page 19: Changing The Speaker Volume

    User Basics 2. Use the vertical Navigation keys to scroll up and down the phone menu. 2.3 Changing the Speaker Volume There are three options for changing the speaker volume as described below. 1. Adjusting speaker volume during a call: a) Use the vertical Navigation keys to adjust the volume.
  • Page 20 User Basics 2. Changing the speaker volume for phone calls: a) Select Menu on the Home screen, scroll to the Sound option and press Select. b) Select Phone Call Volume. c) Adjust the volume level using the vertical Navigation keys, and select 3.
  • Page 21 User Basics Select Menu on the Home screen, scroll to the Sound option and press Select. b) Select PTT Speaker Volume. c) Adjust the volume level with the vertical Navigation keys, and select Revision B MP10 Quick Start Guide...

  • Page 22: Changing The Backlight Time And Brightness

    User Basics 2.4 Changing the Backlight Time and Brightness Context for the current task 1. To change the Backlight Time: a) Select Menu on the Home screen, scroll to the Settings option and press Select. b) Scroll to Backlight Time with the Navigation keys and press Select. c) Use the Navigation keys to select the desired backlight time and press Select.
  • Page 23 User Basics 2. To change the Backlight Brightness: a) Select Menu on the Home screen, scroll to the Settings option and click Select. b) Scroll to Backlight Brightness and press Select. c) Adjust the brightness using the Navigation keys, and press OK. Revision B MP10 Quick Start Guide...

  • Page 24: Writing A Text Message

    User Basics Note: Lower screen brightness will reduce battery power consumption. 2.5 Writing a Text Message The MinePhone can use traditional or predictive text modes when writing text messages. When writing messages, press the * key to cycle between: • Numeric input displayed as a icon •...

  • Page 25: Sending A Text Message

    User Basics Traditional text input Press a number key between 2 and 9 repeatedly until the required character appears. If the next character is located on the same key as the present one, wait until the cursor appears and enter the letter / number. Predictive text input The MinePhone has a built in dictionary for predictive text input.
  • Page 26 User Basics 2. Alternatively, messaging can be accessed via the Contact List: a) Select Contacts on the Home screen. b) Use the Navigation keys to scroll to the contact, or use keypad to type the contact number and press Select. c) If there are multiple numbers for the contact, select the correct one.
  • Page 27 User Basics d) Select Send Message and press Select. 3. Type the message using the keypad. 4. Select Option and press Send. Revision B MP10 Quick Start Guide...
  • Page 28 User Basics MP10 Quick Start Guide Revision B...

  • Page 29: Chapter 3: Voice Communications

    Chapter Voice Communications Topics: This chapter describes how to use the Push To Talk and phone calling features of the MinePhone. • Using Push To Talk • Phone Calls Revision B MP10 Quick Start Guide...

  • Page 30: Using Push To Talk

    Voice Communications 3.1 Using Push To Talk The MinePhone's Push To Talk (PTT) feature is a "walkie talkie" style of communication using selectable PTT group channels. It can operate in three ways: Regular PTT Communication where one person talks and the other MinePhones in the same PTT group receive.
  • Page 31 Voice Communications 2. Select Network. 3. Select PTT Group Channel. 4. Highlight PTT Channel Up or PTT Channel Down and press the left softkey (Change) to cycle through the available channels. 5. When the desired channel is shown, press the End button to exit to the main screen.

  • Page 32: Making A Ptt Call

    Voice Communications 3.1.2 Making a PTT call To use Push to Talk (PTT): 1. Make sure you and the intended recipient(s) are on the same channel (see Changing the PTT Channel on page 30). 2. Press and hold the PTT button. Wait for the short beep before speaking. 3.

  • Page 33: Broadcast Push To Talk

    Voice Communications 3.1.3 Broadcast Push To Talk To make a Broadcast Push To Talk call to all MinePhones on the network: 1. Change the PTT group channel to Channel: Broadcast using the left or right Navigation keys. 2. Press and hold the PTT button. Wait for the 2 short beeps before speaking. Your transmission will be broadcast to all MinePhones.

  • Page 34: Emergency "Man Down" Call

    Voice Communications 3.1.4 Emergency "Man Down" Call The MinePhone has an Emergency / Man Down button on the side of the phone. When pressed, the call will be broadcast to all users and will override all phone calls on the network. Important: The Emergency button should only be pressed in an emergency situation.

  • Page 35: Phone Calls

    Voice Communications 3.2 Phone Calls Phone calls can be made to other MinePhones on the network and phones outside of the network (dependent upon the site network configuration). 3.2.1 Make a Call Calls can be made to other MinePhones on the same network. Calls made to phones outside of the network may require a prefix number to be entered before dialling the number, for example '0'.

  • Page 36: Receive A Call

    Voice Communications 3. Select the contact using the Navigation keys and/or use the keypad to enter the first few letters of the contact name. Note: The Contacts list cannot be edited in the MinePhone. They are managed by the System Administrator on the server side. 4.
  • Page 37 Voice Communications Revision B MP10 Quick Start Guide...

  • Page 39: Appendix A: Mp10 Minephone Specification

    Appendix MP10 MinePhone Specification Note: While every effort is made to ensure that this information is accurate at the time of publishing, the following specifications are subject to change. Please refer to the datasheet for your model and version for up to date information.
  • Page 40 MP10 MinePhone Specification • Session Initiation Protocol (SIP) RFC 3621, 3624 & 3515 V2 • Call control & text messaging (RFC 3261 & DPRFC 2321) • DTMF RFC 2833 • Software updates by TFTP WLAN and Voice Communications Transmitter Wi-Fi 802.11b/g...
  • Page 41 MP10 MinePhone Specification Text messaging (stores up to 100 messages) Multiple ring tones Phone book (up to 200 records) Power saving mode Speaker volume control Vibrating alert Specific 32 Push to talk (PTT) channels features Emergency "man down" override External headset...
  • Page 43 Acronyms Acronym Meaning Access Point DHCP Dynamic Host Configuration Protocol ImPact Communication Appliance Media Access Control Mine Site Technologies Network Time Protocol Push To Talk Peer to Peer Remote Speaker Microphone RSSI Received Signal Strength Indicator Real Transport Protocol Session Initiation Protocol...
  • Page 45 Mine Site Technologies. Mine Site Technologies may at its sole discretion replace the defective hardware (or any part thereof) with a reconditioned product or parts that Mine Site Technologies determines is substantially equivalent (or superior) to the defective hardware.
  • Page 47 1. GRANT OF LICENSE The MST firmware is licensed as follows: (a) Installation and Use Mine Site Technologies grants you the right to install and use copies of the MST firmware on associated MST hardware. (b) Backup Copies You may also make copies of the MST firmware if necessary for backup and archival purposes.
  • Page 48 All title, including but not limited to copyrights, in and to the MST firmware and any copies thereof are owned by Mine Site Technologies. All title and intellectual property rights in and to the content which may be accessed through...
  • Page 49 'authorised users' use of or inability to use the MST firmware, even if Mine Site Technologies has been advised of the possibility of such damages. In no event will Mine Site Technologies be liable for loss of data or for indirect, special, incidental, consequential (including lost profit), or other damages based in contract, tort or otherwise.
