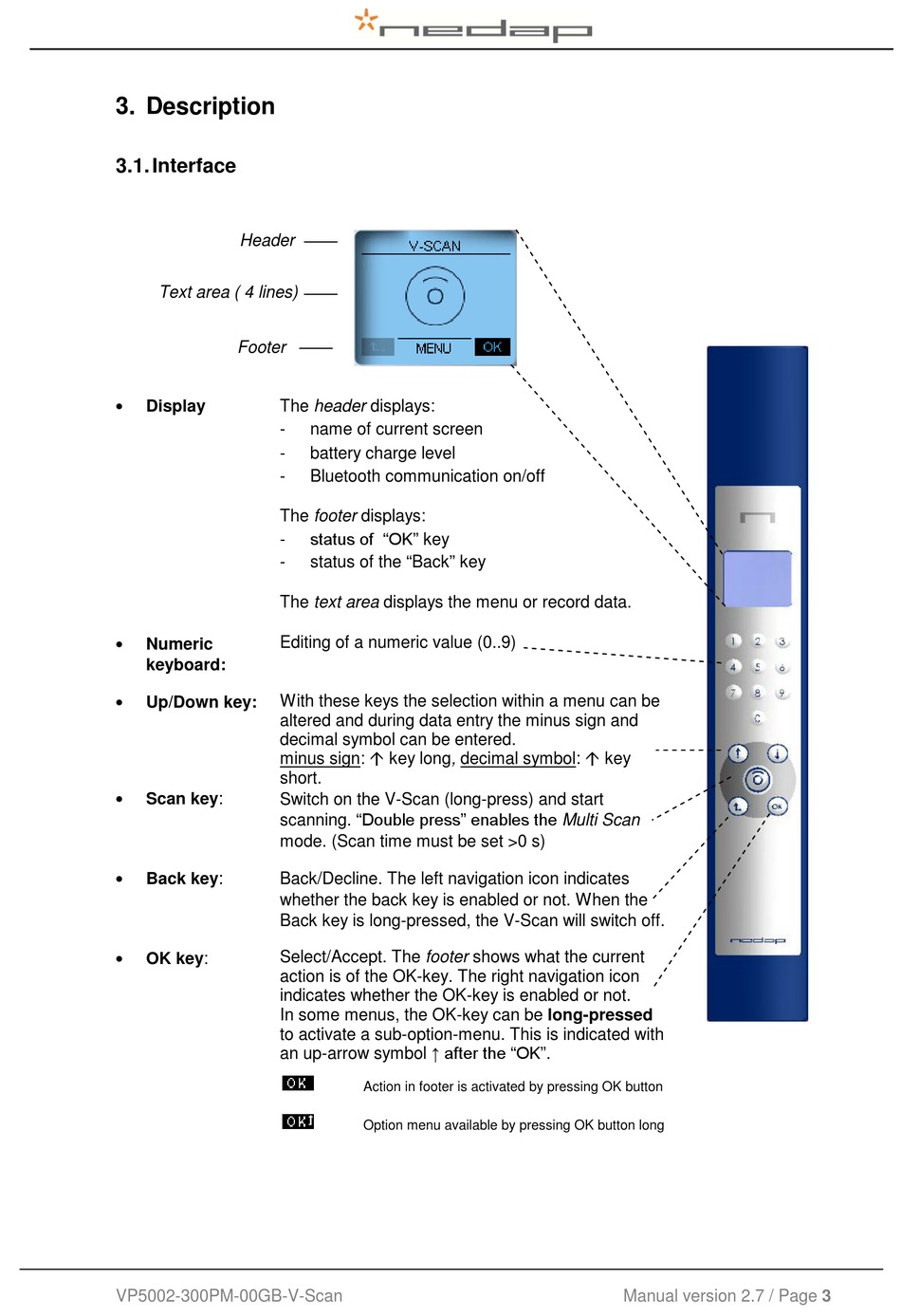

3. Description

3.1. Interface

Header
Text area ( 4 lines)
Footer

Display The header displays:
-
-
-
The footer displays:
-
-
The text area displays the menu or record data.

Editing of a numeric value (0..9)
Numeric
keyboard:

With these keys the selection within a menu can be
Up/Down key:
altered and during data entry the minus sign and
decimal symbol can be entered.
minus sign:  key long, decimal symbol:  key
short.

Scan key: Switch on the V-Scan (long-press) and start
scanning. "Double press" enables the Multi Scan
mode. (Scan time must be set >0 s)

Back key: Back/Decline. The left navigation icon indicates
whether the back key is enabled or not. When the
Back key is long-pressed, the V-Scan will switch off.

Select/Accept. The footer shows what the current
OK key:
action is of the OK-key. The right navigation icon
indicates whether the OK-key is enabled or not.
In some menus, the OK-key can be long-pressed
to activate a sub-option-menu. This is indicated with
an up-arrow symbol ↑ after the "OK".
VP5002-300PM-00GB-V-Scan
name of current screen
battery charge level
Bluetooth communication on/off
status of "OK" key
status of the "Back" key
Action in footer is activated by pressing OK button
Option menu available by pressing OK button long
